1. Important Safety Information
Please read all instructions carefully before assembly and use. Keep this manual for future reference. Ensure all connections are secure to prevent leaks. Do not overload the sink or shelves. Use appropriate personal protective equipment during installation.
2. Package Contents
Verify that all components are present before beginning assembly:
- Stainless Steel Sink Bowl
- Freestanding Frame with Undershelf
- Faucet with Cold and Hot Water Pipes
- Adjustable Feet
- Drainage System (includes drain pipes, basket strainers, and covers)
- Towel Bar
3. Setup and Installation
Follow these steps for proper assembly and installation of your Lafati utility sink.
3.1 Assemble the Frame
Attach the legs to the sink bowl and secure the undershelf. Ensure all bolts are tightened for stability.
3.2 Install the Faucet
Insert the faucet into the designated hole on the sink. Connect the cold and hot water inlet pipes to your water supply lines. The faucet features a 360-degree swivel for convenience.
Image: Overview of the sink's features, including the 4.7-inch backsplash and 360-degree swivel faucet for hot and cold water.
3.3 Connect the Drainage System
Assemble the drain pipes, basket strainers, and covers as shown in the diagram. Connect the P-trap to your waste pipe. Ensure all connections are watertight to prevent leaks.
Image: Detailed diagram illustrating the components and assembly of the standard P-trap drainage system.
3.4 Adjust the Feet
The sink is equipped with adjustable bullet feet. Rotate the feet to level the sink on uneven surfaces, ensuring stability.
Image: Features of the sink including the 90-degree rectangular bowl, adjustable feet for leveling, and a convenient towel bar.
3.5 Video Guide: Lafati Stainless Steel Utility Sink Overview
Video: This video provides a visual overview of the Lafati Stainless Steel Utility Sink, demonstrating its features, assembly, and various applications.
4. Operating Instructions
Your Lafati utility sink is designed for versatile use in various environments.
4.1 Faucet Operation
The faucet handle controls water flow and temperature. Move the handle to adjust the water temperature between cold and hot. The 360-degree swivel spout allows for flexible use and easy access to all areas of the sink bowl.
4.2 Sink Usage
The large single bowl is suitable for washing dishes, preparing food, laundry tasks, or cleaning tools. The 90-degree rectangular design maximizes capacity.
Image: A person demonstrating the use of the stainless steel utility sink for washing vegetables.
4.3 Drainage
The included basket strainer effectively catches debris, preventing clogs. Regularly empty the strainer to maintain optimal drainage performance.

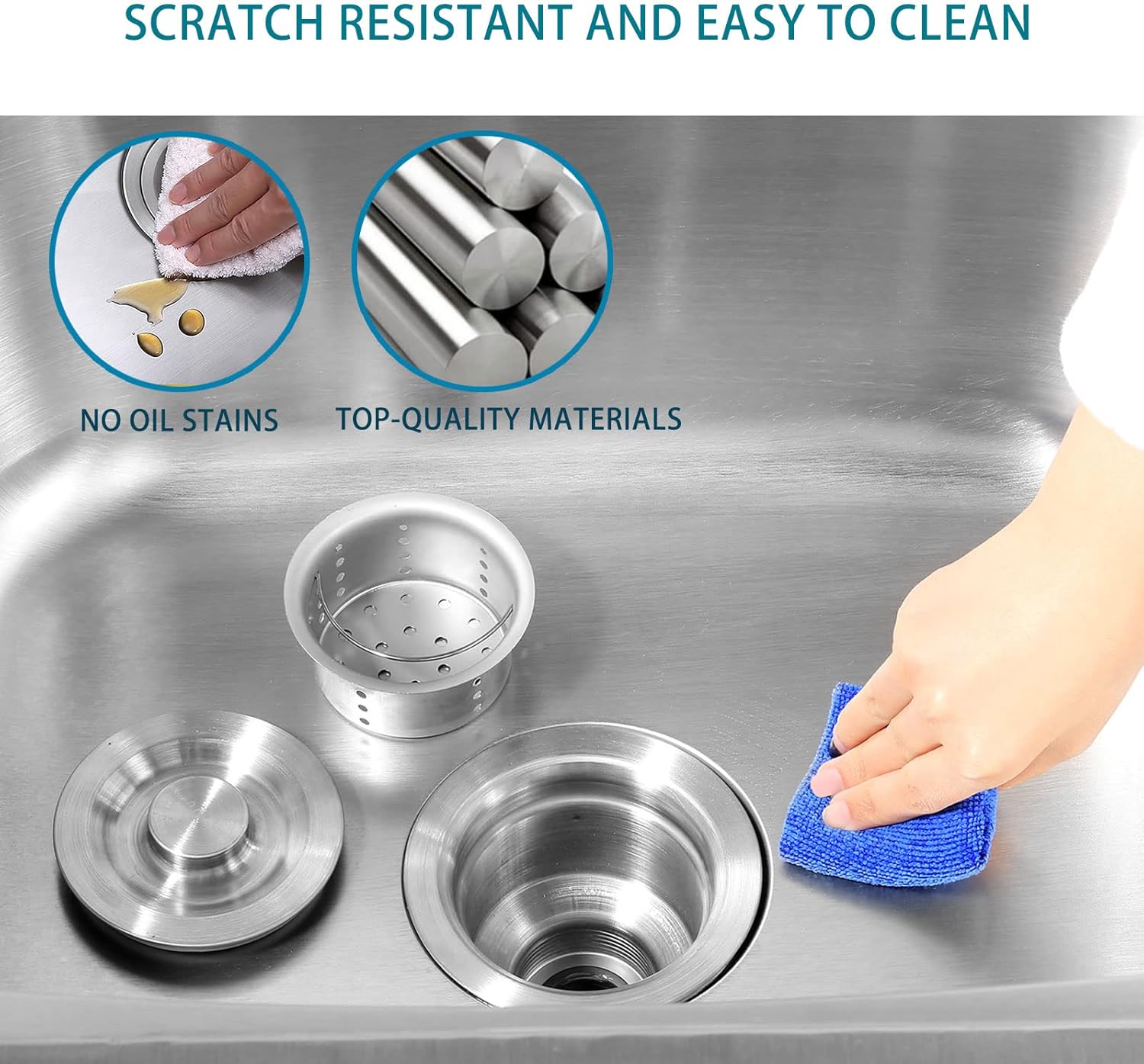

Image: Close-up view of the sink drain, highlighting its easy-to-clean brushed stainless steel surface and the functionality of the stainless steel basket strainer.
5. Maintenance
Proper care will ensure the longevity and appearance of your stainless steel utility sink.
5.1 Cleaning
Wipe the sink surface with a damp cloth and mild detergent. For best results, follow with a dry cloth to prevent water spots. Avoid abrasive cleaners or scouring pads that can scratch the brushed finish.
Image: Illustrates the scratch-resistant and easy-to-clean properties of the sink's stainless steel surface, showing how it repels oil stains.
5.2 Preventing Stains and Rust
Although made of stainless steel, prolonged contact with certain chemicals or standing water can cause discoloration. Rinse the sink thoroughly after each use and dry it to prevent mineral buildup and potential staining.
6. Troubleshooting
If you encounter any issues with your utility sink, refer to the following common problems and solutions.
6.1 Leaks from Faucet or Drain Connections
- Check Connections: Ensure all nuts and fittings on the faucet and drainage pipes are securely tightened.
- Inspect Washers/Gaskets: Verify that all rubber washers and gaskets are correctly seated and not damaged. Replace if necessary.
- Sealant: For drain connections, ensure plumber's putty or thread sealant was applied correctly during installation.
6.2 Slow Drainage
- Clear Strainer: Remove and clean the basket strainer to ensure no debris is blocking the drain opening.
- Check P-Trap: The P-trap can accumulate debris. Disassemble and clean if necessary.
- Ventilation: Ensure your plumbing system has proper venting to allow water to drain freely.
6.3 Instability/Wobbling
- Adjust Feet: Use the adjustable bullet feet to level the sink on uneven floors.
- Tighten Frame: Ensure all frame connections and bolts are fully tightened.
7. Specifications
| Feature | Specification |
|---|---|
| Brand | Lafati |
| Model Number | sink |
| Material | Stainless Steel |
| Color | Stainless Steel |
| Product Dimensions (D x W x H) | 19"D x 22"W x 31"H |
| Bowl Dimensions (L x W x D) | Approx. 16.81" x 13.38" x 7.75" |
| Installation Type | Freestanding |
| Finish Type | Brushed |
| Drain Type | Lift and Turn |
| Item Weight | 24 Pounds |
| Hole Count | 1 (for faucet) |
| Included Components | Adjustable feet, drainage system, faucet with cold and hot water pipes, towel bar, undershelf |
Image: Detailed dimensional drawing of the Lafati utility sink.
8. Warranty and Support
For warranty information or technical support, please refer to the product packaging or contact Lafati customer service directly. Keep your purchase receipt for any warranty claims.
