VONZOY 8 Piece Patio Furniture Set with 43" Fire Pit Table Instruction Manual

1. Introduction

Thank you for choosing the VONZOY 8 Piece Patio Furniture Set with 43" Fire Pit Table. This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your new outdoor furniture set. Please read this manual thoroughly before assembly and use, and retain it for future reference.

Image 1.1: The complete VONZOY 8 Piece Patio Furniture Set, including sectional sofas, a coffee table, and a fire pit table, arranged on a patio next to a swimming pool.

2. Important Safety Information

Always prioritize safety when assembling and using this product. Failure to follow these instructions could result in property damage, injury, or death.

2.1 General Safety Precautions

• Ensure all components are securely fastened before use.
• Do not exceed the weight capacity of 330 lbs per seat.
• Place the furniture set on a stable, level surface.
• Keep children and pets away from the fire pit during operation.

2.2 Fire Pit Safety

• This fire pit is for outdoor use only. Do not use indoors or in enclosed spaces.
• Use only propane gas as fuel.
• Maintain adequate clearance from combustible materials (minimum 3 feet from sides and back, 6 feet from top).
• Ensure the propane tank is securely connected and free of leaks before ignition.
• Never leave the fire pit unattended when in operation.
• Allow the fire pit to cool completely before covering or moving.
• The fire pit table has passed CSA safety certification. Always follow local codes and regulations.

3. Package Contents

Verify that all components are present and undamaged before beginning assembly. If any parts are missing or damaged, contact VONZOY customer support.

• 2 x Corner Sofas
• 4 x Single Sofas
• 1 x Fire Pit Table (43-inch)
• 1 x Coffee Table
• 6 x Seat Cushions (4.35" thick)
• 6 x Back Cushions
• 1 x Fire Glass Bead Set
• 1 x Fire Pit Cover
• 2 x Waterproof Furniture Covers
• Assembly Hardware (bolts, washers, wrench)

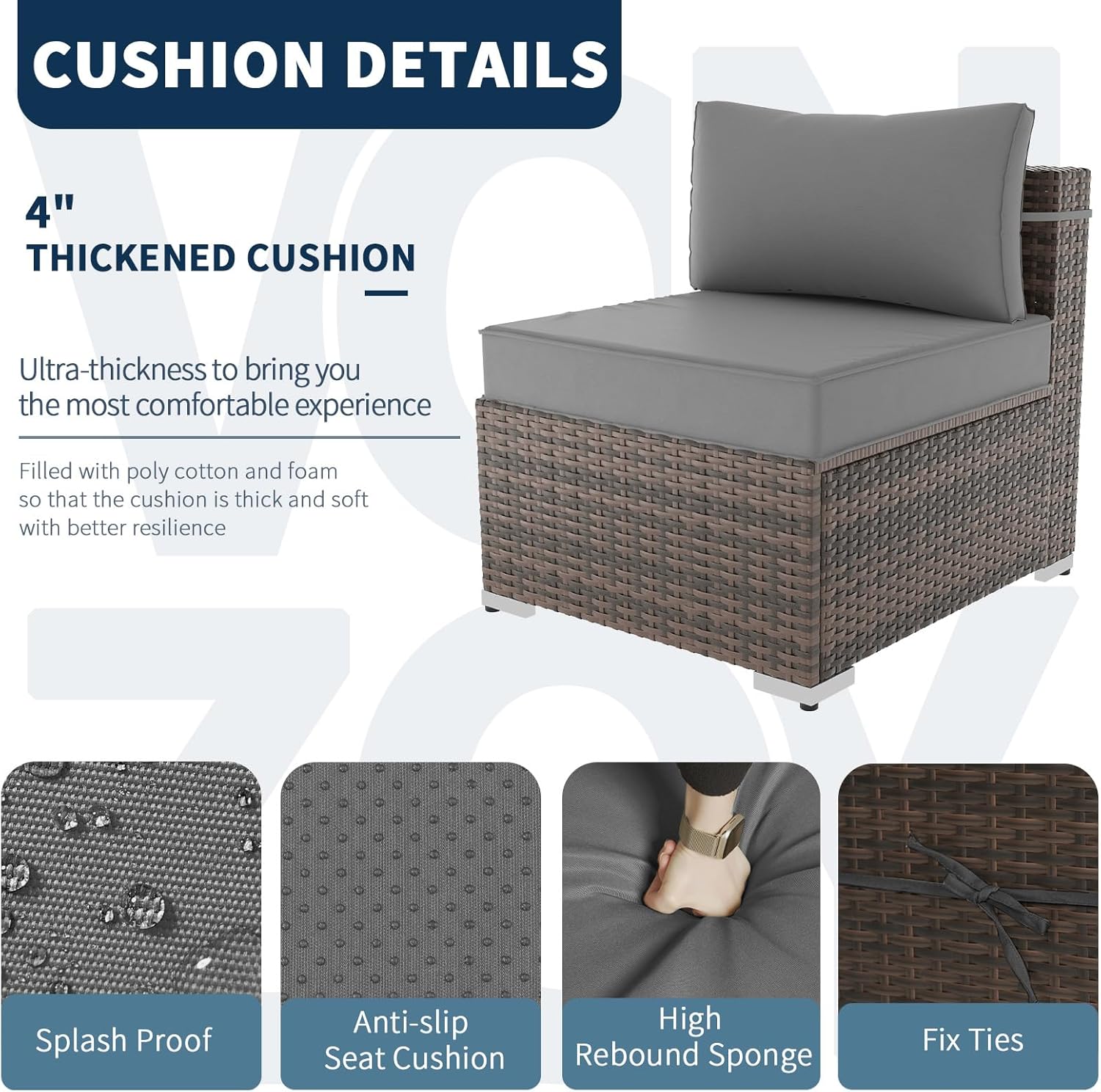

Image 3.1: Detailed view of cushion features, including splash-proof material, anti-slip backing, high-rebound sponge, and ties for securing.

4. Assembly and Setup

Assembly typically requires two adults. Ensure you have sufficient space and all parts before starting.

4.1 General Assembly Steps

1. Unpack Components: Carefully remove all items from the packaging. Lay them out on a soft, clean surface to prevent scratches.
2. Identify Parts: Refer to the included assembly diagram (not provided in this manual, typically included with product) to identify each furniture piece and hardware.
3. Assemble Sofa Frames:
   • Attach the backrests to the seat bases using the provided bolts and wrench.
   • Connect armrests to the appropriate sofa units.
   • Ensure all bolts are tightened securely, but do not overtighten.
4. Assemble Coffee Table: Attach the legs to the tabletop.
5. Assemble Fire Pit Table:
   • Attach the side panels to form the fire pit table base.
   • Carefully place the burner assembly into the designated area.
   • Place the glass wind guard around the burner.
6. Arrange Furniture: Position the sofa sections, coffee table, and fire pit table according to your desired layout. The modular design allows for flexible configurations.
7. Place Cushions: Position the seat and back cushions on the sofas. Use the integrated ties to secure seat cushions to prevent slipping.

Image 4.1: Close-up of the furniture's construction, highlighting the handwoven PE rattan, stable steel frame, tempered glass tabletop, and adjustable feet for leveling.

Image 4.2: Examples of flexible furniture arrangements possible with the 8-piece set, demonstrating its modularity.

Image 4.3: Dimensional overview of the sofa sections, coffee table, and fire pit table, including the maximum weight capacity per seat.

5. Operating the Fire Pit Table

Follow these steps for safe and proper operation of your 50,000 BTU fire pit table.

1. Connect Propane Tank: Ensure the propane tank (not included) is placed in the designated compartment within the fire pit table. Connect the regulator hose to the tank valve and tighten securely.
2. Open Gas Supply: Slowly open the valve on the propane tank counter-clockwise.
3. Ignition:
   • Turn the control knob on the fire pit table to the "LOW" position.
   • Press and hold the electronic igniter button.
   • While holding the igniter, slowly turn the control knob to the "HIGH" position. The burner should ignite.
   • If the burner does not ignite within 5 seconds, turn the control knob to "OFF", wait 5 minutes, and repeat the ignition process.
4. Adjust Flame: Once ignited, rotate the control knob to adjust the flame height to your desired level.
5. Shut Down: To turn off the fire pit, first turn the control knob to the "OFF" position. Then, close the valve on the propane tank clockwise until fully shut.
6. Cool Down: Allow the fire pit to cool completely before covering or storing.

Image 5.1: Key features of the fire pit, including the fire glass beads, flame adjustment knob, electronic ignition, and CSA safety certification.

Image 5.2: The fire pit in operation, displaying the flames and the protective glass wind guard.

6. Maintenance and Care

Regular maintenance will extend the life and appearance of your patio furniture set.

6.1 Wicker Frame Care

• Wipe the PE rattan wicker and steel frame with a dry cloth to remove dust and debris.
• For stubborn dirt, use a mild soap solution and a soft brush, then rinse with clean water and dry thoroughly.
• Avoid harsh chemicals or abrasive cleaners, as these can damage the finish.

6.2 Cushion Care

• The cushion covers are made from 240g polyester and are water-repellent.
• For light cleaning, spot clean with a damp cloth and mild soap.
• The covers feature a zipper design for easy removal and washing. Follow fabric care instructions on the label (if available).
• Allow cushions to dry completely before re-placing them on the furniture.

6.3 Fire Pit Care

• Ensure the fire pit is completely cool before cleaning.
• Clean the burner and surrounding area with a soft brush to remove any debris.
• Wipe the exterior surfaces with a damp cloth.
• Periodically check the gas hose and connections for any signs of wear or leaks.

6.4 Storage and Protection

• Use the provided waterproof covers to protect the furniture set from rain, dust, and UV exposure when not in use.
• During prolonged periods of non-use or harsh weather conditions, consider storing cushions indoors.

7. Troubleshooting

This section addresses common issues you might encounter with your patio furniture set.

If you encounter issues not listed here or if solutions do not resolve the problem, please contact VONZOY customer support.

8. Specifications

9. Warranty and Customer Support

VONZOY is committed to providing quality products. For specific warranty details, please refer to the warranty card included with your purchase or contact VONZOY customer support directly.

If you have any questions, require assistance with assembly, or need to report missing/damaged parts, please contact our customer support team. Contact information can typically be found on the product packaging or the official VONZOY website.
