WINZZ AF168C Full Size Cutaway Acoustic Guitar Instruction Manual

Introduction

Congratulations on your purchase of the WINZZ AF168C Full Size Cutaway Acoustic Guitar. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your new instrument. Designed for beginners, this guitar comes as a complete kit to help you start your musical journey.

The WINZZ AF168C features a traditional sunburst finish with a unique peach-shaped pattern, and exclusive 'W' symbols on the fretboard to assist with position recognition. Its built-in pickup allows for amplified performance.

Product Overview

The WINZZ AF168C is a full-size (41-inch) cutaway acoustic guitar, suitable for right-handed players. It features a spruce wood top, linden back, nato wood neck, and a technical wood fretboard. The guitar is equipped with high-quality steel strings and sturdy metal gear heads for stable tuning.

Image: Front view of the WINZZ AF168C Full Size Cutaway Acoustic Guitar, showcasing its sunburst finish and overall design.

Key Components

• Headstock: Contains tuning pegs for adjusting string tension.
• Nut: Supports the strings at the headstock end of the fretboard.
• Neck: The long, slender part of the guitar that holds the fretboard.
• Fretboard: The surface where fingers press down on strings to change pitch. Features 'W' symbols on frets 3, 5, 7, 9, 12, 15, and 17.
• Frets: Metal strips embedded in the fretboard that divide it into semitones.
• Body: The main resonant chamber of the guitar.
• Soundhole: The opening in the body that projects sound.
• Bridge: Anchors the strings to the guitar body.
• Saddle: Supports the strings at the bridge.
• Pickup: Built-in electronic component for amplifying the guitar's sound.
• Cutaway: An indentation in the upper bout of the body, allowing easier access to higher frets.

Image: Front and back views of the WINZZ AF168C guitar, illustrating its construction and sunburst finish.

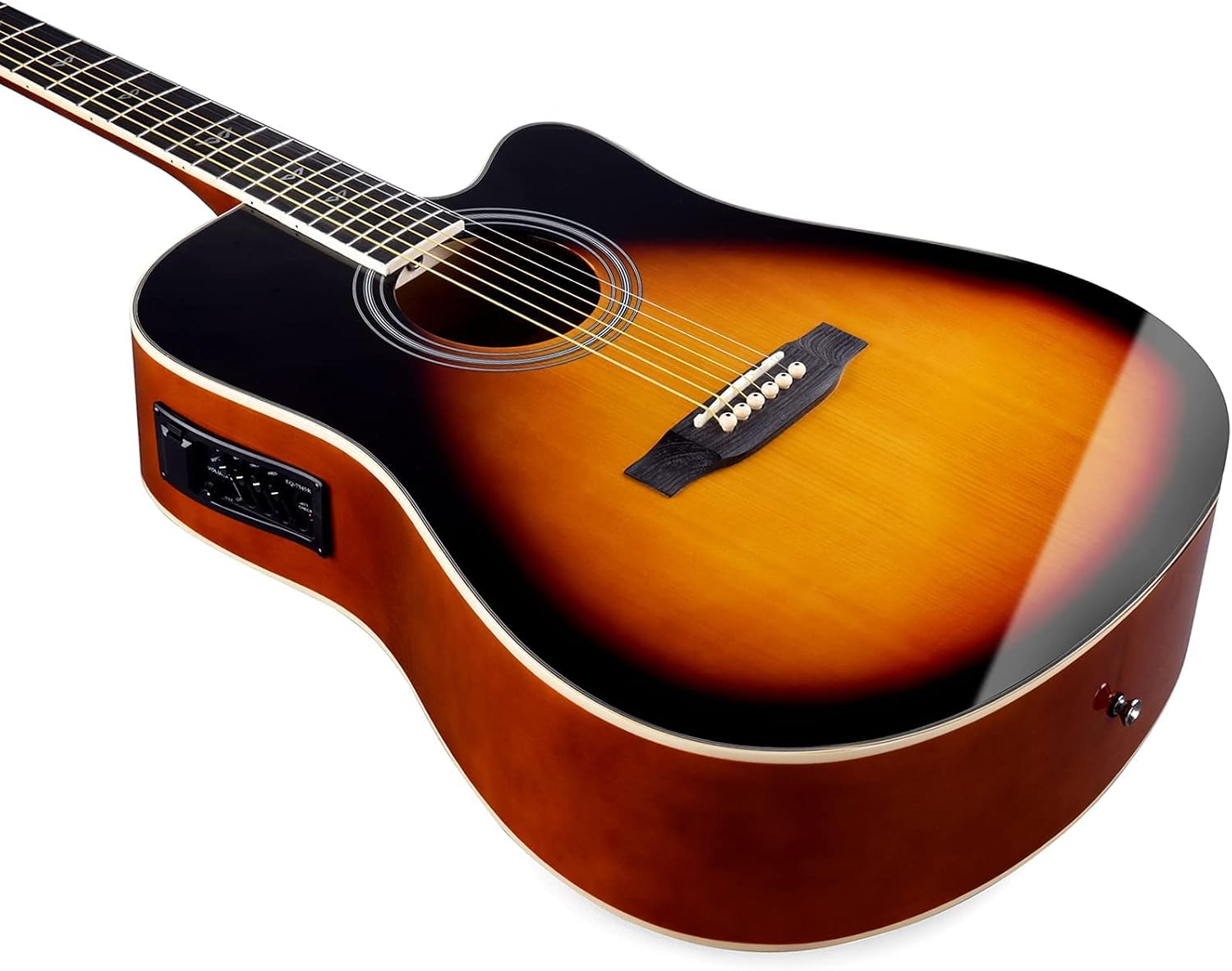

Image: Detailed view of the guitar's lower body, highlighting the built-in pickup controls and bridge.

Setup

1. Unpacking and Accessory Check

Carefully remove the guitar and all accessories from the packaging. Ensure all items are present:

• WINZZ AF168C Acoustic Guitar
• Padded Guitar Bag
• Guitar Wall Mount
• Guitar Strap
• 3-in-1 Guitar String Winder and Cutter
• Tuner
• Guitar Capo
• Replacement Strings
• Guitar Picks
• Polishing Cloth
• Wrench
• Accessory Bag

2. Tuning the Guitar

Your guitar may be out of tune during shipping. Use the included tuner to accurately tune your guitar. The standard tuning for a 6-string guitar is E-A-D-G-B-e (from thickest to thinnest string).

1. Attach the clip-on tuner to the headstock of the guitar.
2. Pluck each string individually. The tuner will display the note.
3. Turn the corresponding tuning peg slowly to adjust the pitch until the tuner indicates the correct note and shows it is in tune (usually a green light).
4. New strings may stretch and require frequent re-tuning initially. This is normal.

3. Attaching the Guitar Strap

Attach one end of the guitar strap to the strap button located at the bottom of the guitar body. The other end can be tied securely around the headstock above the nut, or attached to a second strap button if present near the neck joint.

4. Installing the Wall Mount

If using the guitar wall mount, select a sturdy wall location. Follow the instructions provided with the wall mount for secure installation. Ensure it is firmly anchored to support the guitar's weight.

Operating

1. Holding the Guitar

When seated, rest the guitar on your right leg (for right-handed players), with the waist of the guitar resting on your thigh. The body should be close to your chest. When standing, use the guitar strap to support the instrument at a comfortable height.

2. Fretting Notes and Chords

Use your left hand (for right-handed players) to press down on the strings just behind the frets. Press firmly enough to produce a clear note without buzzing. The 'W' symbols on the fretboard can help you quickly identify common fret positions (3rd, 5th, 7th, 9th, 12th, 15th, 17th frets).

Image: Detailed view of the guitar's fretboard, showing the unique 'W' symbols designed for easier fret recognition.

3. Strumming and Picking

Use your right hand (for right-handed players) to strum or pick the strings. Experiment with the included guitar picks to find a comfortable grip and technique. Strumming can be done with a downward or upward motion, or a combination.

4. Using the Built-in Pickup

The WINZZ AF168C features a built-in pickup, allowing you to connect your guitar to an amplifier or PA system. Locate the output jack, typically on the lower bout or near the strap button. Use a standard instrument cable to connect the guitar to your amplifier. Adjust the volume and tone controls on the guitar's preamp and your amplifier for desired sound.

Maintenance

1. Cleaning

Regularly wipe down your guitar with the included polishing cloth after each use to remove sweat, oils, and dust. For a deeper clean, use a guitar-specific cleaning solution sparingly on the body. Avoid harsh chemicals that can damage the finish.

2. String Care and Replacement

Wipe strings clean after playing to extend their life. Strings should be replaced periodically, typically every 1-3 months depending on playing frequency, or when they sound dull or show signs of corrosion. Use the included replacement strings or similar alloy steel guitar strings. The 3-in-1 string winder and cutter will assist with this process.

3. Storage

Store your guitar in its padded guitar bag when not in use to protect it from dust, scratches, and minor impacts. Avoid exposing the guitar to extreme temperatures or humidity fluctuations, as this can damage the wood. Keep it away from direct sunlight, heaters, and air conditioning vents.

Troubleshooting

1. Guitar Will Not Stay in Tune

• New Strings: New strings stretch significantly. Tune frequently during the first few playing sessions. Gently pull on each string after tuning to help them stretch faster.
• Improper Winding: Ensure strings are properly wound around the tuning pegs with enough wraps to create friction.
• Worn Strings: Old or corroded strings can lose their ability to hold tune. Replace them.
• Tuning Pegs: Check if tuning pegs are loose. Tighten any screws if necessary, but do not overtighten.

2. Buzzing Sound When Playing

• Fretting Technique: Ensure you are pressing down firmly on the strings just behind the fret.
• String Height: If the strings are too low, they may buzz against the frets. This might require professional adjustment of the bridge or truss rod.
• Worn Frets: Severely worn frets can cause buzzing.

3. No Sound from Pickup

• Cable Connection: Ensure the instrument cable is securely plugged into both the guitar and the amplifier.
• Amplifier Settings: Check if the amplifier is turned on, volume is up, and correct input is selected.
• Guitar Volume/Tone: Ensure the guitar's onboard volume control is turned up.
• Battery: The pickup system may require a battery (not specified in product details, but common for active pickups). Check for a battery compartment and replace if necessary.

Specifications

Warranty and Support

Warranty Information

This WINZZ AF168C Acoustic Guitar comes with a 1-month manufacturer's warranty. Please retain your proof of purchase for any warranty claims.

Customer Support

For further assistance, technical support, or warranty inquiries, please contact the seller or WINZZ customer service through the platform where the product was purchased. Provide your model number (AF168CE-41-GSB-V) and purchase details for efficient service.
