1. Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your HWWH 60V 3000W 11-inch Electric Scooter Hub Motor. This brushless, gearless motor is designed for high-speed adult electric scooters, offering quiet operation, high performance, and a long service life. Please read this manual thoroughly before installation and use to ensure safe and efficient performance.
2. Safety Information
WARNING: Failure to follow these safety instructions may result in serious injury or damage to the product.
- Always disconnect power before performing any installation, maintenance, or repair work on the motor or scooter.
- Ensure all electrical connections are secure and properly insulated to prevent short circuits.
- Do not operate the motor if any components are damaged or show signs of wear.
- Keep hands and loose clothing away from moving parts during operation.
- This motor is designed for specific voltage and power ratings (60V, 3000W). Using it outside these specifications can cause damage or malfunction.
- Professional installation is recommended for optimal safety and performance.
- Regularly inspect the motor and tire for any signs of damage, wear, or loose connections.
3. Product Overview
The HWWH 60V 3000W hub motor is an integrated wheel and motor unit, featuring a brushless and gearless design for efficient and quiet operation. It includes an 11-inch vacuum tire (90/65-6.5) and necessary wiring for connection to a compatible electric scooter controller.
Image 1: The HWWH 11-inch hub motor, featuring a knobby tire suitable for various terrains, with its integrated wiring harness.
Image 2: Side view of the HWWH 11-inch hub motor, highlighting the robust knobby tire tread and the motor casing.

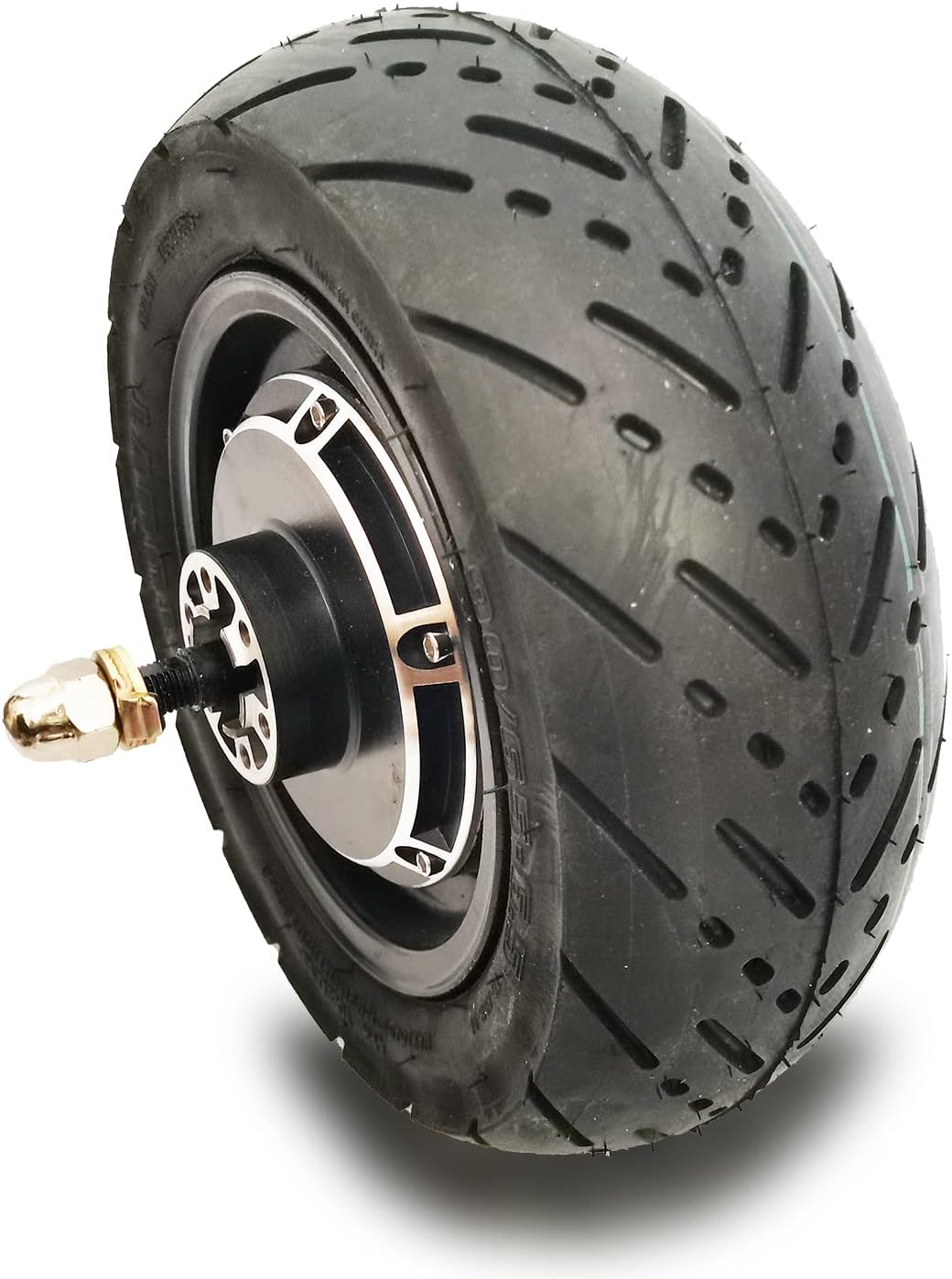

Image 3: The HWWH 11-inch hub motor equipped with a street-style tire, showing the central axle for mounting.
4. Setup & Installation
This hub motor is designed for integration into compatible electric scooter frames. The installation process typically involves mounting the wheel assembly and connecting the motor's electrical wires to the scooter's controller system.
4.1 Pre-Installation Checklist
- Ensure the scooter frame is compatible with an 11-inch hub motor.
- Verify that the scooter's controller supports 60V and 3000W power output.
- Gather necessary tools: wrenches, screwdrivers, electrical tape, multimeter.
- Disconnect the scooter's battery before starting installation.
4.2 Installation Steps
- Remove Existing Wheel (if applicable): Carefully remove the old wheel from the scooter frame, noting the orientation of washers and spacers.
- Position the Hub Motor: Align the hub motor axle with the dropouts on the scooter frame. Ensure the motor's wiring exits cleanly and is not pinched.
- Secure the Axle: Install the washers and nuts onto the axle, tightening them securely. Refer to your scooter's frame manual for specific torque specifications.
- Connect Electrical Wires:
- Connect the three thick phase wires (typically green, blue, yellow) from the motor to the corresponding phase wires on the scooter controller.
- Connect the smaller Hall sensor wires (typically red, black, and three signal wires) to the Hall sensor input on the controller. Ensure correct polarity for red (positive) and black (negative).
- Double-check all connections for tightness and proper insulation.
- Route Wiring: Securely route all motor wires along the scooter frame, away from moving parts and potential pinch points, using zip ties or cable clamps.
- Test Functionality: Reconnect the scooter battery. Perform a low-speed test to ensure the motor spins correctly and smoothly. Check for any unusual noises or vibrations.

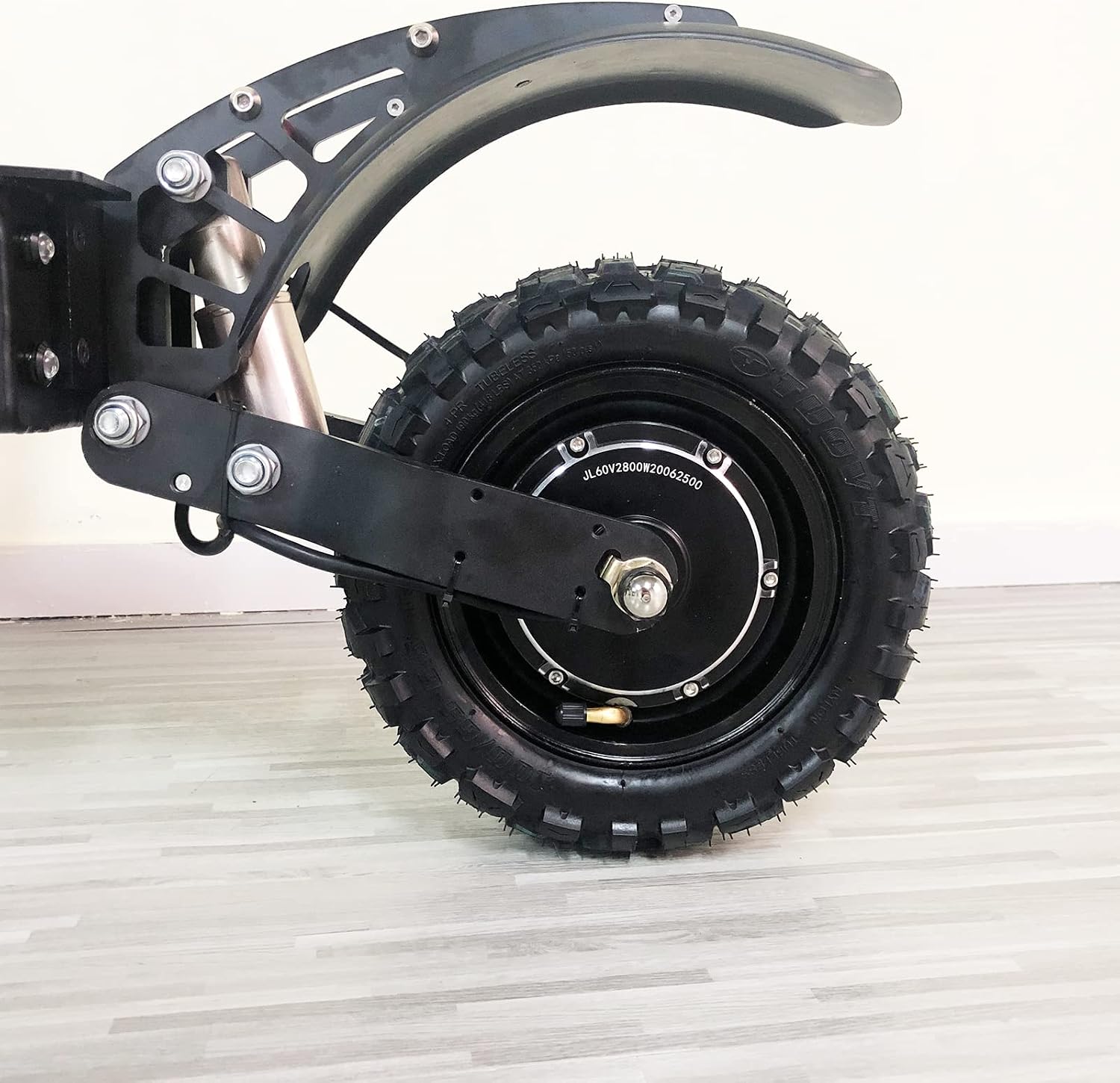

Image 4: The HWWH 11-inch hub motor integrated as the rear wheel of an electric scooter, showing its robust fit.
Image 5: The HWWH 11-inch hub motor installed as the front wheel of an electric scooter, demonstrating its application.
5. Operation
Once properly installed and connected to a compatible electric scooter system, the hub motor operates in conjunction with the scooter's controller and throttle. The brushless and gearless design ensures quiet and efficient power delivery.
- Power On: Activate your scooter's power system. The motor will be ready to receive commands from the controller.
- Throttle Control: Use the scooter's throttle to control the motor's speed. Apply throttle gradually for smooth acceleration.
- Braking: The motor may support regenerative braking if your controller is equipped with this feature. Otherwise, rely on the scooter's mechanical braking system.
- Monitoring: Pay attention to any unusual sounds, vibrations, or performance changes during operation.
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your hub motor.
- Regular Inspection: Periodically check the motor casing, tire, and wiring for any signs of damage, cracks, cuts, or loose connections.
- Tire Pressure: Maintain the recommended tire pressure for the 11-inch vacuum tire (90/65-6.5) to ensure efficient operation and prevent premature wear.
- Cleaning: Keep the motor and tire clean from dirt, mud, and debris. Use a damp cloth for cleaning the motor casing; avoid spraying water directly into electrical components.
- Wiring Check: Ensure all electrical connections remain secure and free from corrosion. Re-insulate any exposed wires immediately.
- Bearing Check: While the motor is gearless, the axle bearings should be checked periodically for smooth rotation and absence of play.
7. Troubleshooting
This section addresses common issues you might encounter with your hub motor. For complex problems, consult a qualified technician.
| Problem | Possible Cause | Solution |
|---|---|---|
| Motor not spinning | No power, loose electrical connections, faulty controller, damaged Hall sensors. | Check battery connection, verify all motor and Hall sensor wires are securely connected to the controller. Test controller output. |
| Motor spins intermittently or with jerks | Loose Hall sensor wires, damaged Hall sensors, controller issue. | Inspect Hall sensor wiring for damage or loose connections. Consult a technician for Hall sensor or controller diagnosis. |
| Unusual noise from motor | Damaged bearings, foreign object in motor, internal motor damage. | Stop operation immediately. Inspect for foreign objects. If noise persists, professional inspection is required. |
| Motor overheating | Overload, prolonged high-power use, insufficient cooling, internal short. | Reduce load, allow motor to cool. Check for proper ventilation. If persistent, seek professional diagnosis. |
8. Specifications
Detailed technical specifications for the HWWH 60V 3000W 11-inch Electric Scooter Hub Motor.
| Feature | Specification |
|---|---|
| Brand | HWWH |
| Model | 60V/3000W |
| Voltage | 60V |
| Power | 3000W (Rated), 2800W (from description) |
| Tire Size | 11 inches (90/65-6.5) |
| Motor Type | Brushless Gearless Hub Motor |
| Speed (No Load) | ≥80km/h |
| Item Weight | 5.8 kg (approx. 12.79 lbs) |
| Material | Aluminum |
| Color | Black |
| Compatibility | Suitable for 11-inch dual drive high-speed adult electric scooters |
9. Product Videos
Electric Bike Hub Motor Overview
Video 1: This video provides a general overview of an electric bike hub motor, demonstrating its appearance and basic components. While it shows a 10-inch motor, the principles and design are similar to the 11-inch HWWH hub motor.
10 Inch Hub Motor Electric Scooter Brushless Rear Wheel
Video 2: This video showcases a 10-inch brushless hub motor for electric scooters, highlighting its high-performance rear wheel design. It offers a visual reference for the type of motor and its integration.
10. Warranty & Support
For warranty information and customer support, please refer to the documentation provided with your original purchase or contact the seller directly. Keep your proof of purchase for any warranty claims.
Seller Contact: fufengtianxia (via Amazon)
Return Policy: 30 days (as per Amazon's buybox winner information)
