WestinTrends Ashore Reclining Chaise Lounge User Manual

Introduction

This manual provides instructions for the assembly, operation, and maintenance of your WestinTrends Ashore Modern Reclining Chaise Lounge. This outdoor chaise lounge is constructed from durable, eco-friendly HDPE material, designed to withstand various outdoor weather conditions, including sun, snow, and coastal winds. It features an adjustable backrest for multiple lounging positions, wide armrests for comfort, and wheels for easy mobility.

Image: The WestinTrends Ashore Reclining Chaise Lounge in a teak finish, positioned on a wooden deck beside a swimming pool, with a green cushion on the lounge.

Safety Information

• Always keep fingers and loose clothing away from moving parts, especially during adjustment or movement.
• Exercise caution when folding and unfolding the chaise lounge to avoid injury.
• Do not use high-pressure water jets or harsh chemicals for cleaning, as this may damage the material.
• Always follow the manufacturer's instructions for proper use and maintenance to ensure product longevity and safety.
• Ensure the chaise lounge is placed on a stable, level surface before use.
• Do not exceed the maximum weight recommendation of 330 pounds.

Package Contents

Before beginning assembly, ensure all parts are present and undamaged. If any components are missing or damaged, please contact customer support.

• Chaise Lounge Components (backrest, seat, armrests, legs, wheel assembly)
• Assembly Hardware (bolts, nuts, washers)
• Assembly Tool (e.g., Allen wrench, if included)

Setup and Assembly

Assembly is required for this product. It is recommended that two adults perform the assembly to ensure stability and ease of construction. Follow the detailed assembly diagrams provided with your product packaging. A general overview of the steps is provided below:

1. Unpack Components: Carefully remove all parts from the packaging and lay them out on a clean, soft surface to prevent scratches. Verify all parts are present against the parts list in your product packaging.
2. Attach Legs and Frame: Securely attach the legs and main frame components using the provided hardware. Ensure all connections are aligned before tightening.
3. Install Armrests: Fasten the armrests to the main frame.
4. Assemble Backrest: Attach the adjustable backrest mechanism to the frame.
5. Attach Wheels: Secure the wheels to the designated leg assembly.
6. Final Tightening: Once all components are loosely assembled, gradually tighten all bolts and nuts.

Important Assembly Note: Exercise extreme caution when tightening fasteners. Some hardware may be prone to stripping if overtightened. Apply gentle, consistent pressure and stop immediately if resistance is met to prevent damage to bolts or nuts. Do not force connections.

Image: A top-down view of the WestinTrends Ashore Reclining Chaise Lounge, showing the slatted design of the seat and backrest.

Operating Instructions

Adjusting the Backrest

The chaise lounge features an adjustable backrest with multiple reclining positions (up to 3 positions). To adjust the backrest:

1. Gently lift the backrest to disengage it from its current position.
2. Move the backrest to the desired angle.
3. Ensure the backrest securely locks into one of the available notches before applying weight.

Image: A side view of the chaise lounge demonstrating a reclined backrest position.

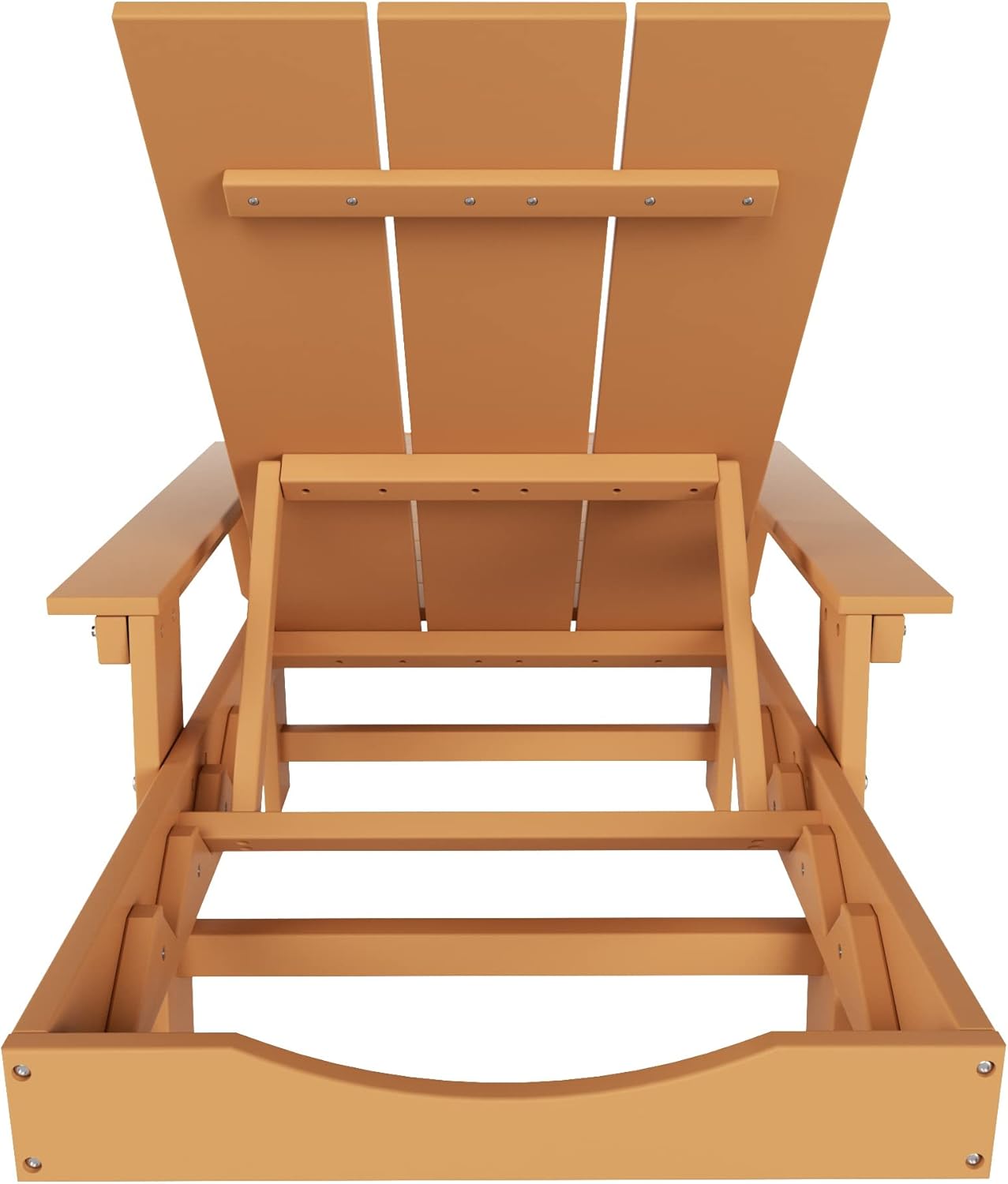

Image: A detailed view of the adjustable backrest mechanism from the rear of the chaise lounge.

Moving the Chaise Lounge

The chaise lounge is equipped with wheels on the back legs for easy movement.

1. Slightly lift the front end of the chaise lounge.
2. Roll the chaise lounge to your desired location using the wheels.
3. Lower the front end to secure the lounge in place.

Maintenance

Cleaning

To clean your chaise lounge, use a mild soap and water solution. Wipe down the surfaces with a soft cloth. Rinse thoroughly with clean water and allow to air dry. Avoid using abrasive cleaners, brushes, or high-pressure washers, as these can damage the HDPE material.

Seasonal Care

While the HDPE material is weather-resistant, storing the chaise lounge indoors or covering it during extreme weather conditions (heavy snow, prolonged freezing temperatures) can help extend its lifespan and maintain its appearance.

Hardware Check

Periodically check all bolts and nuts to ensure they remain tight. Retighten as necessary, but avoid overtightening to prevent stripping.

Troubleshooting

• Difficulty Assembling: Ensure all parts are correctly oriented according to the assembly diagrams. Do not force connections. If hardware is difficult to thread, ensure it is aligned properly and not cross-threaded. If issues persist, contact customer support.
• Chaise Lounge is Unstable: Verify that all bolts and nuts are securely tightened. Ensure the chaise lounge is placed on a flat, even surface.
• Backrest Not Adjusting Smoothly: Check for any obstructions in the reclining mechanism. Ensure the mechanism is clean and free of debris.

Specifications

Image: Diagram showing the dimensions of the chaise lounge: 75.5 inches deep, 21 inches wide, and 37.75 inches high.

Warranty Information

For detailed warranty information regarding your WestinTrends Ashore Reclining Chaise Lounge, please refer to the documentation included with your purchase or visit the official WestinTrends website. Warranty terms and conditions may vary.

Customer Support

If you have any questions, require assistance with assembly, or need to report missing or damaged parts, please contact WestinTrends customer support. You can typically find contact information on the WestinTrends official website or through the retailer where the product was purchased.

For further assistance, please visit the WestinTrends Store on Amazon.
