Traxxas GTM Shock Body Instruction Manual

1. Introduction

This manual provides instructions for the installation and maintenance of your Traxxas GTM Shock Body. These shock bodies are crafted from durable 6061-T6 aluminum with an anodized finish, designed to enhance the performance and appearance of your Traxxas TRX-4M model. They are compatible with standard GTM shock caps and pistons.

2. Package Contents

Verify that all items listed below are present in your package:

• (2) GTM Aluminum Shock Bodies (Red)
• (2) Spring Pre-load Spacers

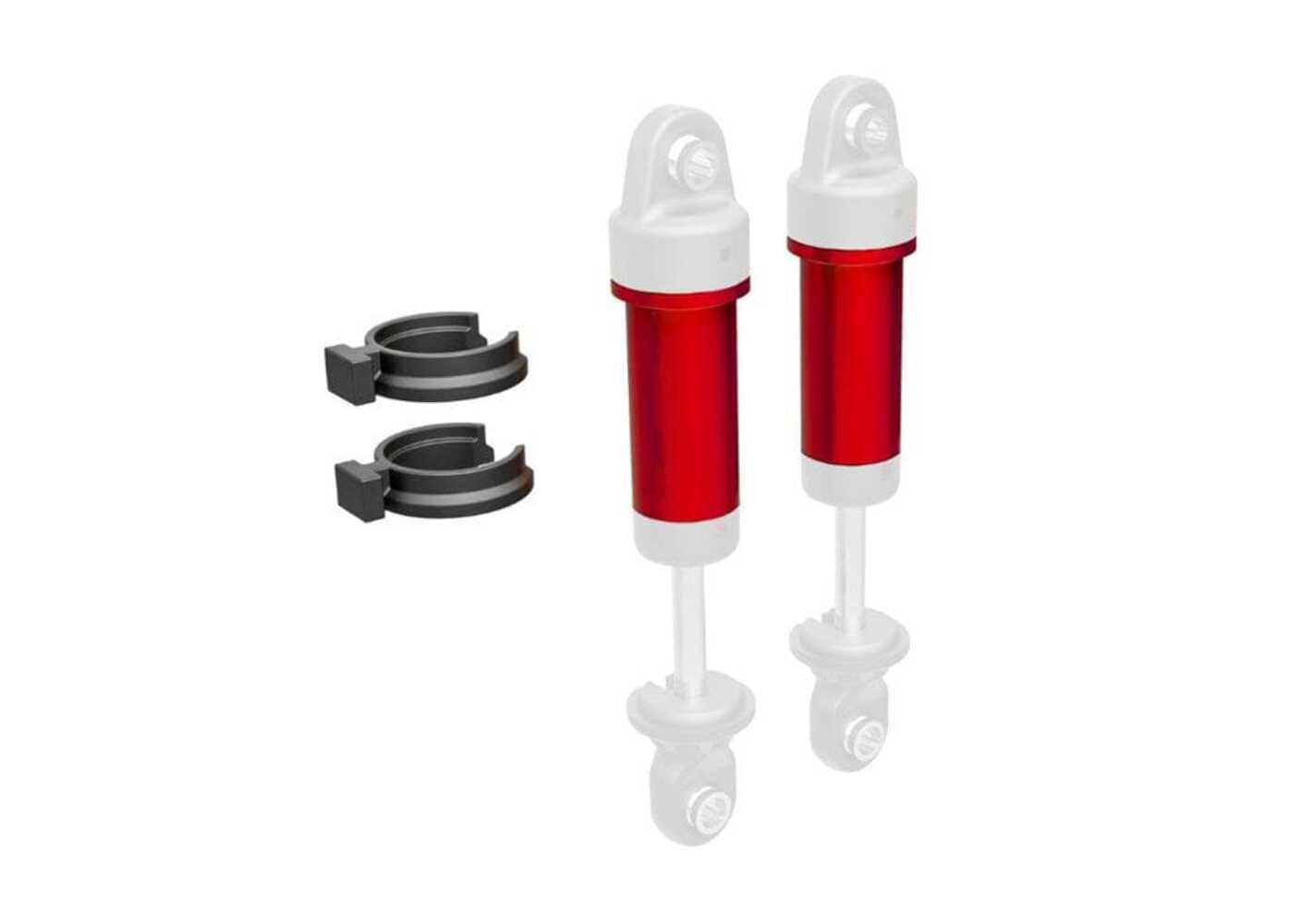

Figure 1: Image showing the Traxxas GTM Shock Body, made from 6061-T6 aluminum, in red color. The shock body is designed for durability and performance.

3. Installation

The GTM Shock Bodies are designed for use with the Traxxas TRX-4M model. Installation involves transferring existing shock hardware or assembling new shocks.

1. Disassembly of Existing Shocks: Carefully disassemble your existing GTM shocks, retaining all components such as shock caps, pistons, shafts, and springs.
2. Preparation: Ensure all components are clean and free from debris.
3. Assembly with New Shock Body:
   • Insert the shock shaft and piston into the new GTM aluminum shock body.
   • Attach the shock cap securely to the top of the shock body.
   • Install the spring onto the shock shaft.
   • Place the provided spring pre-load spacers as needed to adjust ride height and spring tension.
4. Fluid Filling: Fill the shock with appropriate shock oil according to your model's specifications.
5. Bleeding Air: Slowly compress and extend the shock several times to remove any trapped air bubbles.
6. Final Assembly: Securely attach the shock bottom cap.
7. Mounting: Mount the assembled shocks onto your Traxxas TRX-4M chassis.

For creating a new set of shocks, refer to Traxxas rebuild kits 9762 and 9762A for additional components.

4. Function

The GTM Shock Body is a critical component of your vehicle's suspension system. It houses the shock oil, piston, and shaft, working in conjunction with the spring to absorb impacts and maintain tire contact with the terrain. The durable 6061-T6 aluminum construction provides increased strength and heat dissipation compared to standard plastic bodies, contributing to consistent shock performance during operation.

5. Maintenance

Regular maintenance ensures optimal performance and longevity of your GTM Shock Bodies:

• Cleaning: After each use, clean the shock bodies to remove dirt, dust, and debris. Use a soft brush or cloth. Avoid harsh chemicals that may damage the anodized finish.
• Inspection: Periodically inspect the shock bodies for any signs of damage, such as dents, scratches, or cracks. Ensure all seals are intact and not leaking.
• Oil Replacement: Replace shock oil regularly according to your vehicle's maintenance schedule to maintain consistent damping performance.
• Seal Replacement: If leaks are observed, replace the shock seals promptly.
• Storage: Store your vehicle and components in a clean, dry environment away from extreme temperatures.

6. Troubleshooting

If you encounter issues with your GTM Shock Bodies, consider the following:

• Leaking Shocks:
  • Check if shock caps are tightened correctly.
  • Inspect O-rings and seals for wear or damage; replace if necessary.
  • Ensure the shock shaft is not bent or scratched, which can damage seals.
• Inconsistent Damping:
  • Verify that the shocks are properly filled with oil and free of air bubbles.
  • Check for correct shock oil viscosity for your operating conditions.
  • Ensure pistons are not damaged or obstructed.
• Reduced Suspension Travel:
  • Check for bent shock shafts or damaged components.
  • Ensure springs are not binding or compressed excessively by pre-load spacers.

7. Specifications

8. Support

For further assistance, technical support, or to explore other Traxxas products, please visit the official Traxxas website or contact their customer service.
