GEARZAAR 8KW 12V/24V Diesel Heater Instruction Manual

1. Introduction and Overview

The GEARZAAR 8KW 12V/24V Diesel Heater is designed to provide efficient and reliable heating for a variety of applications. This versatile unit ensures rapid warming and maintains a comfortable environment even in extreme cold, operating effectively between -40℃ and +50℃. Its robust design and user-friendly features make it an ideal heating solution for both mobile and stationary setups.

This image shows the red and black diesel heater positioned in a snowy, mountainous landscape, emphasizing its capability to provide heat in cold environments. Icons for low noise, thermostatic control, and low consumption are displayed above the heater.

2. Product Features

• Fast Heating: Experience rapid heating, reaching comfortable temperatures within 5-10 minutes, ensuring quick warmth in cold conditions.
• Safety and Reliability: Equipped with thermostatically controlled shutdown mechanisms, the heater prevents overheating and potential hazards. Its external exhaust system allows for safe operation during extended use or while sleeping.
• Efficient Fuel Consumption: A precision oil pump ensures 100% combustion, leading to low fuel consumption of only 0.15-0.45 liters per hour. This allows for 10-12 hours of operation on maximum gear, minimizing environmental impact and operational costs.
• User-Friendly Controls: The clear LCD display and intuitive remote control provide easy operation, allowing users to adjust temperature, oil pump frequency, and heating settings conveniently.
• Versatile Application: Suitable for a wide range of vehicles including cars, buses, RVs, trucks, and engineering vehicles, and ideal for heating homes, garages, and shops.

This image illustrates the broad compatibility of the diesel heater, showing it can be used with various vehicle types such as trucks, RVs, cars, and SUVs, highlighting its adaptability for different user needs.

This image details the "BIG AIR OUTLET" feature, showing how the design contributes to a larger air volume, increased air supply distance, and faster heating, ensuring efficient distribution of warmth.

This image emphasizes the environmental benefits of the heater, showcasing its low fuel consumption, low power consumption, and low emissions, making it suitable for long-term, eco-conscious operation.

3. What's in the Box

Your GEARZAAR Diesel Heater package includes the following components:

• 1 x Diesel Heater (8KW)
• 1 x Display Screen
• 1 x Remote Control
• 1 x Muffler
• 1 x Exhaust Pipe
• Necessary installation accessories (clamps, hoses, etc.)

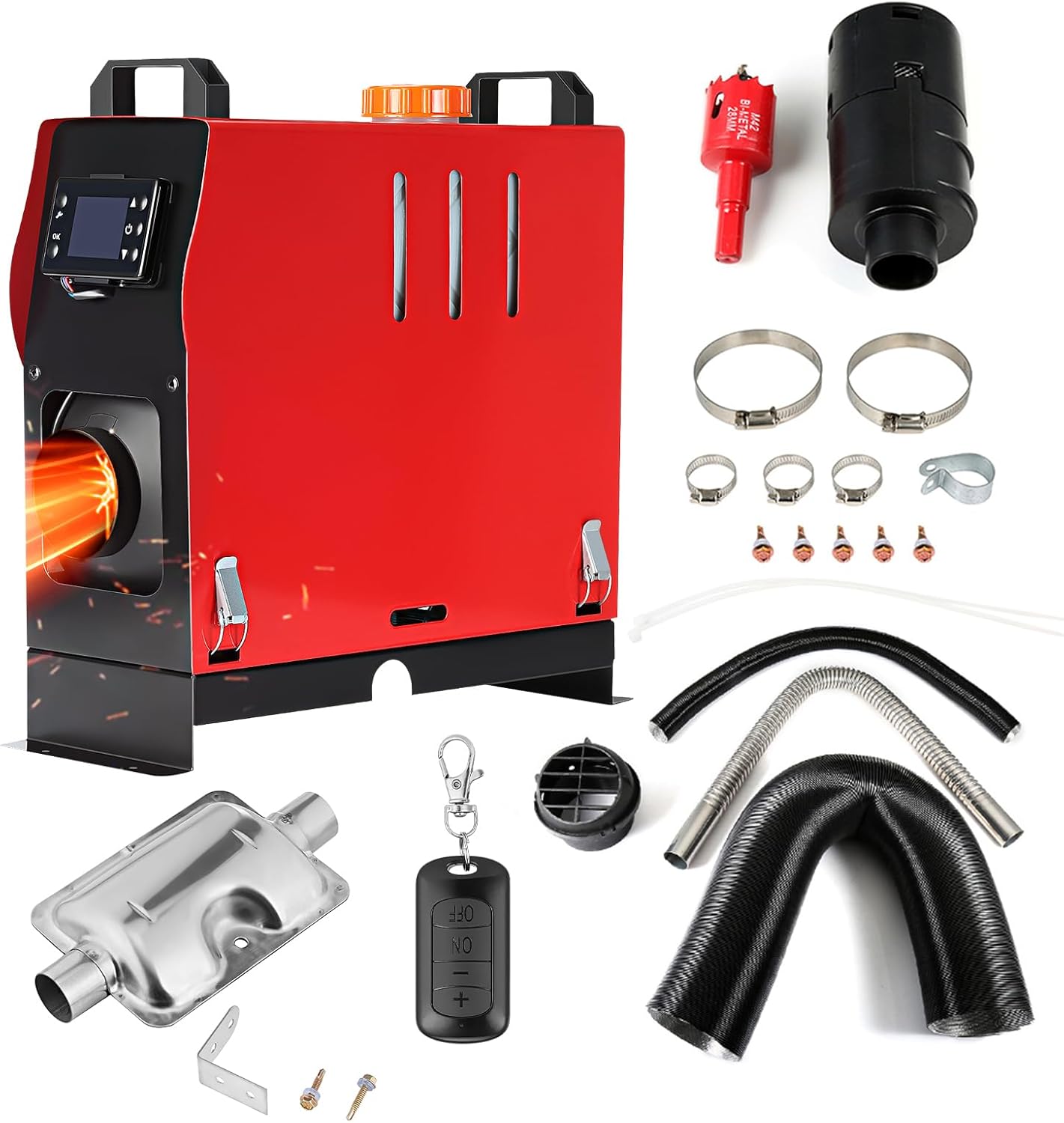

This image displays all the items you will find in the box, including the main heater unit, remote control, display, muffler, various pipes, and installation hardware, providing a visual checklist for unpacking.

4. Setup and Installation

Proper installation is crucial for the safe and efficient operation of your diesel heater. Please follow these steps carefully.

4.1 General Installation Steps

1. Unpack Components: Carefully remove all items from the packaging and verify against the "What's in the Box" list.
2. Positioning: Choose a stable, level surface for the heater. Ensure adequate clearance around the unit for proper airflow and heat dissipation.
3. Connect Air Outlet Pipe: Attach the air outlet pipe to the designated port on the front of the heater. Secure it with the provided clamps.
4. Connect Air Inlet Pipe: Attach the air inlet pipe to the rear port on the bottom of the heater. Secure it with the provided clamps. Ensure the air filter is attached to the end of the air inlet pipe.
5. Connect Exhaust Pipe: Attach the exhaust pipe to the forward port on the bottom of the heater. Secure it with the provided clamps. Ensure the muffler is installed on the exhaust pipe. The exhaust must be vented externally to prevent carbon monoxide buildup.
6. Fuel Connection: Connect the fuel line from the fuel tank to the heater's fuel pump. Ensure all connections are tight and leak-free.
7. Power Connection: Connect the heater to a compatible 12V or 24V power source. Ensure correct polarity.
8. Fill Fuel Tank: Carefully fill the fuel tank with diesel fuel. Do not overfill.

4.2 Important Installation Notes

Critical Safety Alert: Some users have reported confusion regarding the air intake and exhaust connections based on previous instructions. Please ensure the exhaust pipe is connected to the forward port on the bottom of the heater, and the air intake pipe (with filter) is connected to the rear port on the bottom. Incorrect connections can lead to exhaust gases entering the heated space, posing a serious fire and health hazard. Always double-check these connections before operation.

This image provides visual guidance on suitable installation locations within various vehicles, such as co-driver's legroom, cab's back wall, driver's seat backrest, within a tool box, passenger room, under the container, and in the trunk.

4.3 Installation Videos

5. Operating Instructions

The GEARZAAR Diesel Heater features an intuitive LCD display and remote control for easy operation.

5.1 Powering On/Off

• To Power On: Press the power button on the LCD display or the remote control. The display will light up, and the heater will begin its startup sequence.
• To Power Off: Press and hold the power button until the unit shuts down. Allow the fan to run for a few minutes after turning off to cool down the internal components.

5.2 Adjusting Settings

• Temperature Control: Use the up/down arrows on the LCD display or remote control to set your desired temperature.
• Oil Pump Frequency: The oil pump frequency can be adjusted to control fuel delivery and heat output. Refer to the display for current settings.
• Preheating: The remote control allows you to preheat your vehicle from up to 30 meters away under barrier-free conditions.

This image highlights the user-friendly LCD display and remote control, showing how they enable easy adjustment of settings and remote preheating from a distance of up to 30 meters.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your GEARZAAR Diesel Heater. Always disconnect power before performing any maintenance.

• General Cleaning: Keep the exterior of the heater clean and free from dust and debris.
• Air Filter Inspection: Regularly check and clean the air filter to ensure unrestricted airflow. Replace if damaged.
• Component Replacement: Over time, certain components may require replacement due to wear and tear. Refer to the videos below for guidance on specific part replacements.

6.1 Component Replacement Guides

7. Troubleshooting

If you encounter issues with your GEARZAAR Diesel Heater, refer to the following common troubleshooting tips:

• Heater Not Starting:
  • Check power connections and ensure sufficient voltage (12V/24V).
  • Verify there is enough diesel fuel in the tank.
  • Ensure the fuel line is not clogged or kinked.
  • Check the glow plug for proper function (refer to replacement video if needed).
• No Heat Output or Weak Heat:
  • Confirm the temperature setting is higher than the ambient temperature.
  • Check for obstructions in the air inlet or outlet pipes.
  • Inspect the air filter for cleanliness.
  • Ensure the fuel pump is operating correctly (listen for clicking sound).
• Smoke or Unusual Odor:
  • Immediate Action: Turn off the heater and ventilate the area.
  • Critical Check: Verify that the exhaust pipe is correctly connected to the forward port on the bottom of the heater and is vented outside. Ensure the air intake pipe is connected to the rear port. Incorrect installation of these pipes is a common cause of smoke and can be dangerous.
  • Check for any leaks in the exhaust system or fuel lines.
  • Ensure the combustion chamber is clean and free of carbon buildup.
• Excessive Noise:
  • Ensure the heater is on a stable, level surface.
  • Check for loose components or vibrations.
  • Inspect the fan for any obstructions or damage.
• LCD Display Issues:
  • Check power supply to the display.
  • If the display is unresponsive or blank, consider replacing it (refer to replacement video).

If these troubleshooting steps do not resolve the issue, please contact customer support.

8. Specifications

9. Warranty and Support

For warranty information, technical support, or service inquiries regarding your GEARZAAR Diesel Heater, please contact GEARZAAR customer service directly. Refer to the contact details provided with your purchase documentation or visit the official GEARZAAR website for the most up-to-date support information.
