1. Introduction
Thank you for choosing the Mondeer Rocking Chaise Lounge. This manual provides essential information for the safe assembly, operation, and maintenance of your new outdoor furniture. Please read these instructions carefully before use and retain them for future reference.
The Mondeer Rocking Chaise Lounge is designed for relaxation, featuring a durable frame and breathable textilene fabric. Its ergonomic design and rocking function offer comfort for outdoor spaces.
2. Safety Instructions
- Ensure all parts are securely fastened before each use.
- Do not exceed the maximum weight capacity of 160 kg (352 lbs).
- Use on a flat, stable surface to prevent tipping.
- Keep children and pets away from the chair during assembly.
- Avoid placing the chair near open flames or extreme heat sources.
- Regularly inspect the chair for any signs of wear or damage. Discontinue use if damage is found.
- Do not stand on the chair.
3. Package Contents
Please verify that all components are present before beginning assembly. If any parts are missing or damaged, contact customer support.
- Rocking Chaise Lounge Frame Components (Iron)
- Textilene Mesh Fabric Seat
- Removable Headrest (Sponge-filled)
- Assembly Hardware (Screws, washers, wrench)
- Instruction Manual
4. Setup and Assembly
Assembly is required for this product. It is recommended to have two people for easier assembly. Do not fully tighten all screws until the entire frame is assembled to allow for proper alignment.
- Unpack all components and lay them out on a clean, soft surface to prevent scratches.
- Attach the main frame sections using the provided hardware. Insert screws loosely at first.
- Secure the textilene mesh fabric to the frame according to the pre-drilled holes.
- Once all parts are connected, gradually tighten all screws evenly until secure. Do not overtighten.
- Attach the removable headrest to the desired position on the chair.
Figure 4.1: Product dimensions for assembly reference. The lounge measures 154 cm in length, 61 cm in width, and 85 cm in height.
5. Operating Instructions
5.1 Using the Rocking Function
The chaise lounge is designed with a gentle rocking motion. To use, simply sit comfortably and lean back. The curved base allows for a smooth, relaxing sway. Ensure the chair is on a level surface for optimal rocking.
Figure 5.1: Illustration of the ergonomic design and rocking capability, emphasizing comfort and material properties.
5.2 Adjusting the Headrest
The headrest is removable and adjustable. Slide it up or down the backrest to find your preferred position for neck and head support.
5.3 Using Side Pockets
The integrated side pockets are convenient for storing small items such as magazines, books, or a water bottle while you relax.

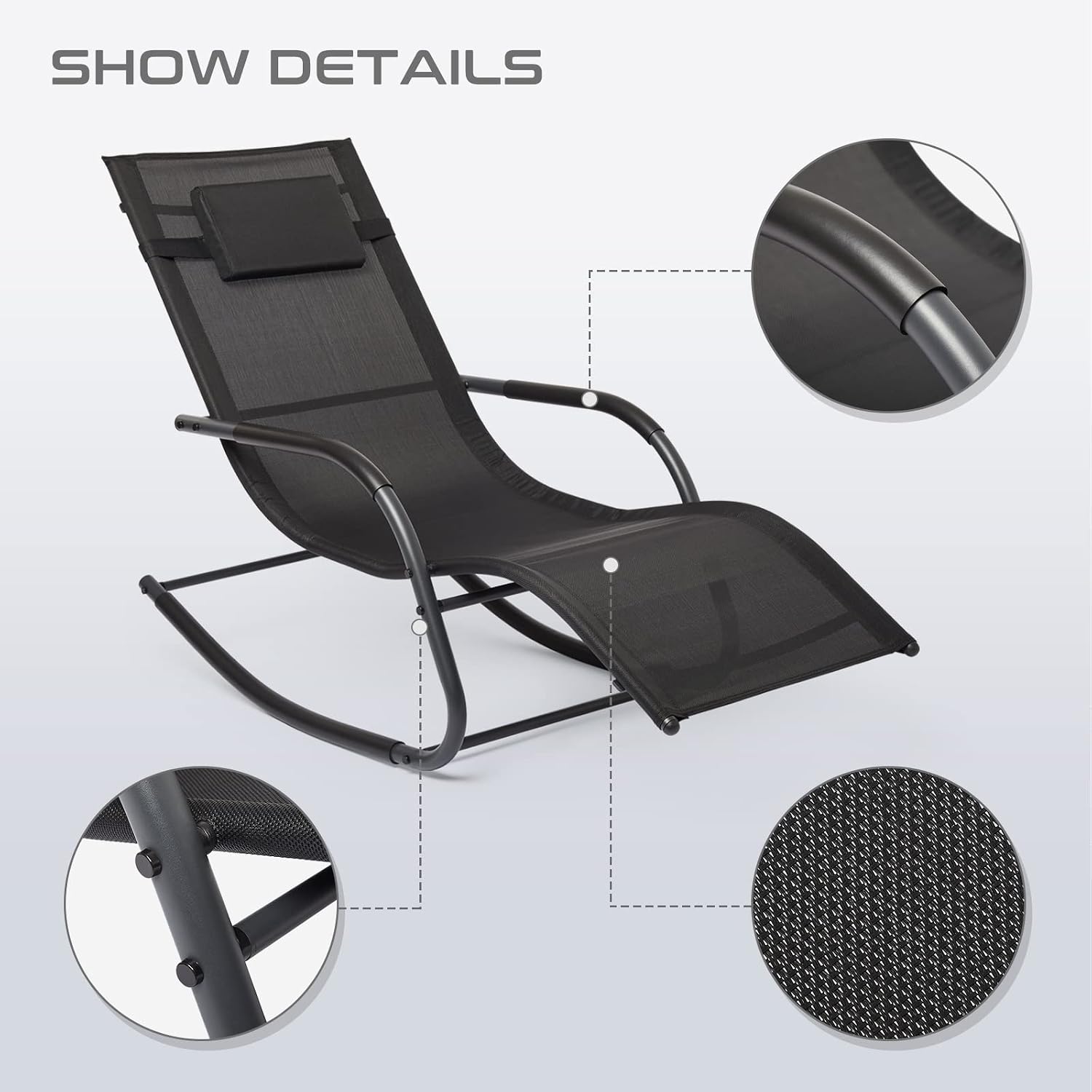

Figure 5.2: Detailed view of the chair's features, including the frame, textilene fabric, and practical side pockets.
6. Maintenance
To ensure the longevity and appearance of your Mondeer Rocking Chaise Lounge, follow these maintenance guidelines:
- Cleaning: Wipe the frame with a damp cloth and mild soap. Rinse thoroughly and dry completely. The textilene fabric can be cleaned with a soft brush and soapy water. Avoid harsh chemicals or abrasive cleaners.
- Weather Protection: While the materials are weather-resistant, prolonged exposure to extreme weather conditions (heavy rain, snow, intense sun) may reduce its lifespan. Consider using a protective cover or storing the chair indoors during harsh weather.
- Fastener Check: Periodically check all screws and bolts to ensure they remain tight. Retighten if necessary.
- Storage: When not in use for extended periods, store the chair in a cool, dry place.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Chair feels unstable or wobbly. | Loose assembly hardware or uneven surface. | Ensure all screws are tightened. Move the chair to a flat, level surface. |
| Rocking motion is not smooth. | Uneven surface or obstruction under the rocking base. | Check the ground for debris or unevenness. Ensure the chair is on a smooth, level surface. |
| Fabric appears dirty or stained. | Accumulated dirt or spills. | Clean with mild soap and water using a soft brush. Rinse thoroughly and air dry. |
8. Specifications
- Model Number: N-M1038020803
- Brand: Mondeer
- Dimensions (L x W x H): 154 cm x 61 cm x 85 cm (60.6 x 24 x 33.5 inches)
- Weight: Approximately 3.47 kg (7.65 lbs)
- Maximum Weight Capacity: 160 kg (352 lbs)
- Frame Material: Iron
- Body Material: Textilene Mesh Fabric
- Armrest Material: EVA
- Color: Black
- Assembly Required: Yes
- Foldable: No
Figure 8.1: The Mondeer Rocking Chaise Lounge in a typical outdoor environment.
9. Warranty and Support
For warranty information or technical support, please contact Mondeer customer service through your purchase platform or the official Mondeer website. Please have your model number (N-M1038020803) and proof of purchase ready when contacting support.
We are committed to providing high-quality products and support to ensure your satisfaction.
