IPW Industries Inc-Watts-T10460 Visual Test Kit User Manual

1. Introduction

This manual provides instructions for the proper use and maintenance of the IPW Industries Inc-Watts-T10460 Visual Test Kit. This kit is designed for quick, portable, and convenient measurement of total hardness in water using a colorimetric drop count method. Understanding your water's hardness is crucial for various applications, including water treatment, appliance longevity, and industrial processes.

2. Safety Information

Always prioritize safety when handling chemical reagents. Read and understand all instructions before beginning any test. Keep the kit out of reach of children and pets.

• Wear appropriate personal protective equipment, such as safety glasses and gloves, to prevent skin and eye contact with reagents.
• Do not ingest any reagents. If accidental ingestion occurs, seek immediate medical attention.
• Avoid contact of reagents with clothing or surfaces, as they may cause staining or damage.
• Dispose of used samples and reagents according to local environmental regulations. Do not pour down drains without proper neutralization if required.
• Store the kit in a cool, dry place, away from direct sunlight and extreme temperatures.

3. Kit Contents

The IPW Industries Inc-Watts-T10460 Visual Test Kit typically includes the following components:

• Reagent bottles (e.g., Hardness Indicator, Hardness Titrant)
• Test tube or sample bottle with cap
• Instruction manual (this document)

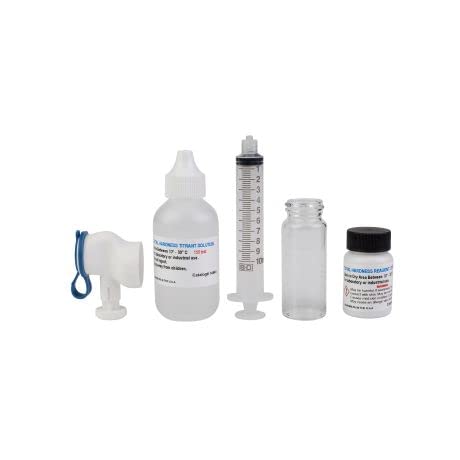

Image: The IPW Industries Inc-Watts-T10460 Visual Test Kit, showing the compact design and essential components like reagent bottles and a test vessel. This kit is used for measuring total water hardness.

4. Setup

Before performing a test, ensure you have a clean, flat, and well-lit workspace. Gather all kit components and the water sample to be tested.

1. Prepare Sample: Collect a fresh water sample in a clean container. Ensure the sample is representative of the water source you wish to test.
2. Inspect Reagents: Check reagent bottles for any signs of damage or expiration. Ensure caps are securely fastened.
3. Clean Test Tube: Rinse the test tube thoroughly with the water sample to be tested, then discard the rinse water. This prevents contamination from previous tests.

5. Operating Instructions (Total Hardness Test)

Follow these steps carefully to obtain accurate total hardness measurements:

1. Fill Test Tube: Fill the provided test tube to the indicated mark (e.g., 5 mL or 10 mL) with the water sample. For best accuracy, ensure the meniscus (the curved surface of the water) aligns with the mark.
2. Add Hardness Indicator: Add 2 drops of the Hardness Indicator reagent to the water sample in the test tube. Cap the test tube and gently invert it several times to mix the solution. The sample should turn a red or pink color if hardness is present. If it turns blue, the water is very soft (0-1 GPG).
3. Add Hardness Titrant: Add the Hardness Titrant reagent drop by drop to the sample. After each drop, cap the test tube and gently invert to mix. Count the number of drops added. Continue adding drops until the color of the sample changes from red/pink to a clear blue. This color change indicates the endpoint of the titration.
4. Record Drops: Note the exact number of drops of Hardness Titrant required to achieve the color change.
5. Repeat Test (Optional): For increased accuracy, it is recommended to repeat the test two or three times and average the results.

6. Interpreting Results

The number of drops of Hardness Titrant used directly correlates to the total hardness of your water sample. Refer to the following conversion factors:

• 1 drop = 1 Grains Per Gallon (GPG)
• 1 drop = 17.1 Parts Per Million (PPM)

Calculation Example: If you used 10 drops of Hardness Titrant:

• Hardness in GPG = 10 drops * 1 GPG/drop = 10 GPG
• Hardness in PPM = 10 drops * 17.1 PPM/drop = 171 PPM

The kit measures total hardness in the range of 0-5000 PPM or 0-30 GPG, depending on the specific titrant concentration and sample volume used. Always refer to the specific instructions on your reagent bottles for precise conversion factors if they differ.

7. Maintenance

Proper maintenance ensures the longevity and accuracy of your test kit.

• Cleaning: After each use, thoroughly rinse the test tube and cap with clean water. Allow them to air dry completely before storing.
• Storage: Store all reagents in their original bottles with caps tightly sealed. Keep the entire kit in a cool, dry, dark place, away from direct sunlight and extreme temperatures.
• Reagent Expiration: Check the expiration dates on reagent bottles. Expired reagents may yield inaccurate results and should be replaced.

8. Troubleshooting

9. Specifications

• Model Number: T10460
• Measurement Type: Colorimetric Drop Count
• Parameter: Total Hardness
• Measurement Range: 0-5000 PPM (Parts Per Million) / 0-30 GPG (Grains Per Gallon)
• Typical Test Capacity: 100 or more tests (depending on water hardness)
• Product Dimensions: Approximately 2 x 2 x 3 inches
• Manufacturer: IPW Industries Inc

10. Warranty and Support

For specific warranty information and technical support regarding your IPW Industries Inc-Watts-T10460 Visual Test Kit, please refer to the packaging or contact IPW Industries Inc directly. Keep your purchase receipt as proof of purchase.

Manufacturer Contact: Please visit the official IPW Industries Inc website or refer to the contact information provided on the product packaging for customer service and support.
