XTWEEX Hard Tri-Fold Tonneau Cover User Manual

1. Introduction

This manual provides detailed instructions for the installation, operation, maintenance, and troubleshooting of your XTWEEX Hard Tri-Fold Tonneau Cover. Please read this manual thoroughly before installation and use to ensure proper function and longevity of your product. This tonneau cover is designed to protect your truck bed cargo from weather elements and enhance security.

2. Safety Information

• Always ensure the tonneau cover is securely latched before driving.
• Do not exceed the weight limit of 500 pounds on the cover.
• Exercise caution when folding or unfolding the cover to avoid pinching hands or fingers.
• Ensure the truck bed is clear of obstructions before closing the cover.
• This cover is not applicable to vehicles with Cargo Management Rails.

3. Package Contents

Verify that all components are present before beginning installation:

• Hard Tri-Fold Tonneau Cover Assembly
• Mounting Hardware (clamps, bolts, etc.)
• Installation Guide

4. Compatibility

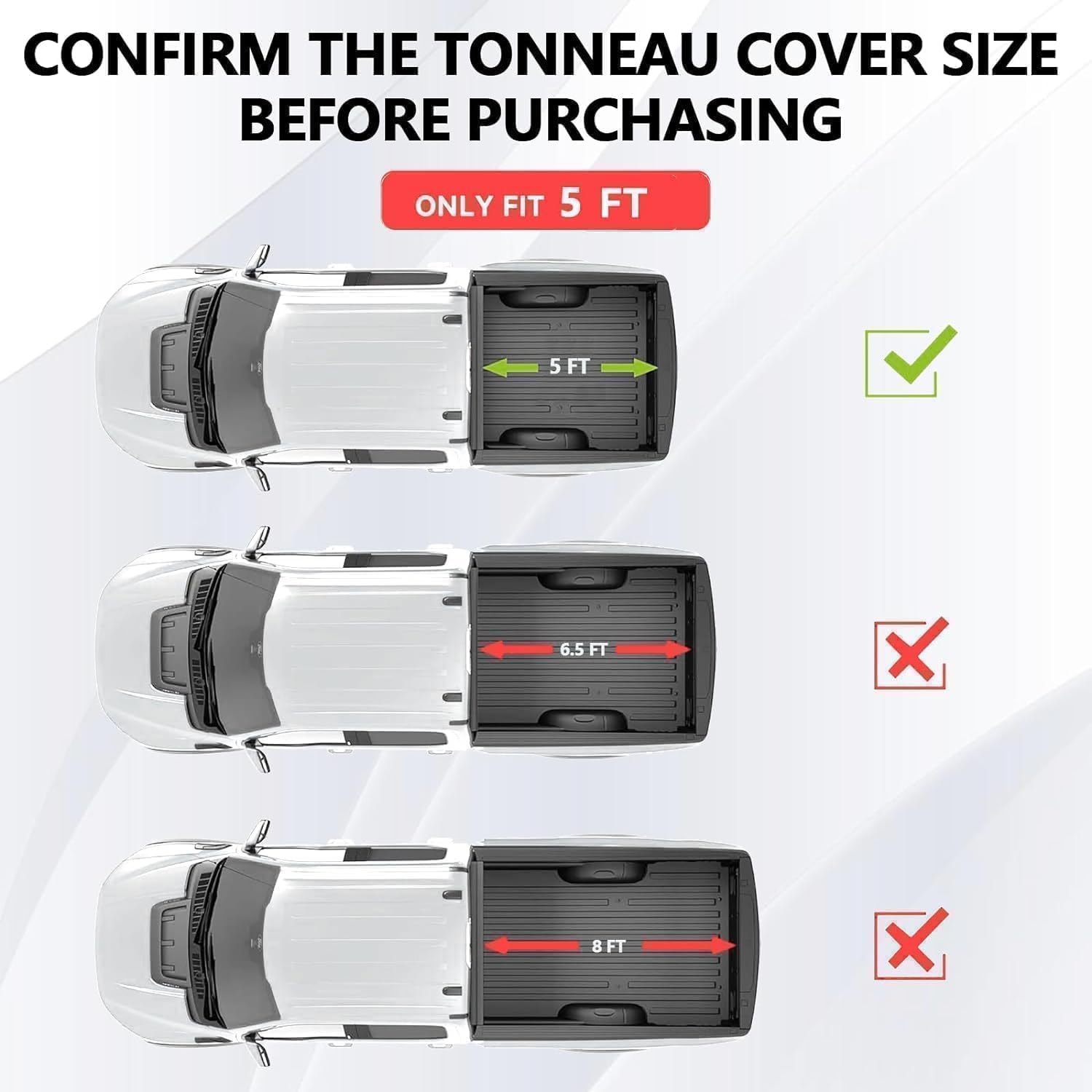

This XTWEEX Hard Tri-Fold Tonneau Cover is compatible with the 5'1" (61") or 5-foot bed of the Ford Ranger models from 2020 to 2025. This bed length is the official length for the Ford Ranger 5ft bed. Please measure your truck bed length before ordering to ensure correct fitment. This cover is not compatible with trucks equipped with Cargo Management Rails.

5. Setup and Installation

Installation of the XTWEEX Hard Tri-Fold Tonneau Cover is designed to be straightforward with no drilling required. The cover is securely attached to the truck bed using strong clamps.

5.1. Pre-Installation Steps

• Unpack all components and verify against the package contents list.
• Clean the truck bed rails thoroughly to ensure proper sealing and adhesion of any weather stripping.
• Position the tonneau cover assembly onto the truck bed rails, ensuring it is centered and aligned with the bulkhead.

5.2. Securing the Cover

The cover is secured using clamps that attach to the truck bed rails. Follow these general steps:

1. Locate the front clamps on the underside of the tonneau cover.
2. Engage the clamps onto the truck bed rails and tighten them by hand until snug.
3. Unfold the middle and rear sections of the tonneau cover.
4. Locate the rear clamps and secure them to the truck bed rails. Ensure all clamps are firmly in contact with the lip of the metal bed rail.
5. Close the tailgate to complete the installation.

Note: Some users have reported T-bolts being slightly short for certain 2024 Ford Ranger models. If you encounter this issue, please contact XTWEEX customer service for assistance.

5.3. Installation Visual Guide

5.4. Installation Video

6. Operating Instructions

The XTWEEX Hard Tri-Fold Tonneau Cover offers flexible access to your truck bed.

6.1. Folding and Unfolding

• To open the cover, release the rear latches and fold the rear panel towards the cab.
• Continue folding the middle panel towards the cab.
• Secure the folded panels using the integrated straps and buckles near the cab to allow for full bed access while driving.
• To close, release the straps and unfold the panels one by one, ensuring each section lays flat and latches securely.

6.2. Locking Mechanism

The tonneau cover provides security by locking when the tailgate is closed. Ensure the cover is fully closed and latched, then close and lock your truck's tailgate to secure your cargo.

6.3. Product Overview Video

7. Maintenance

Regular maintenance will help preserve the appearance and functionality of your tonneau cover.

• Cleaning: Clean the cover regularly with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the matte black finish.
• Inspection: Periodically check all clamps and hinges for tightness and proper function. Tighten any loose fasteners.
• Weather Stripping: Inspect the weather seals around the perimeter of the cover for any signs of wear or damage. Replace if necessary to maintain waterproof integrity.

8. Troubleshooting

8.1. Water Leakage

While designed to be waterproof, minor water intrusion can occur under certain conditions. Check the following:

• Ensure all weather stripping is properly seated and undamaged.
• Verify that the drain tubes are correctly installed and free of obstructions.
• Confirm that the cover is fully closed and all latches are engaged.
• Check for any gaps at the bulkhead or corners and apply additional weather stripping if necessary.

8.2. Difficulty Latching/Unlatching

• Ensure the cover is properly aligned on the truck bed rails.
• Check for any obstructions preventing the latches from fully engaging.
• Verify that the T-bolts are not too short, especially for 2024 Ford Ranger models. Contact customer service if this is the case.

9. Specifications

10. Warranty and Support

XTWEEX provides a 3-year after-sales service for this product. Our US customer service team is available to assist you with any questions or concerns regarding your tonneau cover.

For support, please refer to the contact information provided in your product packaging or visit the official XTWEEX store on Amazon: XTWEEX Store.
