Toyota 2KD-FTV 2KD Engine Rebuild Kit Overhaul Manual

1. Introduction

This manual provides essential information for the installation and maintenance of the Ellas-Wohnwelt Rebuild Kit for Toyota 2KD-FTV and 2KD engines. This kit is designed to restore engine performance and longevity by replacing critical internal components. Due to the complex nature of engine rebuilding, it is highly recommended that installation be performed by a certified mechanic or an individual with extensive experience in engine overhaul procedures. Improper installation can lead to severe engine damage and void any potential warranties.

2. Product Overview and Kit Contents

The Ellas-Wohnwelt Rebuild Kit for Toyota 2KD-FTV/2KD engines includes a comprehensive set of components necessary for a complete engine overhaul. Please verify all components against the list below upon receipt.

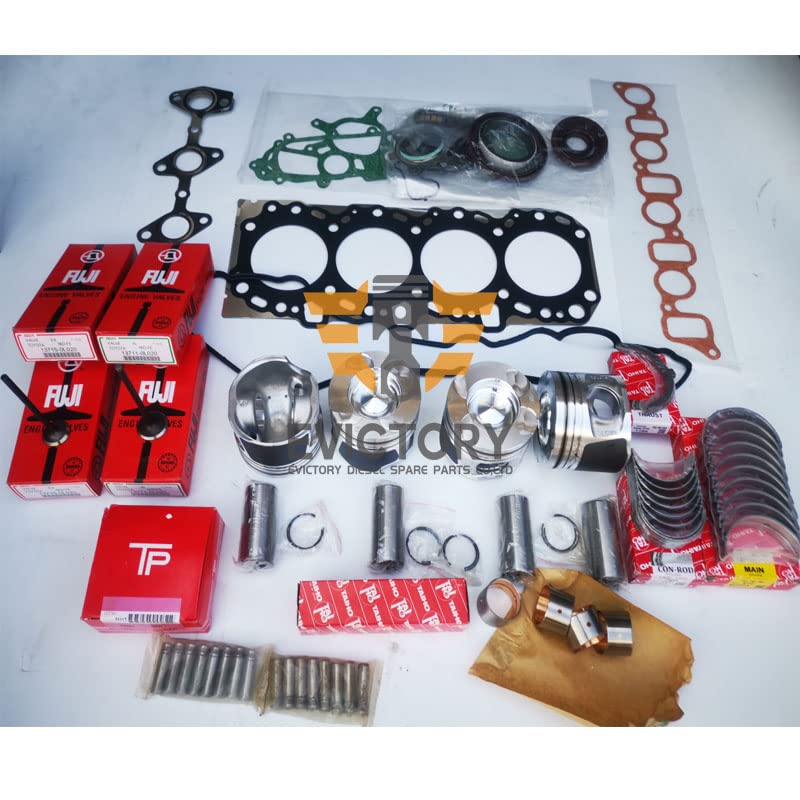

Image 2.1: An overhead view of the complete engine rebuild kit, showcasing all included components such as pistons, rings, bearings, gaskets, and cylinder liners, neatly arranged on a white background.

Kit Components:

• Cylinder Liners: 4 pieces, designed for precise fitment and optimal cylinder sealing.
• Pistons with Pins and Clips: 4 complete piston assemblies, including piston pins and retaining clips for secure installation.
• Piston Ring Set: 1 complete set of piston rings for all 4 pistons, ensuring proper compression and oil control.
• Full Gasket Kit: 1 comprehensive kit containing all necessary gaskets and seals for engine reassembly, including head gasket, manifold gaskets, and various oil seals.
• Engine Bearing Set: 1 complete set of engine bearings, typically including main bearings and connecting rod bearings, crucial for crankshaft and connecting rod rotation.

Image 2.2: A closer look at various components of the rebuild kit, including pistons, connecting rod bearings, a full gasket set, and engine valves in their packaging, highlighting the quality and completeness of the kit.

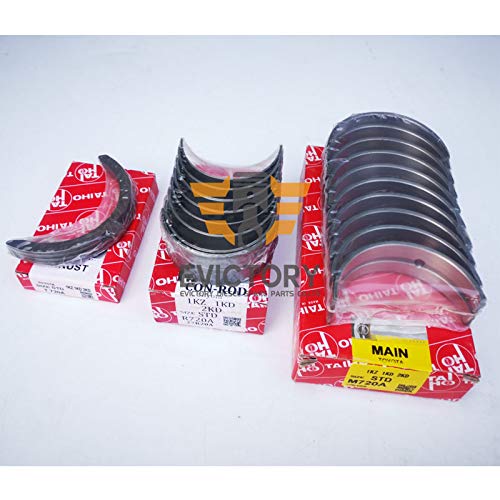

Image 2.3: A detailed image showing the engine main and connecting rod bearings, packaged in their respective boxes, ready for installation. These components are vital for smooth crankshaft operation.

Image 2.4: This image displays the engine valves, both intake and exhaust, along with their packaging. These valves are crucial for controlling the flow of air and exhaust gases within the engine cylinders.

3. Setup and Installation Guidelines

The installation of an engine rebuild kit requires specialized tools, technical knowledge, and adherence to manufacturer specifications. Always refer to the official Toyota 2KD-FTV/2KD service manual for detailed, step-by-step instructions, torque specifications, and critical clearances.

3.1. Pre-Installation Preparation

• Engine Disassembly: Carefully disassemble the engine, keeping all components organized.
• Cleaning: Thoroughly clean all engine components, including the engine block, cylinder head, crankshaft, and connecting rods. Remove all old gasket material, carbon deposits, and sludge.
• Inspection: Inspect all engine components for wear, cracks, or damage. Pay close attention to the crankshaft journals, connecting rod bores, and cylinder head surfaces.
• Machining: If necessary, perform machining operations such as cylinder boring/honing, crankshaft grinding, and cylinder head resurfacing to ensure proper fitment of new components.

3.2. Component Installation Sequence (General)

While the exact sequence may vary, a typical engine rebuild follows these general steps:

1. Cylinder Liners: Install new cylinder liners into the engine block. Ensure proper seating and protrusion as per service manual specifications.
2. Crankshaft and Main Bearings: Install the main bearings into the engine block and main bearing caps. Carefully place the crankshaft and torque the main bearing caps to specifications.
3. Pistons, Rings, and Connecting Rods: Assemble the piston rings onto the new pistons. Install the connecting rod bearings into the connecting rods. Carefully install the piston and connecting rod assemblies into the cylinders, ensuring correct orientation. Connect the connecting rods to the crankshaft and torque the connecting rod caps to specifications.
4. Cylinder Head and Valves: Install the new valves and valve guides (if applicable) into the cylinder head. Assemble valve springs, retainers, and keepers. Place the new head gasket onto the engine block and install the cylinder head, torquing head bolts in the specified sequence and stages.
5. Gaskets and Seals: Install all remaining gaskets and seals, including oil pan gasket, timing cover gasket, intake/exhaust manifold gaskets, and various oil seals.
6. Ancillary Components: Reinstall all engine accessories, sensors, and external components.

Important: Always use appropriate lubricants during assembly, such as engine assembly lube for bearings and oil for piston rings and cylinder walls. Ensure all fasteners are torqued to the manufacturer's specifications using a calibrated torque wrench.

For detailed instructions, please consult the official Toyota 2KD-FTV/2KD engine service manual or seek professional assistance.

4. Operating the Engine After Rebuild

After a complete engine rebuild, proper initial operation and break-in are crucial for the longevity and performance of the engine.

4.1. Initial Start-Up

• Pre-Lubrication: Before starting, ensure the engine is properly filled with fresh engine oil and coolant. Consider priming the oil pump to build oil pressure before the first start.
• First Start: Start the engine and immediately check for oil pressure. Allow the engine to run at a slightly elevated idle (around 1500-2000 RPM) for 20-30 minutes to allow camshaft and lifter break-in (if applicable) and to seat piston rings.
• Monitoring: Continuously monitor oil pressure, coolant temperature, and listen for any unusual noises or vibrations. Check for any leaks (oil, coolant, fuel).

4.2. Break-In Period

The first few hundred miles are critical for the new components to seat properly.

• Vary Engine Speed: Avoid prolonged periods of constant engine speed. Vary RPMs during driving.
• Avoid Heavy Loads: Do not tow heavy loads or operate the engine at wide-open throttle during the break-in period.
• Oil Change: Perform an initial oil and filter change after approximately 500-1000 miles to remove any break-in debris.

5. Maintenance

Regular maintenance is essential to ensure the long-term reliability and performance of your rebuilt engine.

• Oil and Filter Changes: Adhere to the manufacturer's recommended oil change intervals and use the specified oil type and viscosity.
• Air Filter: Regularly inspect and replace the air filter to ensure clean air intake.
• Fuel Filter: Replace the fuel filter as per the vehicle manufacturer's schedule.
• Coolant System: Check coolant levels and condition regularly. Flush and replace coolant as recommended.
• General Inspection: Periodically inspect for leaks, loose hoses, belts, and electrical connections.

6. Troubleshooting

If you encounter issues after the engine rebuild, consider the following common problems. Always consult a professional mechanic for diagnosis and repair.

6.1. Common Issues

• Low Oil Pressure: Could indicate incorrect bearing clearances, faulty oil pump, or blocked oil passages.
• Overheating: Possible causes include improper head gasket installation, air in the cooling system, faulty thermostat, or restricted coolant flow.
• Unusual Engine Noises (Knocking, Tapping): May point to incorrect valve lash, piston slap, connecting rod bearing issues, or crankshaft bearing problems.
• Excessive Smoke from Exhaust:
• Blue Smoke: Often indicates burning oil, possibly due to improper piston ring seating or valve guide seals.
• White Smoke: Typically indicates burning coolant, often due to a head gasket issue.
• Black Smoke: Usually indicates rich fuel mixture or incomplete combustion.
• Fluid Leaks: Check all gasket surfaces and seals for proper installation and integrity.

If any of these issues persist, discontinue engine operation and seek immediate professional assistance to prevent further damage.

7. Specifications

Key specifications for the Ellas-Wohnwelt Toyota 2KD-FTV 2KD Engine Rebuild Kit:

8. Warranty and Support

This product is offered with a 30-day easy returns policy. For any questions regarding the product, installation, or to initiate a return, please contact customer support through the Amazon platform where the purchase was made.

For direct assistance, you may also refer to the seller's contact information provided on your Amazon order details page. The seller for this product is Evictory Diesel Spare Parts co.,Ltd.

Customer Support Link: Amazon Customer Service
