1. Introduction
Thank you for choosing the Kidsera 24V Ride on Tractor with Trailer. This electric vehicle is designed to provide an engaging and realistic driving experience for children, featuring dual motors, a detachable trailer, and a functional front loader. This manual provides essential information for safe assembly, operation, and maintenance to ensure long-lasting enjoyment.
2. Safety Information
WARNING: Adult assembly required. Adult supervision is required at all times during operation.
- Always ensure the child is wearing appropriate safety gear, including a helmet.
- Ensure the safety belt is securely fastened before operation.
- Operate the tractor only on flat, dry surfaces away from public roads, steep inclines, swimming pools, or other water bodies.
- Do not overload the tractor or trailer beyond the maximum weight capacity of 65 lbs.
- Keep hands, hair, and clothing away from moving parts.
- This product is battery operated. Charge the battery according to the included instruction manual. Do not overcharge.
- Regularly inspect the vehicle for any damage or loose parts before each use.
3. Product Features
The Kidsera 24V Ride on Tractor is engineered for durability and fun, incorporating several key features:
- 24V Dual Motors: Provides stable current and sufficient power for various terrains, reaching speeds of 2.5-5 MPH.
- Detachable Trailer: Easily attaches and detaches, allowing children to transport toys, leaves, or garden supplies.
- Functional Front Loader: Manually operable bucket for scooping and dumping, enhancing realistic play.
- Soft Start Technology: Ensures smooth acceleration and braking, preventing sudden jolts for a comfortable ride.
- All-Terrain Wheels: Wear-resistant wheels and shock absorbers allow smooth movement on grass, gravel, dirt, or pavement.
- Multimedia Dashboard: Features a digital voltmeter, music mode, horn, and Bluetooth connectivity for an immersive experience.
- Safety Design: Equipped with a comfortable seat, safety belt, and armrests for maximum child safety.
Figure 3.1: Kidsera 24V Ride on Tractor with Trailer.
Figure 3.2: Powerful 24V dual motors and all-terrain wheels for enhanced performance.
Figure 3.3: The versatile 2-in-1 design allows for use with or without the trailer and front loader.

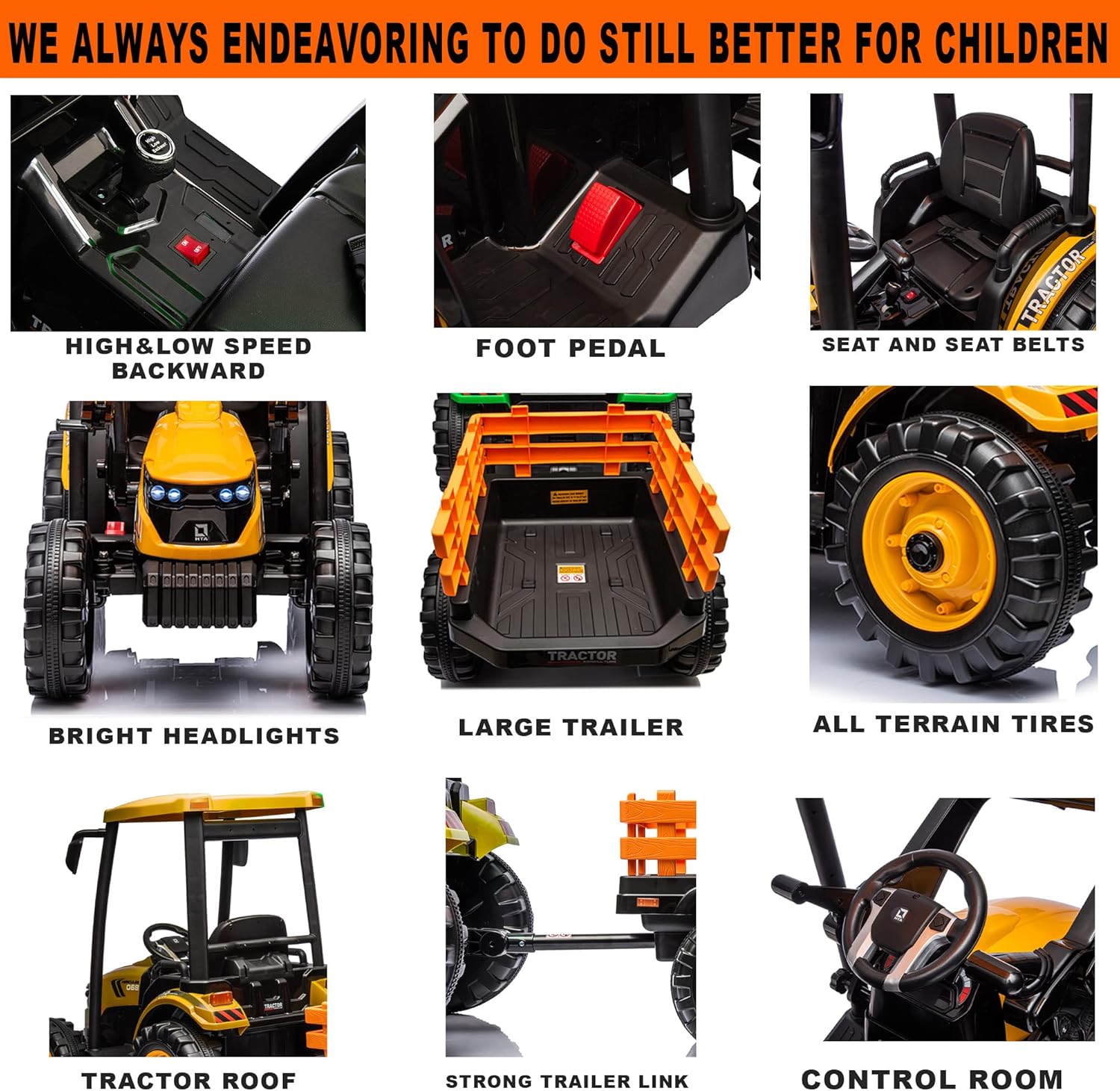

Figure 3.4: Close-up of key operational features including the gear shift, foot pedal, and bright headlights.
4. Setup and Assembly
Assembly of the Kidsera 24V Ride on Tractor requires careful attention to detail. Please follow the steps outlined in the video below for a smooth setup process. Ensure all parts are present before beginning assembly.
Video 4.1: Detailed assembly guide for the 24V Kid Ride on Tractor with Trailer & Front Loader. This video demonstrates the step-by-step process of putting together the tractor, including attaching the wheels, connecting the battery, installing the steering wheel, seat, roof, and assembling the trailer and front loader components.
Key Assembly Steps:
- Wheel Installation: Securely attach all four wheels to the tractor chassis using the provided hardware. Ensure the rear wheels are properly aligned with the motor shafts.
- Battery Connection: Locate the battery compartment, typically under the seat. Connect the battery terminals as indicated (red to red, black to black).
- Steering Wheel Assembly: Attach the steering wheel to the steering column. Ensure it is firmly secured and functional.
- Seat & Backrest: Install the seat and backrest, securing them with screws.
- Canopy/Roof: Assemble and attach the canopy supports and roof to the main body of the tractor.
- Trailer Assembly: Assemble the trailer bed and attach its wheels. Connect the trailer to the tractor's hitch point.
- Front Loader Assembly (if applicable): Assemble the front loader arm and bucket. Attach it to the designated points on the tractor's front.
5. Operating Instructions
Familiarize yourself with the controls before operating the tractor.
Starting and Driving:
- Power On: Locate the main power switch on the dashboard and turn it to the "ON" position.
- Select Speed: Use the gear shift lever to select either High speed (approx. 5 MPH) or Low speed (approx. 2.5 MPH). A reverse option is also available.
- Accelerate: Press the foot pedal to move the tractor forward or backward. The soft start technology ensures a gradual acceleration.
- Steering: Use the steering wheel to control the direction of the tractor.
- Stopping: Release the foot pedal to bring the tractor to a stop.
Using the Front Loader:
The front loader is manually operated for interactive play.
- Lowering/Raising: Use the levers on the side of the front loader arm to manually raise or lower the bucket.
- Scooping/Dumping: Once the bucket is lowered, children can manually scoop materials. Use the release lever to tilt the bucket and dump its contents.
Multimedia Features:
- Digital Voltmeter: Check the remaining battery power on the dashboard display.
- Music Mode: Press the music button on the dashboard to play pre-loaded tunes.
- Horn: Press the horn button on the steering wheel for a realistic sound.
- Bluetooth: Connect a mobile device via Bluetooth to play custom music through the tractor's speakers.
Video 5.1: Demonstration of the Kidsera 24V ride on tractor in operation, highlighting its features and ease of use for children.
Video 5.2: Short clip showcasing the Kidsera 24V ride on tractor's maneuverability and fun features.
6. Maintenance
Proper maintenance ensures the longevity and safe operation of your Kidsera tractor.
- Battery Charging: Charge the 24V lead-acid battery fully after each use. Recharge when the digital voltmeter shows less than 24.5V. Refer to the specific battery charging instructions in the manual provided with the product.
- Cleaning: Wipe down the tractor with a damp cloth. Do not use harsh chemicals or abrasive cleaners. Avoid spraying water directly onto electrical components.
- Storage: Store the tractor in a dry, cool place away from direct sunlight and moisture. If storing for extended periods, charge the battery fully every 30 days.
- Inspection: Regularly check all screws, bolts, and connections to ensure they are tight. Inspect wheels and axles for wear or damage.
7. Troubleshooting
If you encounter issues with your tractor, refer to the following common troubleshooting tips:
| Problem | Possible Cause | Solution |
|---|---|---|
| Tractor does not move | Battery is low or not connected; Power switch is off; Loose wire connection. | Charge battery; Turn power switch on; Check all wire connections. |
| Tractor moves slowly | Low battery; Overloaded; Operating on rough terrain. | Charge battery fully; Reduce load; Operate on smoother surfaces. |
| No sound from multimedia | Volume too low; Bluetooth not connected. | Increase volume; Reconnect Bluetooth device. |
| Front loader not working | Levers are stuck; Mechanical issue. | Check for obstructions; Contact customer support if issue persists. |
8. Specifications
- Product Dimensions: 87.8 x 28.4 x 51.2 inches
- Item Weight: 65 pounds
- Battery: 24V rechargeable lead acid battery
- Speed: 2.5-5 MPH (High/Low settings)
- Weight Capacity: 65 lbs
- Recommended Age: 36 months - 6 years
- Country of Origin: China
- Certifications: ASTM and CPSIA

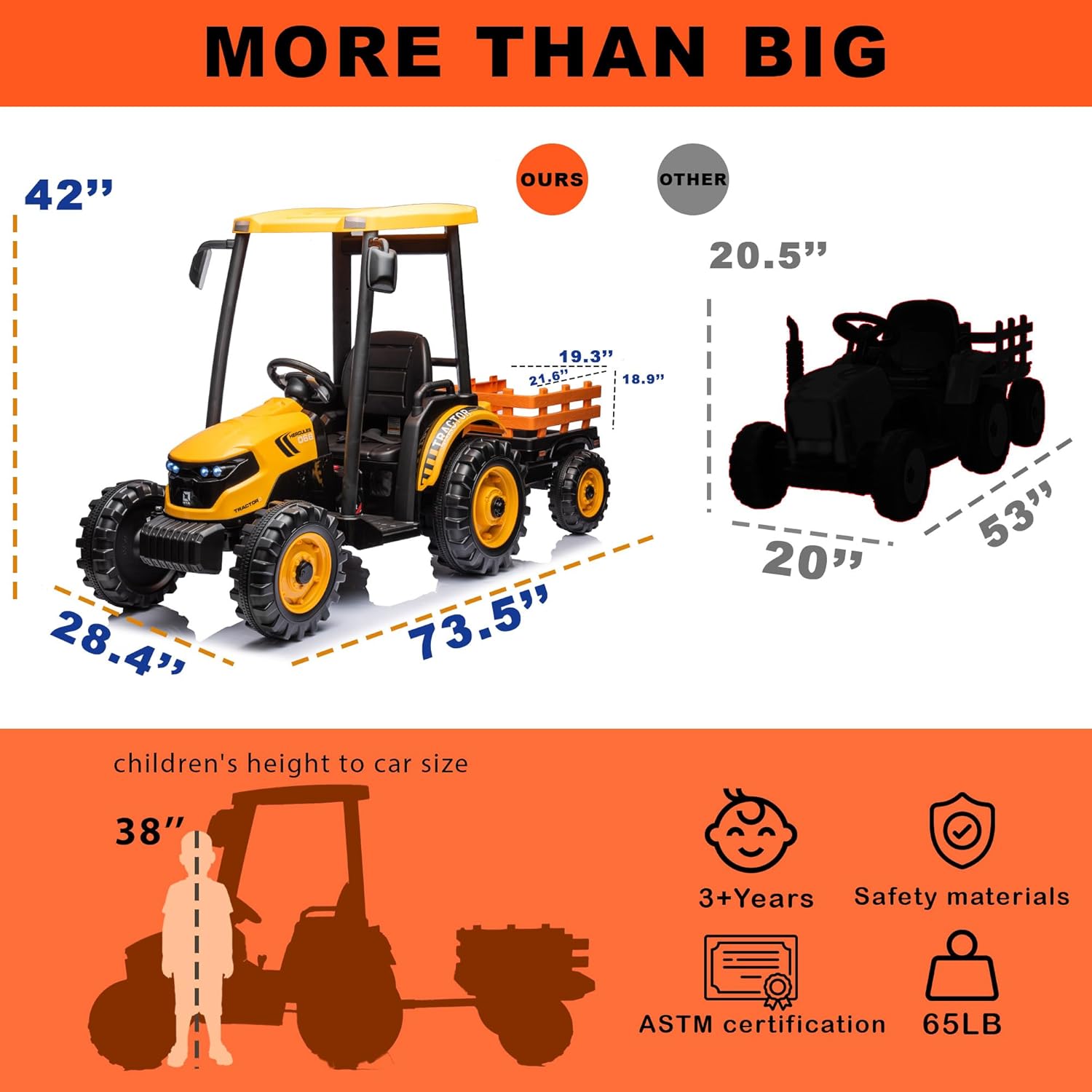

Figure 8.1: Product dimensions and recommended child height for optimal use.
9. Warranty and Support
Kidsera products are designed for quality and durability. For warranty information, technical support, or any questions regarding your 24V Ride on Tractor, please visit the official Kidsera Store on Amazon or contact their customer service directly. Please retain your proof of purchase for warranty claims.
