1. Introduction
The NantFun Mini Pottery Wheel Machine is a compact and versatile electric ceramic wheel designed for beginners, kids, and adults interested in pottery. It features double turntables (6.5cm and 10cm), a detachable basin for easy cleaning, and adjustable speed control, providing a quiet and efficient creative experience.
Figure 1.1: The NantFun Mini Pottery Wheel Machine with included clay tools, power adapter, sponge, and two turntables.
2. Safety Information
- Always ensure the machine is placed on a stable, level surface before operation.
- Keep hands and loose clothing away from the rotating turntable during use.
- Do not immerse the main unit in water or any other liquid.
- Unplug the machine from the power outlet when not in use, before cleaning, or before performing any maintenance.
- Supervise children closely when they are using the pottery wheel.
- Use only the provided power adapter.
- Avoid applying excessive pressure to the turntable, as this may affect motor performance or stability.
3. Package Contents
Please check the package to ensure all items are present and in good condition:
- Ceramic Machine x 1
- Clay Tools x 8
- Turntable 3.94in (10cm) x 1
- Turntable 2.56in (6.5cm) x 1
- Allen Key x 1
- Sponge x 1
- Power Adapter x 1
Figure 3.1: Visual representation of all items included in the package.
4. Setup
4.1 Attaching the Detachable Basin
The pottery wheel includes a removable ABS basin designed to catch water and clay splashes, keeping your workspace clean. To attach the basin:
- Align the two halves of the basin around the base of the turntable.
- Gently press the basin halves together until they snap securely into place. Ensure a snug fit to prevent leaks.

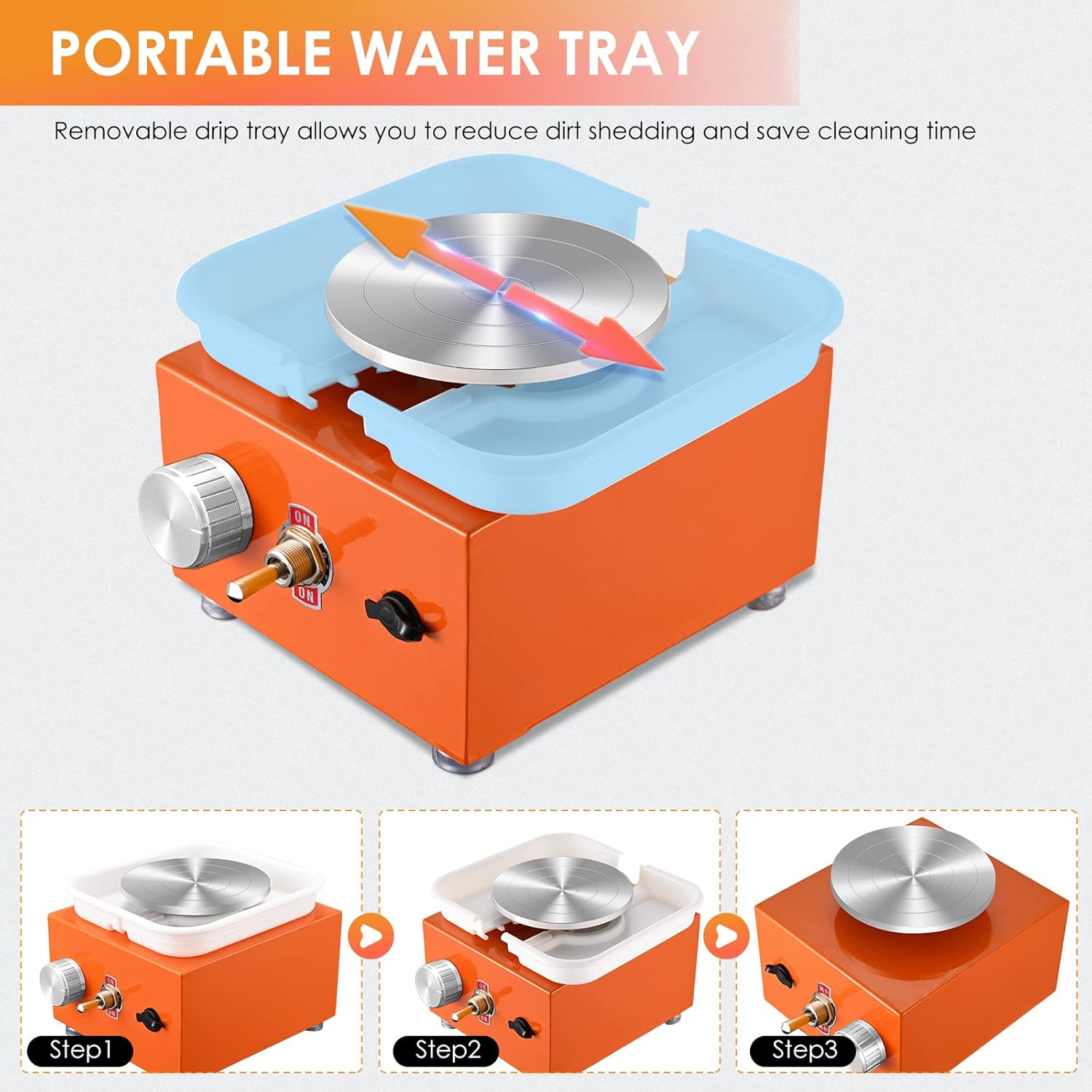

Figure 4.1: Illustration of attaching the two-piece detachable basin to the pottery wheel.
4.2 Adjusting Turntable Height (Optional)
The height of the turntable can be adjusted for ergonomic comfort or specific project needs:
- Locate the screw on the side of the turntable shaft.
- Insert the provided Allen key into the screw and loosen it.
- Adjust the turntable to your desired height.
- Tighten the screw firmly with the Allen key to secure the turntable in place.
Figure 4.2: Step-by-step guide for adjusting the turntable height using the Allen key.
4.3 Connecting Power
Connect the power adapter to the power interface on the machine and then plug it into a standard electrical outlet.
5. Operating Instructions
5.1 Basic Operation
The machine features a rotation switch for speed control and a forward/reverse switch for direction.
Figure 5.1: Key controls of the NantFun Mini Pottery Wheel Machine.
- Power On/Off: Use the main power switch to turn the machine on or off.
- Speed Adjustment: Rotate the speed control knob to adjust the turntable's rotation speed from 0 to 2000 revolutions per minute (r/min). Start with a lower speed and gradually increase as needed.
- Direction Control: Use the forward/reverse switch to change the direction of the turntable's rotation.
Figure 5.2: The compact design of the pottery wheel allows for easy operation and good mud shielding.
5.2 Changing Turntables
The machine comes with two different sized turntables (6.5cm and 10cm) for various pottery needs.

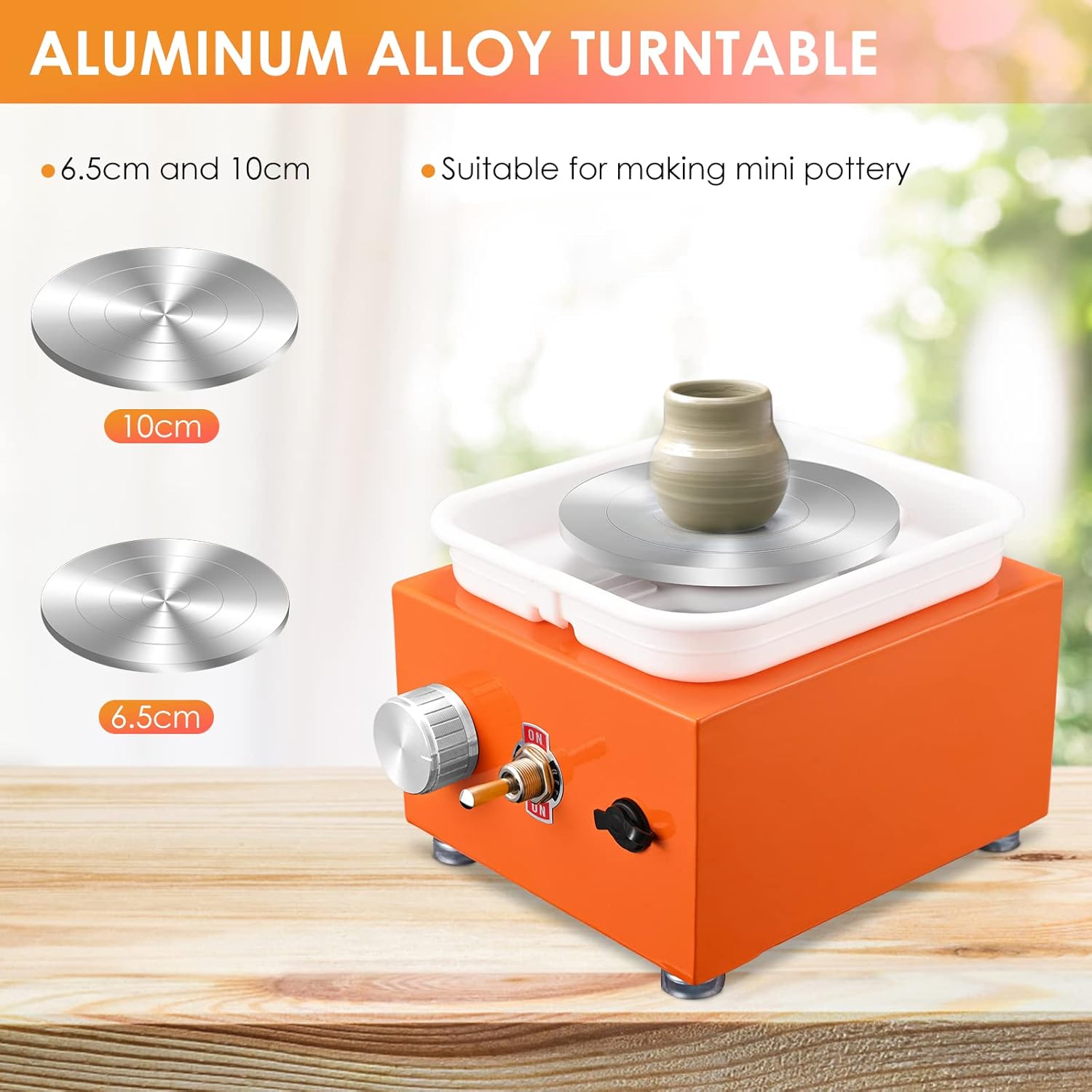

Figure 5.3: The two aluminum alloy turntables provided for different pottery sizes.
- Ensure the machine is turned off and unplugged.
- Loosen the screw on the side of the turntable shaft using the Allen key.
- Carefully remove the current turntable.
- Place the desired turntable onto the shaft, ensuring it sits flush.
- Tighten the screw firmly with the Allen key to secure the new turntable.
Figure 5.4: Step-by-step instructions for replacing the turntable.
6. Maintenance
6.1 Cleaning the Detachable Basin
The detachable ABS basin is designed for easy cleaning:
- Turn off and unplug the machine.
- Carefully detach the two halves of the basin.
- Rinse the basin halves under running water to remove clay residue. You may use the provided sponge for thorough cleaning.
- Allow the basin to dry completely before reattaching or storing.
Figure 6.1: The detachable basin simplifies the cleaning process after use.
6.2 General Cleaning
- Wipe down the main unit with a damp cloth to remove any clay or dust. Do not use abrasive cleaners.
- Ensure no water or clay enters the motor housing or electrical components.
- Store the machine in a dry, clean place when not in use.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not turn on. | Not plugged in; Power switch off; Faulty power adapter. | Ensure power adapter is securely plugged into both the machine and the outlet. Check power switch. Try a different outlet. |
| Turntable stops or slows down under light pressure. | Excessive clay amount; Speed setting too low; Motor overload. | Reduce the amount of clay. Increase the speed setting. Allow the motor to cool down if it has been running continuously for a long period. |
| Turntable wobbles or is not centered. | Turntable not securely attached; Shaft screw loose. | Ensure the turntable is properly seated on the shaft. Tighten the screw on the side of the shaft with the Allen key. |
| Basin leaks or does not stay attached. | Basin not properly snapped together. | Ensure both halves of the basin are firmly snapped into place around the turntable base. |
8. Specifications
- Model Number: MINITAO-1
- Product Dimensions: 6 x 7 x 10 inches
- Item Weight: 3.69 pounds
- Turntable Diameter: 6.5 cm (2.56 inches) and 10 cm (3.94 inches)
- Motor Power: 30W
- Rotating Speed: 0-2000 r/min (adjustable)
- Noise Level: Less than 60dB
- Manufacturer: NantFun
- First Available Date: August 15, 2022

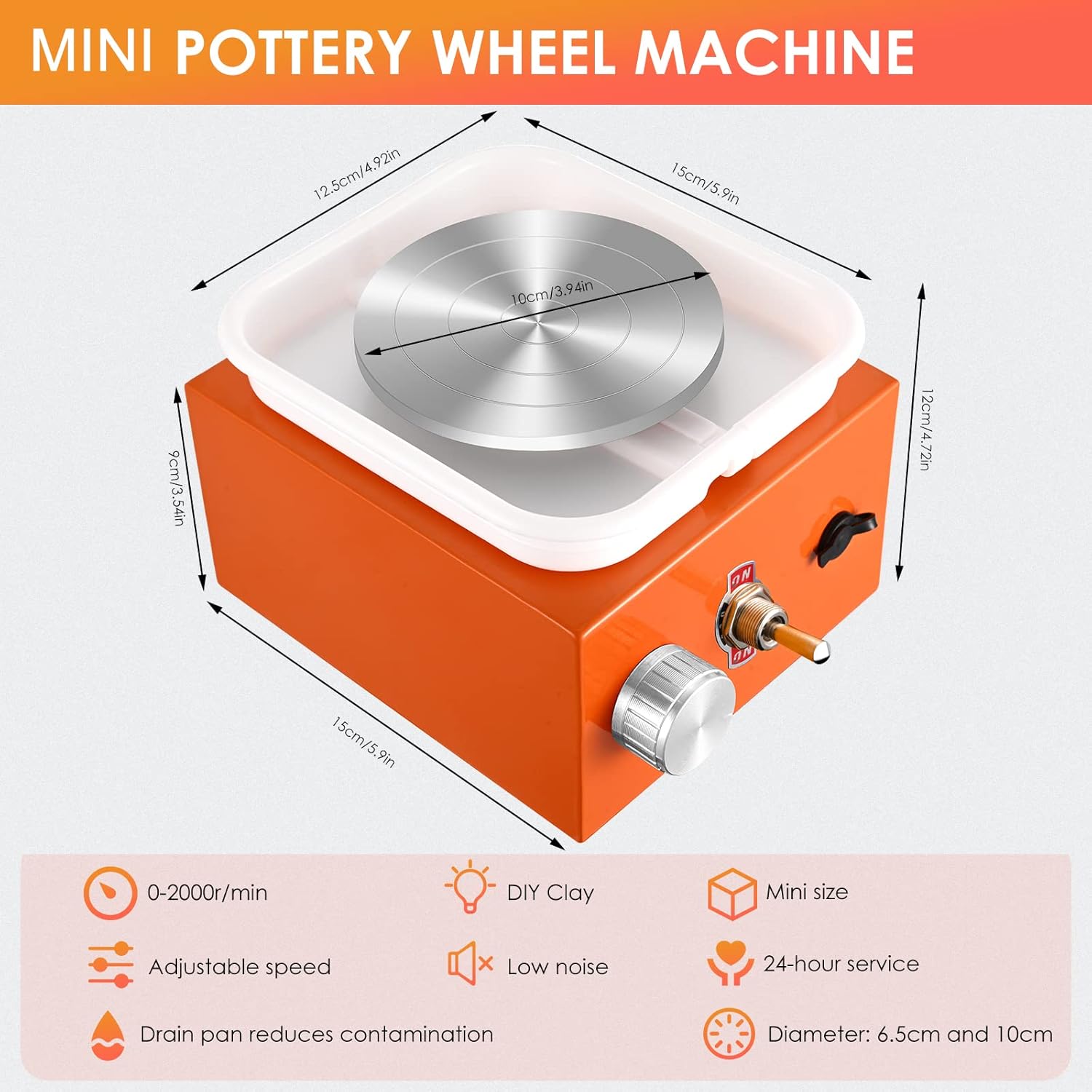

Figure 8.1: Detailed dimensions and specifications of the NantFun Mini Pottery Wheel Machine.
9. Warranty and Support
For warranty information or technical support, please contact NantFun customer service through the retailer where the product was purchased or visit the official NantFun store page on Amazon: NantFun Store.
