24V Kids Ride on Tractor with Trailer & Front Loader User Manual

1. Safety Information

It is battery operated. Charge the battery according to the included instruction manual. Always supervise children during operation. Ensure all parts are securely assembled before use. Keep small parts away from young children to prevent choking hazards. Do not operate near stairs, steep inclines, or public roads. Always use the provided safety belt.

2. Product Overview

The Kidsera 24V Kids Ride on Tractor is a versatile 3-in-1 electric vehicle designed for children aged 36 months to 6 years. It features a powerful 24V dual motor system, a functional front loader, and a detachable trailer, offering an engaging and realistic play experience.

Key Features:

• 3-in-1 Design: Equipped with a front loader and a detachable trailer for varied play scenarios, including hauling and scooping.
• Powerful 24V System: Features 24V dual motors and a 4-grade gearbox with metal gears for stable current and performance on various terrains.
• Soft Start Technology: Ensures smooth acceleration and braking, preventing sudden jolts for a comfortable and safe ride.
• Adjustable Speeds: Offers two speeds (2.5-5 MPH) for different skill levels and environments.
• Durable Construction: Built with a sturdy iron frame structure and 15-inch wear-resistant all-terrain wheels for durability and smooth operation on grass, gravel, dirt, or pavement.
• Realistic Details: Includes bright LED headlights, functional rearview mirrors, ergonomic seat with safety belt, and a multimedia dashboard with music and Bluetooth connectivity.

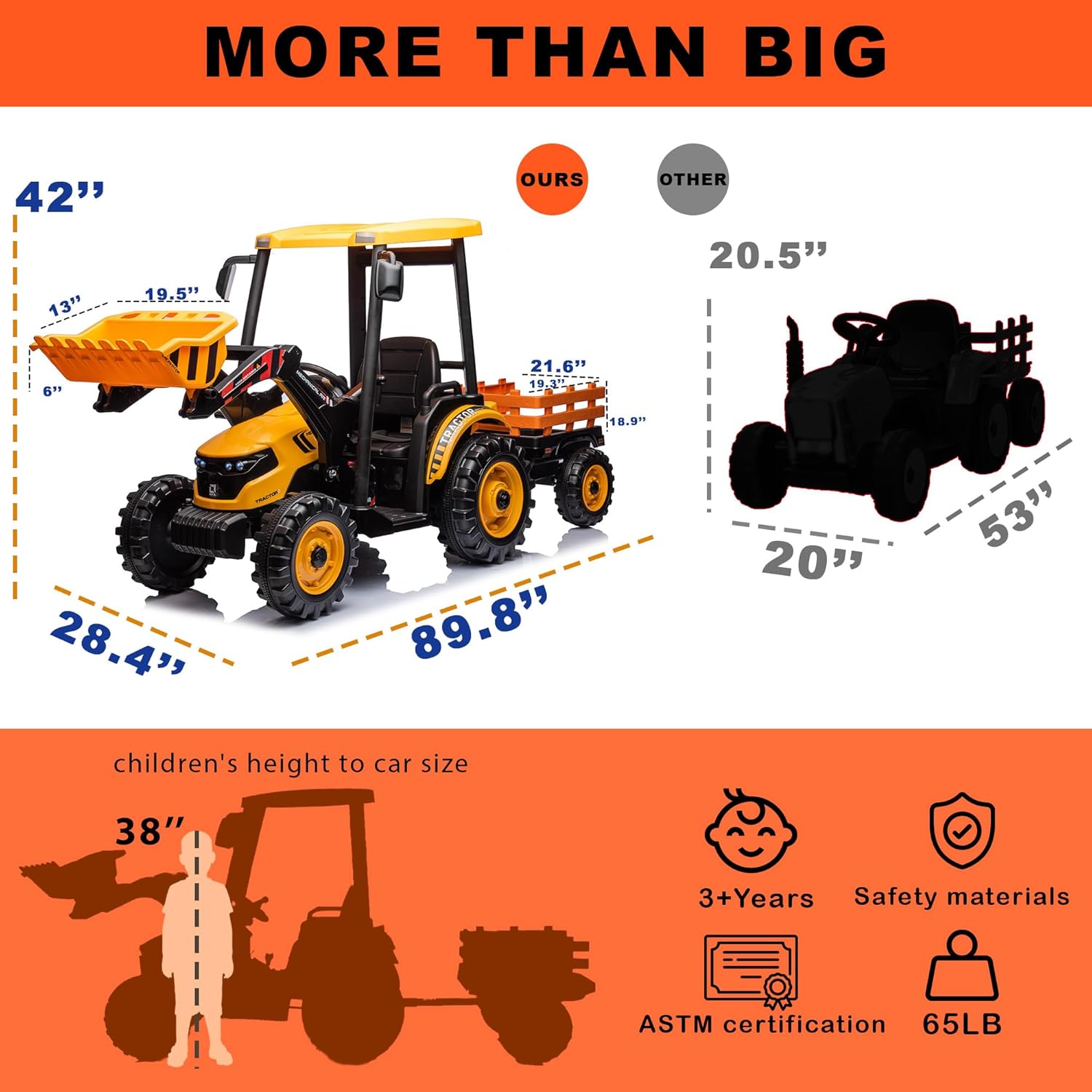

Product Images:

Official Product Videos:

3. Setup

3.1 Unpacking and Assembly

Carefully remove all components from the packaging. It is recommended to lay out all parts and verify against the parts list in the separate assembly manual. Assembly is generally straightforward, but some users recommend reviewing the instructions thoroughly before starting, especially regarding the trailer attachment to the rear wheels, to avoid reassembly.

3.2 Initial Battery Charge

Before first use, the 24V rechargeable lead-acid battery must be fully charged. Locate the charging port, typically on the side of the vehicle near the seat. Plug in the provided charger and allow the battery to charge for the recommended duration as specified in the separate battery charging instructions. Ensure the vehicle is turned off during charging. The digital voltmeter on the dashboard will indicate battery level; recharge when the number is lower than 24.5V.

4. Operating Instructions

4.1 Controls and Driving

To operate the tractor, first ensure the power switch is in the 'ON' position. The vehicle features a steering wheel for direction and a foot pedal for acceleration. The soft start technology ensures a gradual increase in speed, preventing sudden movements. Use the gear shift lever to select between High speed (up to 5 MPH), Low speed (up to 2.5 MPH), or Reverse.

4.2 Using the Front Loader

The front loader is manually operated. Use the levers located near the steering wheel to raise and lower the loader arm. A separate lever allows you to tilt the bucket to scoop or dump materials. Ensure the loader arm is securely locked into place when not in use or during driving.

4.3 Using the Trailer

The trailer is detachable. To attach or detach, follow the instructions in the assembly manual, typically involving a simple screw/bolt mechanism. The trailer is designed to pivot with the tractor's turns, allowing for easy maneuverability. It can be used to transport small items like toys, leaves, or dirt.

4.4 Multimedia Dashboard

The dashboard includes various multimedia functions. It has a digital voltmeter to check battery charge, USB and MP3 inputs for music, and controls for volume, track selection, and storytelling mode. Bluetooth connectivity is also available for playing music from external devices.

5. Battery and Charging

The tractor is powered by a 24V rechargeable lead-acid battery. For optimal performance and battery life, always ensure the battery is fully charged before each use. Avoid completely draining the battery. The charging port is conveniently located for easy access. Refer to the specific battery charging instructions provided with your product for detailed guidelines on charging times and procedures.

6. Maintenance

6.1 General Care

Regularly inspect the tractor for any loose parts, damaged wires, or worn components. Keep the vehicle clean by wiping it with a damp cloth. Avoid using harsh chemicals or abrasive cleaners. Store the tractor in a dry, covered area away from direct sunlight and moisture when not in use.

6.2 Battery Maintenance

To prolong battery life, charge it regularly, even if the tractor is not used frequently. Do not overcharge the battery. If storing for an extended period, charge the battery fully and then recharge every 30-60 days to prevent deep discharge.

7. Troubleshooting

7.1 Vehicle Not Moving

• Check if the power switch is in the 'ON' position.
• Ensure the battery is charged. Refer to the battery charging section.
• Verify that all electrical connections are secure.
• Confirm the gear shift is correctly engaged in either High, Low, or Reverse.

7.2 Low Power or Slow Speed

• The battery may be low. Recharge it fully.
• Operating on rough terrain or uphill can reduce speed.
• Ensure the vehicle is not overloaded beyond its weight capacity.

7.3 Lights or Sounds Not Working

• Check the power switch for the lights/multimedia on the dashboard.
• Ensure the battery has sufficient charge.
• Verify connections to the multimedia unit and lights.

8. Specifications

9. Warranty and Support

For warranty information, technical support, or replacement parts, please contact Kidsera customer service directly. Refer to the contact details provided in your product packaging or on the official Kidsera website. Please have your model number and purchase date ready when contacting support.
