1. Introduction

This manual provides essential information for the safe and effective use, setup, operation, and maintenance of your ESAB SWARM A30 Auto-Darkening Welding Helmet. Please read this manual thoroughly before using the helmet to ensure proper function and to prevent injury or damage.

The ESAB SWARM A30 is designed to protect your eyes and face from sparks, spatter, and harmful radiation under normal welding conditions. Its auto-darkening filter (ADF) automatically switches from a light state to a dark state when an arc is struck, and returns to the light state when welding stops.

Figure 1: Front view of the ESAB SWARM A30 Auto-Darkening Welding Helmet. This image shows the helmet's overall design, including the auto-darkening filter window and the ESAB branding.

Safety Precautions

• Always wear appropriate personal protective equipment (PPE) in addition to the welding helmet.
• Ensure the helmet is correctly adjusted and functioning before each use.
• Do not use the helmet if any part is damaged or defective.
• Never look directly at the welding arc with unprotected eyes.
• This helmet is not suitable for laser welding or overhead applications.

2. Product Features

The ESAB SWARM A30 Auto-Darkening Welding Helmet incorporates several features designed for optimal performance and user comfort:

• ADF Viewing Area: 98 x 43 mm (3.85 x 1.7 in.) for a clear view of the weld puddle.
• Shade Range: DIN 4/9–13, offering versatility for various welding processes.
• Grind Mode: Accessible via an internal switch, allowing the helmet to be used for grinding without darkening.
• CE Optical Class: 1/1/1/2, indicating high optical quality.
• Arc Sensors: 4 independent sensors for reliable arc detection.
• Fast Switching Time: 0.08 millisecond, ensuring immediate protection upon arc strike.
• Adjustable Settings: Internally-mounted and fully-adjustable delay and sensitivity settings for customized performance.
• Replaceable Battery: Uses 1 x CR2450 battery.
• Low Battery Indicator: LED indicator to alert when battery replacement is needed.
• ADF Test Button: Allows for quick verification of ADF function.

3. Setup

3.1 Battery Installation

1. Locate the battery compartment on the auto-darkening filter (ADF) unit.
2. Open the compartment cover.
3. Insert one CR2450 battery, ensuring correct polarity (+/-).
4. Close the battery compartment cover securely.

3.2 Headgear Adjustment

Proper headgear adjustment is crucial for comfort and stability.

1. Headband Diameter: Adjust the knob at the back of the headgear to fit snugly around your head.
2. Top Strap: Adjust the top strap to position the helmet correctly on your head, ensuring the viewing area is at eye level.
3. Distance from Face: Adjust the side knobs to set the distance between the helmet and your face. This should allow for comfortable breathing and prevent fogging, without obstructing your view.
4. Tilt Angle: Adjust the tilt mechanism to find the most comfortable viewing angle.

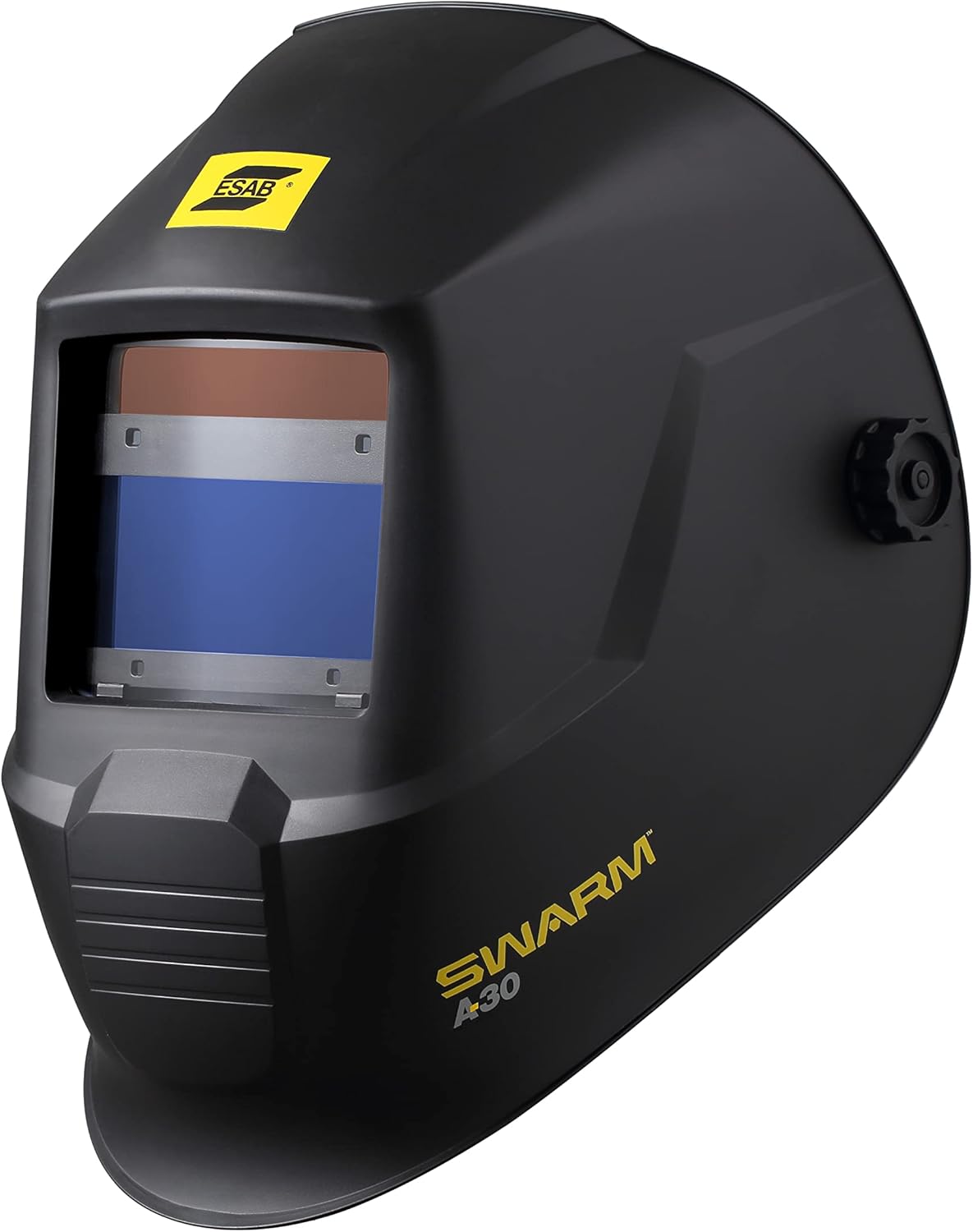

Figure 2: Side view of the ESAB SWARM A30 Welding Helmet, illustrating the headgear adjustment points. This image highlights the side knobs and the overall profile of the helmet.

3.3 Initial Function Test

Before welding, perform a quick test to ensure the ADF is functioning correctly.

1. Press the ADF test button located on the internal control panel.
2. The filter should momentarily darken and then return to its light state. If it does not, check the battery or consult the troubleshooting section.

4. Operating Instructions

4.1 Power On/Off

The ESAB SWARM A30 helmet features automatic power on/off. The ADF activates when exposed to light and deactivates after a period of inactivity.

4.2 Shade Adjustment

The helmet offers a variable shade range from DIN 9 to DIN 13 for welding, and DIN 4 for the light state. Adjust the shade level using the internal control knob to match your welding process and current. Refer to welding safety standards for recommended shade levels.

4.3 Sensitivity Adjustment

The sensitivity control adjusts how much light is required to trigger the ADF to darken. Adjust this setting using the internal knob:

• High Sensitivity: Suitable for low amperage welding or when the arc is partially obstructed.
• Low Sensitivity: Recommended for high amperage welding or in environments with other bright light sources to prevent false triggering.

4.4 Delay Adjustment

The delay control determines how long the filter remains dark after the welding arc extinguishes before returning to the light state. Adjust this setting using the internal knob:

• Short Delay: For quick, repetitive tack welding.
• Long Delay: Recommended for high amperage welding to protect against afterglow from the weld puddle.

4.5 Grind Mode

To activate grind mode, locate the internal switch and set it to the 'Grind' position. In this mode, the ADF remains in its light state (DIN 4) and will not darken, providing eye protection from grinding debris without the filter activating. Remember to switch back to 'Weld' mode before resuming welding operations.

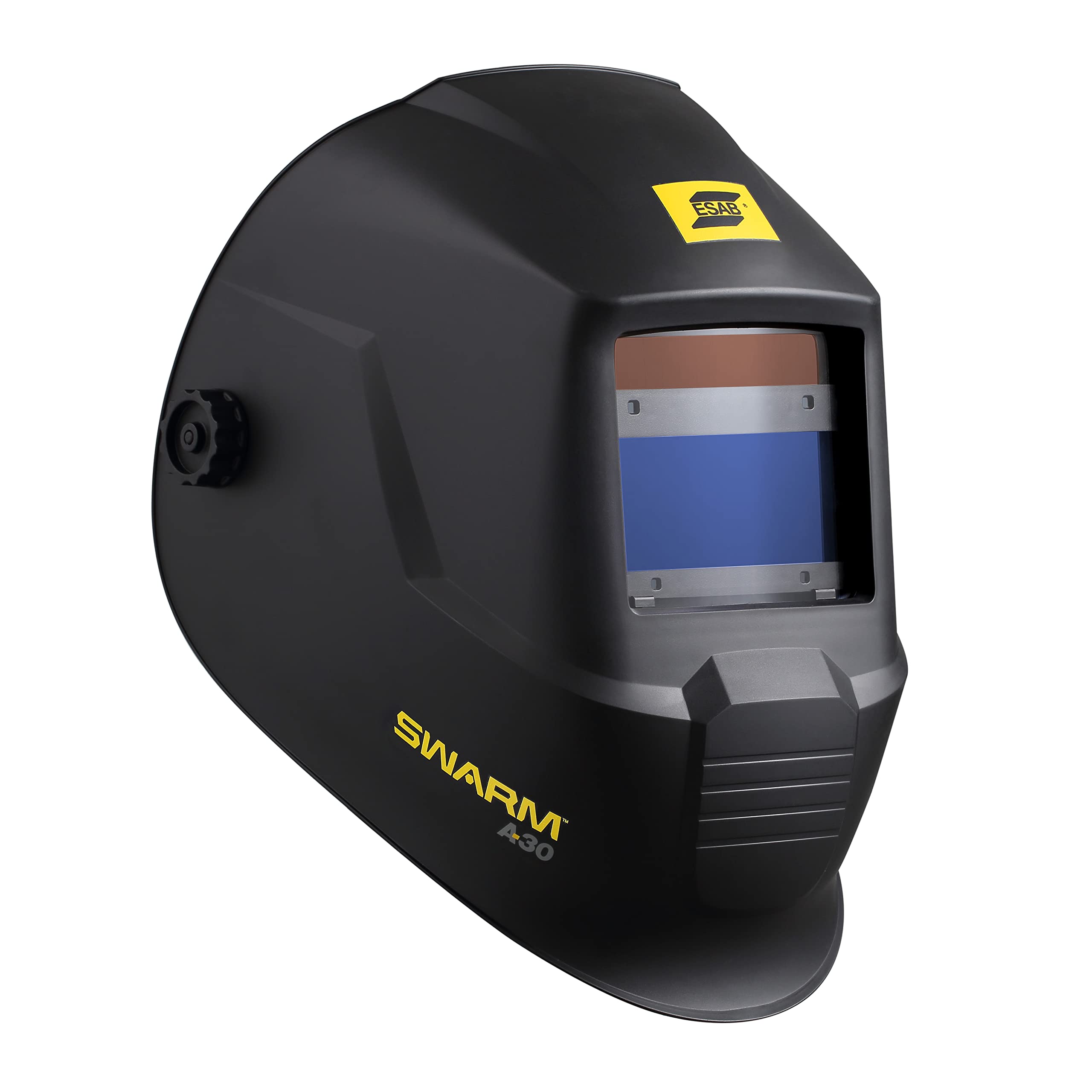

Figure 3: Another side view of the ESAB SWARM A30 Welding Helmet. This perspective shows the sleek design and the external adjustment knob for the headgear.

5. Maintenance

5.1 Cleaning

• Clean the helmet shell with a mild soap and water solution. Avoid harsh solvents.
• Clean the outer and inner cover lenses with a soft, clean cloth and a non-abrasive lens cleaner. Do not use abrasive materials or solvents that could scratch the lenses.
• Regularly inspect the headgear for wear and tear.

5.2 Lens Replacement

Replace scratched or damaged outer and inner cover lenses immediately to maintain optical clarity and protection.

1. Remove the retaining frame or clips holding the cover lens in place.
2. Carefully remove the old lens.
3. Insert a new, clean cover lens, ensuring it is seated correctly.
4. Reattach the retaining frame or clips.

5.3 Battery Replacement

When the low battery indicator LED illuminates, replace the CR2450 battery as described in Section 3.1. Always use a fresh, high-quality CR2450 battery.

6. Troubleshooting

If you encounter issues with your ESAB SWARM A30 helmet, refer to the following table for common problems and solutions.

7. Specifications

8. Warranty and Support

For warranty information and technical support, please refer to the documentation provided with your purchase or visit the official ESAB website. Keep your proof of purchase for warranty claims.

If you require further assistance or have questions not covered in this manual, please contact ESAB customer service.
