Berlinger Haus BH-9462 Digital Espresso Coffee Maker User Manual

1. Introduction

Thank you for choosing the Berlinger Haus BH-9462 Digital Espresso Coffee Maker. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read it thoroughly before first use and keep it for future reference.

This espresso coffee maker features a powerful 15-bar professional pump, a self-priming system, customizable coffee length, and an adjustable cappuccino system for a variety of coffee beverages.

2. Safety Instructions

• Always ensure the appliance is connected to a grounded power outlet with the correct voltage (220-240V, 50-60 Hz).
• Do not immerse the appliance, power cord, or plug in water or any other liquid.
• Keep the appliance out of reach of children.
• Do not operate the appliance if the power cord or plug is damaged. Contact qualified service personnel for repair.
• Exercise caution when handling hot surfaces, steam, and hot water.
• Always unplug the appliance before cleaning and when not in use.
• Use only cold, fresh water in the water tank.
• Never use the appliance for purposes other than its intended use.

3. Product Overview

Familiarize yourself with the components of your Berlinger Haus Digital Espresso Coffee Maker:

• Water Tank (1.4 Liter capacity)
• Control Panel with Digital Display
• Professional Filter Holder
• Steam Wand / Adjustable Cappuccino System
• Drip Tray
• Two-level Cup Holder
• Spoon with Swab
• Filters for 1 and 2 cups

Figure 1: Berlinger Haus Coffee Maker (example model). This image displays a black and rose gold coffee maker with a glass carafe and a top-loading water reservoir.

4. Setup

1. Unpacking: Carefully remove all packaging materials. Check for any damage.
2. Initial Cleaning: Wash the water tank, filter holder, filters, and drip tray with warm soapy water. Rinse thoroughly and dry. Wipe the exterior of the machine with a damp cloth.
3. Positioning: Place the coffee maker on a stable, flat, heat-resistant surface, away from water sources and heat.
4. Fill Water Tank: Open the water tank lid and fill the tank with fresh, cold water up to the MAX level (1.4 Liters). Close the lid securely.
5. First Use / Priming: Before making coffee, perform a priming cycle. This machine features a self-priming system, but it's recommended to run a cycle without coffee to flush the system. Follow the operating instructions for making espresso, but without adding coffee grounds. Repeat this process 2-3 times.

5. Operating Instructions

5.1. Making Espresso

1. Ensure the water tank is filled.
2. Insert the desired filter (for 1 or 2 cups) into the professional filter holder.
3. Add ground coffee to the filter. For optimal results, use finely ground espresso coffee. Tamp the coffee evenly with the included swab. Alternatively, use E.S.E. (Easy Serving Espresso) doses.
4. Attach the filter holder to the brewing head by aligning it and turning it firmly to the right until it locks.
5. Place one or two cups on the two-level cup holder. The cup holder accommodates standard cups and tall glasses (up to 13 cm high).
6. Turn on the machine. The digital display will indicate when the machine is ready to brew (approximately 40 seconds).
7. Select your desired coffee length using the customizable coffee length function on the control panel.
8. Press the brew button to start extraction. The 15-bar pump will ensure optimal pressure for a rich espresso.
9. Once brewing is complete, remove the cups. Carefully remove the filter holder and discard the used coffee grounds.

5.2. Frothing Milk (Adjustable Cappuccino System)

1. Fill a pitcher with cold milk (dairy or non-dairy).
2. Ensure the machine is heated and ready for steam function (indicated on the digital display).
3. Position the steam wand into the milk, just below the surface.
4. Activate the steam function. Slowly lower the pitcher as the milk froths, ensuring the wand remains submerged.
5. Once the desired foam consistency and temperature are reached, turn off the steam function.
6. Wipe the steam wand immediately with a damp cloth to prevent milk residue from drying.

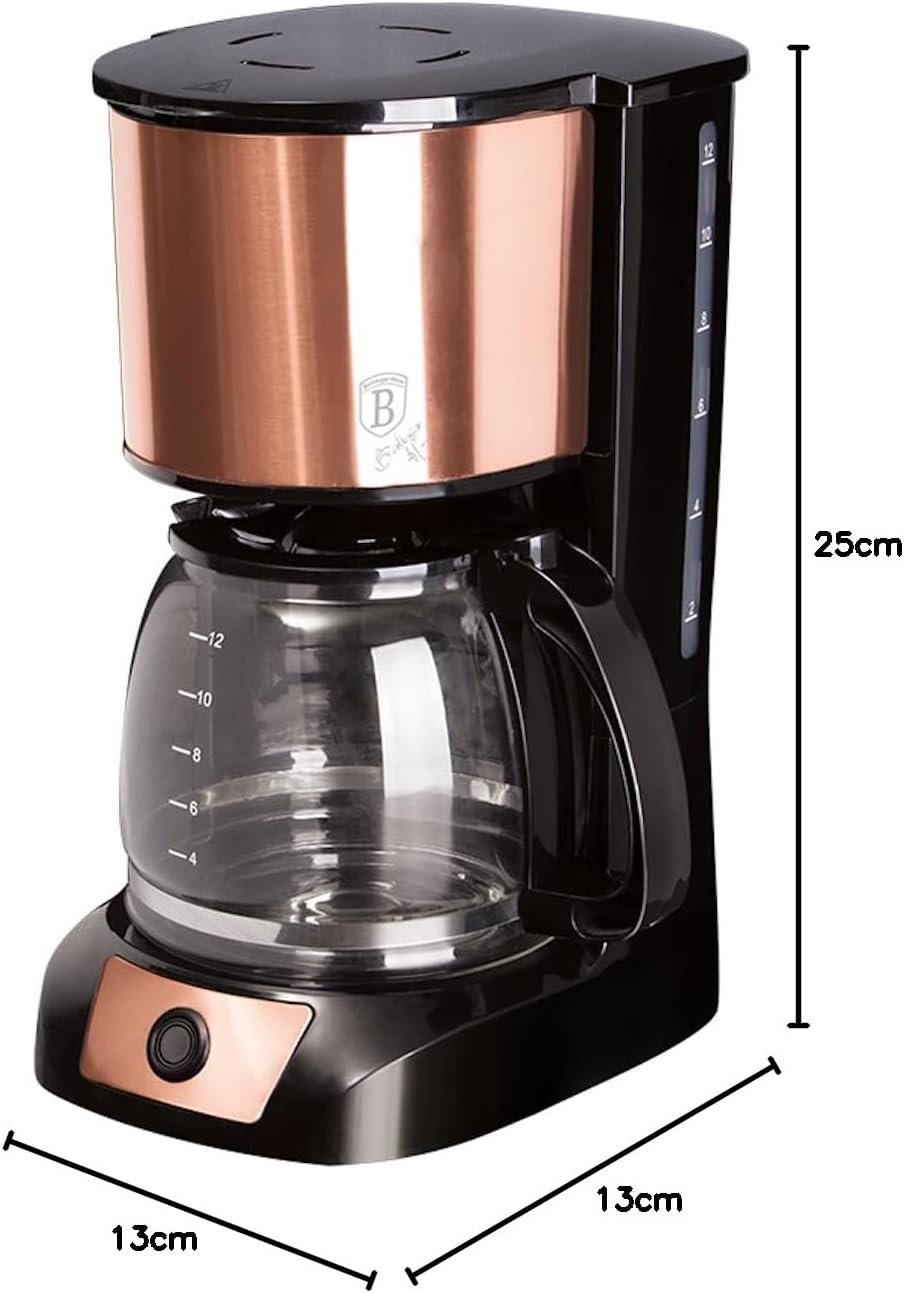

Figure 2: Berlinger Haus Coffee Maker with Dimensions (example model). This image shows the same coffee maker as Figure 1, with dimensions indicating a height of 25cm and a base width/depth of 13cm.

6. Maintenance and Cleaning

Regular cleaning ensures optimal performance and extends the life of your coffee maker.

• Daily Cleaning: Empty and clean the drip tray and water tank daily. Wash the filter holder and filters after each use. Wipe the exterior with a soft, damp cloth.
• Steam Wand: After each use, wipe the steam wand immediately. Periodically, remove the tip of the steam wand (if detachable) and clean any milk residue with a small brush.
• Descaling: Depending on water hardness and usage, descale the machine every 2-3 months. Use a commercial descaling solution suitable for coffee machines and follow the product's instructions. Run several cycles with clean water after descaling to rinse thoroughly.
• Do not use abrasive cleaners or scouring pads, as they can damage the appliance's surfaces.

7. Troubleshooting

8. Specifications

9. Warranty and Support

Your Berlinger Haus BH-9462 Digital Espresso Coffee Maker is covered by a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions. For technical support, spare parts, or service inquiries, please contact your retailer or the official Berlinger Haus customer service.
