User Manual: Range Hood Metal Grease Filter

1. Introduction

This manual provides essential information for the proper installation, operation, and maintenance of your OZBASPAREPART 533 x 177 mm metal grease filter, model 481248058305. This filter is designed as a compatible replacement part for various range hood brands and models. Please read this manual thoroughly before installation and keep it for future reference.

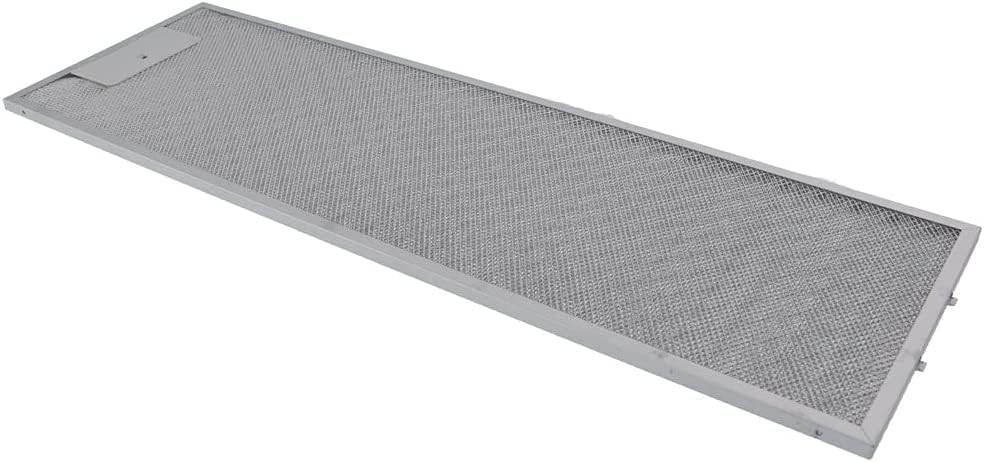

Image 1.1: The OZBASPAREPART 533 x 177 mm metal grease filter, showcasing its full length and mesh design.

Image 1.2: An angled view of the metal grease filter, highlighting its sturdy frame and fine mesh construction.

2. Safety Information

Always observe the following safety precautions when handling or installing the grease filter:

• Disconnect Power: Before attempting any installation or maintenance, ensure the range hood's power supply is disconnected at the circuit breaker to prevent electric shock.
• Wear Gloves: Wear protective gloves to avoid cuts from sharp edges of the filter or the range hood housing.
• Check Compatibility: Verify the dimensions (533 x 177 mm) and model compatibility of this filter with your specific range hood before installation. Refer to your range hood's manual for filter specifications.
• Handle with Care: The filter is made of aluminum and can bend if mishandled.
• Keep Out of Reach: Store new and old filters out of reach of children.

3. Installation

Follow these steps to install the metal grease filter:

1. Preparation: Ensure the range hood is turned off and disconnected from the power supply. Clear the area around the range hood for safe access.
2. Remove Old Filter (if applicable): Locate the existing grease filter(s) in your range hood. Most filters have a latch or spring mechanism. Press or pull the latch to release the old filter and carefully slide it out.
3. Inspect New Filter: Unpack the new OZBASPAREPART filter. Check for any damage during shipping. Ensure any protective film is removed before installation.
4. Align and Insert: Hold the new filter by its edges. Align it with the filter slot in your range hood. The filter should slide in smoothly.
5. Secure the Filter: Once aligned, push the filter into place until the latch mechanism engages and secures it. You should hear a click or feel it lock firmly. Gently tug on the filter to ensure it is securely seated and will not fall.
6. Restore Power: Reconnect the range hood to the power supply.

Image 3.1: The filter showing its precise dimensions (533mm length, 177mm width) for compatibility verification before installation.

Image 3.2: Detail of the filter's latch, which is used to secure it within the range hood and release it for cleaning or replacement.

4. Operation

Once installed, the metal grease filter operates passively by trapping airborne grease particles and preventing them from entering the range hood's ventilation system. No active user interaction is required for its operation beyond ensuring it is correctly seated.

For optimal performance, ensure the filter is always clean and free from excessive grease buildup. Refer to the Maintenance section for cleaning instructions.

5. Maintenance

Regular cleaning of your metal grease filter is crucial for maintaining the efficiency of your range hood and preventing fire hazards. The frequency of cleaning depends on your cooking habits.

5.1. Cleaning the Filter

It is recommended to clean the filter at least once a month, or more frequently if you cook with a lot of oil or grease.

1. Disconnect Power: Always disconnect the range hood from the power supply before cleaning.
2. Remove Filter: Release the latch mechanism and carefully slide the filter out of the range hood.
3. Cleaning Options:
   • Dishwasher: Many metal grease filters are dishwasher safe. Place the filter in the dishwasher, ensuring it does not block the spray arms. Use a normal wash cycle with a degreasing detergent.
   • Hand Washing: For hand washing, soak the filter in hot water with a strong degreasing detergent for about 30 minutes. Use a soft brush (not abrasive) to gently scrub away stubborn grease.
4. Rinse and Dry: Rinse the filter thoroughly with clean water. Allow it to air dry completely before re-installing. Ensure no water drips into the range hood's electrical components.
5. Re-install: Follow the installation steps in Section 3 to re-install the clean, dry filter.

5.2. Filter Replacement

While metal grease filters are designed for repeated cleaning, they may eventually become damaged or less effective over time. If you notice tears, significant bending, or if the filter no longer cleans effectively, it is time to replace it with a new one (Model: 481248058305).

6. Troubleshooting

7. Specifications

• Brand: OZBASPAREPART
• Model Information: 481248058305
• Product Dimensions: 53.3 x 17.7 x 1 cm (533 x 177 mm)
• Item Weight: 350 g
• Compatible Device: Kitchen Range Hood
• Material Type: Aluminum
• Included Components: Filter
• Manufacturer: ozbaspareparts.store
• ASIN: B0C442XNQK
• UPC: 697794928391

7.1. Compatible Models (Partial List)

This filter is compatible with a wide range of models, including but not limited to:

• GEA series: GEA 06 IX, BRERA GRX, GEA 11 WH, GEA LX BL A, GEA 2M WH FR.IX A, GEA 11 2M2O WH, GEA 06 2M20 SL3V 2L, GEA 06 1M20 SL3V
• AKS series: AKS 542 GY
• HOO series: HOO B00 B, HOO B20 W, HOO B01 W, HOO B21 S, HOO B00 W, HOO B00 S, HOO B01 S, HOO B20 S, 302.261.11, HOO B20 S, HOO B24 W, HOO B24 S, HOO B21 S, HOO B244 S
• AKR series: AKR 643 IX, AKR 641 NB, AKR 643 WH, AKR 643 NB, 208083804407 5321120, AKR 643 GY, AKR 641 WH, 208204646905 AME 437, AKR 674 II X, 20800 91145004 5321382, AKR 641 GY, AKR 643, 208099746908 5321540, 208091123701 5321402, 208333246602 5321703, 2080999746906 AME 430, 208091145005 5321393, 20833246601 5321703, AKR 665 WH, 208083804406 5321200, AKR 642 GY, 23332446603 PRF0004, 208091123702 5321507, 208099704402 PRF0114, 208091146601 5321703, GEE 6022 GY, 208083823823701701701701701701701701701701 53211405, AKR 641 AV

Always verify the dimensions (533 x 177 mm) and the specific model number of your existing filter or range hood before purchasing to ensure compatibility.

8. Warranty & Support

8.1. Return Policy

This product is subject to a 30-day return policy for refund or replacement, as per the seller's terms. Please refer to your purchase documentation or the seller's return policy on the platform where you purchased the item for detailed information and instructions on initiating a return.

8.2. Manufacturer Support

For any questions regarding the product's compatibility, specifications, or if you encounter issues not covered in this manual, please contact the manufacturer or seller directly:

• Seller: OZBA TURKEY Spare Parts Accessories Store
• Manufacturer: ozbaspareparts.store
• Refer to your order details for direct contact information or visit the seller's page on the retail platform.
