HomJoones Full Size Industrial Bed Frame Model 01 User Manual

1. Safety Information

Please read and understand all instructions before assembling and using this product. Keep this manual for future reference.

• Always follow the assembly instructions carefully to prevent instability.
• Be cautious around sharp edges to avoid injury during assembly and use.
• Ensure all screws and bolts are securely tightened before use and periodically check for looseness.
• Do not exceed the maximum weight capacity of 660 lbs.
• Keep children away from the assembly area.
• Do not use power tools for assembly unless specifically instructed, as overtightening may damage components.
• If any quality issues arise, contact customer service immediately.

2. Parts List

Verify all components are present before beginning assembly. Refer to the diagram below for identification.

Image: All components of the bed frame laid out on a wooden floor, numbered for identification. This includes metal frame pieces, wooden headboard and footboard sections, and various screws and tools.

The package contents include: 1x bed frame, 1x instruction manual, and all necessary hardware (screws, nuts, gaskets, tools).

3. Setup & Assembly

Follow these steps for proper assembly. It is recommended to have two people for assembly.

3.1 Unpacking and Preparation

1. Open the packaging carefully and remove all components.
2. Lay out all parts on a clean, soft surface (e.g., a rug or cardboard) to prevent scratches.
3. Identify all parts using the provided parts list and diagram.

3.2 Assembly Steps

Watch the detailed assembly video below for visual guidance on constructing your bed frame, including attaching the headboard, side rails, and slats, as well as installing the LED lights and USB ports.

Key assembly points:

• Attach the headboard panels to the vertical supports.
• Secure the LED light strip to the headboard shelf after wiping the surface clean. Adjust the wire direction according to the power position.
• Connect the USB ports to the headboard shelf.
• Connect the side rails to the assembled headboard and footboard.
• Attach the central support legs to the central support beam, ensuring mute stickers face up for noise reduction.
• Install the metal slats across the bed frame, noting that the two holes on the connecting rods should face up.
• Tighten all screws and bolts securely after the entire frame is assembled.

4. Operating Instructions

4.1 LED Lights Operation

• The LED lights include 16 colors, 6 brightness settings, and 4 lighting modes.
• Use the provided remote control to change settings. Ensure the remote control is aligned with the controller for proper function.
• Remove the insulation sheet from the remote control before first use.

Image: This image showcases the RGB LED bed light strip, highlighting its features such as APP control, a wide range of colors, and various modes like mic and music mode, along with a timing function.

4.2 USB Charging Ports

• The bed frame features 2 built-in USB ports in the headboard.
• These ports are designed for charging electronic devices such as phones, tablets, headphones, and lamps.
• Ensure the bed frame is connected to a power source for the USB ports to function.

Image: A close-up view of the two USB ports integrated into the headboard, illustrating their use for charging various electronic devices like phones, tablets, and earbuds.

4.3 Storage Features

• The headboard includes a storage shelf for books, decorative items, or other small collectibles.
• The 12-inch under-bed clearance provides additional storage space for items like shoes, storage boxes, or luggage.

Image: This image demonstrates the ample under-bed storage space, suitable for various items such as shoes, a robot vacuum, storage boxes, and luggage, highlighting the bed's space-saving design.

5. Maintenance

• Cleaning: Wipe the metal and wood surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners.
• Tightness Check: Periodically check all screws, bolts, and connections to ensure they remain tight. Retighten as necessary to maintain stability and prevent squeaking.
• LED Lights: If LED lights malfunction, check the power connection and remote control battery.
• USB Ports: Ensure USB cables are inserted correctly and gently to avoid damage to the ports.

6. Troubleshooting

7. Specifications

• Product Type: Industrial Bed Frame with LED Light and 2 USB Ports
• Brand: HomJoones
• Model: 01
• Size: Full
• Overall Dimensions: 81.5"L x 53.9"W x 39"H
• Material: Metal, Wood (MDF)
• Color: Rustic Brown
• Carrying Capacity: 660 lbs
• Number of Slats: 12
• Recommended Mattress Thickness: 10-14 inches
• Assembly Required: Yes
• Special Feature: Squeak Resistant
• UPC: 733878400244

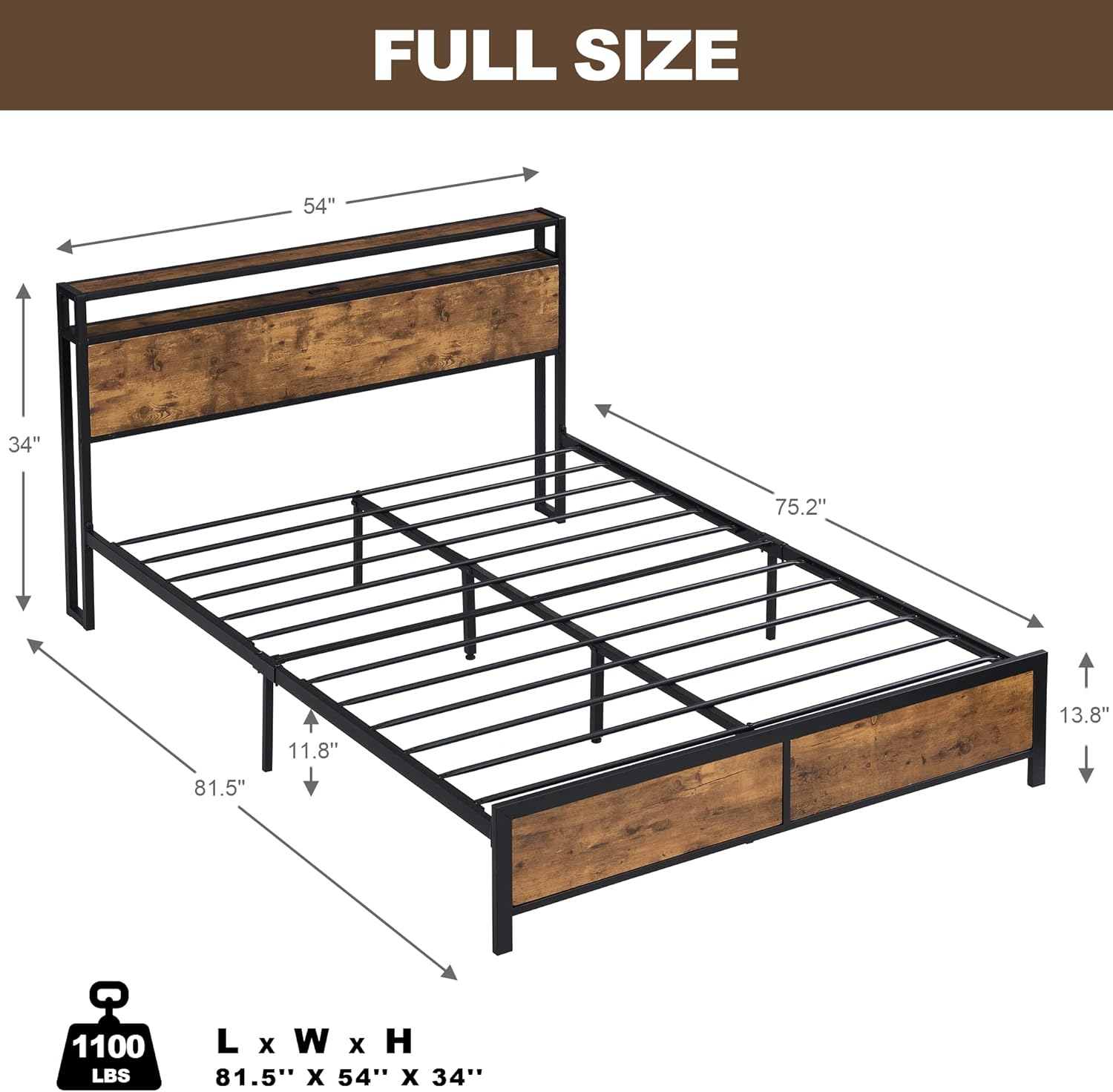

Image: A detailed diagram illustrating the overall dimensions of the full-size bed frame, including length, width, and height, along with the maximum weight capacity.

8. Warranty & Support

HomJoones products are designed for quality and durability. For any quality issues with the bed frame you receive, please feel free to email our friendly customer service.

Please retain your proof of purchase for warranty claims. Specific warranty duration and terms may vary; refer to your purchase documentation or contact customer support for details.

Customer Service: For support, please refer to the contact information provided with your purchase or visit the official HomJoones website.
