1. Introduction
Thank you for choosing the TRAS Steam Space Professional Steamer Iron. This powerful and efficient garment steamer is designed to quickly and effectively remove wrinkles from a wide range of fabrics, making garment care effortless. With its 1600 watts of power and a large 3-liter water tank, it provides continuous steam for extended periods, suitable for both home and professional use.
Figure 1: The TRAS Steam Space Professional Steamer Iron, showcasing its compact design and upright steaming pole.
Key features include rapid heating in just 45 seconds, a comfortable grip, and robust construction with a stainless steel support rod. Its large diameter wheels ensure easy mobility, allowing you to refresh your entire wardrobe with ease.
2. Important Safety Instructions
Please read all safety instructions carefully before using the appliance. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Always unplug the steamer from the electrical outlet when not in use, before filling or emptying the water tank, and before cleaning.
- Do not operate the steamer with a damaged cord or plug, or if the appliance has been dropped or damaged.
- To prevent electric shock, do not immerse the steamer in water or other liquids.
- Keep the steam head away from your body and hands during operation. Steam is hot and can cause burns.
- Use only distilled or demineralized water in the water tank to prevent mineral buildup and ensure optimal performance.

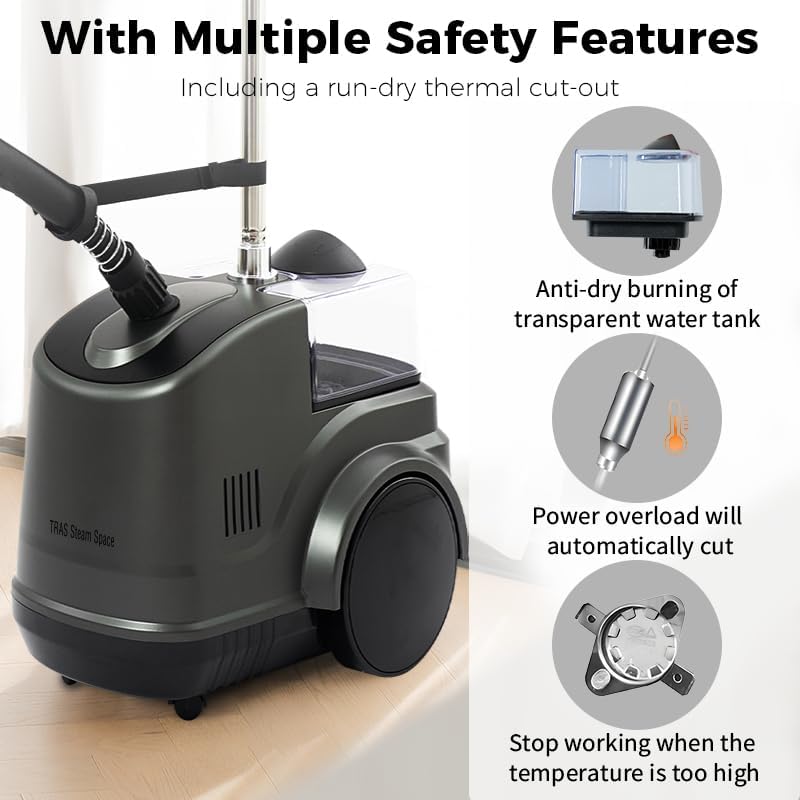

- The steamer is equipped with multiple safety features, including an anti-dry burning mechanism for the transparent water tank, an automatic power overload cut-off, and a temperature-sensitive shut-off to prevent overheating.
Figure 2: Illustration of the steamer's integrated safety features, including protection against dry burning, power overload, and excessive temperature.
3. Setup and Assembly
Assembling your TRAS Steam Space garment steamer is straightforward. Follow these steps for quick setup:
- Step One: Insert the bottom section of the support rod into the main unit's designated slot.
- Step Two: Connect the middle section of the support rod to the bottom section, ensuring it is securely fastened.
- Step Three: Attach the garment hanger or steam head holder to the top of the support rod.
- Step Four: Connect the steam hose to the steam outlet on the main unit, ensuring a tight fit.
Figure 3: Visual guide for assembling the steamer's support rod and hose connections.
Filling the Water Tank:
The steamer features a large 3-liter visible water tank, providing up to 90 minutes of continuous steaming. To fill:
- Ensure the steamer is unplugged.
- Remove the water tank from the main unit.
- Open the water tank cap and fill with clean, distilled, or demineralized water. Do not overfill.
- Securely close the cap and place the water tank back onto the main unit.
Figure 4: The 3-liter water tank, designed for extended steaming sessions.
4. Operating Instructions
Once assembled and filled, your steamer is ready for use.
Powering On and Heating:
- Plug the steamer into a suitable electrical outlet.
- Turn on the power switch. The steamer will begin to heat up, releasing powerful steam in approximately 45 seconds.
Figure 5: The steamer's rapid heating capability and strong 1600W steam output.
Steaming Garments:
The steamer is suitable for all fabric types, from delicate silk to heavy denim, without the risk of scorching. It features a stainless steel steam head for effective wrinkle removal.
- Hang the garment on the integrated hanger or a separate hanger.
- Hold the steam head a few inches away from the fabric and move it slowly downwards, allowing the steam to penetrate the fibers.
- For stubborn wrinkles, gently press the steam head against the fabric.
- The steamer offers two power levels: Level One for light clothes and Level Two for heavy clothes, allowing you to adjust steam intensity as needed.
Figure 6: The stainless steel steam head, designed to tackle wrinkles on a wide range of fabrics, including curtains, sofas, and toys.
Mobility:
The steamer is equipped with large diameter wheels (10cm / 3.93 inches) to ensure stability and easy movement around your home or workspace, making it convenient for whole-house ironing.
Figure 7: The large diameter wheels enhance the steamer's portability and stability during use.
5. Maintenance
Proper maintenance ensures the longevity and optimal performance of your steamer.
Cleaning the Water Tank:
- Regularly empty and rinse the water tank after each use to prevent mineral buildup.
- If using tap water, descaling may be required periodically. Mix equal parts white vinegar and water, fill the tank, and let it sit for 30 minutes before rinsing thoroughly.
General Cleaning:
- Wipe the exterior of the steamer with a soft, damp cloth. Do not use abrasive cleaners.
- Ensure the steam head is clean and free of lint or debris.
Storage:
- Allow the steamer to cool completely before storing.
- Empty any remaining water from the tank.
- Store the steamer in a cool, dry place, away from direct sunlight.
6. Troubleshooting
If you encounter issues with your steamer, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| No steam or low steam output | Water tank empty; steamer not heated sufficiently; mineral buildup. | Refill water tank; allow 45 seconds for heating; descale the unit. |
| Water leaking from steam head | Condensation; hose not properly connected; overfilling water tank. | This is normal condensation; ensure hose is securely attached; do not overfill. |
| Steamer automatically shuts off | Water tank empty (dry burning protection); overheating (temperature shut-off); power overload. | Refill water tank; allow unit to cool down; check power supply and other connected appliances. |
| Unusual noise | Mineral buildup in heating element. | Descale the unit. |
If the problem persists after attempting these solutions, please contact customer support.
7. Specifications
| Feature | Detail |
|---|---|
| Brand | TRAS Steam Space |
| Model Number | YQCU001-D02 |
| Color | Grey |
| Wattage | 1600 watts |
| Water Tank Capacity | 3 Liters |
| Heat-up Time | Approx. 45 seconds |
| Continuous Steam Time | Up to 90 minutes |
| Item Weight | 16.02 pounds (approx. 7.27 kg) |
| Package Dimensions | 19 x 19 x 14 inches (approx. 48.26 x 48.26 x 35.56 cm) |
| Steam Head Material | Stainless Steel |
| Heater Type | Anti-oxidant coating aluminum heater |

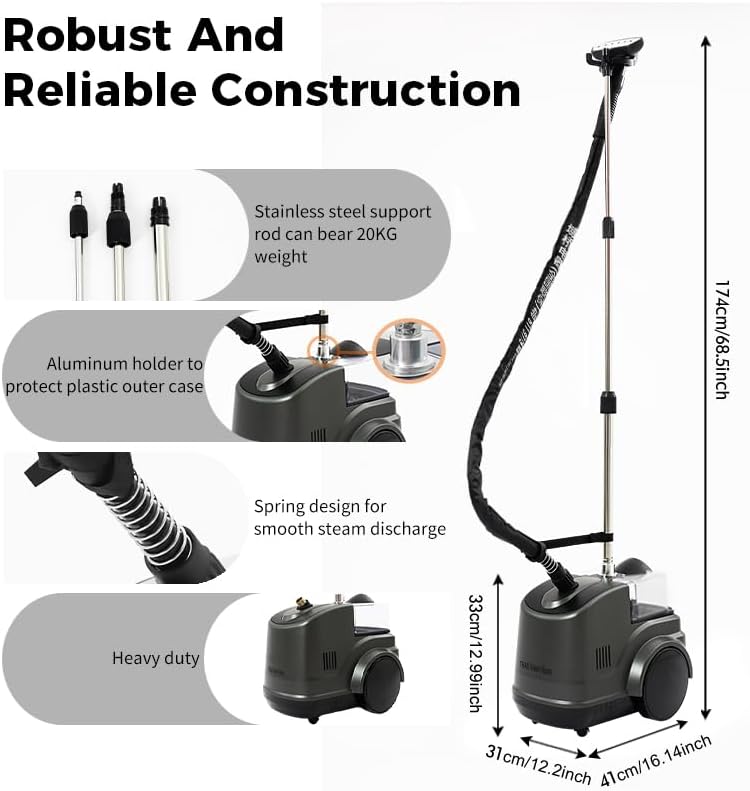

The robust construction includes a stainless steel support rod capable of bearing up to 20KG (44 lbs) of weight, and an aluminum holder to protect the plastic outer case, ensuring durability.
Figure 8: Details of the steamer's robust and reliable construction.
8. Warranty and Support
TRAS Steam Space is committed to providing high-quality products and excellent after-sales service. We conduct strict product inspections to ensure quality.
If you experience any quality issues with your product, please contact our customer service team immediately. We are dedicated to providing prompt assistance and resolving any concerns you may have.
Note: No official product videos from the seller were available for embedding based on the provided data.
