Zagonel Moment Electronic Shower 5500W 127V User Manual

Introduction

Featuring a modern design and lines that reflect Zagonel's identity, the Moment electronic shower offers progressive temperature control and a high-flow water jet. It is designed to provide a relaxing and invigorating shower experience for all moments of your day. This manual provides essential information for the correct installation, operation, and maintenance of your Zagonel Moment Electronic Shower.

Safety Instructions

• Always disconnect the electrical power before any installation, maintenance, or resistance replacement.
• Ensure the electrical installation is compatible with the shower's power (5500W) and voltage (127V).
• Use appropriate tools and follow all local electrical and plumbing codes.
• This product must be installed by a qualified professional.
• Do not operate the shower if it is damaged or malfunctioning.

Setup and Installation

The Zagonel Moment Electronic Shower is designed for quick and economical installation without the need for an additional pipe. Follow these steps for proper setup:

1. Prepare the Installation Point: Ensure the wall connection point is clean and ready for the shower unit.
2. Apply Thread Sealant: It is crucial to use thread sealant (veda-rosca) on the shower's inlet thread to prevent leaks.
3. Mount the Shower: Securely attach the shower unit to the wall connection. The design allows for a clean finish.
4. Connect the Electrical Wires: Connect the electrical wires according to the product's wiring diagram and local electrical standards. Ensure the ground wire is properly connected.
5. Install the Shower Wand (if applicable): Attach the shower wand to its exclusive fitting on the main unit.
6. Water Flow Test: Before connecting the electrical power, let water run through the shower for a few seconds to fill the heating chamber and remove any air. This prevents damage to the resistance.

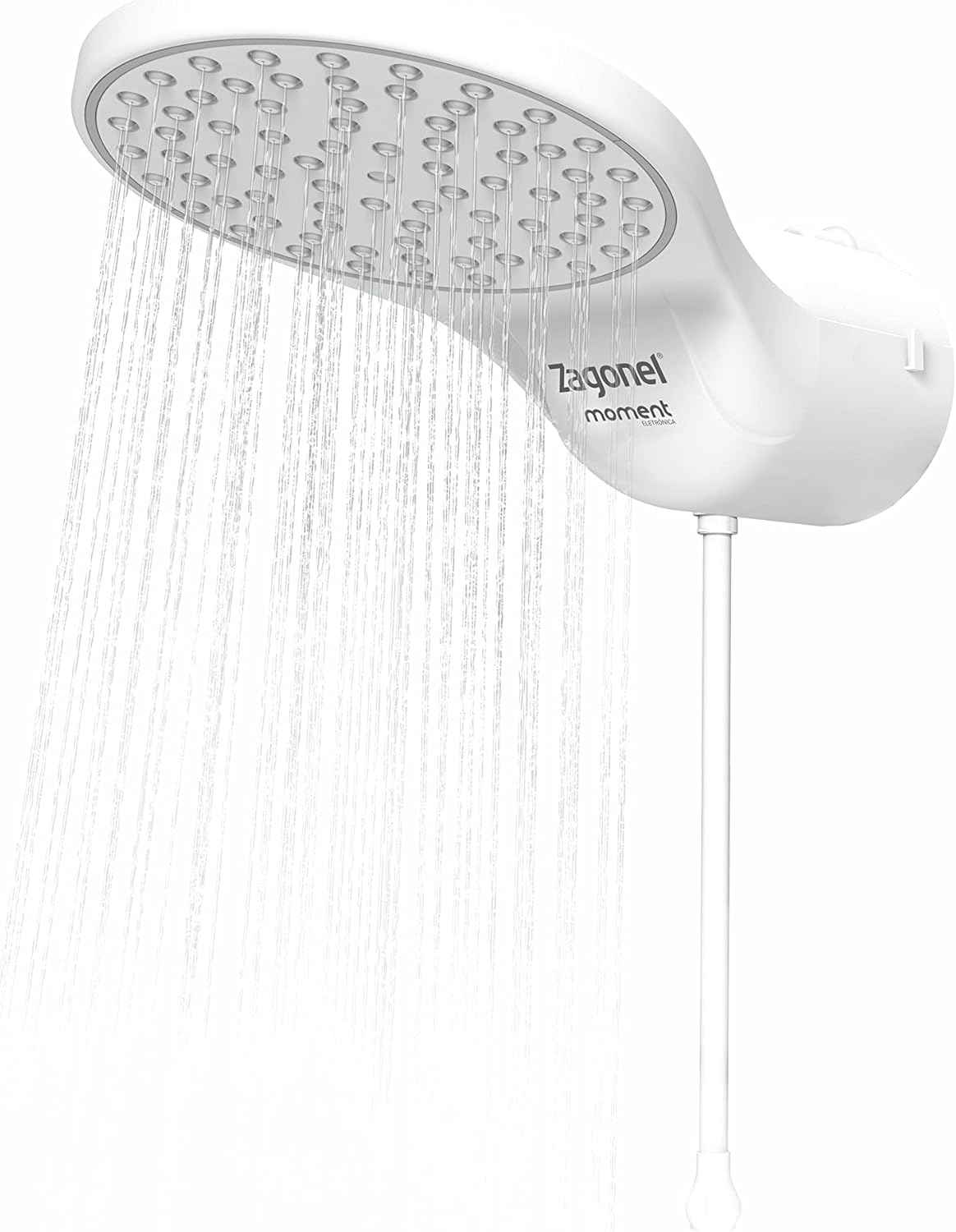

Image: The Zagonel Moment Electronic Shower in white, installed and operating, with water flowing from its wide showerhead. This image illustrates the product's modern design and effective water distribution.

Operating Instructions

The Zagonel Moment Electronic Shower features easy temperature adjustment and efficient water flow.

Temperature Adjustment

Adjust the water temperature directly from the shower's control knob, conveniently located within reach. You do not need to turn off the shower to change the temperature setting. Simply rotate the knob to select your desired warmth.

Water Flow

This shower provides an excellent water flow for a comfortable bathing experience. It is designed to operate effectively even with low water pressure, requiring only 1 meter of water column (1 m.c.a.) for activation.

Image: A close-up view of the Zagonel Moment Electronic Showerhead, highlighting its design and the multiple nozzles that ensure a wide and consistent water spray.

Maintenance

Easy Resistance Replacement

The Zagonel Moment shower is designed for easy resistance replacement without needing to remove the entire shower unit from the wall. This simplifies maintenance and reduces effort.

1. Disconnect Power: Always turn off the electrical power to the shower at the circuit breaker before attempting any maintenance.
2. Access the Resistance: Follow the specific instructions in the product's detailed manual for opening the shower unit and accessing the resistance element.
3. Replace Resistance: Carefully remove the old resistance and install the new one, ensuring it is correctly seated.
4. Reassemble: Close the shower unit securely.
5. Water Flow Test (Post-Maintenance): Before restoring electrical power, let water run through the shower for a few seconds to fill the heating chamber and remove any air.
6. Restore Power: Turn the electrical power back on.

Troubleshooting

If you encounter issues with your Zagonel Moment Electronic Shower, consider the following common troubleshooting steps:

• No Hot Water:
  • Check if the electrical power is on at the circuit breaker.
  • Ensure the water flow is sufficient to activate the heating element.
  • Verify that the temperature selector is not set to the "cold" position.
  • If the resistance was recently replaced, ensure water ran through the shower before turning on the power.
  • The resistance might be burned out and require replacement (refer to Maintenance section).
• Low Water Flow:
  • Check for any blockages in the showerhead nozzles. Clean if necessary.
  • Ensure the main water supply valve is fully open.
  • Verify that the water pressure in your home is adequate (minimum 1 m.c.a. for activation).
• Water Leaks:
  • Check the connection point to the wall for proper sealing. Ensure thread sealant was used correctly during installation.
  • Inspect the shower unit for any cracks or damage.

If these steps do not resolve the issue, please contact a qualified technician or Zagonel customer support.

Specifications

Warranty and Support

Warranty Information

The Zagonel Moment Electronic Shower comes with a 12-month warranty from the date of purchase, covering manufacturing defects. Please retain your proof of purchase for warranty claims.

Customer Support

For further assistance, technical support, or warranty inquiries, please refer to the contact information provided in the product packaging or visit the official Zagonel website.
