Generic WK-016 Car Washer Water Spray Variable Pressure Washer Extension User Manual

1. Introduction

This manual provides instructions for the safe and efficient use of the Generic WK-016 Car Washer Water Spray Variable Pressure Washer Extension. Please read this manual thoroughly before operation and retain it for future reference.

2. Safety Information

Always observe basic safety precautions to reduce the risk of injury or damage. This device operates with high-pressure water, which can cause injury if not handled properly.

• Do not point the spray nozzle at people, pets, or electrical equipment.
• Ensure all connections are secure before operating.
• Wear appropriate personal protective equipment, such as eye protection.
• Do not exceed the maximum pressure rating of 16 MPa (160 bar).
• Do not use with water temperatures exceeding 60°C (140°F).
• Keep children and bystanders away from the operating area.

3. Package Contents

Verify that all items are present in the package:

• 1 x Car Washer Spray Gun
• 1 x Variable Lance Extension

Figure 1: The complete WK-016 Car Washer Water Spray Variable Pressure Washer Extension, showing the spray gun handle and the attached variable lance.

4. Setup

Follow these steps to assemble and connect the pressure washer extension:

1. Connect the Variable Lance: Align the variable lance with the connection point on the spray gun handle. Push firmly and twist until it locks securely into place.

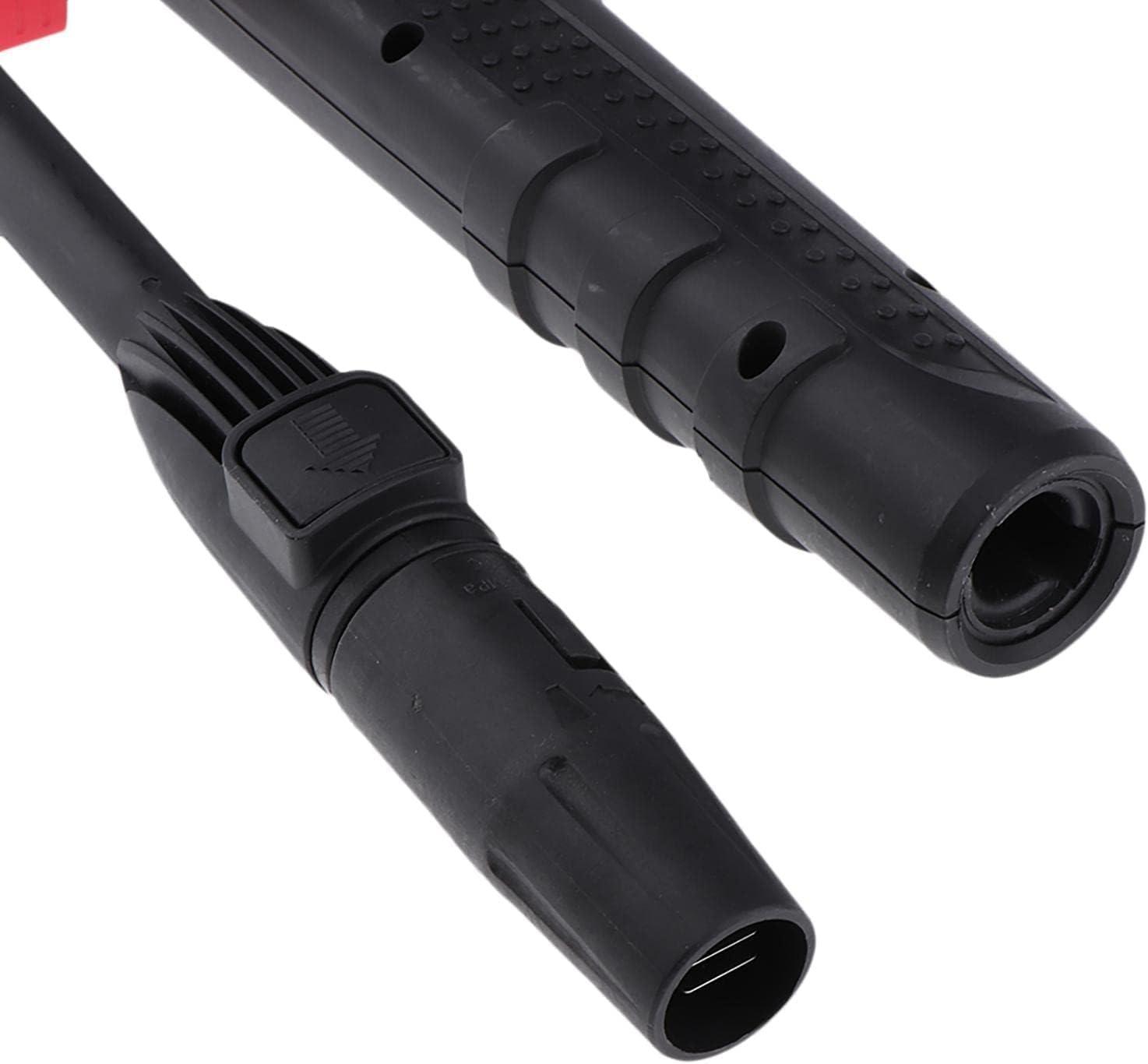

   Figure 2: Detail of the quick-connect mechanism for attaching the variable lance to the spray gun.

2. Connect to Pressure Washer Hose: Attach the spray gun's inlet to your pressure washer's high-pressure hose. Ensure this connection is tight to prevent leaks. Refer to your pressure washer's manual for specific hose connection instructions.
3. Water Supply: Ensure your pressure washer is connected to a suitable water supply and that the water is turned on.

5. Operating Instructions

Once assembled and connected, the WK-016 is ready for use. Always ensure you are wearing appropriate safety gear.

1. Power On: Turn on your pressure washer according to its operating instructions.
2. Engage Trigger: Squeeze the trigger on the spray gun handle to begin water flow.


   Figure 3: The spray gun handle features an ON/OFF switch and a trigger for controlling water flow.

3. Adjust Spray Pattern: The variable lance allows you to adjust the spray pattern. Rotate the nozzle at the end of the lance to change between a concentrated stream, a fan spray, or a wider mist.


   Figure 4: The adjustable nozzle provides various spray patterns, including a focused column, a wide fan, and a dispersed mist, suitable for different cleaning tasks.
4. Cleaning Applications: This extension is suitable for cleaning automobiles, motorcycles, ground surfaces, and other car care applications.
5. Power Off: Release the trigger to stop water flow. Turn off your pressure washer and disconnect the water supply after use.

6. Maintenance

Proper maintenance ensures the longevity and optimal performance of your WK-016 extension.

• Cleaning: After each use, flush the extension with clean water to remove any detergent or debris. Wipe the exterior with a damp cloth.
• Storage: Store the extension in a dry, frost-free environment. Disconnect it from the pressure washer and store it in a way that prevents kinking or damage to the lance.
• Inspection: Periodically inspect the connections and the lance for any signs of wear, cracks, or damage. Replace any damaged parts immediately.

7. Troubleshooting

If you encounter issues, refer to the following common problems and solutions:

8. Specifications

• Model: WK-016
• Material: PVC
• Color: Black
• Maximum Pressure (Ma): 16 MPa (160 bar)
• Maximum Feed Temperature: 60°C (140°F)
• Spray Length (Approx.): 96 cm (37.8 inches)
• Variable Lance Length: 52 cm (20.5 inches)

9. Warranty and Support

For warranty information or technical support, please contact the retailer or manufacturer directly. Keep your purchase receipt as proof of purchase.
