1. Introduction
This manual provides comprehensive instructions for the assembly, operation, maintenance, and troubleshooting of your AOGLLATI Queen Bed Frame (Model AG-BF01-Q). Please read this manual thoroughly before assembly and use to ensure proper function and safety.
Image 1.1: AOGLLATI Queen Bed Frame with LED lighting and an open storage drawer.
2. Safety Information
Please observe the following safety precautions to prevent injury or damage to the product:
- Assembly: Always follow the assembly instructions precisely. Incorrect assembly can lead to instability and potential injury.
- Drawers: Ensure all storage drawers are securely closed when not in use to prevent tripping hazards or accidental sliding.
- USB Ports: Exercise caution when using the USB ports on the headboard. Avoid liquid spills near electrical components.
- Weight Capacity: Do not exceed the maximum weight capacity of the bed frame (refer to specifications).
- Children: Keep small parts away from children during assembly.
3. Package Contents
Before beginning assembly, verify that all components listed below are present. If any parts are missing or damaged, contact customer service.
- Headboard with integrated LED lights and USB ports
- Bed frame side rails and footboard
- Wooden slats and support system
- Four (4) storage drawers with wheels
- Assembly hardware (screws, bolts, washers)
- Assembly tools (e.g., Allen wrench)
- Instruction Manual
4. Setup and Assembly
Assembly is required. It is recommended to have two people for easier and safer assembly. Follow the numbered steps and diagrams provided in the included instruction manual. Lay out all parts by their corresponding numbers before starting.
- Unpack Components: Carefully unpack all parts and lay them on a clean, soft surface to prevent scratches. Identify each part using the provided parts list.
- Assemble Headboard: Attach the headboard sections as per the instructions. Ensure the LED light strip and USB port wiring are correctly positioned.
- Connect Side Rails: Securely attach the side rails to the headboard and footboard using the provided hardware. Do not overtighten screws until all connections are made.
- Install Slat Support System: Place the wooden slats onto the bed frame. The plastic lock design helps fix the slats firmly and reduce noise. Ensure all slats are properly seated and secured.
Image 4.1: Illustration of the embedded design for mattress stability, preventing sliding.
- Assemble Storage Drawers: Assemble the four storage drawers. Attach the wheels to the bottom of each drawer.
Image 4.2: Detail of a storage drawer showing its wheels and the locking hole mechanism.
- Insert Drawers: Slide the assembled drawers under the bed frame. Utilize the locking holes to prevent unwanted movement.
- Adjust Headboard Height: The headboard offers two height adjustments to accommodate mattresses between 10-13 inches. Adjust to your preferred height before placing the mattress.
Image 4.3: The headboard can be adjusted to two different heights, featuring built-in USB ports for convenience.
5. Operating Instructions
5.1 LED Lighting System
The integrated RGB LED backlight system offers multiple colors and dynamic modes. Control the lighting via a dedicated mobile application or the included button control.
- Power On/Off: Use the button control or app to turn the LED lights on or off.
- Color Selection: Choose from a wide range of colors using the app's color wheel.
- Brightness Adjustment: Adjust the light intensity to your preference.
- Dynamic Modes: Select from various pre-programmed dynamic modes (e.g., Music Mode, Mic Mode, Time Mode) to create different ambiances.
- Speed Control: Adjust the speed of dynamic lighting effects.
Image 5.1: The LED lighting system can be controlled via a smartphone application, offering various colors and modes.
5.2 USB Charging Ports
The headboard features two (2) USB ports (5V/2A) for convenient charging of mobile phones, tablets, or other compatible devices.
- Simply connect your device's USB charging cable to the ports located on the headboard.
- Ensure the bed frame is connected to a power source for the USB ports to function.
5.3 Storage Drawers
The four under-bed storage drawers are designed for easy access and organization.
- Each drawer is equipped with smooth wheels for effortless pulling out and pushing in.
- Utilize the locking holes on each drawer to secure them in place and prevent accidental sliding when not in use.
6. Maintenance
Regular maintenance helps prolong the life and appearance of your bed frame.
- Cleaning: Wipe the bed frame surfaces with a damp cloth. Avoid harsh chemicals or abrasive cleaners that may damage the finish.
- Tighten Hardware: Periodically check and tighten all screws and bolts to ensure the frame remains stable and noise-free.
- Slat Inspection: Inspect wooden slats for any signs of wear or damage. Replace if necessary to maintain proper mattress support.
- Drawer Wheels: Keep drawer wheels clean and free of debris for smooth operation.
7. Troubleshooting
Refer to the table below for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Bed frame is noisy/squeaks | Loose hardware; slats not properly seated. | Tighten all screws and bolts. Ensure all wooden slats are correctly positioned and secured by the plastic locks. |
| LED lights not working | Power connection issue; app malfunction; light strip damage. | Check power connection to the bed frame. Restart the control app. If issues persist, contact customer service. |
| USB ports not charging | Bed frame not powered; faulty cable; device incompatibility. | Ensure the bed frame is plugged into a working power outlet. Try a different USB cable or device. |
| Storage drawers slide out easily | Drawers not locked; uneven floor. | Ensure the drawers are pushed in fully and the locking holes are engaged. Check if the bed frame is on a level surface. |
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | AG-BF01-Q |
| Brand | AOGLLATI |
| Size | Queen |
| Product Dimensions (L x W x H) | 82.5" x 62.2" x 45.3" |
| Item Weight | 119 pounds |
| Color | Black |
| Material | Steel, Wood |
| Headboard Features | Adjustable height, Integrated LED lights, 2 USB Ports (5V/2A) |
| Storage | 4 under-bed drawers with locking holes and wheels |
| Mattress Compatibility | Queen size, 10-13 inches thickness (for headboard adjustment) |
| Assembly Required | Yes |
| Care Instructions | Wipe with Damp Cloth |
| UPC | 704090201810 |

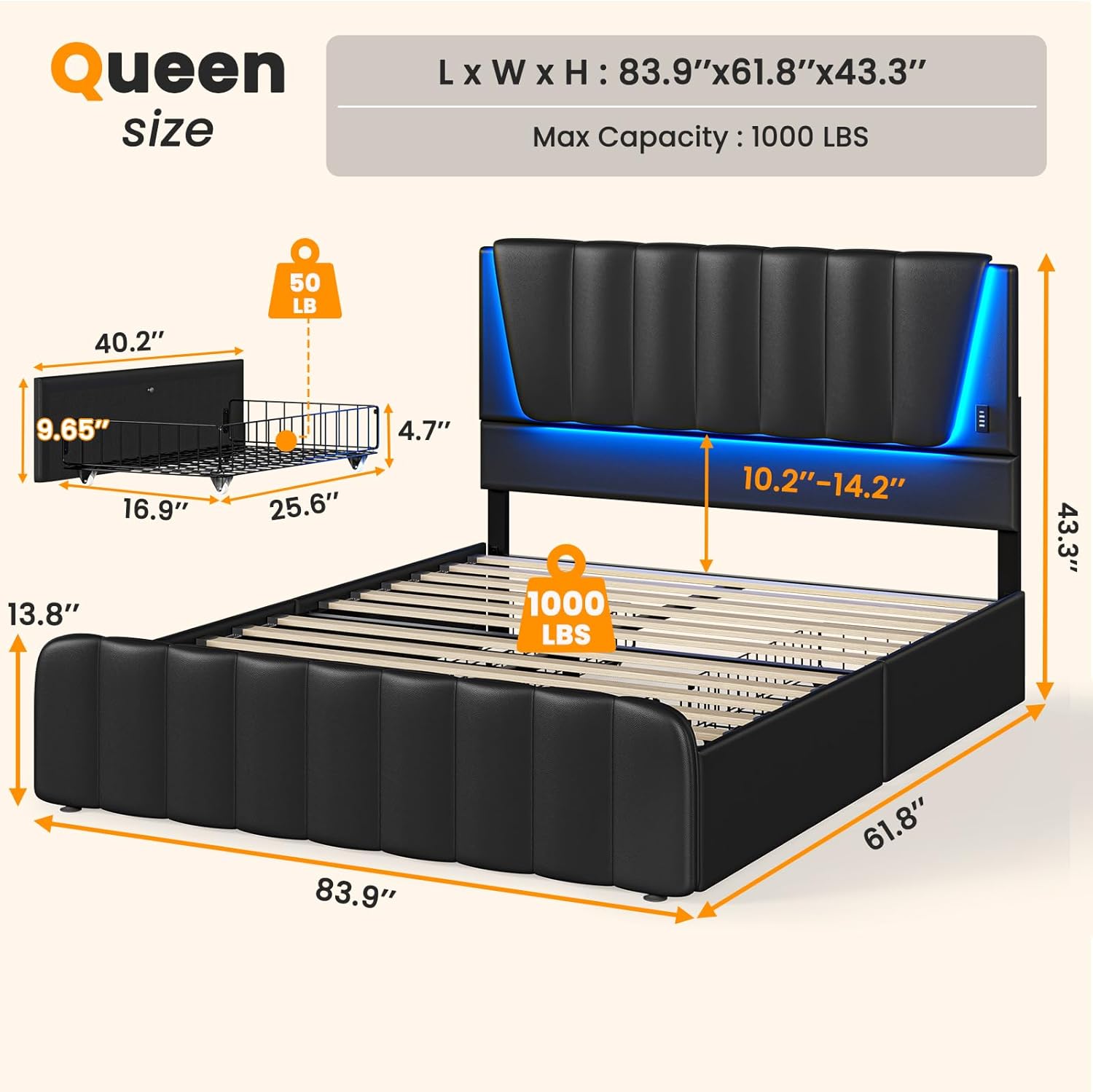

Image 8.1: Detailed dimensions of the Queen size bed frame, including headboard and storage drawer measurements.
9. Warranty and Customer Support
For warranty information or any questions regarding your AOGLLATI Queen Bed Frame, please contact our customer service team. We are dedicated to resolving any issues you may encounter.
- Customer Service: Refer to the contact information provided with your purchase documentation or visit the official AOGLLATI website.
- Response Time: Our customer service team aims to respond to inquiries within 24 hours.
- Missing/Damaged Parts: If you receive missing or damaged parts, please contact us immediately for assistance.
