1. Introduction
Thank you for purchasing the SUKACI 35-inch Flush Mount Ceiling Fan with LED Light. This manual provides detailed instructions for the safe installation, operation, and maintenance of your new ceiling fan. Please read this manual thoroughly before installation and keep it for future reference.
2. Safety Information
- Always disconnect power at the circuit breaker before installation or servicing.
- Ensure all electrical connections comply with local codes and ordinances.
- Consult a qualified electrician if you are unsure about wiring.
- Mount the fan to a ceiling joist or support structure capable of supporting the fan's weight.
- Keep hands, clothing, and other objects clear of the fan blades when the fan is operating.
- Do not use the fan in areas with high humidity or direct water exposure unless specifically rated for such environments.
3. Package Contents
Verify that all components are present before beginning installation. If any parts are missing or damaged, contact customer support.
- Ceiling Fan Motor Assembly
- Fan Blades (3x)
- LED Light Kit
- Remote Control
- Mounting Bracket
- Hardware Pack (screws, wire nuts, etc.)
- User Manual
4. Setup and Installation
This ceiling fan is designed for flush mount installation and can also accommodate sloped ceilings up to 15 degrees. Most functional parts are pre-assembled for ease of installation.
- Prepare for Installation: Turn off power at the circuit breaker. Ensure the mounting location is secure and can support the fan's weight.
- Install Mounting Bracket: Secure the mounting bracket to the ceiling junction box using the provided screws.
- Wire the Fan: Connect the fan's electrical wires to the household wiring according to the wiring diagram in the separate installation guide. Ensure all connections are secure.
- Attach Fan Assembly: Carefully lift the fan motor assembly and attach it to the mounting bracket. Secure with screws.
- Install Blades: Attach the three fan blades to the motor housing.
- Install Light Kit: Connect the LED light kit wiring and secure the light kit to the fan assembly.
- Restore Power: Once installation is complete, restore power at the circuit breaker.
This image illustrates the dimensions of the 35-inch low profile ceiling fan, showing its 15-inch height and 35-inch diameter. It also provides visual examples of the fan installed in a bedroom, living room, and patio setting, demonstrating its versatile application.

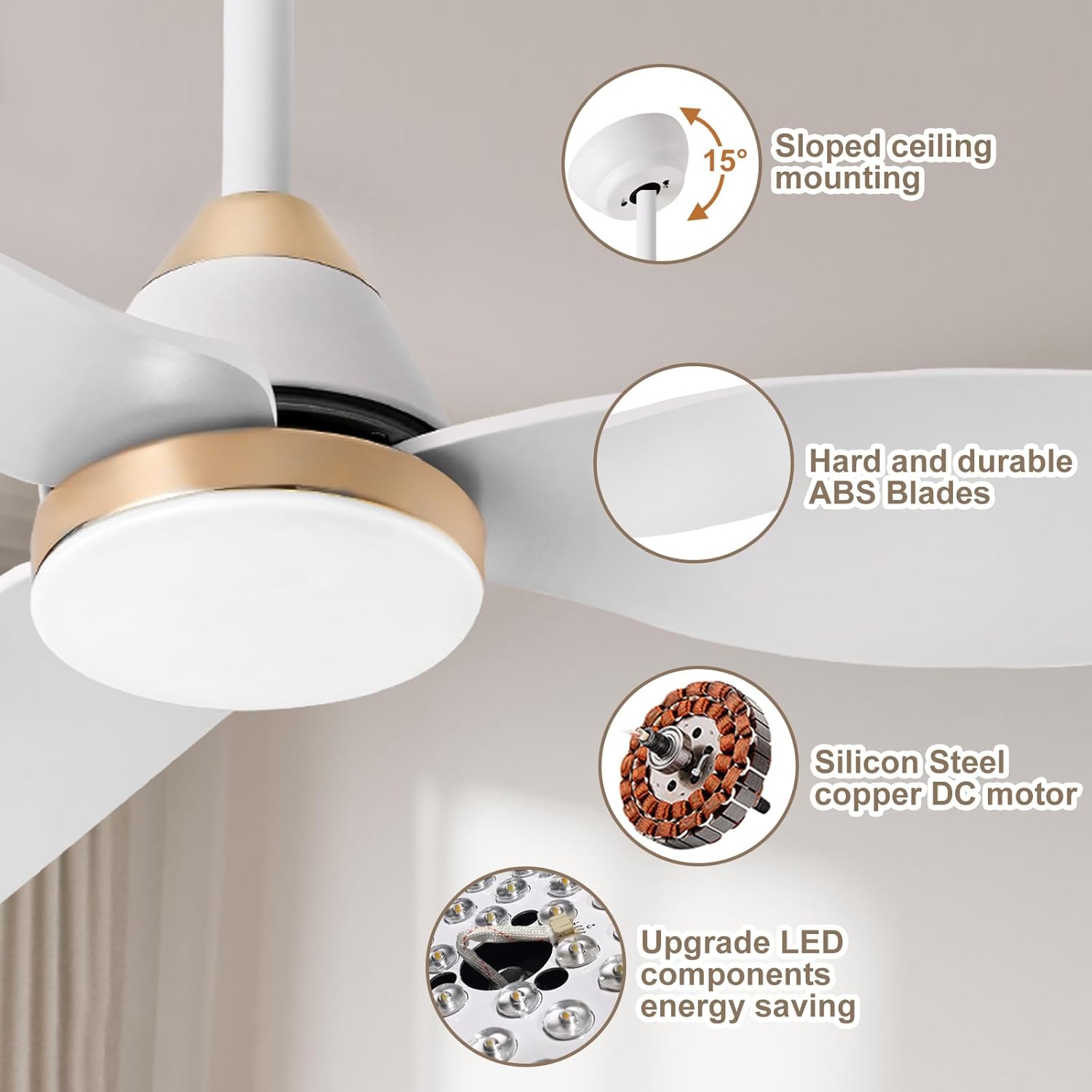

This image provides a close-up view of the ceiling fan's construction, highlighting its capability for sloped ceiling mounting (up to 15 degrees), the use of hard and durable ABS plastic for the blades, the efficient silicon steel pure copper DC motor, and upgraded energy-saving LED light components.
5. Operating Instructions
Your SUKACI ceiling fan can be controlled via the included remote control or a compatible smartphone application.
5.1 Fan Functions
- Power On/Off: Press the fan button on the remote or app to turn the fan on or off.
- Speed Control: Select from 6 wind speeds to adjust airflow intensity.
- Reversible Motor: Use the reverse function to change airflow direction. In summer, the fan operates in downdraft mode for a cooling effect. In winter, it operates in updraft mode to circulate warm air.
- Timer: Set the fan to turn off automatically after 2 hours.
- Night Mode: Activates a quiet, low-speed setting suitable for sleeping.
This image illustrates the reversible motor function of the ceiling fan. In summer, the fan operates in downdraft mode to create a cooling breeze. In winter, it operates in updraft mode to circulate warm air efficiently throughout the room, aiding in energy saving.
This image emphasizes the user-friendly features of the ceiling fan, including its ultra-quiet operation (below 30 dB), six adjustable wind speeds, a convenient 2-hour timer function, and a dedicated night mode for undisturbed rest.
5.2 LED Light Functions
- Light On/Off: Press the light button on the remote or app to turn the LED light on or off.
- Dimmable Brightness: Adjust the light brightness from 0% to 100% to suit your preference.
- Color Temperature Adjustment: Cycle through three color temperatures: 3000K (warm yellow light), 4000K (natural light), and 6500K (cool white light).
This image demonstrates the LED lighting capabilities of the ceiling fan, including three adjustable color temperatures (warm yellow 3000K, natural 4000K, cool white 6500K) and a dimmable brightness range from 0% to 100%. It also shows the included remote control and a smartphone app interface for controlling these functions.
6. Maintenance
Regular maintenance ensures optimal performance and longevity of your ceiling fan.
- Cleaning: Dust the fan blades and motor housing regularly with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Blade Inspection: Periodically check that all blade screws are tight. Loose blades can cause wobbling and noise.
- Light Kit: The LED light components are designed for long life and typically do not require replacement.
- Motor: The DC motor is maintenance-free and does not require lubrication.
7. Troubleshooting
If you encounter issues with your ceiling fan, refer to the following common problems and solutions:
- Fan Does Not Start:
- Check if the power supply is on at the circuit breaker.
- Ensure all wiring connections are secure.
- Verify remote control batteries are functional and correctly inserted.
- Light Does Not Work:
- Check power supply and wiring connections to the light kit.
- Ensure the light function is activated via remote or app.
- Fan Wobbles:
- Ensure all blade screws are tightened.
- Verify the mounting bracket is securely fastened to the ceiling.
- Check for any bent blades.
- Remote Control Not Responding:
- Replace remote control batteries.
- Ensure there are no obstructions between the remote and the fan receiver.
If problems persist, please contact customer support for assistance.
8. Specifications
| Brand | SUKACI |
| Model | 35-inch Flush Mount Ceiling Fan with LED Light |
| Material | Acrylic (light cover), ABS (blades) |
| Installation Type | Flush Mount (supports sloped ceilings up to 15°) |
| Fan Speeds | 6 speeds |
| Motor Type | Silicon Steel Pure Copper DC Motor |
| Noise Level | Below 20 dB |
| LED Light | Dimmable (0-100% brightness), 3 Color Temperatures (3000K, 4000K, 6500K) |
| Special Features | Remote Control, APP Control, Reversible Function, 2h Timing, Night Mode |
| Usage | Indoor (suitable for Bedroom, Living Room, Kitchen, Patio) |
9. Warranty and Support
Your SUKACI ceiling fan comes with a 1-year warranty for free replacement of parts due to manufacturing defects. Additionally, we provide lifetime service support for your product.
If you have any quality defects or require assistance, please do not hesitate to contact our customer service team. We aim to respond to all inquiries within 24 hours.
