POMUIC Q53-Pro
Wireless Earbuds User Manual
Model: Q53-Pro | Brand: POMUIC
Product Overview
The POMUIC Wireless Earbuds (Model Q53-Pro) are high-fidelity stereo Bluetooth 5.3 headphones designed for an immersive audio experience. Featuring a long-lasting battery, a convenient LED charging case, and an IPX7 waterproof rating, these earbuds are ideal for sports, work, and daily use.
Key Features
- Bluetooth 5.3 and Auto Pairing: Equipped with the latest Bluetooth 5.3 chip and FPC antenna for faster pairing, stable connection, and a signal transmission range of up to 20 meters (no-obstacle). Earbuds automatically connect upon removal from the case.
- Clear Calls and Immersive Sound: High-sensitivity diaphragm and dual 13.4mm drivers reduce environmental noise by 90% and enhance voice clarity. Experience powerful dynamic sound with rich vocal details and audio authenticity.
- 100H Playtime and LED Charging Case: Enjoy up to 7 hours of usage per charge. The 2600mAh charging case provides an additional 100 hours of working time and can also function as an emergency power bank for your phone.
- Ergonomic Ear Hook Design and Intelligent Touch Control: Designed with soft ear hooks for a secure fit during intense exercise. High-sensitivity touch technology allows for easy control of various functions.
- IPX7 Waterproof for Sports: Nano-coated to protect against daily splashes, sweat, and rain, making them suitable for strenuous workouts and all weather conditions.
Figure 1: POMUIC Wireless Earbuds in their charging case, highlighting the charging process.
What's in the Box
Your POMUIC Wireless Earbuds package includes the following items:
- POMUIC Wireless Earbuds (Left and Right)
- Charging Case
- USB Charging Cable (Type-C)
- Multiple Sizes of Eartips (S, M, L)
- User Manual
Setup Guide
Initial Charge
Before first use, fully charge the earbuds and the charging case. The LED display on the case will show the battery percentage.
- Place both earbuds into the charging case.
- Connect the charging case to a power source using the provided USB Type-C cable.
- Allow the case and earbuds to charge until the LED display shows 100%.
Figure 2: The charging case can also serve as an emergency power bank for mobile devices.
Pairing with Your Device
The earbuds feature automatic pairing for convenience.
- Ensure Bluetooth is enabled on your smartphone, tablet, or laptop.
- Open the charging case and remove both earbuds. They will automatically power on and enter pairing mode.
- On your device, search for Bluetooth devices and select "Q53" (or "Q53-Pro") from the list.
- Once connected, you will hear a confirmation tone, and the earbuds will be ready for use.
- For single earbud use, simply remove one earbud from the case; it will connect automatically.

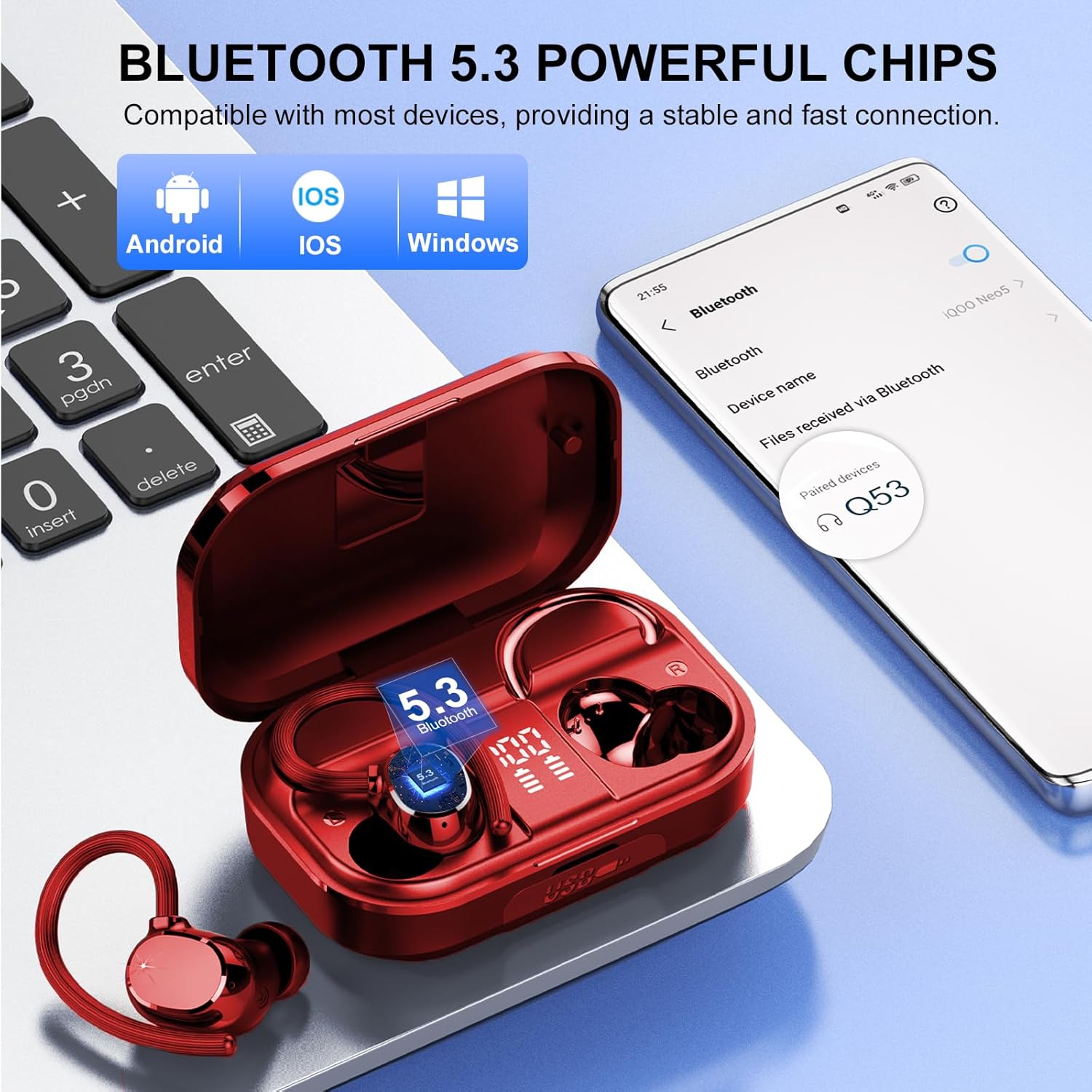

Figure 3: Bluetooth 5.3 ensures stable and fast connection with various devices.
Operating Instructions
Touch Controls
The earbuds feature intuitive touch controls for various functions:
| Action | Function |
|---|---|
| Single Tap (L/R) | Play/Pause Music, Answer/End Call |
| Double Tap (L) | Previous Track |
| Double Tap (R) | Next Track |
| Triple Tap (L/R) | Activate Voice Assistant |
| Long Press (L/R, 2s) | Reject Call |
| Long Press (L, 3s) | Volume Down |
| Long Press (R, 3s) | Volume Up |
Charging Earbuds
To charge the earbuds, simply place them back into their charging case. The earbuds will automatically begin charging. The LED display on the case indicates the charge level of the case and the earbuds.
Figure 4: Continuous listening all day with extended battery life from the charging case.
Maintenance and Care
To ensure the longevity and optimal performance of your POMUIC Wireless Earbuds, follow these maintenance guidelines:
- Cleaning: Regularly clean the earbuds and charging case with a soft, dry, lint-free cloth. Do not use harsh chemicals or abrasive materials.
- Water Resistance: While IPX7 waterproof, avoid submerging the earbuds in water for extended periods or exposing them to high-pressure water jets. Ensure they are dry before placing them back in the charging case.
- Storage: When not in use, store the earbuds in their charging case to protect them from dust and damage. Store in a cool, dry place away from extreme temperatures.
- Battery Care: To preserve battery life, avoid fully discharging the earbuds and charging case frequently. Charge them regularly, even if not in constant use.
- Eartips: Clean the eartips regularly to prevent wax buildup, which can affect sound quality. Replace eartips if they become damaged or worn.
Figure 5: The ergonomic ear hook design ensures a secure fit for active lifestyles.
Troubleshooting
If you encounter issues with your earbuds, refer to the following common problems and solutions:
| Problem | Solution |
|---|---|
| Earbuds not pairing/connecting. |
|
| Only one earbud working. |
|
| Low volume or poor sound quality. |
|
| Charging case not charging. |
|
Technical Specifications
| Feature | Detail |
|---|---|
| Model Name | Q53-Pro |
| Connectivity Technology | Wireless (Bluetooth) |
| Bluetooth Version | 5.3 |
| Bluetooth Range | Up to 20 Meters (no-obstacle) |
| Audio Driver Size | 13.4 mm |
| Playtime (per charge) | Approx. 7 hours |
| Total Playtime (with charging case) | Approx. 100 hours |
| Charging Case Battery Capacity | 2600mAh (can act as power bank) |
| Waterproof Rating | IPX7 |
| Control Type | Touch Control |
| Material | Plastic |
| Color | Black |
| Item Weight | 5.6 ounces |
| Manufacturer | POMUIC |
Figure 6: High-fidelity audio is delivered by 13.4mm speakers for an immersive experience.
Warranty and Support
POMUIC products come with a standard manufacturer's warranty. For detailed warranty information, technical support, or customer service inquiries, please refer to the warranty card included in your product packaging or visit the official POMUIC website.
You can also visit the POMUIC Store on Amazon for more product information and support resources.
