1. Introduction
This manual provides essential information for the safe and correct installation, operation, and maintenance of your vidaXL Sliding Door. Please read all instructions carefully before beginning assembly or use. Retain this manual for future reference.
1.1 Safety Information
- Always wear appropriate personal protective equipment, including safety glasses and gloves, during assembly.
- The door panels are made of ESG glass. Handle with extreme care to prevent breakage and injury.
- Ensure the installation area is clear of obstructions and that you have sufficient space to work.
- This product is heavy. It is recommended that two or more people assist with lifting and positioning the door panels.
- Ensure the wall structure where the sliding door hardware will be mounted is capable of supporting the door's weight.
- Keep children and pets away from the work area during installation.
2. Product Overview
The vidaXL Sliding Door features an aluminum frame and ESG glass panels, designed for interior use. It includes a soft stop mechanism for smooth operation. This door is intended to be used with a separate sliding door hardware kit (not included).
Figure 1: Front view of the vidaXL Sliding Door.
Figure 2: Example of the vidaXL Sliding Door installed in a modern interior setting.
3. Package Contents
Carefully unpack all components and verify that all parts are present and undamaged. If any parts are missing or damaged, do not proceed with assembly and contact vidaXL customer support.
- Sliding Door Panel (Aluminum frame with ESG glass)
- Door Stop (for soft stop functionality)
- Assembly Manual (this document)
Note: A sliding door hardware kit (track, rollers, floor guide, etc.) is NOT included with this product and must be purchased separately.
4. Tools Required
The following tools are typically required for the installation of a sliding door. Specific tools may vary depending on your chosen sliding door hardware kit.
- Measuring Tape
- Pencil
- Level
- Drill and appropriate drill bits
- Screwdriver set (Phillips and Flathead)
- Wrench set
- Safety Glasses
- Work Gloves
5. Installation Guide
The installation of the vidaXL Sliding Door involves assembling the door panel and then mounting it to a separately purchased sliding door hardware system. Always refer to the instructions provided with your specific sliding door hardware kit for track and roller installation.
5.1 Door Panel Assembly
- Unpack Components: Carefully remove all parts from the packaging. Lay them out on a clean, soft surface to prevent scratches.
- Assemble Frame: Follow the diagrams to connect the aluminum frame sections around the ESG glass panels. Ensure all connections are secure.
- Install Door Stop: Attach the included door stop mechanism to the designated location on the door frame as shown in the assembly diagram. This component contributes to the soft stop feature.
5.2 Mounting the Door
- Install Sliding Hardware: Mount your chosen sliding door track and rollers to the wall and door panel according to the manufacturer's instructions for that specific hardware kit. Ensure the track is level and securely fastened.
- Hang the Door: With assistance, carefully lift the assembled door panel and attach it to the rollers on the sliding track.
- Adjust and Test: Adjust the door's height and alignment as needed. Slowly slide the door back and forth to ensure smooth operation and proper engagement with the soft stop mechanism.
Figure 3: General assembly and installation steps. (1) Unpack and prepare door components. (2) Attach rollers to the door. (3) Install floor guide. (4) Hang the door on the track.
6. Operating Instructions
The vidaXL Sliding Door is designed for simple and smooth operation.
- To open or close the door, gently push or pull the door panel along its track.
- The integrated soft stop feature will engage as the door approaches its fully open or closed position, slowing its movement for a quiet and controlled stop. Avoid forcing the door against the soft stop mechanism.
7. Maintenance
Regular maintenance will help ensure the longevity and smooth operation of your sliding door.
- Cleaning Glass: Use a soft, lint-free cloth and a non-abrasive glass cleaner. Avoid harsh chemicals or abrasive materials that could scratch the glass.
- Cleaning Frame: Wipe the aluminum frame with a soft, damp cloth. For stubborn marks, a mild soap solution can be used, followed by wiping with a clean, damp cloth.
- Hardware Check: Periodically inspect the sliding door hardware (track, rollers, floor guide) for any signs of wear, looseness, or debris. Clean the track as needed to ensure smooth gliding. Tighten any loose screws.
- Lubrication: If the rollers or track become stiff, a silicone-based lubricant can be applied sparingly to the moving parts of the hardware. Consult your sliding hardware kit's manual for specific lubrication recommendations.
8. Troubleshooting
Here are solutions to common issues you might encounter:
| Problem | Possible Cause | Solution |
|---|---|---|
| Door does not slide smoothly | Debris in track, loose rollers, misaligned track, worn rollers. | Clean track, tighten roller screws, check track level, lubricate rollers. |
| Door makes noise when sliding | Lack of lubrication, loose hardware, debris. | Lubricate rollers/track, tighten all hardware, clean track. |
| Soft stop not engaging correctly | Misalignment, obstruction, damaged soft stop mechanism. | Check door alignment, clear obstructions, inspect soft stop for damage. |
9. Specifications

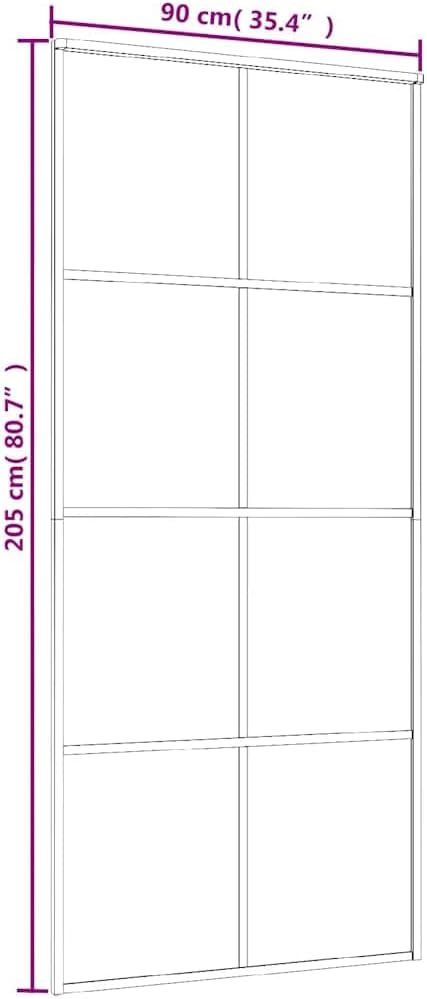

Figure 4: Dimensions of the vidaXL Sliding Door.
- Brand: vidaXL
- Model: Transparent
- Dimensions (W x H x D): 35.4" x 80.7" x 0.79" (90 cm x 205 cm x 2 cm)
- Material: Aluminum frame, ESG Glass panels
- Color: Black frame
- Item Weight: Approximately 57.4 lbs (26.09 kg)
- Special Features: Soft Stop, Space Saving Design
- Assembly Required: Yes
10. Warranty and Support
For information regarding warranty coverage, technical support, or replacement parts, please refer to the official vidaXL website or contact their customer service directly. Keep your purchase receipt as proof of purchase.
