MECMO 56208 4-Pin Trailer Wiring Harness User Manual

Introduction

This manual provides detailed instructions for the installation and operation of the MECMO 56208 4-Pin Trailer Wiring Harness. This product is designed to provide a standard 4-pin flat trailer connector for your vehicle, enabling the connection of trailer tail lights, brake lights, and turn signals. Please read these instructions carefully before beginning installation to ensure proper function and safety.

Product Compatibility

This wiring harness is specifically designed for the following Jeep Cherokee models and years (without factory tow package):

• 2014 - 2018 Jeep Cherokee Trailhawk
• 2014 - 2018 Jeep Cherokee Latitude (Excluding 2016 Cherokee Latitude)
• 2014 - 2018 Jeep Cherokee Limited
• 2014 - 2018 Jeep Cherokee Sport (Excluding 2016 Jeep Cherokee Sport)
• 2016 - 2018 Jeep Cherokee Overland
• 2016 Jeep Cherokee 75th Anniversary

Image: Visual representation of compatible Jeep Cherokee models and years for the wiring harness.

Key Features

• 4-Pin Standard Connector: Provides a versatile 4-pin flat trailer connector for powering trailer tail lights, brake lights, and turn signals.
• Plug-and-Play Installation: Features prewired T-connectors that plug directly into your vehicle's existing wiring, typically located behind the tail lights.
• Durable Construction: Constructed with 16-18AWG pure copper wiring for excellent corrosion resistance and conductivity.
• Dust Cover: Includes a tight-fitting rubber dust cover to protect the 4-prong socket terminal from dust and water damage when not in use.
• Powered Taillights Converter: Utilizes SMT circuitry for longer life cycles, lower resistance, and reduced heat generation.

What's in the Box

The MECMO 56208 4-Pin Trailer Wiring Harness kit includes the following components:

• Jeep Cherokee Tow Hitch Wire Harness (with integrated converter module and 4-pin flat connector)
• Power Wire with In-line Fuse Holder
• Ground Wire with Ring Terminal
• Zip Ties
• Splice Connectors
• Mounting Hardware (e.g., screws, double-sided tape)

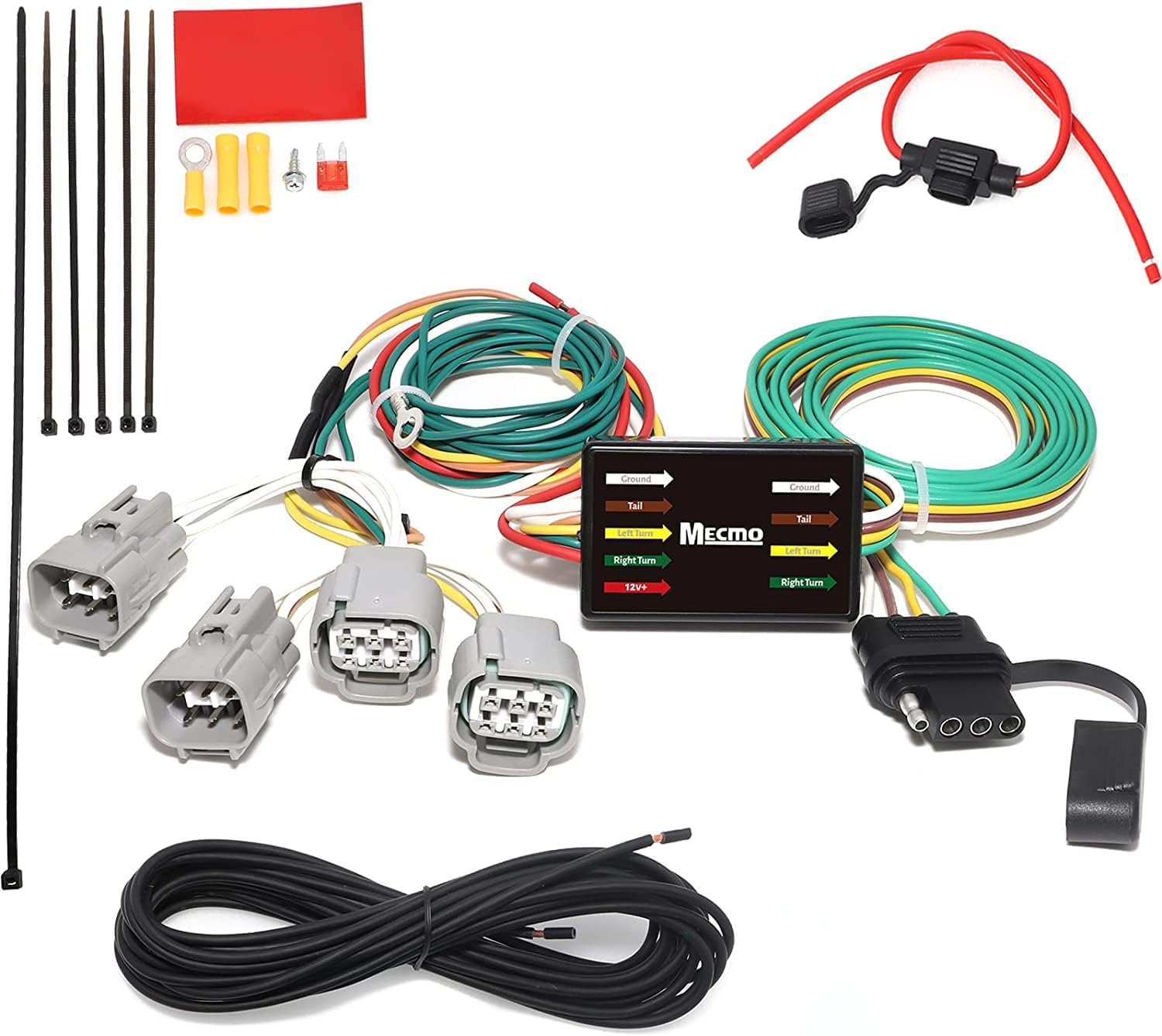

Image: All components included in the MECMO 56208 4-Pin Trailer Wiring Harness kit, including the main harness, power wire, ground wire, zip ties, and connectors.

Installation Instructions

Estimated Installation Time: 30-60 minutes

Tools Required: Basic hand tools (e.g., screwdriver, wire strippers/crimpers, trim panel removal tool), test light (optional).

Step 1: Prepare the Vehicle

• Ensure the vehicle is turned off and the parking brake is engaged.
• Locate the tail light assemblies on both the driver and passenger sides of your Jeep Cherokee.
• Carefully remove the tail light assemblies to access the vehicle's wiring connectors. This may involve removing screws or trim panels.

Image: Rear view of a Jeep Cherokee highlighting the location of the tail light connection points where the harness will be installed.

Step 2: Connect the T-Connectors

• Identify the vehicle's existing wiring connectors behind the tail lights.
• Plug the corresponding T-connectors from the MECMO wiring harness directly into the vehicle's wiring. Ensure a secure and snug fit. The harness is designed for a plug-and-play connection.
• Repeat for both driver and passenger side tail lights.

Image: Close-up view of the vehicle-specific connectors on the wiring harness, designed for direct plug-in to the Jeep Cherokee's existing wiring.

Image: Diagram illustrating the connection points of the MECMO custom trailer wiring harness, showing plug-and-play connectors and the powered taillights converter.

Step 3: Connect Power and Ground

• Locate a suitable grounding point on the vehicle's chassis, preferably a clean, unpainted metal surface. Secure the white ground wire with the ring terminal to this point using a self-tapping screw or existing bolt.
• Route the red 12V+ power wire from the converter module to the vehicle's battery or a suitable 12V power source. This wire pulls power directly from the battery to power the trailer lights. Ensure the in-line fuse holder is installed close to the power source for protection.

Image: Detail of the ground wire (white) with a ring terminal and the 12V+ power wire (red) for connecting to the vehicle's power source.

Step 4: Mount the Converter Module

• Find a secure, dry location to mount the converter module. This is typically in the rear cargo area or behind the bumper, away from direct exposure to elements.
• Use the provided double-sided tape or zip ties to secure the module firmly.

Image: Close-up of the powered taillight converter module, highlighting its SMT circuitry for improved performance and durability.

Step 5: Route the 4-Pin Connector

• Route the 4-pin flat trailer connector to a convenient location near the vehicle's trailer hitch. Ensure it is secured and protected from pinching or abrasion.
• Use the provided zip ties to neatly secure any loose wiring.

Image: Electrical diagram showing how the 3-wire vehicle system is converted to a standard 2-wire trailer wiring system by the MECMO converter.

Step 6: Test the Wiring

• Once all connections are made, re-install the tail light assemblies.
• Connect a test light or a trailer to the 4-pin connector.
• Test all lighting functions: tail lights, brake lights, left turn signal, and right turn signal. Ensure all lights operate correctly.

Operating Instructions

To use your MECMO 4-Pin Trailer Wiring Harness:

1. Ensure your trailer is properly hitched to your vehicle.
2. Remove the dust cover from the 4-pin flat connector on your vehicle.
3. Align the pins and plug the trailer's 4-pin connector into the vehicle's 4-pin connector. Ensure a firm connection.
4. Before driving, verify that all trailer lights (tail lights, brake lights, turn signals) are functioning correctly.

Maintenance

The MECMO 4-Pin Trailer Wiring Harness requires minimal maintenance. To ensure longevity and reliable performance:

• Always keep the rubber dust cover on the 4-pin connector when it is not in use. This protects the terminals from dirt, moisture, and corrosion.
• Periodically inspect the wiring and connections for any signs of wear, damage, or corrosion. Clean any corroded terminals with a wire brush and apply dielectric grease if necessary.
• Ensure all wiring is securely fastened and not dangling or susceptible to damage from road debris.

Troubleshooting

Specifications

Warranty and Support

MECMO products are manufactured to high quality standards. For specific warranty information or technical support, please refer to the product packaging or contact MECMO customer service directly through their official website or the retailer where the product was purchased.

For further assistance, you may visit the MECMO Store on Amazon.
