Reitch CO602 Carbon Monoxide Detector User Manual

1. Introduction

This manual provides essential information for the proper installation, operation, and maintenance of your Reitch CO602 Carbon Monoxide Detector. Please read this manual thoroughly before using the device to ensure safe and effective operation. This detector is designed to monitor carbon monoxide (CO) levels and alert users to potentially dangerous concentrations.

2. Safety Information

• Important: This carbon monoxide alarm is designed to detect carbon monoxide gas from any combustion source. It is not designed to detect smoke, fire, or other gases.
• Placement: Proper placement is crucial for effective detection. Refer to the 'Installation' section for guidelines.
• Testing: Test the alarm weekly to ensure proper function.
• Alarm Response: If the alarm sounds, immediately move to fresh air and call emergency services. Do not ignore the alarm.
• Battery Life: The provided batteries are for initial use. Replace them with high-energy density batteries for longer operational life.
• Do Not Paint: Do not paint the detector. Paint can clog the sensor openings and interfere with the detector's ability to sense CO.

3. Package Contents

Verify that all items listed below are included in your package:

• 1 x Reitch CO602 Carbon Monoxide Alarm
• 1 x User Manual (this document)
• 2 x Screws for mounting
• 1 x Back adhesive pad for mounting
• 3 x 1.5V AA Batteries (pre-installed)

Image: The Reitch CO602 Carbon Monoxide Detector, along with three AA batteries, screws, and adhesive pad, shown in its retail packaging.

4. Product Features

• Electrochemical Sensor: Provides accurate and sensitive detection of carbon monoxide.
• LCD Digital Display: Shows real-time CO concentration in PPM (Parts Per Million).
• Audible Alarm: Emits a loud 85-decibel alarm when CO levels exceed safe thresholds.
• Visual Indicators: Features two-color LED indicator lights for operational status and alarm conditions.
• Battery Powered: Operates on 3 x 1.5V AA batteries for continuous monitoring.
• Easy Installation: Can be installed using screws or double-sided adhesive.

Image: Front view of the Reitch CO602 detector, illustrating its sensing sensitivity, flame-retardant material construction, and sound and light alarm capabilities.

5. Setup and Installation

5.1 Battery Installation

1. The 3 x 1.5V AA batteries are pre-installed.
2. Before first use, remove the insulating sheet from the battery compartment.
3. Close the battery compartment cover securely.

5.2 Mounting Options

The detector offers two installation methods:

• Adhesive Mounting: Use the provided double-sided adhesive pad for installation without drilling holes. Ensure the surface is clean and dry before applying.
• Screw Mounting: Use the provided screws to securely mount the detector.

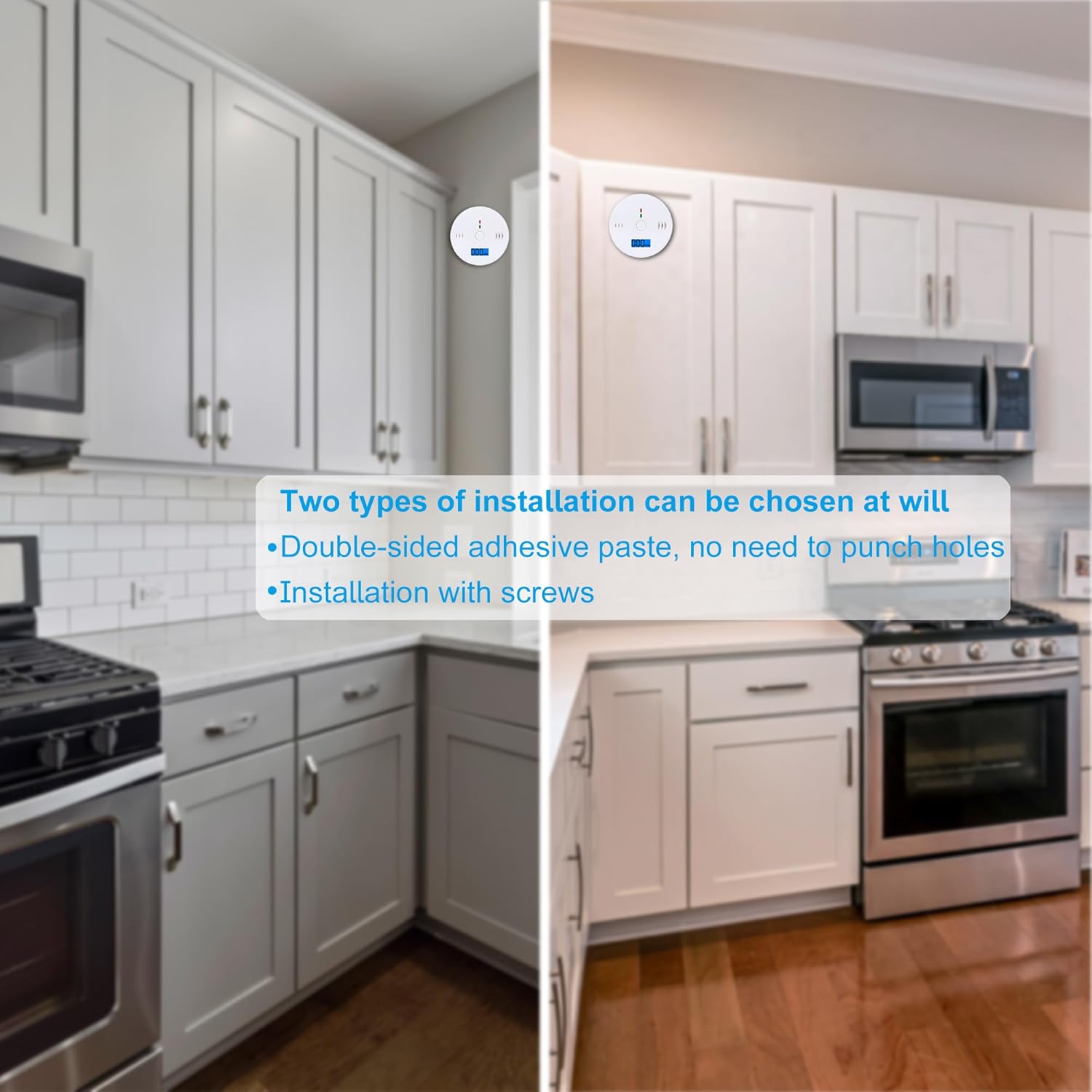

Image: Examples of the Reitch CO602 detector installed in a kitchen environment, demonstrating both adhesive and screw mounting options.

5.3 Placement Guidelines

Carbon monoxide gas is slightly lighter than air. For optimal detection, consider the following:

• Install the detector at a location approximately 30 cm (12 inches) below the ceiling.
• Place the detector between 0.5 meters and 8 meters (1.6 feet to 26 feet) from potential gas sources such as gas furnaces, water heaters, or other fuel-burning appliances.
• Avoid placing the detector directly above cooking appliances or near ventilation openings.
• Suitable locations include bedrooms, kitchens, living rooms, and RVs.

Image: A diagram showing recommended installation height (30cm below ceiling) and distance (0.5-8m) from gas appliances for the carbon monoxide alarm.

6. Operation

6.1 Power On and Self-Test

After battery installation and removal of the insulating sheet, the detector will perform a self-test. The LCD display will activate, and indicator lights may flash briefly.

6.2 Indicator Lights

• Green Light: Flashes once every 30 seconds, indicating normal operation.
• Red Light: Flashes and the buzzer alarms when the carbon monoxide concentration in the air exceeds 150 PPM.

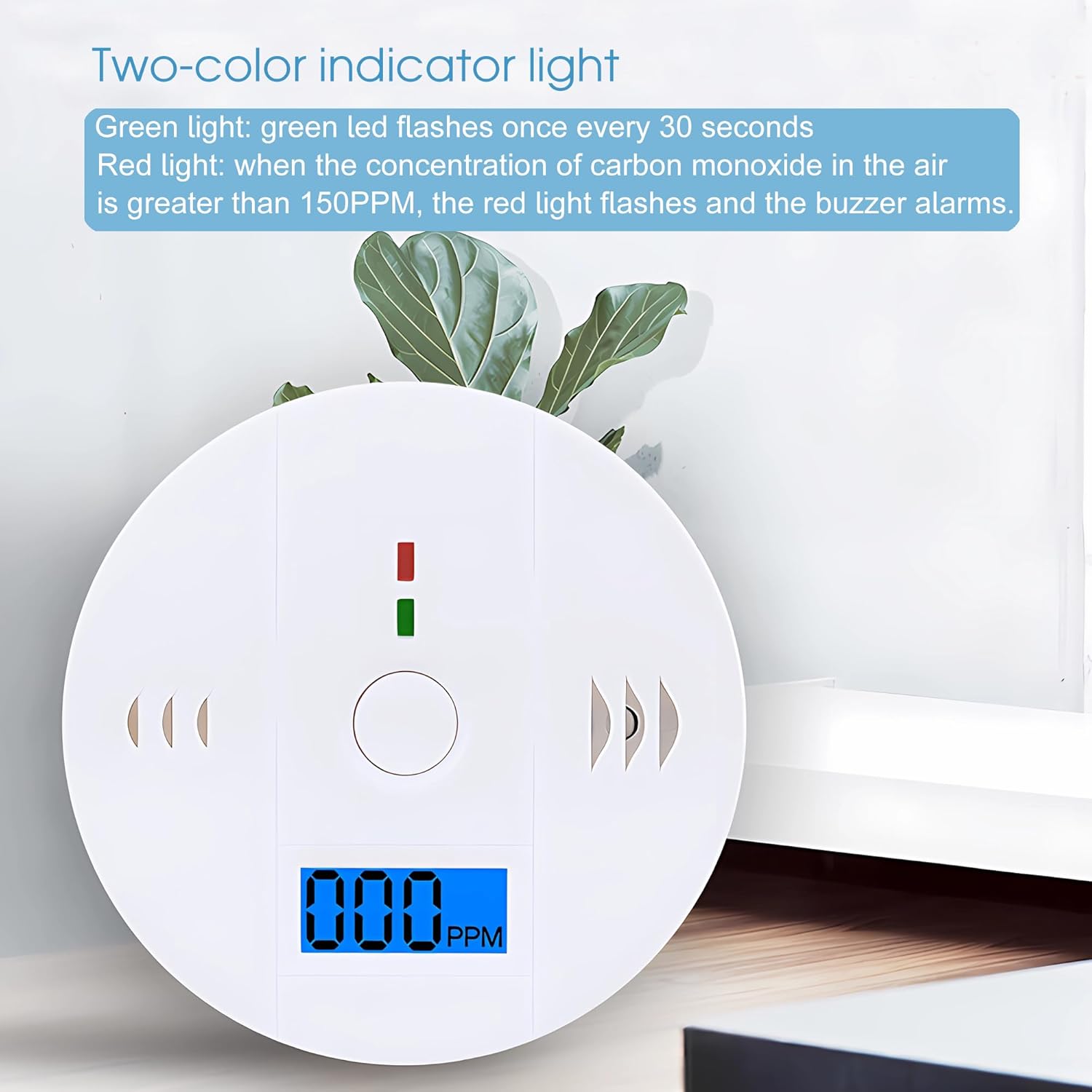

Image: The Reitch CO602 detector displaying its two-color indicator lights, with explanations for green (normal operation) and red (alarm condition) light functions.

6.3 LCD Digital Display

The LCD display shows the real-time carbon monoxide concentration in PPM. In normal conditions, it may show '0' or a very low reading. When CO is detected, the concentration will be displayed.

6.4 Alarm Conditions and Sound

• When the carbon monoxide concentration exceeds 30 PPM, the alarm screen will light up, displaying the real-time concentration.
• When the concentration reaches 100 PPM, the detector will immediately emit an audible alarm sound of more than 85 dB.

Image: The Reitch CO602 detector with a visual representation of its 85-decibel alarm sound, indicating a loud alert when CO levels are dangerous.

6.5 Test/Reset Button

Press the 'TEST/RESET' button to:

• Test Functionality: Initiate a self-test to ensure the alarm and display are working correctly.
• Silence Alarm: Temporarily silence the alarm if it has been triggered (only if CO levels have dropped below the alarm threshold).

Image: The Reitch CO602 Carbon Monoxide Detector, showing its front panel with the LCD digital display and the central 'TEST/RESET' button.

7. Maintenance

7.1 Battery Replacement

When the batteries are low, the detector will typically indicate this with a specific low-battery warning (e.g., a chirp or a low-battery icon on the LCD). Replace batteries as follows:

1. Twist the back cover of the detector counter-clockwise to open it.
2. Remove the old 1.5V AA batteries.
3. Insert three new 1.5V AA batteries, ensuring correct polarity (+/-).
4. Close the back cover by twisting it clockwise until it locks securely.

Image: Step-by-step illustration demonstrating how to open the back cover of the Reitch CO602 detector by twisting, and how to replace the three 1.5V AA batteries.

7.2 Cleaning

Clean the detector regularly to prevent dust buildup from affecting its performance.

• Use a soft, damp cloth to wipe the exterior.
• Do not use cleaning sprays, solvents, or abrasive cleaners.
• Do not paint the detector.

7.3 Regular Testing

Test the detector weekly by pressing the 'TEST/RESET' button to ensure the alarm and display are functioning correctly.

8. Troubleshooting

9. Specifications

Image: The back of the Reitch CO602 detector, showing its approximate 4-inch diameter and power supply information.

10. Warranty and Support

For warranty information and customer support, please refer to the documentation provided at the time of purchase or contact your retailer. Keep your purchase receipt as proof of purchase.
