Introduction
Thank you for choosing the LOUVIXA Barber Salon Chair. This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your new chair. Please read it thoroughly before use and retain it for future reference.
The LOUVIXA Barber Salon Chair is designed for professional and home barbershop use, offering height adjustability, 360-degree rotation, and comfortable seating. It features a heavy-duty frame, high-density sponge cushioning, and durable PU leather upholstery.
Important Safety Instructions
- This product is intended for adults.
- The maximum weight capacity for this chair is 330 pounds (approximately 150 kg). Do not exceed this limit.
- Proper assembly is required for safe operation. Ensure all components are securely fastened before use.
- Do not leave the chair in a reclined position unattended.
- Recommended for use on hard floor surfaces to ensure stability.
- Avoid placing the hydraulic pump backwards during installation. Refer to assembly instructions for correct orientation.
- Keep children and pets away from the chair during assembly and operation.
Package Contents
Before beginning assembly, ensure all parts are present and undamaged. If any parts are missing or damaged, please contact customer support.
- Seat Cushion
- Backrest
- Armrests (2)
- Hydraulic Pump Assembly
- Base Plate
- Footrest
- Hardware Kit (bolts, washers, Allen wrench)
- Instruction Manual
Setup and Assembly
Assembly of the LOUVIXA Barber Salon Chair is straightforward. It is recommended to have two people for easier assembly.
- Install the Base and Pump: Attach the hydraulic pump assembly to the base plate using the provided bolts. Ensure all bolts are tightened securely.
- Install the Armrests to the Seat: Secure the armrests to the sides of the seat cushion using the appropriate hardware.
- Install the Anti-Tipping Footrest: Attach the footrest to the hydraulic pump assembly. Ensure it is firmly secured to prevent tipping.
- Install the Seat to the Pump: Carefully place the assembled seat onto the top of the hydraulic pump. Ensure it is properly aligned and seated.
- Install the Backrest to the Seat: Attach the backrest to the rear of the seat cushion using the provided brackets and screws. Tighten all connections.
Operating Instructions
Adjusting Chair Height
The LOUVIXA Barber Salon Chair features a hydraulic pump for easy height adjustment.
- To Raise the Chair: Gently step on the lifting rod repeatedly to discharge air from the hydraulic pump, causing the chair to rise. You do not need to step on the bottom of the pedal every time.
- To Lower the Chair: Step firmly on the bottom of the lifting rod to lower the chair to the desired height.

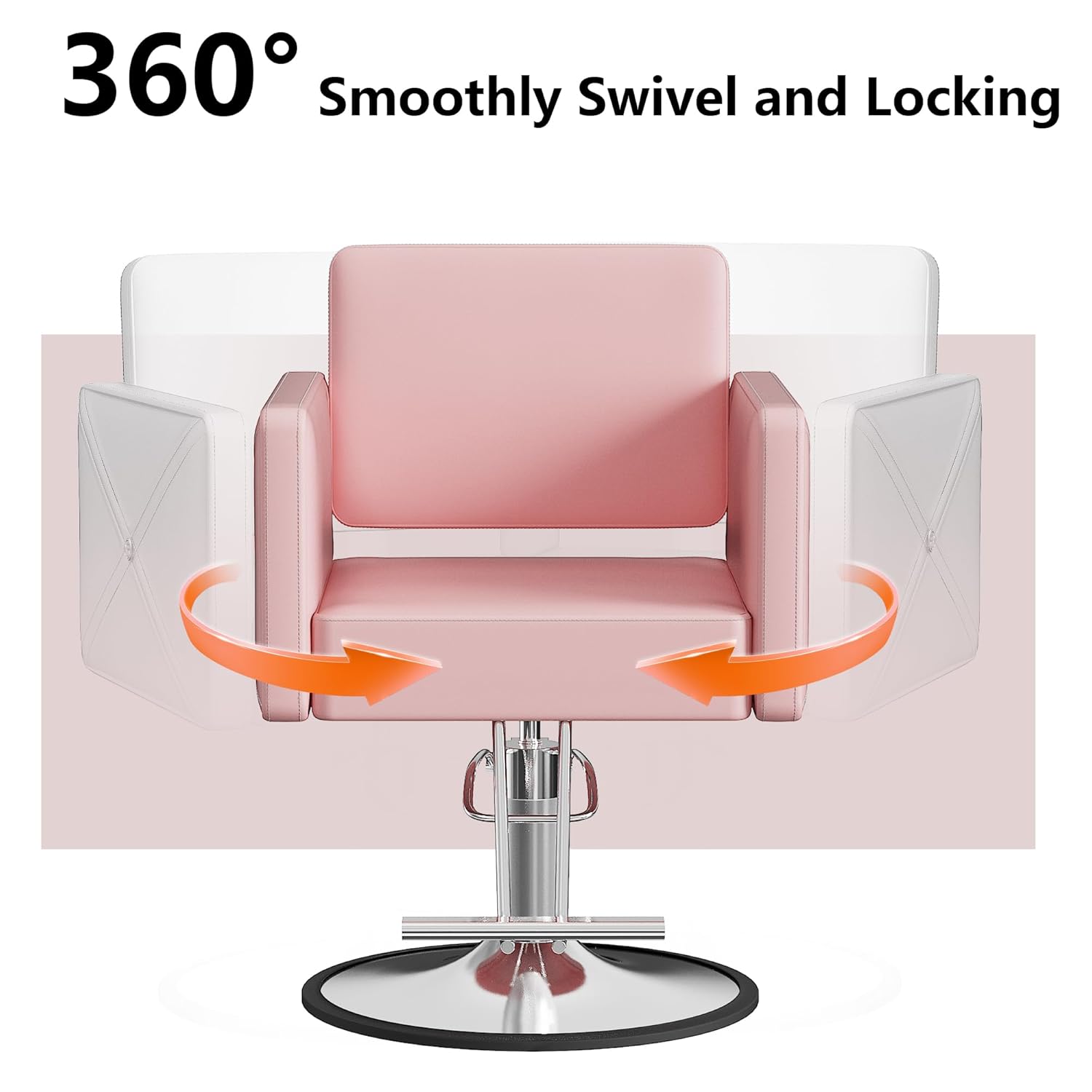

360-Degree Rotation
The chair is designed with a 360-degree swivel function for convenience. Simply rotate the chair to the desired position.
Reclining Function
The chair offers 2 reclining positions for client comfort. To adjust the recline, locate the lever on the side of the chair and adjust as needed. Ensure the chair is stable before reclining.
Maintenance
- Cleaning: The PU leather upholstery is easy to clean. Wipe with a damp cloth and mild soap. Avoid harsh chemicals that may damage the material.
- Hardware Check: Periodically check all bolts and screws to ensure they remain tight. Tighten any loose connections to maintain stability and safety.
- Hydraulic System: The hydraulic pump is designed for durability. If you notice any issues with height adjustment, refer to the troubleshooting section.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Chair wobbles or rocks | Loose screws or bolts. | Check and tighten all assembly screws and bolts, especially those connecting the seat to the base and the footrest. |
| Hydraulic pump not working correctly (chair won't adjust height) | Hydraulic bar installed backwards. | Ensure the hydraulic pump's lifting rod is installed in the correct orientation. If installed backwards, it will not function properly. Refer to assembly instructions. |
| Rubber ring around the base does not stay on | Improper fit or adhesive failure. | Re-secure the rubber ring. If it continues to detach, contact customer support for assistance or replacement. |
Specifications
- Model Name: Barber Chair
- Model Number: 17-LFY-01
- Brand: LOUVIXA
- Product Dimensions: 21.65 x 23.42 x 43.7 inches (D x W x H)
- Item Weight: 50.6 Pounds
- Material Type: Polyurethane (PU Leather), Metal Frame, Sponge Fill
- Color: Pink
- Maximum Weight Recommendation: 330 Pounds
- Assembly Required: Yes
- Furniture Base Movement: Swivel
- Reclining Position Count: 2
- Seat Height: 18.89 Inches (adjustable)
- Seat Depth: 21.65 inches
- Chair Backrest Width: 18.5 Inches
Warranty and Support
LOUVIXA offers a 30-day easy return policy for this product. If you encounter any issues or have questions regarding your Barber Salon Chair, please do not hesitate to contact LOUVIXA customer support. We are committed to resolving any problems in a timely manner.
For customer support, please refer to the contact information provided with your purchase or visit the official LOUVIXA store on Amazon.
