1. Introduction
This manual provides instructions for the proper use, installation, and maintenance of the Yaubay IF01-B20 Aquarium Internal Filter Replacement Cartridge. Adhering to these guidelines will ensure optimal performance and longevity of your aquarium filtration system. This product is designed to fit the Yaubay IF01-B20 internal filter unit.
2. Product Overview
2.1 Features
- Patented multiple-stage biochemical filter plate.
- Ultra-activated carbon removes odors and discoloration from water.
- Designed for easy replacement.
- Suitable for freshwater and marine environments.
2.2 Components
Each package includes 3 internal filter cartridges. Each cartridge consists of:
- Cotton (for mechanical filtration)
- Activated Carbon (for chemical filtration)
- Bio-foam (for biological filtration)

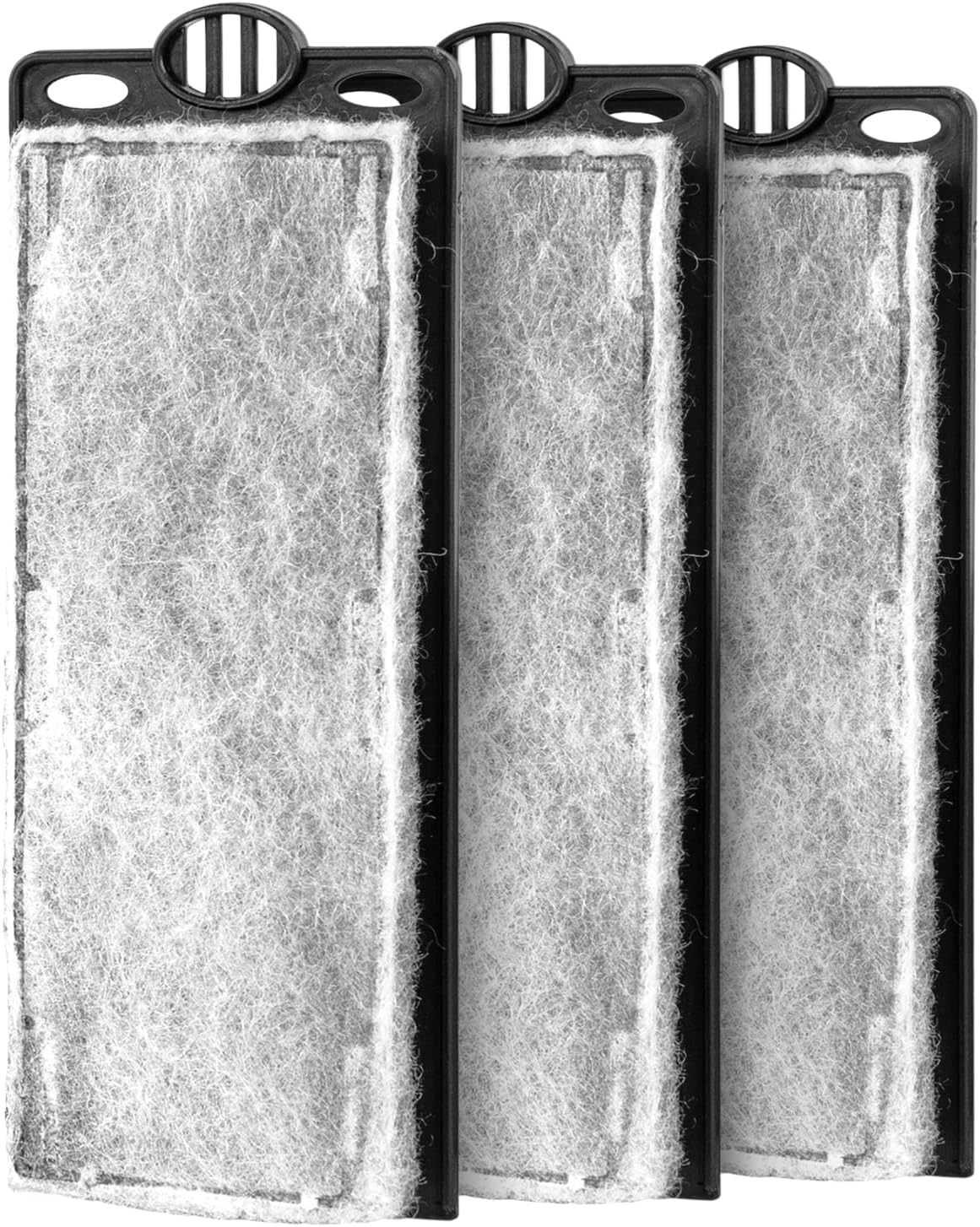

Image: Three Yaubay IF01-B20 replacement filter cartridges, showing the white cotton layer.
2.3 Specifications
| Specification | Detail |
|---|---|
| Dimensions (L x W x D) | 5.4" x 2" x 0.8" (13.7 cm x 5.1 cm x 2.0 cm) |
| Weight per cartridge | Approximately 1.06 ounces (30 grams) |
| Compatibility | Yaubay Internal Filter IF01-B20 |
| Filtration Stages | Cotton, Carbon, Bio-foam |
Image: Diagram illustrating the dimensions of a single filter cartridge.
3. Setup and Installation
3.1 Compatibility
These replacement cartridges are specifically designed for use with the Yaubay internal filter model IF01-B20. Ensure your filter unit is the correct model for proper fit and function.
3.2 Installation Steps
- Preparation: Unplug the Yaubay IF01-B20 internal filter unit from the power outlet before handling.
- Remove Old Cartridge: Carefully remove the existing filter cartridge from the filter unit. Dispose of the old cartridge responsibly.
- Insert New Cartridge: Take a new Yaubay replacement cartridge. Orient the cartridge so the bio-foam side faces outwards (towards the main filter body). Slide the new cartridge into the designated slot within the filter unit until it is securely seated.
Image: A Yaubay IF01-B20 filter unit with a replacement cartridge being inserted, demonstrating proper fit.
Image: Detailed view of the cartridge insertion, emphasizing the bio-foam layer positioned on the outside.
- Reconnect Power: Once the new cartridge is installed, plug the filter unit back into the power outlet.
4. Operating Instructions
4.1 Filtration Process
The Yaubay IF01-B20 replacement cartridge utilizes a 3-stage filtration process to maintain clear and healthy aquarium water:
- Cotton: Acts as the first stage of mechanical filtration, trapping larger debris and particulate matter.
- Activated Carbon: Provides chemical filtration, absorbing odors, discoloration, and harmful toxins from the water.
- Bio-foam: Offers biological filtration, providing a surface area for beneficial bacteria to colonize and break down ammonia and nitrites.
Image: Visual representation of the three distinct filtration layers within the cartridge.
5. Maintenance
5.1 Cartridge Replacement
For optimal water quality and filter performance, it is recommended to replace the filter cartridge every two weeks. Regular replacement prevents the accumulation of trapped debris and ensures the activated carbon remains effective.

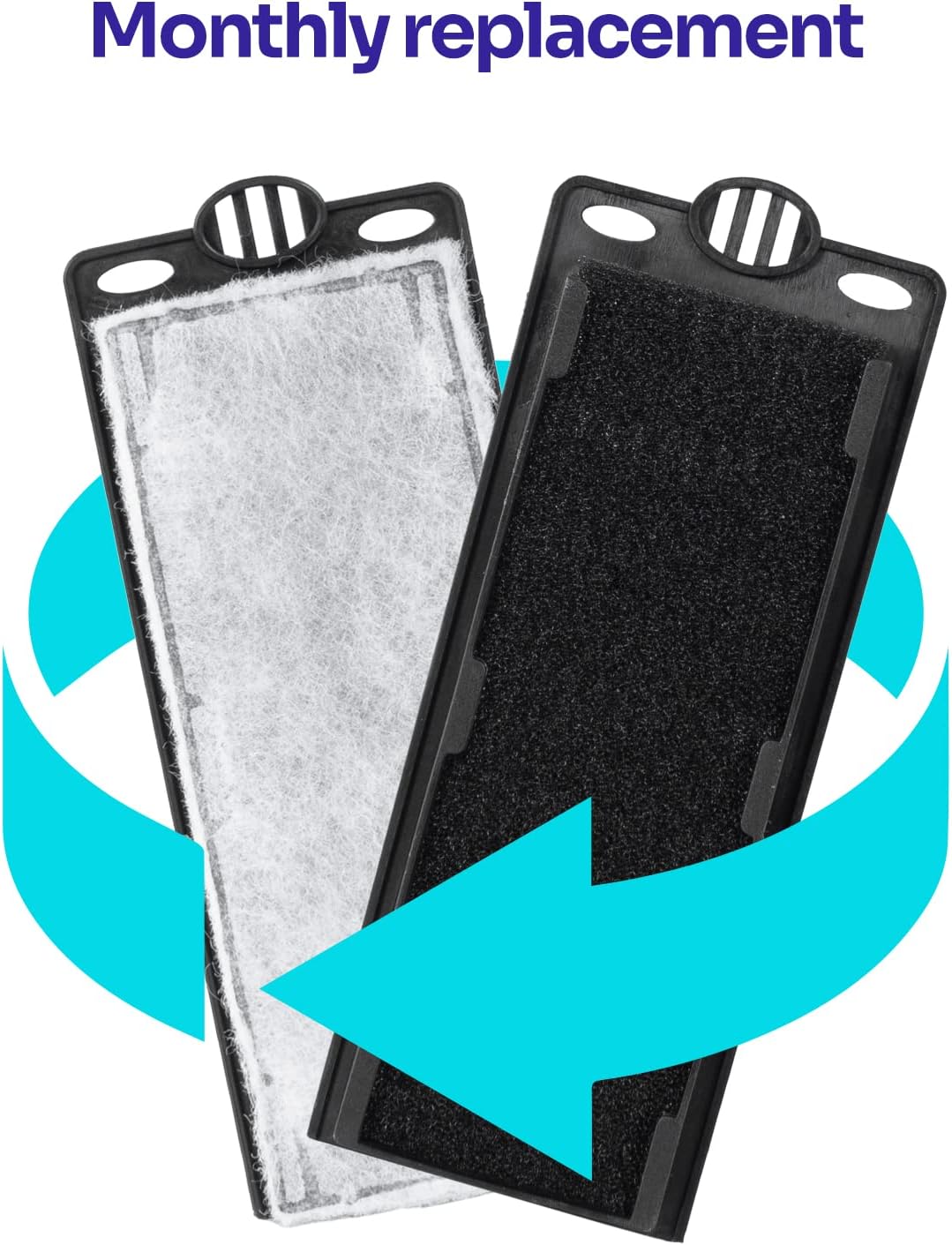

Image: Visual reminder for monthly cartridge replacement, showing an old cartridge being swapped for a new one.
5.2 Cleaning the Filter Unit
While the cartridge is disposable, the main filter unit (Yaubay IF01-B20) should be periodically cleaned. Disconnect power, remove the cartridge, and gently rinse the filter unit components with aquarium water to remove any accumulated sludge. Avoid using tap water directly on biological media to preserve beneficial bacteria.
6. Troubleshooting
- Reduced Water Flow or Poor Filtration:
Check if the filter cartridge is clogged with debris. Replace the cartridge if heavily soiled. Ensure the filter unit's intake is not obstructed. - Unusual Noise from Filter:
Verify that the filter unit is properly submerged and securely installed. Check for any air trapped inside the filter or impeller chamber. Ensure the water level in the aquarium is adequate. - Cloudy Water:
If water remains cloudy after cartridge replacement, ensure the cartridge is correctly installed. Consider performing a partial water change. Persistent cloudiness may indicate other water quality issues unrelated to the filter cartridge.
7. Safety Information
- Always unplug the filter unit from the power source before performing any maintenance, installation, or removal of the cartridge.
- This product is for aquarium use only.
- Keep out of reach of children.
- Do not attempt to modify the filter cartridge or filter unit.
8. Warranty and Support
8.1 Warranty Information
Yaubay provides 12 months of support for this product. Please retain your proof of purchase for warranty claims.
8.2 Customer Support
For further assistance, questions, or to explore other Yaubay products, please visit the official Yaubay store or contact customer service through your retailer.
You can visit the Yaubay Store on Amazon.
