Introduction
This manual provides detailed instructions for the assembly, operation, maintenance, and troubleshooting of your TecTake 3x3m Folding Garden Gazebo. Designed for quick setup and portability, this gazebo offers a comfortable and elegant shaded area for your outdoor activities.
Safety Information
- Caution: Do not use this product in bad weather conditions (strong winds, heavy rain, snow). Store it to prevent potential damage.
- Ensure all components are securely fastened during assembly and use.
- Always anchor the gazebo to the ground using the provided stakes and tension ropes for maximum stability.
- Keep children and pets away during assembly and disassembly.
- Do not hang heavy objects from the gazebo frame.
Components List
Please verify that all parts are present before beginning assembly.
- 1 x Gazebo frame with roof cover
- 4 x Tension ropes
- 8 x Ground stakes
- 1 x Transport bag
- 1 x Assembly instructions (this manual)
Image: All components of the TecTake 3x3m Folding Garden Gazebo laid out, including the folded frame, roof canopy, ropes, stakes, and the transport bag.
Setup and Assembly
The TecTake Folding Garden Gazebo features a quick-assembly mechanism for easy setup.
- Unpack Components: Remove all parts from the transport bag and lay them out on a flat, clear surface.
- Extend the Frame: With two people, gently pull the frame outwards from opposite sides until it is partially extended.
Image: The gazebo frame in a partially extended state, showing the scissor-like support structure.
- Attach the Roof Canopy: Place the roof canopy over the partially extended frame. Ensure the corners align with the frame's legs. Secure the canopy to the frame using the hook-and-loop fasteners.

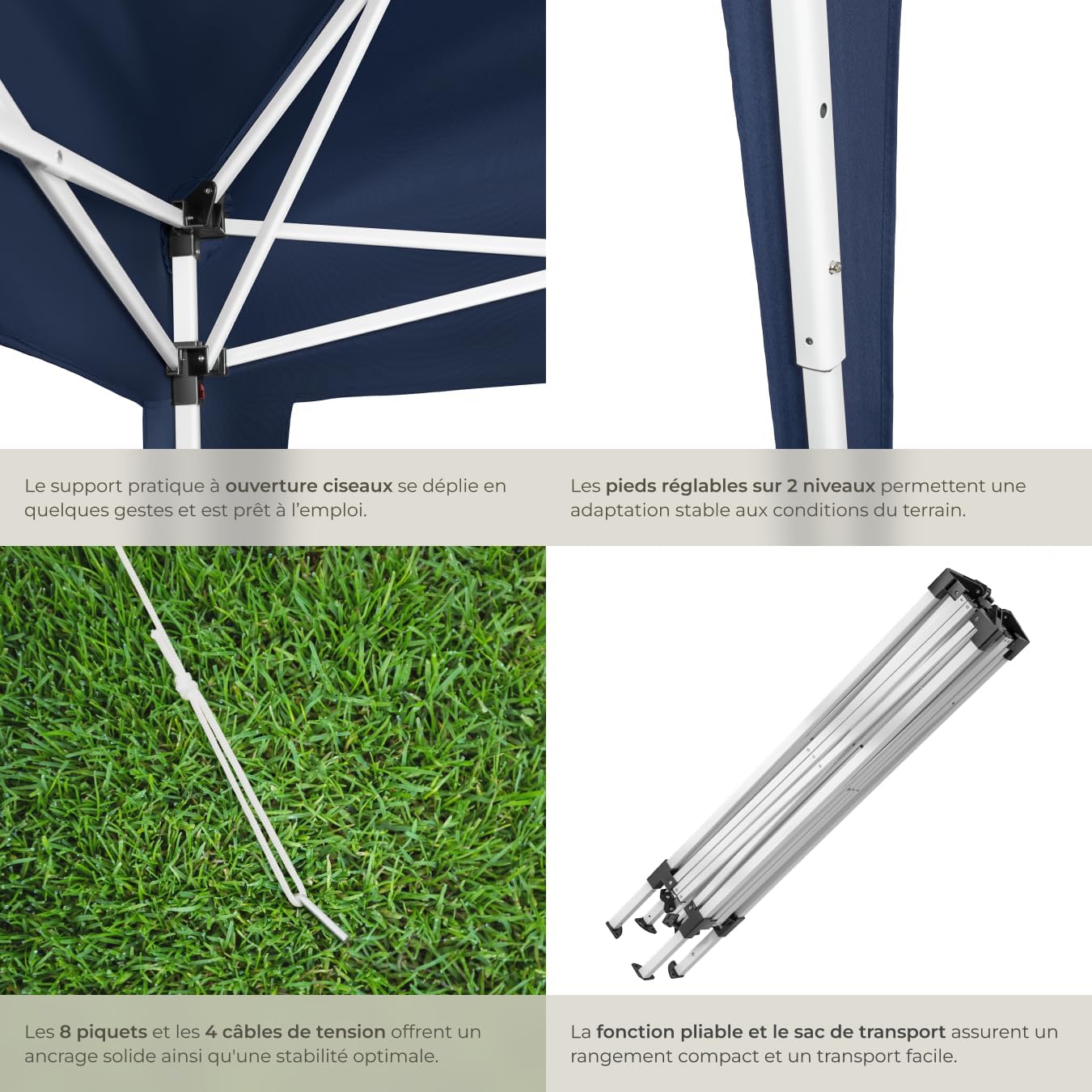

Image: A close-up view showing the roof canopy attached to the frame, highlighting the internal support structure and connection points.
- Fully Extend and Lock the Frame: Continue to pull the frame outwards until it is fully extended and the locking mechanisms click into place.
- Adjust Leg Height: The legs are adjustable to two height levels. Press the release buttons on each leg and slide them to your desired height, ensuring they lock securely.
Image: A detailed view of the adjustable leg mechanism on the gazebo, showing the button for height adjustment.
- Secure with Stakes and Ropes: For optimal stability, especially in light wind, use the provided ground stakes and tension ropes. Insert stakes into the ground through the footplates of each leg. Attach the tension ropes to the corners of the canopy and secure them to the ground with additional stakes, pulling them taut.
Image: A ground stake and tension rope securing the gazebo leg to the grass, demonstrating proper anchoring.
For visual guidance, please refer to the assembly diagram on the product packaging or the main product image.
Operating Instructions
Usage
Your TecTake gazebo is designed to provide shade and shelter for various outdoor events.
- Ensure the gazebo is always securely anchored before use.
- Do not use open flames or heating devices directly under the canopy.
- In case of strong winds, heavy rain, or snow, disassemble and store the gazebo to prevent damage.
Disassembly and Storage
- Remove all ground stakes and tension ropes.
- Press the release buttons on the legs and lower them to their shortest height.
- Unlock the frame mechanisms and gently push the frame inwards from opposite sides until it is fully collapsed.
- Remove the roof canopy.
- Fold the canopy neatly and place it, along with the folded frame, stakes, and ropes, into the transport bag.
Image: The compact, folded gazebo frame next to its transport bag, illustrating ease of storage.
Maintenance
- Cleaning: Clean the polyester canopy with a damp cloth and mild soap. Do not use harsh chemicals or abrasive cleaners. Allow the canopy to dry completely before folding and storing to prevent mildew.
- Frame Care: The powder-coated steel frame is designed for durability. Wipe down the frame with a damp cloth as needed. Inspect for any signs of rust or damage periodically.
- Storage: Store the gazebo in its transport bag in a cool, dry place away from direct sunlight and extreme temperatures when not in use.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Gazebo is unstable. | Not properly anchored; legs not fully extended/locked. | Ensure all legs are fully extended and locked. Use all provided stakes and tension ropes to secure the gazebo to the ground. |
| Water pooling on canopy. | Canopy not taut enough; heavy rain. | Ensure canopy is stretched tightly over the frame. Adjust leg height if necessary to create proper tension. Disassemble in heavy rain. |
| Difficulty folding/unfolding. | Frame joints are stiff or misaligned. | Ensure all locking mechanisms are disengaged. Apply light lubricant to joints if necessary. Do not force the frame. |
Specifications
| Feature | Detail |
|---|---|
| Model | 404828-2 |
| Dimensions (L x W x H) | 300 x 300 x 255 cm (approx. 3L x 3W x 2.55H meters) |
| Folded Dimensions | 117.5 x 20 x 22 cm |
| Weight | Approx. 10 kg |
| Frame Material | Powder-coated alloy steel |
| Canopy Material | 100% Polyester (165g/m²) |
| UV Protection | UV 30 |
| Water Resistance | Water repellent |
| Adjustable Height | 2 levels (9 cm adjustment range) |
Image: A diagram illustrating the key dimensions and technical specifications of the gazebo, including height, width, and material details.
Warranty and Support
For warranty information and customer support, please refer to the purchase documentation or contact TecTake customer service directly.
Return Policy: This product is subject to a 30-day refund/replacement return policy.
Contact: Visit the official TecTake website or your retailer's support page for assistance.
