SHA CERLIN King Size Lift Up Storage Bed Frame

Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your SHA CERLIN King Size Lift Up Storage Bed Frame, Model KBMV0003. This bed frame features a button-tufted wingback headboard, an upholstered platform, and a hydraulic lift mechanism for convenient under-bed storage. It is designed for use without a box spring.

Image: The SHA CERLIN King Size Lift Up Storage Bed Frame with the mattress platform raised, showcasing the spacious under-bed storage compartment.

Safety Information

• Always use the hydraulic lift mechanism with caution to avoid injury.
• Do not exceed the weight limit of 800 pounds for the bed frame.
• Be careful around sharp edges during assembly and use to prevent injury.
• Ensure all bolts and fasteners are securely tightened before use. Periodically check and re-tighten as necessary.
• Keep children and pets away from the bed frame during assembly and when operating the lift mechanism.

Product Specifications

Image: Detailed product dimensions for the King Size bed frame, including overall length, width, height, and underneath storage height.

Setup and Assembly

The SHA CERLIN bed frame is designed for straightforward assembly. It comes with detailed instructions and all necessary labeled parts. No extra tools are typically required, as basic tools are provided. Plastic buckles simplify the installation of the wooden slats.

• Preparation: Unpack all components and verify against the parts list in your included manual. Organize parts for easier access.
• Team Assembly: While possible to assemble alone, having a second person is highly recommended, especially for handling larger components like the mattress platform and hydraulic lift mechanism.
• Tool Recommendation: For efficiency and ease, consider using your own ratchet and hex bit if available, though the provided tools are sufficient.
• Slat Installation: Utilize the plastic buckles to secure the wooden slats into place. Ensure they are evenly spaced and firmly seated.
• Hydraulic Mechanism: Follow the specific instructions for attaching the hydraulic lift. Ensure it is correctly aligned and secured to allow for smooth operation.

Image: A close-up view illustrating the wooden slats, noise-reducing foam on metal beams, and the sturdy metal structure of the bed frame.

Operating Instructions (Lift-Up Storage)

The bed frame features a hydraulic lift mechanism that provides easy access to a large under-bed storage area. This mechanism is designed to hold the mattress platform securely in an open position.

• To Open: Grasp the handle or edge of the mattress platform firmly. With a controlled motion, lift the platform upwards. The hydraulic pistons will assist in raising and holding the platform in the open position.
• To Close: Gently pull the mattress platform downwards. The hydraulic pistons will provide resistance for a smooth and controlled descent until the platform is fully closed.
• Storage Capacity: The under-bed storage area offers approximately 10.8 inches of height, suitable for storing various items such as luggage, seasonal clothing, or bedding.
• Weight Limit (Lifting): The maximum weight capacity when lifting the mattress platform is 135 lbs. Do not attempt to lift the platform with excessive weight on the mattress.
• Anti-Falling Device: The bed frame includes an anti-falling device at the head of the bed to prevent your mattress and bedding from sliding down when the platform is lifted.

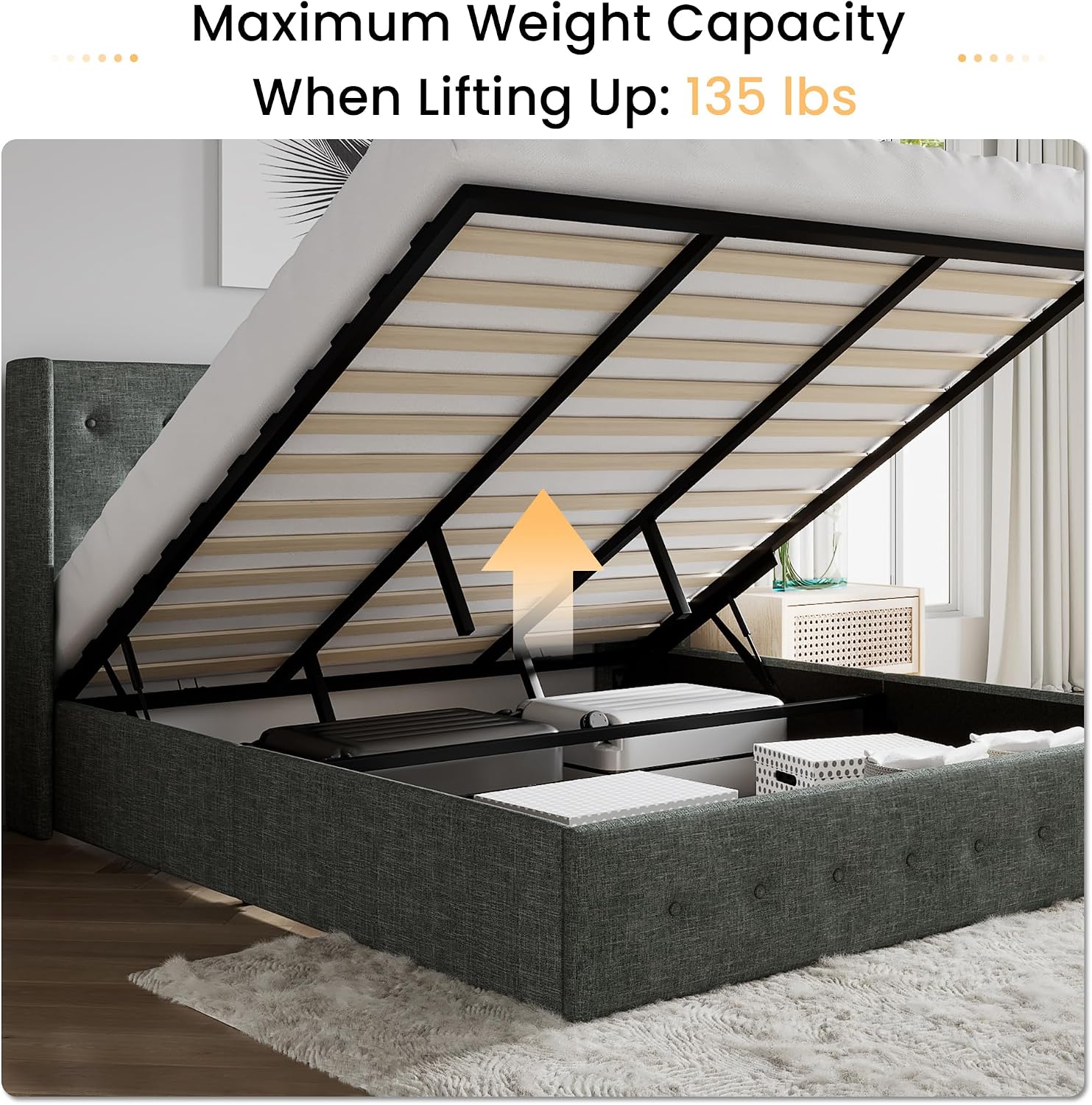

Image: The bed frame with the mattress platform raised, indicating a maximum lifting weight capacity of 135 lbs.

Image: A detailed view of the ample storage space and the anti-falling device designed to keep bedding in place when the bed is lifted.

Maintenance

Proper care will extend the life and appearance of your SHA CERLIN bed frame.

• Cleaning: The upholstered linen fabric is easy to clean. For general dusting, use a soft brush attachment on a vacuum cleaner. For spills, blot immediately with a clean, dry cloth. For stubborn stains, consult a professional upholstery cleaner.
• Dust Prevention: The enclosed sides of the bed frame help to reduce dust buildup in the under-bed storage area. Periodically vacuum the interior of the storage compartment to maintain cleanliness.
• Hardware Check: Regularly inspect all bolts, screws, and connections to ensure they remain tight. Re-tighten any loose hardware to maintain stability and prevent squeaks.
• Hydraulic Mechanism: The hydraulic lift system is designed for durability. Avoid applying excessive force when opening or closing the bed. Do not attempt to lubricate the hydraulic pistons unless specifically instructed by the manufacturer.

Troubleshooting

• Squeaking Noises: The bed frame incorporates thick foams on metal beams to minimize friction noise. If squeaking occurs, check all assembly points and tighten any loose hardware. Ensure slats are properly seated.
• Hydraulic Lift Issues: If the hydraulic lift mechanism does not operate smoothly or fails to hold the bed in the open position, first ensure that the mattress weight is within the recommended range for the mechanism (max 135 lbs when lifting). Verify that the hydraulic pistons are correctly installed according to the assembly instructions. If issues persist, contact customer support.
• Mattress Sliding: The anti-falling device at the headboard is designed to prevent mattress movement. Ensure this device is correctly installed and positioned.

Warranty and Support

For any questions, concerns, or to inquire about warranty information, please contact SHA CERLIN customer support. Refer to your purchase documentation for specific warranty terms and contact details.

Manufacturer: SHA CERLIN

Online Support: Visit the SHA CERLIN Store on Amazon for additional product information and support resources.
