StarEcho 11x13 Gazebo Instruction Manual

1. Introduction

Thank you for choosing the StarEcho 11x13 Gazebo. This high-end luxurious patio gazebo is designed to enhance your outdoor living space, providing shade and comfort for various occasions such as family gatherings, dinners, BBQs, or simply relaxing in your backyard. Featuring a robust aluminum and steel frame, double-tier roof, and included netting, curtains, and sandbags, this gazebo offers both elegance and stability. Please read this manual carefully before assembly and use to ensure proper installation and safe operation.

Image 1.1: The StarEcho 11x13 Gazebo providing a comfortable outdoor dining area.

2. Safety Information

Your safety is paramount. Please adhere to the following safety guidelines:

• Assembly: Always assemble the gazebo with at least two adults. Ensure all parts are correctly aligned and securely fastened before use.
• Stability: Use the included sandbags and ensure the triangular leg poles are securely anchored to the ground, especially in windy conditions. Do not use the gazebo in extreme weather conditions (e.g., heavy winds, snow, thunderstorms).
• Fire Safety: The polyester fabric curtains are fire resistant (CPAI-84 standard), but keep all heat sources, flames, and flammable materials away from the gazebo fabric.
• Overhead Objects: Do not hang excessively heavy objects from the central hook or frame.
• Maintenance: Regularly inspect the frame and fabric for any signs of wear or damage. Replace damaged parts immediately.

3. What's in the Box

Please verify that all components listed below are present in your package:

• Steel Frame x1 (includes all frame components)
• Gazebo Fabric Top x1 (double-tier roof canopy)
• Mosquito Netting x1 (high-density, double-sided zipper)
• Curtains x1 (UV protected, fire resistant polyester fabric)
• Manual of Installation x1 (this document)
• Sandbag x4 (weighted sandbags for stability)

Image 3.1: Four weighted sandbags included for enhanced stability.

4. Setup and Assembly

The StarEcho Gazebo is designed for quick assembly. With two persons, assembly can typically be completed within 1 hour using the included wrench. No additional tools are required.

Assembly Steps:

1. Unpack and Identify: Carefully unpack all components and lay them out. Refer to the 'What's in the Box' section and the included parts diagram to identify each piece.
2. Assemble the Frame: Begin by connecting the main steel frame components using the provided screws and wrench. Pay close attention to the triangular beam frame sections, ensuring they are securely fastened for stability.
3. Install the Roof Canopy: Carefully place the double-tier fabric top onto the assembled frame. Ensure it is properly aligned and secured to the frame structure.
4. Attach Netting and Curtains: Hang the mosquito netting and polyester curtains onto the designated tracks or hooks on the frame. The netting features double-sided zippers for easy access.
5. Secure the Gazebo: Fill the four weighted sandbags and attach them to the gazebo's legs. For additional stability, utilize the pre-drilled bases on the triangular leg poles to anchor the gazebo to the ground if desired (anchoring hardware not included).

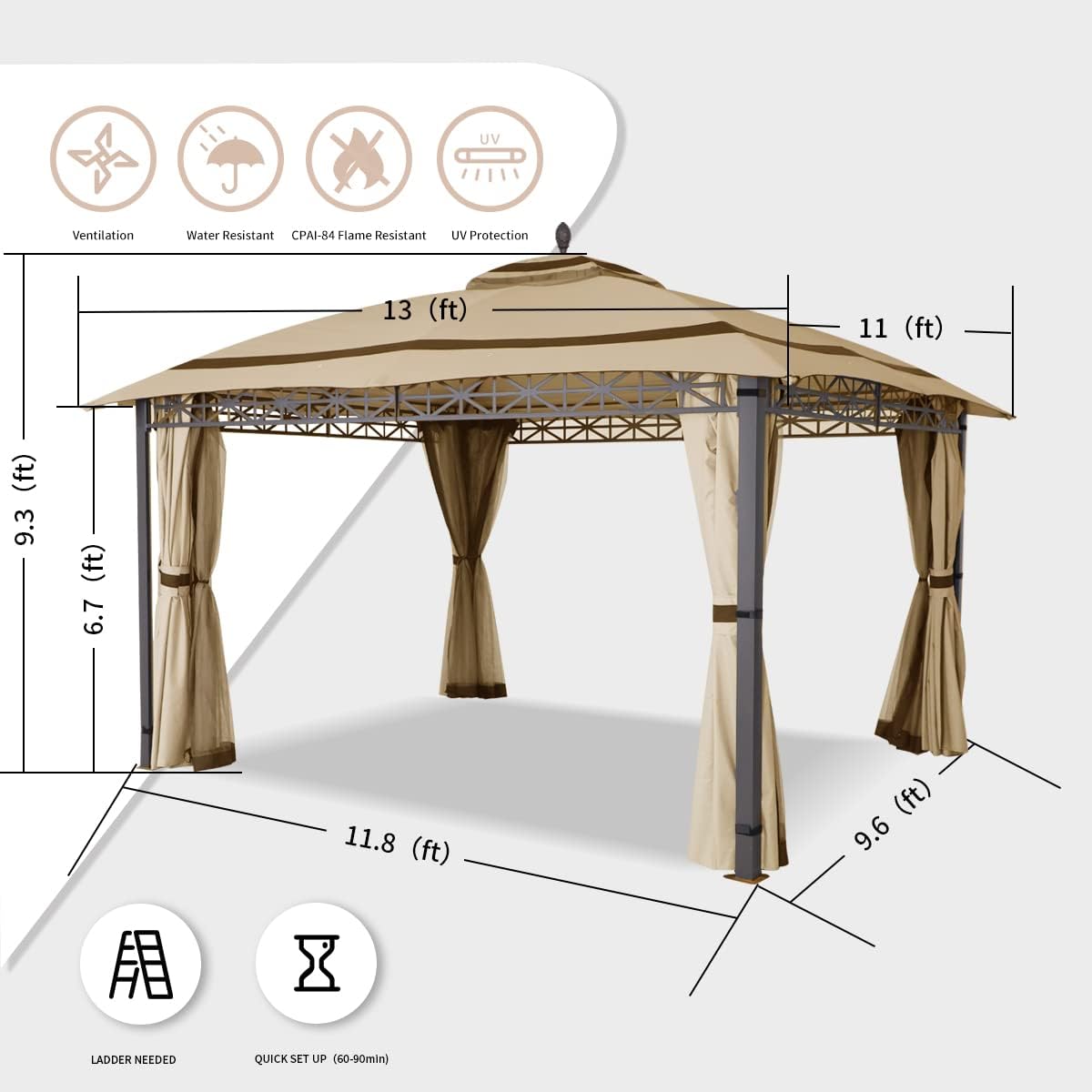

Image 4.1: Dimensions of the StarEcho Gazebo, useful for planning placement and assembly.

5. Operating Instructions

The StarEcho Gazebo offers versatile configurations to suit your needs:

• Open-Air Feel: Keep the netting and curtains tied back to enjoy an unobstructed open-air environment.
• Mosquito Netting Sidewall: Zip up the high-density mosquito netting to create an enclosed space that protects against insects while allowing air circulation. The double-sided zippers provide convenient entry and exit.
• Practical Curtains: For privacy or additional sun protection, draw and close the polyester fabric curtains. These curtains are UV protected and fire resistant.
• Hanging Accessories: A hook is located in the middle of the top frame, suitable for hanging lightweight items such as decorative lights or a small fan.

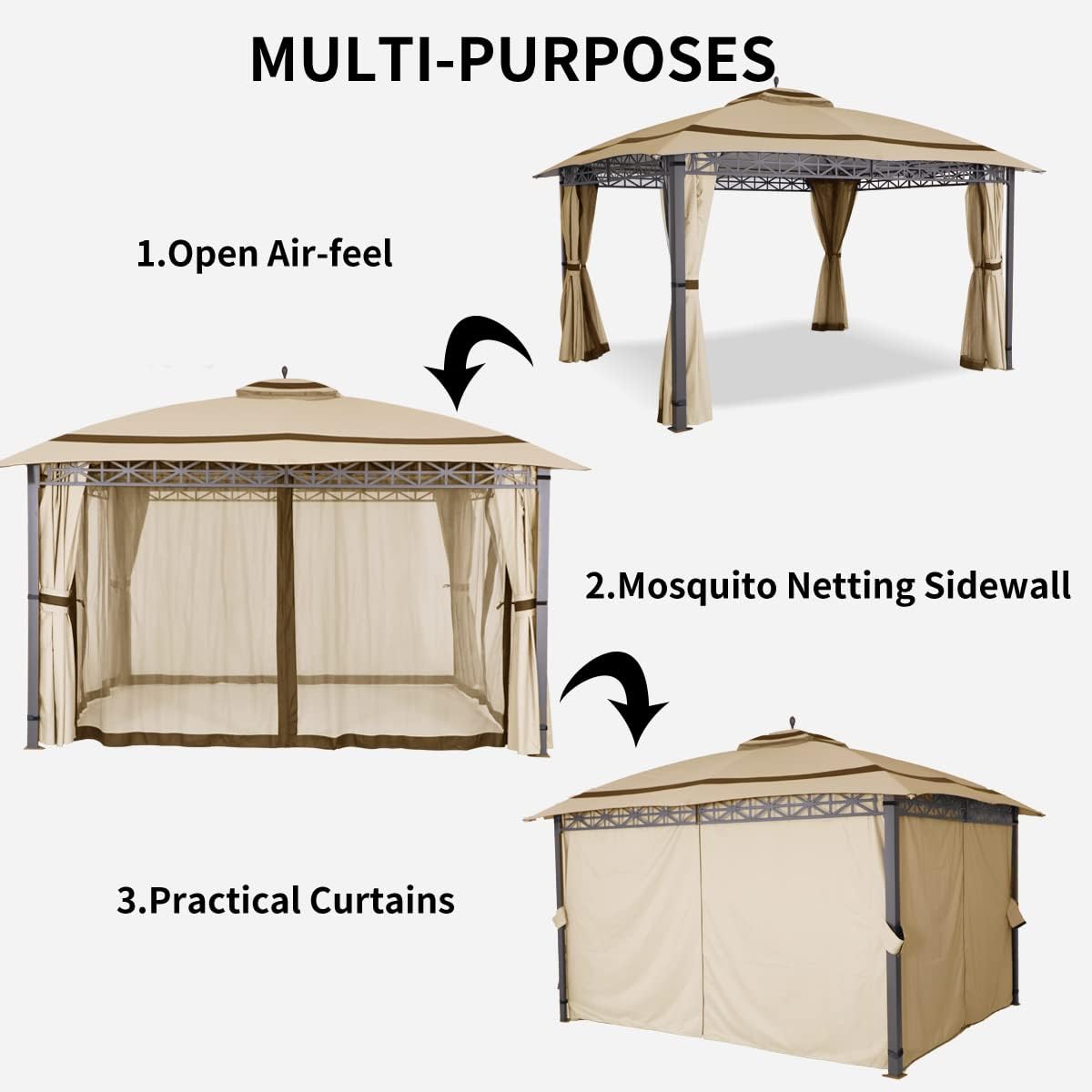

Image 5.1: Multi-purpose configurations of the gazebo, including open-air, mosquito netting, and practical curtains.

6. Maintenance

Proper maintenance will extend the life of your gazebo:

• Cleaning Fabric: Clean the fabric top, netting, and curtains with mild soap and water. Do not use harsh chemicals or abrasive cleaners. Allow to air dry completely before storage.
• Cleaning Frame: Wipe down the steel and aluminum frame with a damp cloth. For stubborn dirt, use a mild detergent.
• Seasonal Storage: During off-seasons or prolonged periods of non-use, it is recommended to disassemble and store the gazebo in a dry, protected area to prevent weather damage and extend its lifespan.
• Inspection: Periodically check all screws and connections to ensure they remain tight. Inspect the fabric for any tears or damage.

7. Troubleshooting

Here are solutions to common issues you might encounter:

• Gazebo Feels Unstable:
  Solution: Ensure all frame connections are tightened. Verify that the sandbags are filled and properly attached. Consider anchoring the gazebo to the ground using the pre-drilled bases on the leg poles.
• Fabric Top Does Not Fit:
  Solution: Double-check that the frame is assembled correctly according to the instructions. Ensure the fabric top is oriented correctly and stretched evenly over the frame.
• Zippers are Sticking:
  Solution: Apply a small amount of silicone spray or zipper lubricant to the zipper teeth. Ensure the fabric is not caught in the zipper.

8. Specifications

Key specifications for the StarEcho 11x13 Gazebo:

Image 8.1: Detailed view of key product features and materials.

9. Warranty and Support

For information regarding warranty coverage, replacement parts, or technical support, please refer to the original purchase documentation or contact StarEcho customer service directly. Contact details are typically available on the product packaging or the official StarEcho website.

Please retain this manual for future reference.
