Yogui Home Living STRX-2596-DPOA
Starax Double 35-Quart Trash Bin Cabinet Pullout System
Model: STRX-2596-DPOA
Brand: Yogui Home Living
Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your Starax Double 35-Quart Trash Bin Cabinet Pullout System. Designed to optimize kitchen space and maintain a clean aesthetic, this system allows for convenient waste management by tucking away trash bins inside your cabinet. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the product.

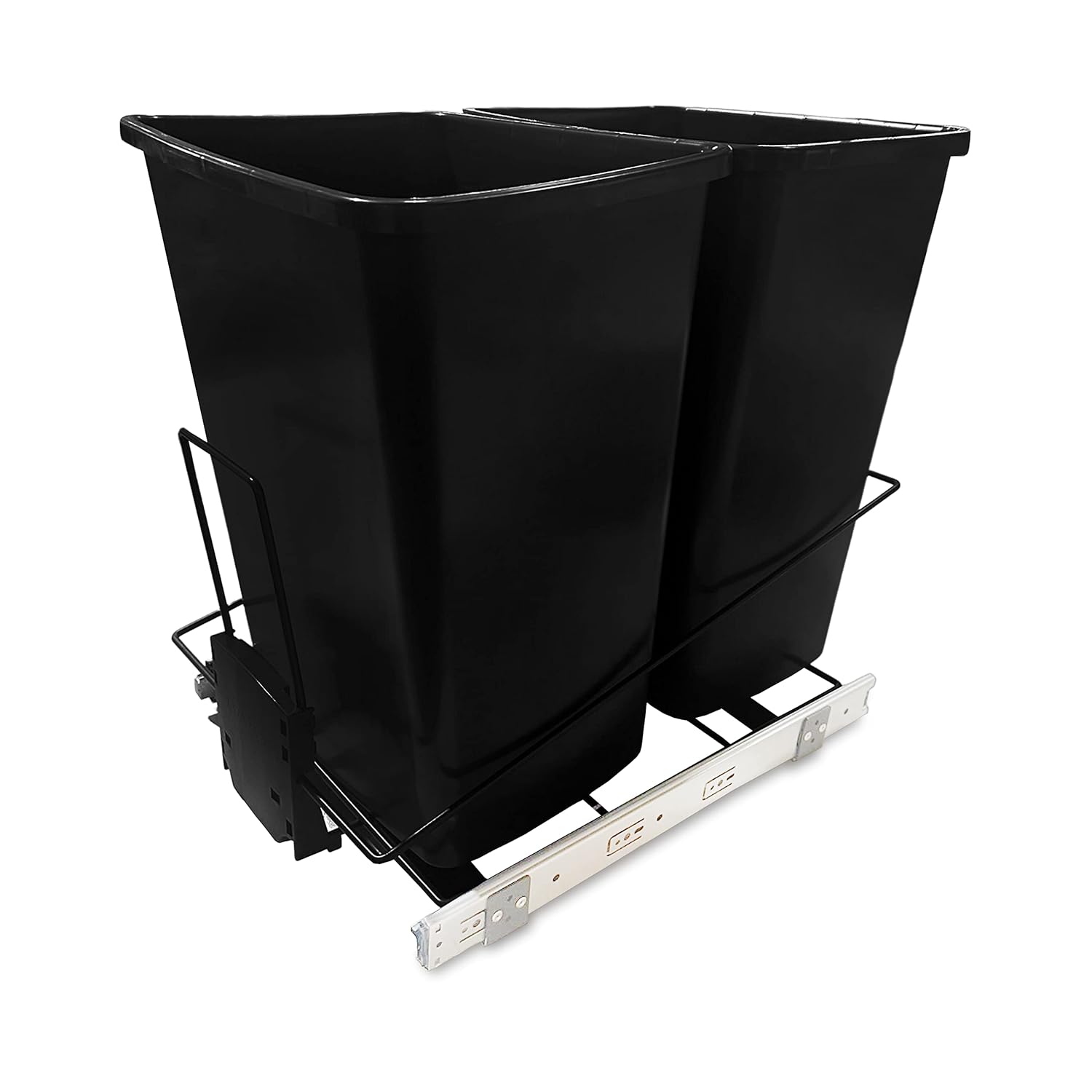

Image: The Starax Double 35-Quart Trash Bin Cabinet Pullout System, featuring two anthracite waste bins mounted on a smooth-gliding ball-bearing slider mechanism, designed for cabinet integration.
Product Features
- Space-Saving Design: Conceals two 35-quart trash bins within your cabinet, freeing up floor space.
- Smooth Operation: Equipped with 100 lb. rated full-extension ball-bearing slides for effortless pull-out and push-in.
- Durable Construction: Features a robust steel bottom mount frame and polymer bins (bins not included with this specific model).
- Versatile Application: Suitable for kitchen, bathroom, office, or other areas requiring discreet waste management.
- Easy Installation: Designed for straightforward assembly and installation with minimal tools.
Image: An infographic illustrating key benefits and features of the pullout waste container system, including space-saving, ease of installation, durability, and hygiene.
Setup and Installation
Before You Begin:
- Verify all components are present (refer to packaging list).
- Ensure your cabinet meets the minimum opening requirements.
- Gather necessary tools: Phillips head screwdriver, measuring tape, pencil, drill (optional, for pilot holes).
Minimum Cabinet Opening (MCO) Requirements:
| Dimension | Requirement |
|---|---|
| Minimum Cabinet Opening (Width) | 14-1/2" to 18" |
| Product Width (W) | 14-1/4" (365mm) |
| Product Height (H) | 19-1/4" (490mm) |
| Close Position Depth (D) | 20-1/4" (514mm) |
| Full-Extension Depth (D) | 37" (940mm) |
Image: A technical diagram illustrating the precise dimensions of the pullout system and the required minimum cabinet opening for proper installation.
Installation Steps:
- Assemble the Frame: Follow the instructions provided with your specific model to assemble the wire frame and attach the ball-bearing slides. Ensure all connections are secure.
- Position in Cabinet: Place the assembled pullout system inside the cabinet where it will be installed. Ensure it is centered and positioned correctly relative to the cabinet door (if applicable).
- Mark Mounting Holes: Extend the slides fully and mark the locations for the mounting screws on the cabinet floor using a pencil. There are typically ten screw points.
- Secure the System: Using a Phillips head screwdriver, secure the pullout system to the cabinet floor with the provided screws. For harder wood, you may pre-drill pilot holes to prevent splitting.
- Insert Bins: Once the frame is securely mounted, place the two 35-quart trash bins into the designated slots within the pullout frame.
- Test Operation: Gently pull the system out and push it back in to ensure smooth operation and proper alignment.
Note: This system is designed for bottom-mount installation.
Operating Instructions
Operating your Starax pullout trash bin system is straightforward:
- To Access Bins: Gently pull the cabinet door or the front of the pullout system towards you. The ball-bearing slides will extend, bringing the trash bins out of the cabinet.
- To Close: Push the system back into the cabinet until it is fully retracted and flush with the cabinet opening.
- Bin Removal: To empty or clean the bins, simply lift them vertically out of the wire frame.
- Bin Replacement: Place the empty or clean bins back into the frame, ensuring they are seated properly.
Image: The pullout waste container system seamlessly integrated into a kitchen cabinet, demonstrating its discreet and functional design.
Maintenance
Regular maintenance will ensure the longevity and smooth operation of your pullout system:
- Cleaning Bins: Empty and clean the 35-quart bins regularly with mild soap and water. Rinse thoroughly and dry before replacing.
- Cleaning Frame and Slides: Wipe down the wire frame and ball-bearing slides with a damp cloth to remove dust and debris. Avoid abrasive cleaners.
- Lubrication: Periodically (e.g., every 6-12 months), apply a small amount of silicone-based lubricant to the ball-bearing slides to maintain smooth movement. Do not use oil-based lubricants as they can attract dust.
- Check Fasteners: Occasionally check all mounting screws to ensure they remain tight. Re-tighten if necessary.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| System is difficult to pull out or push in. |
|
|
| System wobbles or feels unstable. |
|
|
| Bins do not fit properly in the frame. |
|
|
Specifications
| Attribute | Detail |
|---|---|
| Model Number | STRX-2596-DPOA |
| Product Dimensions (L x W x H) | 37" x 14.25" x 9.25" (940mm x 362mm x 235mm) |
| Weight | Approximately 14.05 Pounds |
| Capacity | 2 x 35 Quarts (total 70 Quarts) |
| Opening Mechanism | Pull-Out, Full-Extension Ball-Bearing Slides |
| Frame Material | Steel (Anthracite finish) |
| Recommended Use | Kitchen, Bathroom, Office, General Home Waste Management |
Warranty and Support
For warranty information or technical support regarding your Starax Double 35-Quart Trash Bin Cabinet Pullout System, please contact Yogui Home Living customer service. Refer to your purchase documentation for specific warranty terms and contact details.
Manufacturer: Yogui Home Living
Date First Available: April 14, 2023
For further assistance, please visit the Yogui Home Living brand page on Amazon.
