PartsBroz W10528947 Drive Hub Kit Instruction Manual

1. Introduction

This manual provides instructions for the installation and maintenance of the PartsBroz W10528947 Drive Hub Kit. This kit is an essential component designed to connect the spin basket to the spin shaft in your washing machine, enabling the basket to spin effectively.

The W10528947 Drive Hub Kit is a high-quality equivalent for part numbers AP5665171, 2684908, PS6012095, W10396887, and W10528947VP.

1.1. Compatibility

This drive hub kit is compatible with various washing machine models from the following brands:

• Whirlpool
• Admiral
• Amana
• Crosley
• Inglis
• Kenmore
• Maytag

For a detailed list of compatible models, please refer to the product listing or contact customer support if you are unsure about compatibility with your specific appliance model.

Image 1.1: The W10528947 Drive Hub Kit, including a pair of protective gloves.

Image 1.2: Visual representation of the W10528947 Drive Hub Kit and its compatible appliance brands.

2. Safety Information

Before attempting any repair or installation, always prioritize safety. Failure to follow these safety guidelines may result in injury or damage to your appliance.

• Disconnect Power: Always unplug the washing machine from its power source before beginning any work.
• Wear Protective Gear: It is recommended to wear gloves to protect your hands during the installation process.
• Use Correct Tools: Ensure you have the appropriate tools for the job to prevent damage to parts or injury.
• Follow Instructions: Read and understand all instructions before proceeding.

3. Symptoms Addressed by This Part

The W10528947 Drive Hub Kit can resolve several common issues experienced with washing machines. Consider replacing this part if your appliance exhibits any of the following symptoms:

• The washer pumps water but will not spin.
• The washer does not agitate.
• The spin cycle operates slowly.
• The washer produces excessive noise during operation.

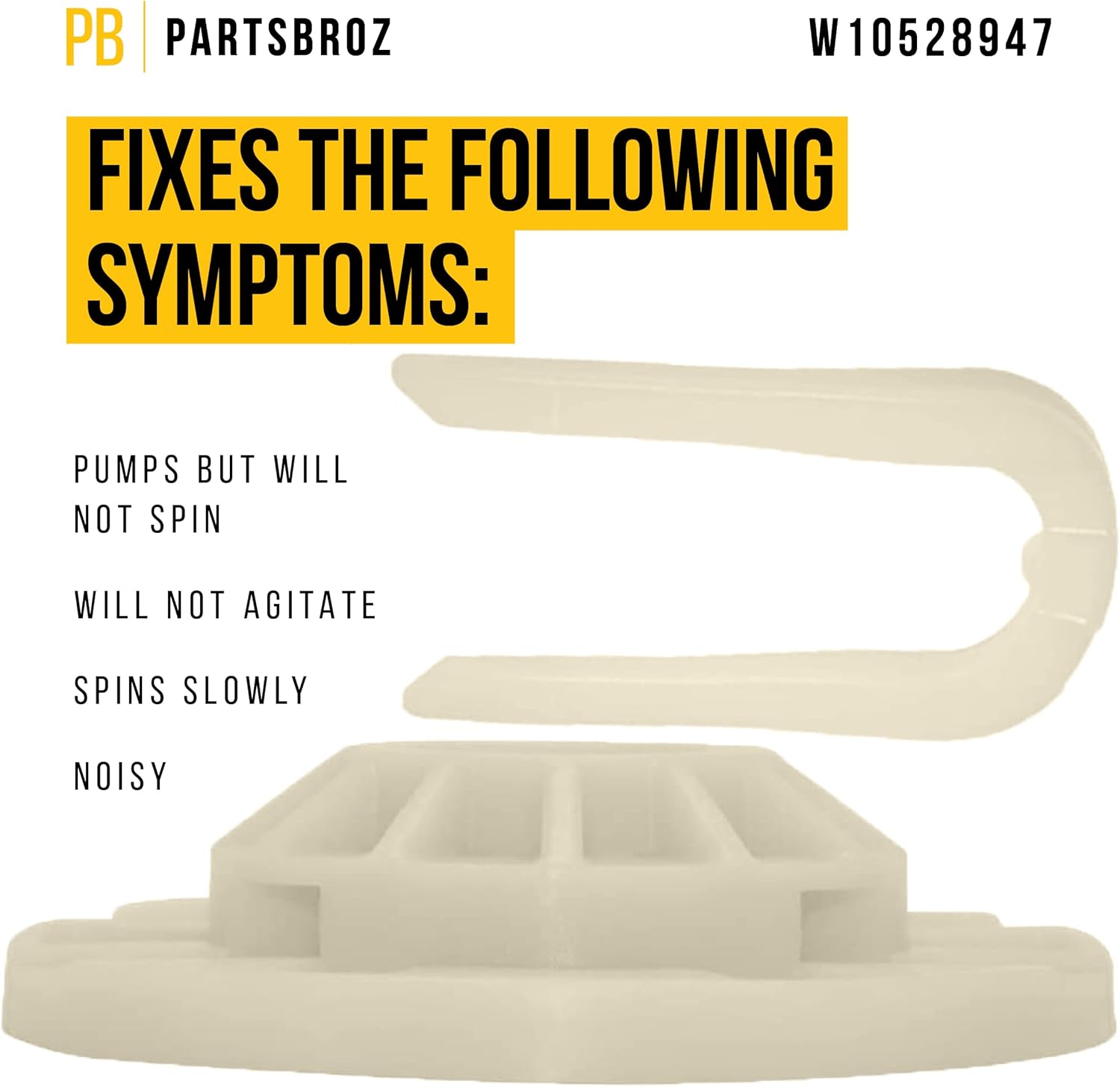

Image 3.1: Symptoms that can be resolved by replacing the drive hub kit.

4. Installation Instructions

Replacing the W10528947 Drive Hub Kit can be performed by individuals with some mechanical experience. Follow these general steps for installation:

1. Prepare the Washer: Ensure the washing machine is unplugged from the power outlet. Turn off the water supply to the washer.
2. Access the Agitator: Open the washer lid. Depending on your model, you may need to remove a cap or fabric softener dispenser to access the agitator bolt.
3. Remove the Agitator: Use the appropriate tool (e.g., a socket wrench) to loosen and remove the bolt securing the agitator. Carefully pull the agitator straight up and out of the washer tub.
4. Remove the Old Drive Hub: The drive hub is located beneath the agitator. You may need to use a flat-head screwdriver or a specialized tool to pry the old drive hub off the spin shaft. Note its orientation for correct installation of the new part.
5. Install the New Drive Hub: Align the new W10528947 Drive Hub Kit with the splines on the spin shaft. Press it firmly into place until it seats correctly. Ensure it is fully engaged.
6. Reinstall the Agitator: Place the agitator back onto the spin shaft, aligning it properly. Secure it with the bolt and tighten it. Do not overtighten.
7. Test the Washer: Plug the washer back into the power outlet and turn on the water supply. Run a test cycle to ensure the new drive hub is functioning correctly and the symptoms are resolved.

It is important to follow the instructions carefully and use the correct tools to ensure a safe and effective replacement.

Image 4.1: Visual guide for replacing the W10528947 Drive Hub Kit.

Image 4.2: General repair tips for appliance maintenance.

5. Maintenance

The W10528947 Drive Hub Kit is constructed from high-quality materials designed for durability and longevity. To ensure optimal performance and extend the lifespan of your washing machine parts:

• Avoid overloading the washing machine, as this can put excessive strain on the drive system.
• Regularly check for any unusual noises or vibrations, which could indicate wear on internal components.
• Ensure the washer is level to prevent uneven wear on parts during operation.

This hub is designed to fit snugly and withstand continuous use, contributing to reduced noise and vibration during operation.

6. Troubleshooting

If you have installed the W10528947 Drive Hub Kit and your washing machine continues to exhibit the symptoms listed in Section 3, or if new issues arise, consider the following:

• Recheck Installation: Ensure all connections are secure and the drive hub is properly seated on the spin shaft.
• Inspect Other Components: The issue might stem from another part of the washing machine's drive system or motor.
• Consult a Professional: If you are unable to diagnose or resolve the problem, it is advisable to contact a qualified appliance repair technician.

7. Specifications

8. Support Information

For further assistance, compatibility inquiries, or troubleshooting guidance, please contact PartsBroz customer support. When contacting support, please have your appliance's model number and the part number (W10528947) available.

While this kit is designed to meet or exceed manufacturer specifications, specific warranty details should be confirmed with the retailer or manufacturer at the time of purchase.
