AufuN Pool Cover Reel System User Manual

Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your AufuN Premium Pool Cover Reel System. Designed for ease of use and durability, this mobile reel system simplifies the process of covering and uncovering your swimming pool, protecting it from debris and maintaining water temperature.

Safety Instructions

• Always ensure the reel system is stable before operating.
• Keep children and pets away from the reel system during operation.
• Do not attempt to operate the reel system if any parts are damaged.
• Use caution when handling the pool cover to avoid entanglement.
• Store the reel system in a secure location when not in use to prevent accidental movement.

Components List

Before assembly, verify that all components are present:

• Adjustable telescopic aluminum tubes (main roller bar)
• Support stands with wheels (2 units)
• Hand crank/wheel assembly
• Fastening straps with clamps (8 units)
• Connection hardware (screws, nuts, pins)
• Assembly tools (if included, otherwise standard tools required)

Image: The complete AufuN Pool Cover Reel System with a blue pool cover attached, demonstrating its mobile design with wheels and hand crank.

Setup and Assembly

Follow these steps for proper assembly of your pool cover reel system:

1. Assemble the Main Roller Bar: Connect the telescopic aluminum tubes to form the main roller bar. Adjust the length to fit your pool's width (adjustable from 3.0m to 5.70m). The tubes have a diameter of 7.6/8.1 cm and an aluminum thickness of 1.2mm for stability.


   Image: Diagram illustrating the adjustable length of the main roller bar (3.0m - 5.70m) and the dimensions of the aluminum tubes (diameter 7.6/8.1 cm, thickness 1.2mm).

2. Attach Support Stands: Securely attach the two support stands to each end of the main roller bar using the provided hardware. Ensure they are firmly fastened for stability.

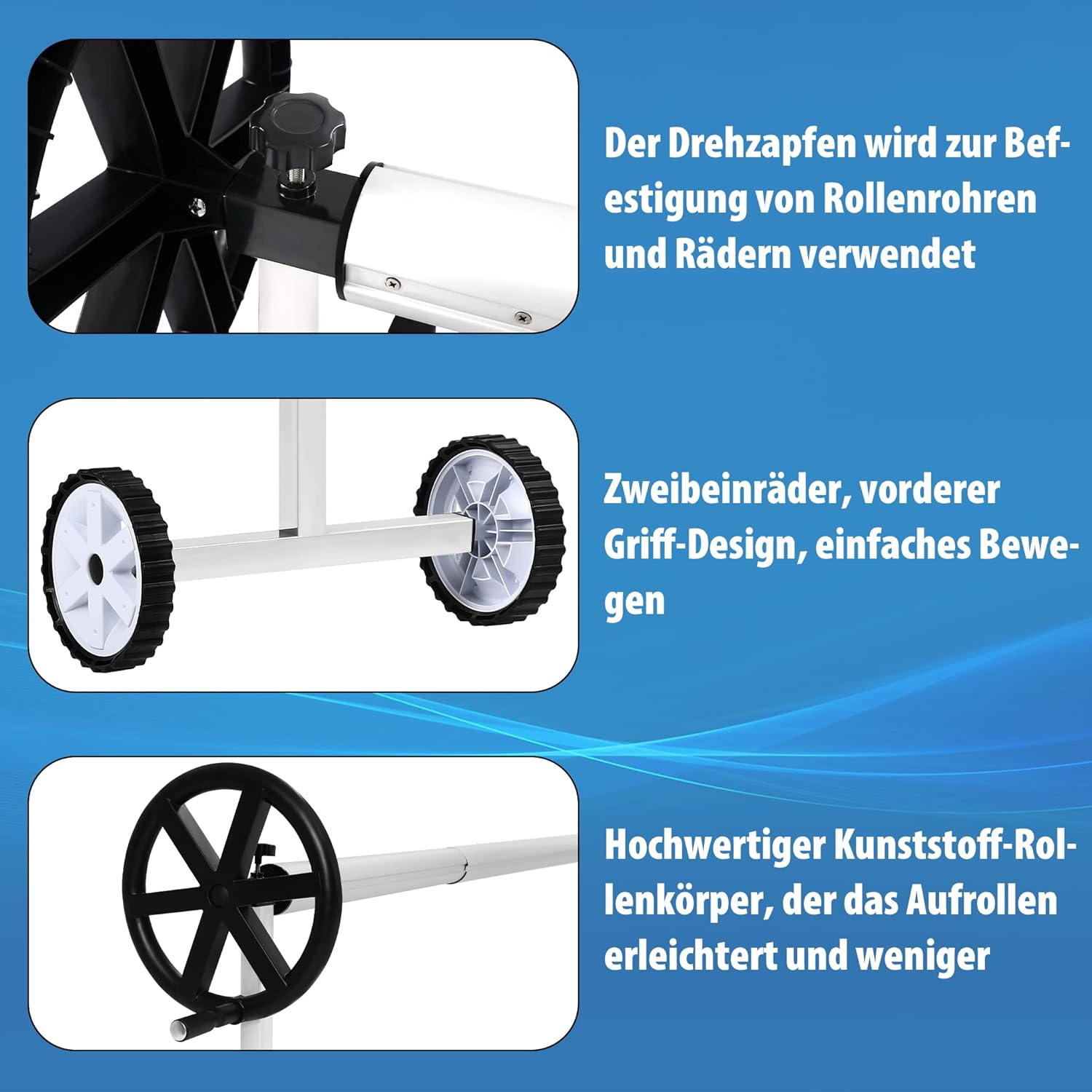

   Image: Detailed view of the pivot point for securing roller tubes and wheels, the two-legged wheels with front grip design for easy movement, and the high-quality plastic roller body that facilitates effortless rolling.

3. Install Hand Crank: Mount the hand crank assembly onto one of the support stands. This will be used to manually roll the pool cover. The non-slip hand crank provides additional stability and secure grip during rolling and unrolling.


   Image: This image highlights the robust construction of the reel from high-quality stainless steel and aluminum, emphasizing its durability. It also shows the non-slip hand crank, designed for additional stability and secure handling during operation.
4. Attach Fastening Straps: Attach the 8 fastening straps with clamps along the main roller bar. These straps will connect the pool cover to the reel. The system uses a hook-and-loop system for easy attachment of the straps to the poles. You can quickly and conveniently connect any waterproof material with a clamp.


   Image: A visual guide demonstrating the simple installation process, including connecting the pole sections and attaching the pool cover using the hook-and-loop straps and clamps.

5. Position the Reel: Place the assembled reel system at one end of your pool. The two wheels allow for easy movement and positioning.


   Image: This image illustrates the unlimited adjustment capability of the pool reel, showing its length can be continuously adjusted from 3m to 5.70m to fit various pool sizes. It also highlights the mobility provided by the two wheels, making it easy to move the reel.

Operating Instructions

To Cover the Pool:

1. Ensure the pool cover is fully extended across the pool surface.
2. Attach the leading edge of the pool cover to the fastening straps on the reel bar.
3. Slowly turn the hand crank to roll the cover onto the reel. Ensure the cover rolls evenly to prevent wrinkles or damage.
4. Once the cover is fully rolled, you can move the reel system away from the pool edge for storage, thanks to its mobile design.

To Uncover the Pool:

1. Position the reel system at one end of the pool.
2. Gently pull the pool cover off the reel and extend it across the pool surface.
3. Once the cover is fully extended, detach it from the fastening straps on the reel bar.

Image: This image illustrates how the pool reel facilitates both rolling up and storing the pool cover and solar tarpaulin, highlighting its space-saving design when the cover is rolled up.

Maintenance

• Cleaning: Regularly wipe down the aluminum tubes and plastic components with a damp cloth to remove dirt and debris. Avoid abrasive cleaners.
• Inspection: Periodically inspect all connections, screws, and straps for wear or damage. Tighten any loose fasteners.
• Lubrication: If the hand crank or wheels become stiff, apply a small amount of silicone-based lubricant to the moving parts.
• Storage: During off-season or prolonged periods of non-use, store the reel system in a dry, shaded area to protect it from extreme weather conditions.

Troubleshooting

Specifications

• Brand: Aufun
• Model: AF-L-(HAG1328A+HAG1329B)
• Adjustable Length: 3.0m - 5.70m
• Tube Diameter: 7.6 cm / 8.1 cm
• Aluminum Tube Thickness: 1.2mm
• Material: High-quality Stainless Steel and Aluminum
• Included Accessories: 8 fastening straps with clamps
• Mobility: Equipped with two wheels for easy movement
• Package Dimensions: 153 x 25 x 9 cm
• Item Weight: 7.5 kg

Warranty and Support

For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official Aufun website. Keep your proof of purchase for any warranty claims.
