QIANMEI 600W Pure Sine Wave Power Inverter User Manual

1. Introduction

This manual provides essential information for the safe and efficient operation of your QIANMEI 600W Pure Sine Wave Power Inverter. This multi-functional device integrates an inverter, solar charger, and battery charger, making it suitable for various applications including utility, generator, and solar energy systems. It is designed to provide reliable AC power for a range of electronic devices.

2. Safety Information

Please read all safety instructions carefully before installation and operation. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Ensure proper grounding for all connections.
• Do not expose the inverter to rain, snow, spray, or any liquids.
• Operate the inverter in a well-ventilated area to prevent overheating.
• Avoid disassembling the unit. Refer all servicing to qualified personnel.
• Verify that input DC voltage and output AC voltage match the inverter's specifications.
• Keep children away from the inverter.

3. Product Overview

The QIANMEI 600W Pure Sine Wave Power Inverter is a versatile unit capable of converting DC power from solar panels or batteries into stable AC power. It features Maximum Power Point Tracking (MPPT) for efficient solar charging and can operate in grid-tied mode. Key features include:

• Pure Sine Wave Output: Ensures compatibility with sensitive electronics.
• Integrated Solar Charger: Utilizes MPPT technology for optimal solar energy harvesting.
• Battery Charger Function: Supports charging from utility or generator power.
• Battery Discharge Power Mode: Allows regulation of battery discharge depth.
• Batteryless Support: Can power loads directly from PV array or AC grid without a connected battery.
• Auto Restart: Automatically restarts when AC power is restored.

3.1. Inverter Components

Familiarize yourself with the main components of the inverter:

Image 3.1: Front view of the QIANMEI 600W Pure Sine Wave Power Inverter. This image displays the front panel of the inverter, featuring LED indicators for Power, APC (Automatic Power Control), and Heat status. Below these indicators are the DC input terminals (red for positive, black for negative) and an AC output port. The unit has a black, ribbed casing designed for heat dissipation.

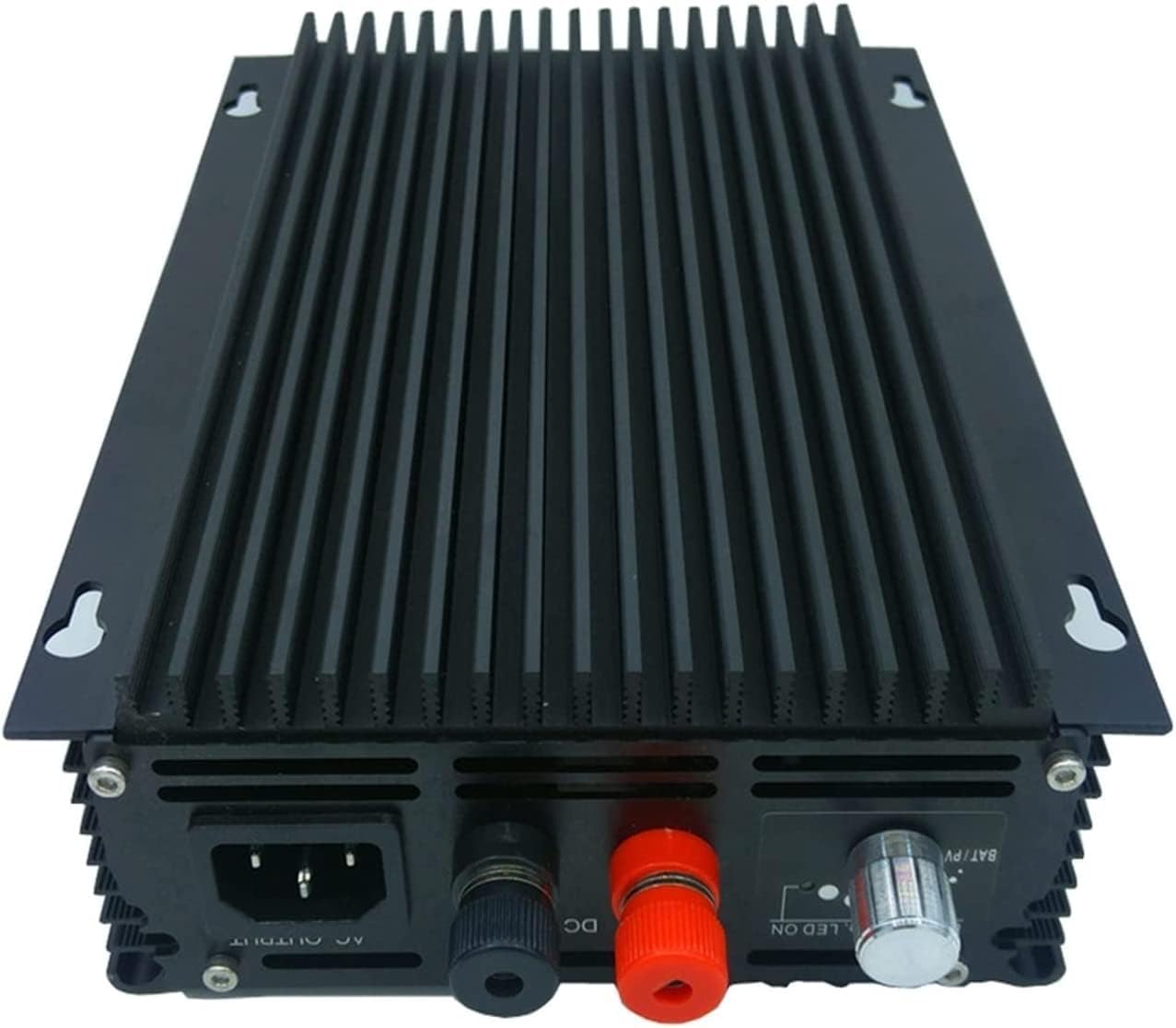

Image 3.2: Rear view of the QIANMEI 600W Pure Sine Wave Power Inverter. This image shows the rear panel of the inverter, highlighting the AC output socket, the DC input terminals (red and black), and a rotary control knob labeled 'BAT/PV' for adjusting settings. The ribbed design for cooling is also visible from this angle.

4. Setup and Installation

Proper installation is crucial for the inverter's performance and safety. Follow these general guidelines:

1. Mounting: Select a dry, well-ventilated location away from direct sunlight, heat sources, and flammable materials. Ensure adequate clearance around the inverter for air circulation. The unit can be mounted using the integrated mounting holes visible on the back and sides.
2. DC Input Connection (Battery/Solar Panel):
   • Connect the positive (+) terminal of your battery bank or solar panel array to the red DC input terminal on the inverter.
   • Connect the negative (-) terminal of your battery bank or solar panel array to the black DC input terminal on the inverter.
   • Ensure all DC connections are tight and secure to prevent loose connections and arcing.
3. AC Output Connection: Plug your AC loads (appliances, devices) into the AC output socket on the inverter. Ensure the total power consumption of your loads does not exceed the inverter's rated output of 600W.
4. Grounding: Connect the inverter to an appropriate earth ground. Consult local electrical codes for proper grounding procedures.

Image 4.1: Front view of the QIANMEI 600W Pure Sine Wave Power Inverter, illustrating its compatibility with both solar panels and batteries. This image shows the inverter's front panel with graphical representations of a solar panel and a battery, indicating that the unit can draw power from either source. The main body of the inverter is black with cooling fins.

5. Operating Instructions

The QIANMEI inverter is designed for automated operation, particularly in grid-tied configurations.

1. Power On: Once all connections are secure, turn on the inverter. The 'POWER' LED indicator should illuminate.
2. Grid-Tied Operation: In grid-tied mode, the inverter automatically detects the power output from connected solar panels. If the power is sufficient, the device will initiate the conversion process and feed power into the grid or supply local loads. No manual monitoring is typically required for this automated function.
3. Battery Discharge Power Mode: The inverter features an adjustable battery discharge power mode, allowing you to regulate the depth of discharge for your battery bank. Refer to the 'BAT/PV' control knob (Image 3.2) for adjustments, if applicable to your specific model's functionality.
4. Batteryless Support: This inverter can operate without a connected battery, drawing power directly from the PV array or the AC grid to supply loads.
5. AC Recovery: The inverter is equipped with an auto-restart function, which will automatically resume operation once AC power is restored after an interruption.

6. Maintenance

Regular maintenance helps ensure the longevity and optimal performance of your inverter.

• Cleaning: Periodically clean the exterior of the inverter with a dry, soft cloth. Ensure ventilation openings and cooling fins are free from dust and debris to maintain proper airflow.
• Connection Checks: Regularly inspect all electrical connections (DC input, AC output, grounding) to ensure they are tight and free from corrosion.
• Environment: Ensure the operating environment remains within the specified temperature and humidity ranges.
• Fan Operation: The inverter uses a fan for cooling. Ensure the fan is operating correctly and not obstructed.

7. Troubleshooting

The inverter is equipped with several protection features to ensure safe operation. If the inverter is not functioning as expected, check the following:

• No Power Output: Check all DC and AC connections. Ensure the input DC voltage from the solar panels or battery is within the specified range. Verify that the inverter is powered on.
• Overload Protection: If the connected load exceeds 600W, the inverter may shut down. Reduce the load and restart the inverter.
• Low Voltage Protection: If the battery voltage drops below the specified low voltage protection threshold, the inverter will shut down to protect the battery. Recharge the battery.
• Over Voltage Protection: If the input voltage exceeds the maximum allowed, the inverter will shut down. Verify the input voltage source.
• Over Temperature Protection: If the inverter overheats, it will shut down. Ensure adequate ventilation and clear any obstructions from the cooling fins. The 'HEAT' LED indicator may illuminate.
• Short-Circuit Protection: The inverter will protect itself against short circuits on the output. Remove the short circuit and restart.
• Islanding Protection: This safety feature ensures the inverter disconnects from the grid if the grid power fails, preventing power from being fed into a de-energized grid.

If issues persist after checking these points, contact customer support.

8. Specifications

Detailed technical specifications for the QIANMEI 600W Pure Sine Wave Power Inverter:

9. Support

For any questions or assistance, please contact our customer service team. We aim to respond to all inquiries within 24 hours.

Contact: Refer to your purchase documentation or the seller's contact information for email support.
