Daewoo DES-1548 Professional Espresso Machine User Manual

1. Introduction

This manual provides detailed instructions for the safe and efficient operation of your Daewoo DES-1548 Professional Espresso Machine. Designed for brewing high-quality espresso, cappuccino, and latte, this machine features a 15 bar high-pressure pump for optimal extraction and a milk frothing function. Please read this manual thoroughly before first use and keep it for future reference.

2. Safety Instructions

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury.

• Read all instructions before operating the appliance.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against fire, electric shock, and personal injury, do not immerse cord, plugs, or appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock, or personal injury.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• This appliance is for household use only.

3. Product Components

Familiarize yourself with the various parts of your espresso machine.

Figure 3.1: Front view of the Daewoo DES-1548 Espresso Machine with a coffee scoop. This image shows the main unit, control panel, portafilter, steam wand, and drip tray.

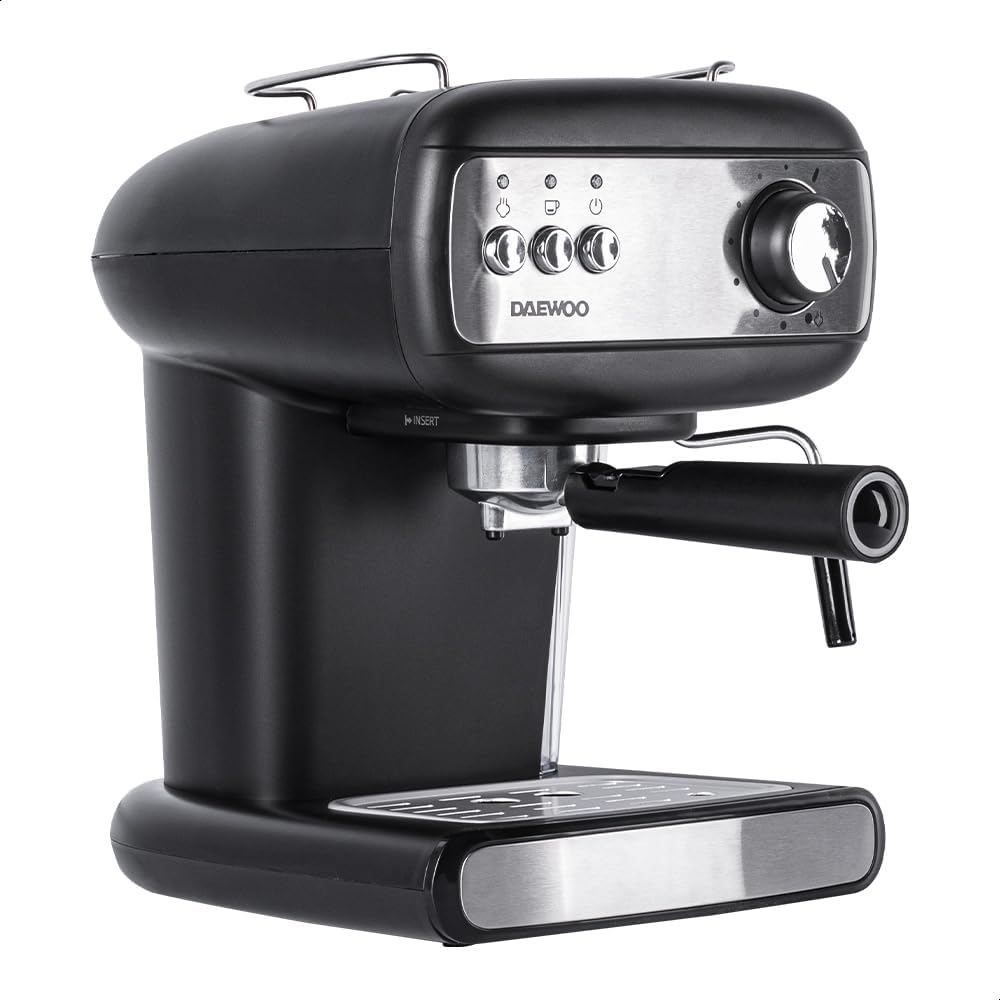

Figure 3.2: Angled front view of the Daewoo DES-1548 Espresso Machine. This perspective highlights the sleek design and the arrangement of the control buttons and dial.

Figure 3.3: Side view of the Daewoo DES-1548 Espresso Machine, clearly showing the transparent, detachable water tank with MIN and MAX level indicators.

Figure 3.4: Back view of the Daewoo DES-1548 Espresso Machine, showing the power cord and the overall compact design from the rear.

Figure 3.5: Close-up view of the portafilter attachment area on the Daewoo DES-1548 Espresso Machine, showing the "LOCK" and "INSERT" indicators for proper placement.

Figure 3.6: Image illustrating the dimensions of the Daewoo DES-1548 Espresso Machine: approximately 22 cm width, 25 cm depth, and 30 cm height. It also indicates a cable length of 65 cm.

Figure 3.7: Close-up of the transparent water tank of the Daewoo DES-1548 Espresso Machine, showing the internal water intake tube and the MIN/MAX fill lines.

Figure 3.8: Image showing the dimensions of the portafilter: approximately 21 cm in length and 5 cm in height (filter basket diameter).

Figure 3.9: Overhead view of the Daewoo DES-1548 Espresso Machine's control panel and top, with icons indicating key features: 1.2L transparent water tank, 15 bar pressure pump, milk frothing function, detachable and washable drip tray, and overheating/overpressure protection.

Figure 3.10: The Daewoo DES-1548 Espresso Machine in use, with two cups of freshly brewed espresso on the drip tray, demonstrating its functionality.

4. Setup

4.1 Unpacking

• Carefully remove all packaging materials from the espresso machine.
• Check that all components are present and undamaged. Refer to the "Product Components" section.
• Place the machine on a stable, flat, heat-resistant surface, away from water sources.

4.2 Initial Cleaning

• Before first use, wash the water tank, portafilter, filter basket, and drip tray with warm, soapy water. Rinse thoroughly and dry.
• Wipe the exterior of the machine with a damp cloth.

4.3 Filling the Water Tank

• Remove the transparent water tank from the back of the machine.
• Fill the tank with fresh, cold water up to the "MAX" line (1.2 liters capacity). Do not exceed the MAX line.
• Place the water tank back into its position, ensuring it is seated correctly.

5. Operating Instructions

5.1 Brewing Espresso

• Ensure the water tank is filled and the machine is plugged into a 127V power outlet.
• Press the power button to turn on the machine. The indicator lights will illuminate, indicating the machine is preheating. Wait until the lights indicate it's ready for brewing (refer to your machine's specific indicator light behavior).
• Add desired amount of finely ground coffee to the filter basket (one or two cups). Tamp the coffee evenly and firmly.
• Insert the portafilter into the group head and twist it to the right until it is securely locked in place.
• Place one or two espresso cups on the drip tray beneath the portafilter spouts.
• Turn the control dial to the coffee brewing position. Hot water will begin to flow through the coffee.
• Once the desired amount of espresso is brewed, turn the control dial back to the standby position to stop the flow.
• Carefully remove the portafilter, discard the used coffee grounds, and rinse the filter basket.

5.2 Preparing Cappuccino and Latte (Milk Frothing)

• After brewing espresso, or when the machine is preheated, turn the control dial to the steam function. The steam indicator light will illuminate.
• Fill a stainless steel frothing pitcher with cold milk (dairy or non-dairy) to about one-third full.
• Position the steam wand just below the surface of the milk.
• Slowly open the steam knob to release steam. Move the pitcher up and down to create foam.
• Once the milk has reached the desired temperature and consistency, close the steam knob and remove the pitcher.
• Wipe the steam wand immediately with a damp cloth to prevent milk residue from drying.
• Add the frothed milk to your espresso to create a cappuccino or latte.

6. Cleaning and Maintenance

Regular cleaning ensures optimal performance and extends the life of your espresso machine.

6.1 Daily Cleaning

• Drip Tray: Empty and clean the detachable drip tray after each use. Wash with warm, soapy water and rinse thoroughly.
• Portafilter and Filter Basket: Remove and rinse the portafilter and filter basket under running water after each use. Remove any coffee residue.
• Steam Wand: Immediately after frothing milk, wipe the steam wand with a damp cloth. Purge a small amount of steam to clear any internal milk residue.
• Exterior: Wipe the exterior of the machine with a soft, damp cloth. Do not use abrasive cleaners or scouring pads.

6.2 Descaling

Depending on water hardness and frequency of use, descaling should be performed every 2-3 months to remove mineral buildup.

• Prepare a descaling solution according to the descaler manufacturer's instructions (or use a mixture of white vinegar and water).
• Fill the water tank with the descaling solution.
• Place a large container under the portafilter and steam wand.
• Run half of the solution through the coffee brewing cycle without coffee.
• Run the remaining half of the solution through the steam wand.
• After descaling, rinse the water tank and fill it with fresh water. Run several cycles of fresh water through both the brewing head and steam wand to thoroughly rinse the machine.

7. Troubleshooting

Refer to this table for common issues and their solutions.

8. Specifications

Key technical specifications for the Daewoo DES-1548 Espresso Machine.

9. Warranty and Support

For warranty information and customer support, please refer to the warranty card included with your product or contact Daewoo customer service. Keep your purchase receipt as proof of purchase for any warranty claims.
