1. Introduction
Thank you for choosing the Christina V08A 4/4 Full Size Acoustic Violin. This manual provides essential information for the proper setup, operation, maintenance, and care of your instrument. Please read these instructions carefully to ensure optimal performance and longevity of your violin.
Image 1.1: The Christina V08A 4/4 Full Size Acoustic Violin from multiple angles.
2. Product Features
- Crafted with strict European techniques, ancient painting formulas, and manual shellac boiling and bonding.
- Exquisite workmanship and select wood for professional-level performance.
- Adjusted for ideal playing, including hand feel, height, and intonation.
- Comes complete with a set of accessories, ready for immediate use.
3. Setup
3.1 Unpacking and Inspection
Carefully remove the violin and all accessories from the case. Inspect the instrument for any visible damage. Ensure all components, including the bow, rosin, and shoulder rest, are present.
Image 3.1: The Christina V08A Violin with its accompanying case and accessories.
3.2 Bridge Placement
The bridge may be shipped uninstalled to prevent damage. Carefully place the bridge upright between the f-holes, ensuring the feet align with the inner notches of the f-holes. The taller side of the bridge should be under the E string, and the shorter side under the G string. Ensure the bridge is perpendicular to the violin's top plate.
Image 3.2: Detail of the violin bridge, tuning pegs, and ebony fittings.
3.3 Rosin Application to Bow
Before playing, apply rosin to the bow hair. Hold the rosin cake firmly and rub it along the entire length of the bow hair, from frog to tip, for about 10-15 strokes. New bows require more rosin initially. Ensure even application.
Image 3.3: The violin bow and D'Addario Zyex strings, indicating quality accessories.
3.4 Tuning
Tune the violin strings to G, D, A, E (from lowest to highest pitch). Use a digital tuner for accuracy. Turn the tuning pegs slowly and gently. For fine adjustments, use the fine tuners on the tailpiece.
3.5 Shoulder Rest
Attach the shoulder rest to the back of the violin for comfortable playing posture. Adjust its height and angle to fit your body.
4. Operating Instructions
4.1 Holding the Violin
Place the violin on your left shoulder, resting your chin on the chin rest. The scroll should point slightly to your left. Hold the violin securely but without tension.
4.2 Holding the Bow
Hold the bow with your right hand. Your thumb should be on the frog, and your fingers should curve naturally over the stick. Maintain a relaxed grip.
4.3 Basic Bowing
Draw the bow smoothly across the strings, midway between the bridge and the fingerboard. Apply consistent pressure and maintain a straight bow stroke for a clear sound.
4.4 Finger Placement
Use your left-hand fingertips to press down on the strings against the fingerboard to produce different notes. Practice scales and simple melodies to develop finger strength and accuracy.
5. Maintenance
5.1 Cleaning the Violin
After each use, wipe down the violin with a soft, dry cloth to remove rosin dust and fingerprints. Pay special attention to the area under the strings and around the bridge. Avoid using chemical cleaners.
5.2 Cleaning the Bow
Gently wipe the bow stick with a soft cloth to remove rosin dust. Do not touch the bow hair with your fingers, as oils can degrade its performance.
5.3 String Care
Strings should be replaced periodically, typically every 6-12 months, depending on playing frequency. Worn strings can affect tone and playability.
5.4 Storage
Always store your violin in its case when not in use. Keep it in a climate-controlled environment, away from extreme temperatures and humidity fluctuations, which can damage the wood.
6. Troubleshooting
6.1 Buzzing Sound
- Check if the bridge is correctly seated and not leaning.
- Ensure fine tuners are not rattling against the tailpiece.
- Inspect for loose parts or cracks in the violin body.
6.2 Slipping Pegs
- Push the peg firmly into the pegbox while turning to create friction.
- Apply peg compound (available at music stores) if pegs continue to slip.
6.3 Poor Tone Quality
- Ensure sufficient rosin is applied to the bow.
- Check bow hold and pressure; adjust for a clearer sound.
- Consider replacing old or worn strings.
7. Specifications
| Feature | Detail |
|---|---|
| Brand | Christina |
| Model Number | V08 |
| Size | 4/4 (Full Size) |
| Top Material Type | Spruce |
| Back Material Type | Maple |
| Material Type | Ebony Wood, Cedar Wood, Maple Wood |
| Finish Type | Polish |
| Number of Strings | 4 |
| Item Dimensions (L x W x H) | 32 x 12 x 6 inches |
| Operation Mode | Manual |
7.1 Violin Size Reference
While this product is a 4/4 full-size violin, the following chart provides a general reference for violin sizing based on player height and arm length:

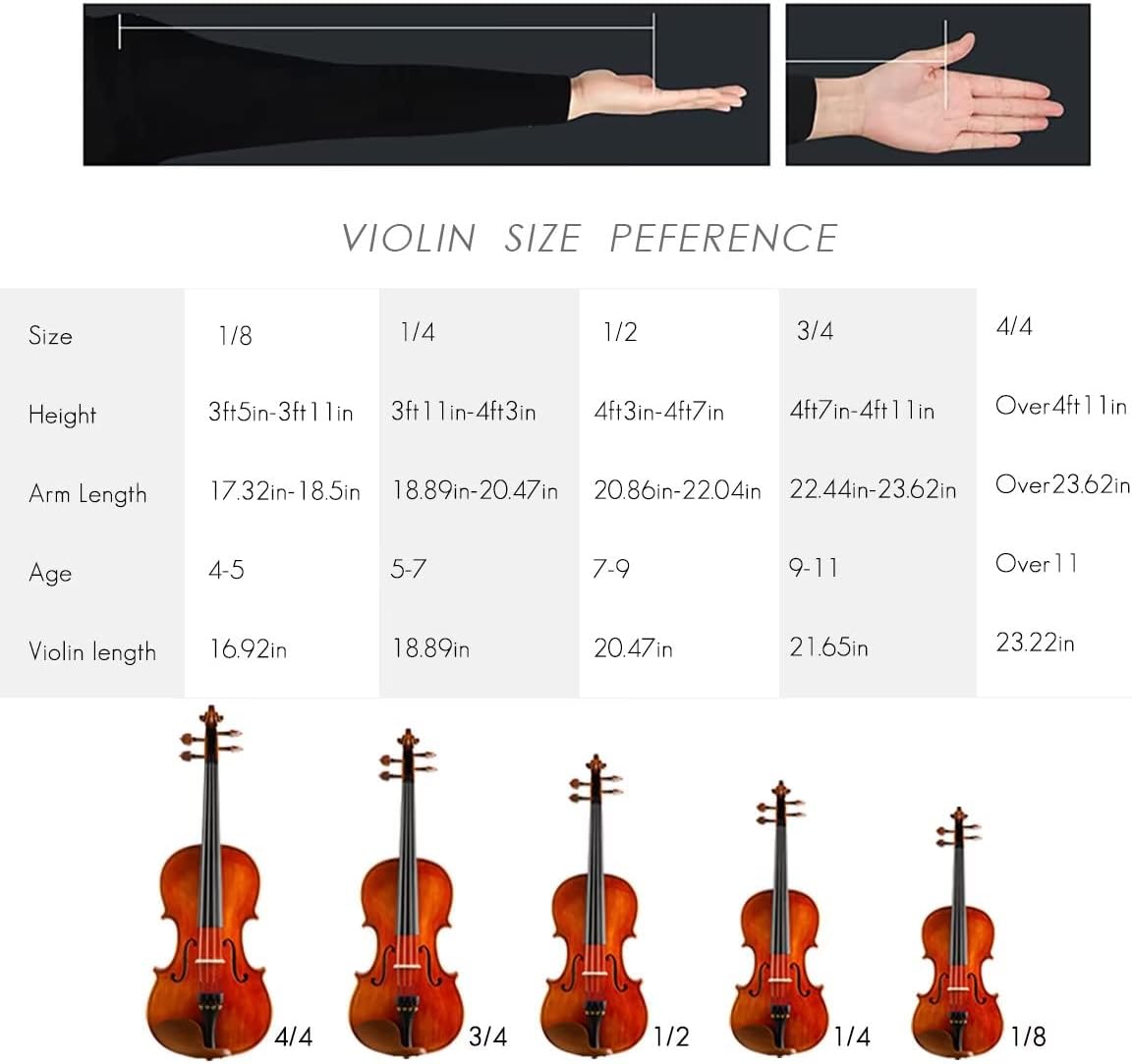

Image 7.1: General violin size reference chart.
8. Warranty and Support
8.1 Warranty Information
All Christina violins come with a lifetime warranty. Additionally, a 45-day refund guarantee is provided for your peace of mind.
8.2 Customer Support
If you have any questions, concerns, or require assistance with your Christina V08A violin, please contact Christina customer support. Professional performers are available to provide one-to-one selection service and support. We are committed to customer satisfaction.
