oiakus 5L Copper Moonshine Still
User Manual
Pure Copper Moonshine Still
Model: 5L Copper Moonshine Still
Product Overview
The oiakus Pure Copper Moonshine Still is a versatile and handcrafted distillation kit designed for home brewing of alcohol, essential oils, and hydrosols. Made from pure copper and brass, this 5-liter alembic still features a traditional design with modern conveniences.
Image: Fully assembled oiakus 5L Pure Copper Moonshine Still, showcasing its main components: the pot, the onion head with thermometer, the swan neck, and the condenser with serpentine coil. The condenser is shown with flowers, indicating its use for essential oil or hydrosol distillation.
The kit includes a copper pot, a soldered union construction, a swan neck lid, and a condensing recipient with a serpentine coil. Its hammered surface provides additional strength and a traditional aesthetic.
Components
Your oiakus Pure Copper Moonshine Still kit includes the following main components:
- Copper Pot: The main vessel for heating your mash or botanical material.
- Onion Head / Swan Head: The top section where vapor collects and rises.
- Thermometer: An easy detachable and replaceable thermometer attached to the Onion/Swan Head for temperature monitoring.
- Condenser (Serpentine Coil): The unit where vapor cools and condenses back into liquid.
- Clamps: For securing the sections together, ensuring a well-sealed connection.
- Grabbing Grate: An internal grate for steam distillation.
Image: A detailed view of the thermometer integrated into the onion head of the copper still, showing the temperature gauge for precise control during distillation.

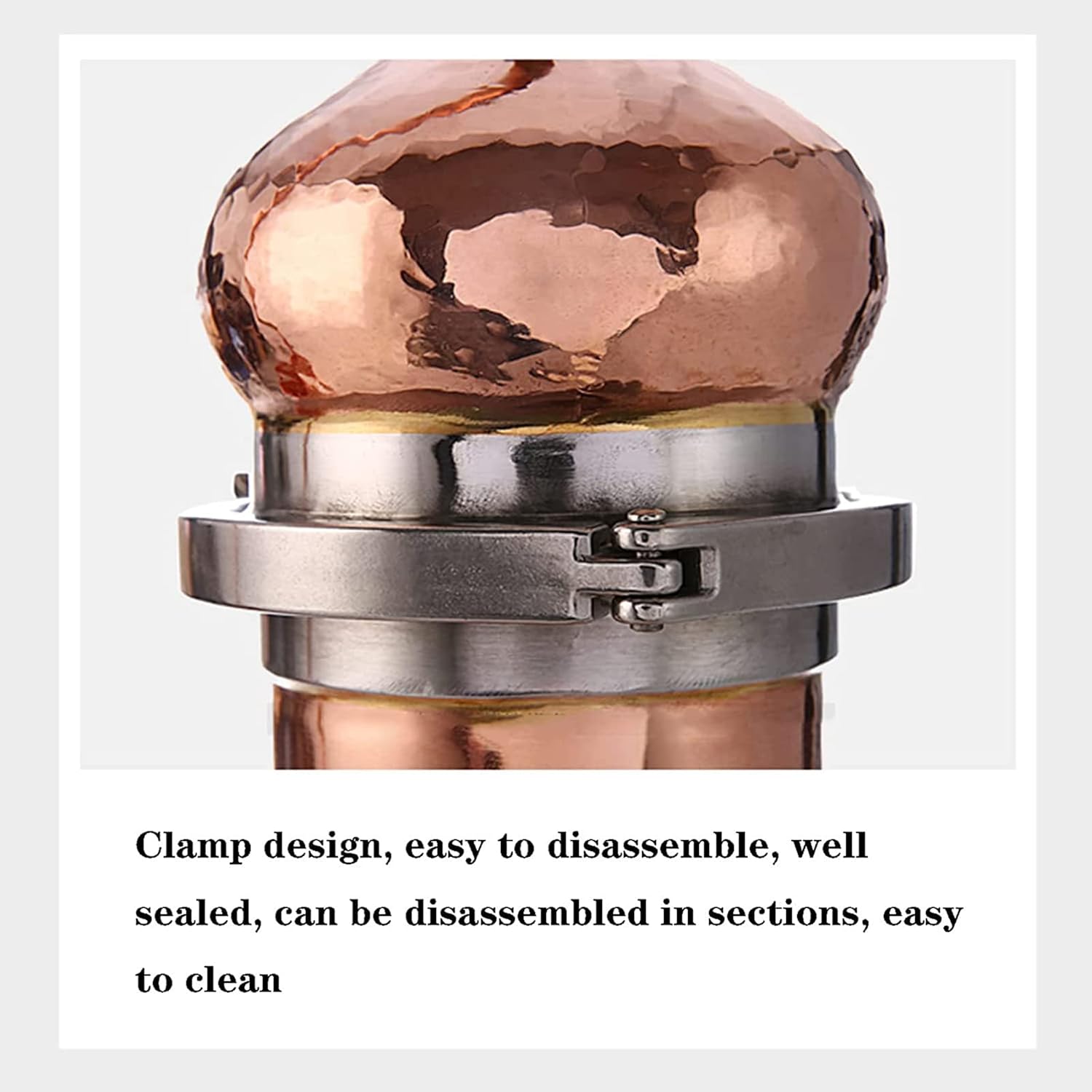

Image: A close-up of the clamp design used to secure the sections of the still, highlighting its ease of disassembly and robust sealing capability for efficient cleaning and operation.
Setup Instructions
- Unpack and Inspect: Carefully remove all components from the packaging. Inspect each part for any signs of damage during transit. Ensure all listed components are present.
- Initial Cleaning: Before first use, thoroughly clean all copper components with warm water and a mild soap. Rinse completely to remove any manufacturing residues. Dry all parts with a soft cloth.
- Assemble the Pot and Column: Place the copper pot on a stable, heat-resistant surface. If your model has a separate column section, place it securely on top of the pot.
- Attach the Onion/Swan Head: Carefully place the onion head (with the thermometer) onto the top of the column or directly onto the pot if it's a single-piece design. Secure it using the provided clamps. Ensure a tight, leak-free seal.
- Connect the Condenser: Attach the swan neck from the onion head to the inlet of the condenser unit. Ensure this connection is also secure.
- Water Connections for Condenser: Connect a cold water supply to the lower inlet of the condenser and a drain hose to the upper outlet. This allows for continuous cold water circulation, which is crucial for efficient condensation.
- Positioning: Ensure the entire setup is stable and positioned in a well-ventilated area, away from flammable materials.
Image: A user demonstrating the process of adding ingredients into the main pot of the copper still, emphasizing the preparation phase before distillation begins.
Operating Instructions
The oiakus Pure Copper Moonshine Still is versatile and can be used for various distillation methods, including hydro distillation, steam distillation, and alcohol distillation.
General Operation Steps:
- Prepare Your Material: Depending on your distillation goal (alcohol, essential oil, hydrosol), prepare your mash, fruit wine, or botanical material.
- Load the Pot: Carefully pour your prepared material into the copper pot. For steam distillation, utilize the internal grabbing grate to keep botanicals above the water level.
- Seal the Still: Ensure all connections (pot to head, head to condenser) are securely clamped and sealed.
- Start Water Circulation: Turn on the cold water supply to the condenser to ensure a continuous flow of cooling water. This is critical for efficient condensation.
- Apply Heat: Place the still on a suitable heat source. This still is compatible with open flame (gas stoves, wood burning) and induction cookers (universal bottom). Gradually increase heat.
- Monitor Temperature: Observe the thermometer on the onion head. Maintain the desired temperature range for your specific distillation process. The internal cooling method adopts water circulation, which helps control the exposure temperature.
- Collect Distillate: As vapor condenses in the serpentine coil, liquid will begin to drip from the condenser outlet. Collect this distillate in a suitable container.
- End Distillation: Once the desired volume or purity is achieved, turn off the heat source and then the cooling water. Allow the still to cool down completely before disassembly.
Image: Illustrates the distillation process with liquid (hydrosol or essential oil) dripping from the still's outlet, alongside a view of the internal serpentine coil within the condenser, which facilitates the cooling and condensation of vapor.
Image: Shows the internal grabbing grate used for steam distillation, allowing materials to be suspended above water. Below, a view of the serpentine coil submerged in water, demonstrating the internal water circulation cooling method.
Image: The base of the copper still resting on an induction cooktop, illustrating its compatibility with various heating methods including induction, open flame, and wood-burning stoves.
Image: A hand adding dried botanical material, possibly for essential oil or hydrosol extraction, into the column of the copper still, demonstrating the preparation for distillation.
Maintenance and Care
Proper care and maintenance will ensure the longevity and performance of your oiakus Pure Copper Moonshine Still.
- Cleaning After Each Use: After each distillation, allow the still to cool completely. Disassemble the still by unfastening the clamps. Clean all copper components with warm water and a soft soap.
- Drying: Thoroughly dry all copper parts with a soft cloth immediately after cleaning. Do not air dry, as this can lead to water spots or oxidation.
- Storage: Do not leave any liquid inside the pot or condenser when not in use to avoid stains and potential corrosion. Store the disassembled or fully dried still in a dry, cool place.
- Copper Patina: Copper naturally develops a patina over time. This is normal and does not affect the still's performance. If you prefer to restore the copper's shine, use a copper-specific cleaner according to its instructions.
- Thermometer Care: Handle the thermometer with care. If it needs replacement, ensure you use a compatible model.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No distillate or very slow drip | Insufficient heat; Insufficient cooling water flow; Leaks in the system. | Increase heat gradually; Ensure strong, continuous cold water flow to condenser; Check all clamps and connections for leaks and tighten as necessary. |
| Distillate is too hot | Insufficient cooling water flow; Cooling water is not cold enough. | Increase cooling water flow; Use colder water if possible (e.g., add ice to water reservoir if using a closed-loop system). |
| Still is leaking | Clamps not tightened sufficiently; Gaskets/seals are damaged or improperly seated. | Tighten all clamps firmly; Inspect gaskets/seals for damage and replace if necessary; Ensure gaskets are properly seated before clamping. |
| Thermometer not reading correctly | Thermometer is faulty; Improperly installed. | Ensure thermometer is fully inserted and secured; Replace thermometer if it continues to give inaccurate readings. |
Specifications
- Brand: oiakus
- Model: 5L Copper Moonshine Still
- ASIN: B0C1SK65XM
- Capacity: 5 Liters
- Material: Pure Copper & Brass
- Construction: Handcrafted, Hand-hammered, Soldered Union
- Heating Compatibility: Open Flame (Gas, Wood), Induction Cooker
- Included Features: Detachable Thermometer, Internal Grabbing Grate, Serpentine Coil Condenser
- Country of Origin: China
- Approximate Height: 68 CM (for 5L model)
Warranty and Support
For any questions, technical assistance, or warranty inquiries regarding your oiakus Pure Copper Moonshine Still, please contact the seller directly through the platform where you purchased the product.
Please refer to your purchase receipt or order details for specific warranty terms and contact information. Keep your proof of purchase for any warranty claims.
Manufacturer: oiakus
