Wanfu Metal Storage Cabinet User Manual

Introduction

Thank you for choosing the Wanfu Metal Storage Cabinet. This 36-inch high locking storage cabinet is designed for versatile use in offices, garages, and homes, providing secure and organized storage. It features two convenient drawers and an adjustable shelf, offering ample space for various items. Constructed from high-quality steel with a durable powder coating, this cabinet is built for stability and longevity. Please read this manual thoroughly before assembly and use to ensure proper installation and safe operation.

Image: The Wanfu Metal Storage Cabinet, showcasing its open main compartment with an adjustable shelf and two upper locking drawers.

Safety Information

Always follow these safety guidelines to prevent injury or damage to the product.

• Keep all parts and packaging materials away from children and pets.
• Assemble the cabinet on a clean, flat, and stable surface to prevent scratching or damage.
• Ensure all screws and fasteners are securely tightened before use. Periodically check and re-tighten as needed.
• Do not overload shelves or drawers. The maximum weight capacity per shelf is 180 pounds.
• Avoid climbing on or leaning against the cabinet, especially when loaded.
• Use appropriate tools as specified in the assembly instructions.
• If wall mounting, ensure proper anchors are used for your wall type and consult a professional if unsure.

Parts List

Before beginning assembly, verify that all components are present and undamaged. Refer to the included parts diagram in your package for specific part numbers.

• Top Panel
• Bottom Panel (Base)
• Side Panels (Left & Right)
• Back Panel
• Adjustable Shelf
• Cabinet Doors (2)
• Drawers (2) with slides
• Locking Mechanisms (3 sets: 1 for main doors, 2 for drawers)
• Keys (multiple sets provided)
• Handles
• Assembly Hardware (screws, bolts, nuts, adjustable buckles, mute pads)

Assembly Instructions

Assembly is straightforward, but attention to detail is crucial. It is recommended to have a Phillips head screwdriver and possibly needle-nose pliers for certain steps. Follow the numerical order for best results.

1. Unpack and Organize: Carefully unpack all components and lay them out on a soft, clean surface. Identify each part using the provided parts diagram. Ensure all hardware is accounted for.
2. Assemble the Base: Attach the side panels to the bottom panel. Note that some base pieces may require a 90-degree bend; ensure you bend them in the correct direction as indicated in the detailed instructions.
3. Attach Side Panels: Securely fasten the left and right side panels to the base and to the top panel, ensuring all holes align perfectly.
4. Install Back Panel: Slide or screw the back panel into place. This adds significant stability to the cabinet structure.
5. Install Adjustable Shelf: Insert the adjustable buckles into the desired slots on the side panels. Place the adjustable shelf onto these buckles. Ensure it is level and secure. Each shelf can support up to 180 lbs.
6. Assemble and Install Drawers: Assemble the two drawers according to the specific instructions for the drawer components. Install the smooth ball-bearing slides onto the drawers and then into the cabinet frame. Test the drawer operation to ensure smooth movement.
7. Attach Cabinet Doors: Mount the cabinet doors to the main body using the provided hinges. Ensure the doors swing freely and align properly.
8. Install Locking Mechanisms and Handles: Install the three-point lock system for the main doors and the individual locks for each drawer. Attach the comfortable handles to the doors and drawers. Test all locks with the provided keys.
9. Apply Mute Pads: Attach the mute pads to the inside of the cabinet doors where they meet the frame. This helps reduce noise when closing the doors and ensures a snug fit.
10. Final Check: Once assembled, gently move the cabinet to its desired location. Re-check all screws and connections to ensure they are tight and secure.

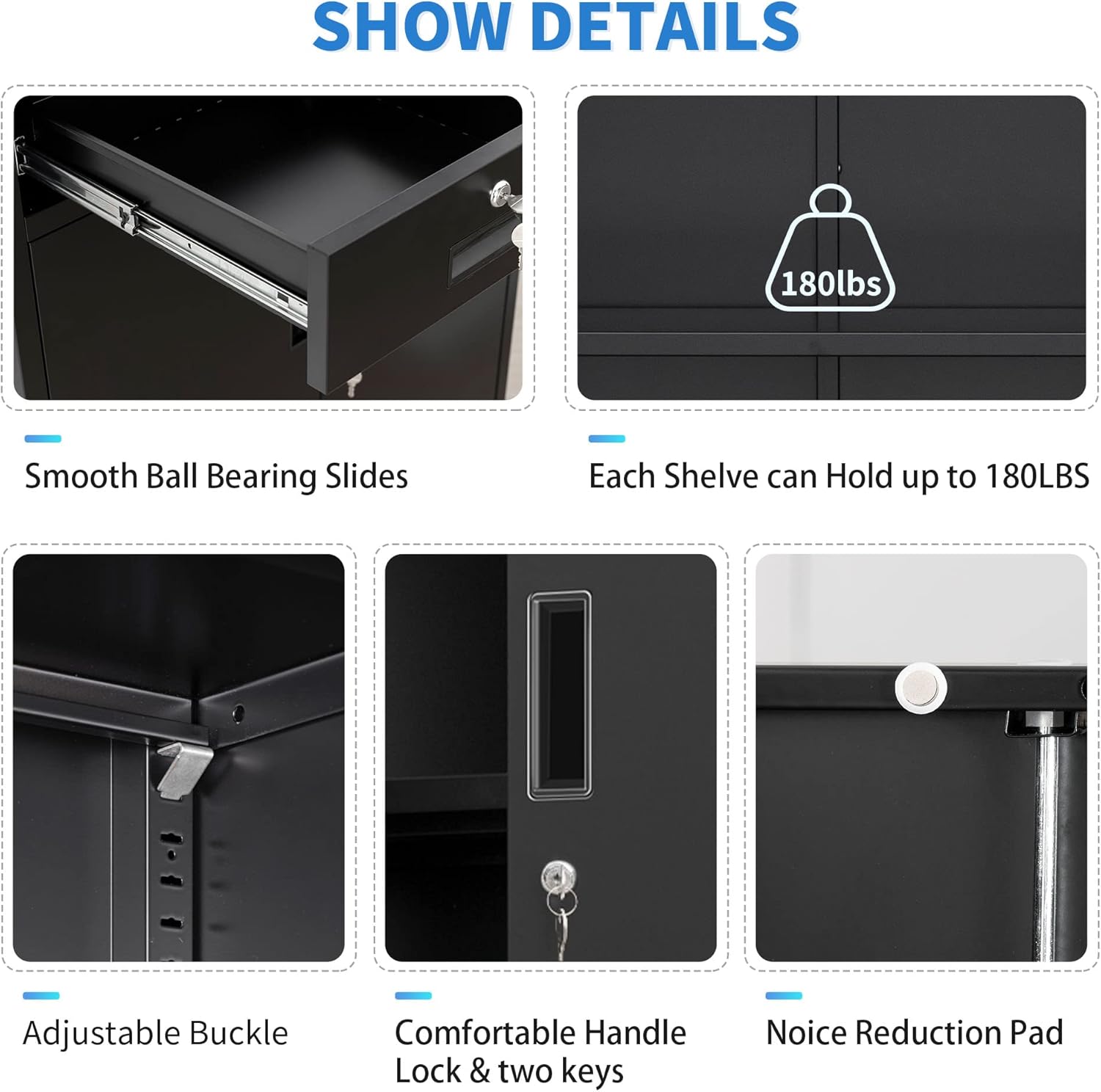

Image: Detailed features of the Wanfu cabinet, including drawer slides, shelf capacity, adjustable buckles, handles, locks, and mute pads.

Operating Instructions

• Locking and Unlocking: Use the provided keys to lock and unlock the main cabinet doors and the two individual drawers. Ensure the doors and drawers are fully closed before attempting to lock.
• Adjusting Shelves: To adjust the height of the internal shelf, remove all items from the shelf. Lift the shelf slightly and remove the adjustable buckles from their current slots. Reinsert the buckles into the desired new slots, ensuring they are at the same height on both sides, then place the shelf back onto the buckles.
• Using Drawers: The drawers feature smooth ball-bearing slides for easy opening and closing. Pull the drawer out gently to access contents. Push firmly to close until it clicks into place.
• Magnetic Closure: The main cabinet doors are equipped with a magnetic design to keep them securely closed when unlocked.

Image: The cabinet in use, demonstrating its storage capacity for files and other items.

Maintenance

• Cleaning: Wipe the cabinet surfaces with a soft, damp cloth. For stubborn marks, a mild soap solution can be used, followed by drying with a clean cloth. Avoid abrasive cleaners or harsh chemicals that could damage the powder coating.
• Inspection: Periodically inspect all screws, bolts, and connections to ensure they remain tight. Re-tighten any loose fasteners to maintain stability and safety.
• Lubrication: If drawer slides or door hinges become stiff over time, a small amount of silicone-based lubricant can be applied to ensure smooth operation.

Troubleshooting

Specifications

Image: Dimensions of the Wanfu Metal Storage Cabinet.

Warranty and Support

Wanfu is committed to providing high-quality products. While specific warranty details are typically included with your purchase documentation, general support for this product includes:

• 30-Day Easy Returns: If you are not satisfied with your purchase, you may be eligible for a return within 30 days. Please refer to your retailer's return policy for details.
• Customer Support: For any questions regarding assembly, missing parts, or product functionality, please contact Wanfu customer support. Contact information can usually be found on the packaging or through the retailer's website where you purchased the product.
• Protection Plans: Extended protection plans may be available for purchase separately to cover your product beyond the standard return period.
