Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your Soway TS-6976 6x9 inch coaxial car speakers. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the product. Retain this manual for future reference.
Product Overview
Key Features
- 6x9 inch PP Basin Iron Basin Coaxial Speaker design.
- Rated power of 100 Watts RMS, with a peak power of 200 Watts.
- Impedance: 4 Ohms.
- Sensitivity: 90 dB.
- Frequency Response: 100 Hz - 20 kHz.
- Voice Coil Diameter: 25.5 mm.
- Magnetic Steel Size: Ø90*15.
- Designed for mid-bass and high-frequency audio reproduction.
What's in the Box
- Soway TS-6976 Coaxial Speaker(s)
- Speaker Grill(s)
Setup and Installation
Proper installation is crucial for optimal performance and safety. If you are unsure about any steps, it is recommended to seek professional assistance.
Safety Precautions
- Disconnect the vehicle's battery before starting any electrical work to prevent short circuits.
- Wear appropriate safety gear, including eye protection.
- Ensure all wiring is correctly insulated and secured to prevent damage or interference.
- Do not obstruct any vehicle safety features or airbags during installation.
Installation Steps
- Prepare the Mounting Location: Identify the designated 6x9 inch speaker mounting locations in your vehicle (e.g., rear deck, door panels). Remove any existing speakers or covers. Ensure there is sufficient depth and clearance for the Soway TS-6976 speakers.
- Wiring Connection: Connect the speaker wires from your vehicle's audio system to the terminals on the Soway TS-6976 speakers. Ensure correct polarity: positive (+) to positive and negative (-) to negative. Incorrect polarity can lead to poor sound quality.
- Mounting the Speakers: Carefully place the speakers into the mounting openings. Use the provided screws or appropriate fasteners to secure the speakers firmly in place. Do not overtighten.
- Install Speaker Grills: Once the speakers are mounted, attach the speaker grills (if included and desired) over the speakers. These grills protect the speaker cones from physical damage.
- Test the System: Reconnect the vehicle's battery. Turn on your audio system and test the speakers at a low volume. Gradually increase the volume to ensure proper function and sound quality. Check for any distortion or unusual noises.
Image 1: Top view of the Soway TS-6976 coaxial speaker with its protective grill installed. This image shows the speaker's overall design and the mesh covering the tweeter.

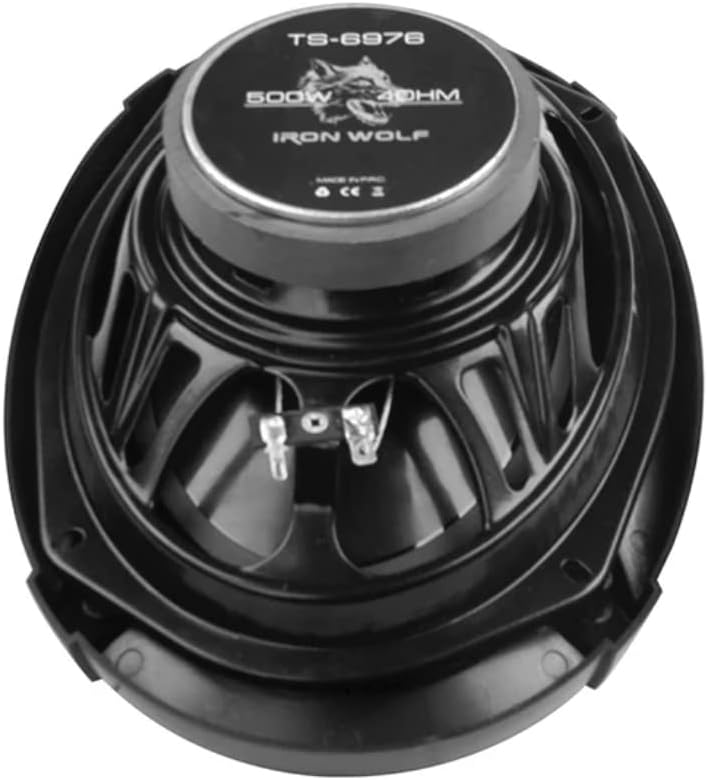

Image 2: Rear view of the Soway TS-6976 coaxial speaker, showing the magnet structure, wiring terminals, and model number label. This view is important for understanding the speaker's depth and connection points.
Operating Instructions
Once properly installed, your Soway TS-6976 speakers will integrate with your vehicle's existing audio system. The operation of the speakers is primarily controlled by your car's head unit or amplifier.
- Power On/Off: The speakers will power on and off with your vehicle's audio system.
- Volume Control: Adjust the volume using your car's head unit controls. Avoid excessively high volumes for prolonged periods to prevent speaker damage.
- Audio Settings: Utilize your head unit's equalizer, balance, and fader settings to optimize sound output. Adjust bass, treble, and mid-range frequencies to your preference.
- Source Selection: Select your desired audio source (radio, CD, Bluetooth, auxiliary input) through your car's audio system.
Maintenance
Regular care will help maintain the performance and appearance of your speakers.
- Cleaning: Gently wipe the speaker grills and surrounding areas with a soft, dry cloth. Avoid using harsh chemicals or abrasive cleaners, which can damage the speaker materials.
- Inspection: Periodically check the speaker mounting and wiring connections to ensure they remain secure.
- Environmental Factors: While designed for vehicle use, avoid exposing speakers to extreme moisture or direct sunlight for extended periods, as this can degrade materials over time. Note that these speakers are not water resistant.
Troubleshooting
If you encounter issues with your Soway TS-6976 speakers, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| No sound from speakers |
|
|
| Distorted or poor sound quality |
|
|
| One speaker not working |
|
|
Specifications
| Feature | Detail |
|---|---|
| Model Name | Soway TS-6976 |
| Speaker Type | Coaxial |
| Speaker Size | 6x9 inches |
| Rated Power (RMS) | 100 Watts |
| Peak Power | 200 Watts |
| Impedance | 4 Ohms |
| Sensitivity | 90 dB |
| Frequency Response | 100 Hz - 20 kHz |
| Voice Coil Diameter | 25.5 mm |
| Magnetic Steel Size | Ø90*15 |
| Product Dimensions | 14.75"D x 11.5"W x 5"H |
| Item Weight | 3.52 pounds (1.6 Kilograms) |
| Input Voltage | 12 Volts (AC) |
| Connectivity Technology | Coaxial, Wired |
| Water Resistance Level | Not Water Resistant |

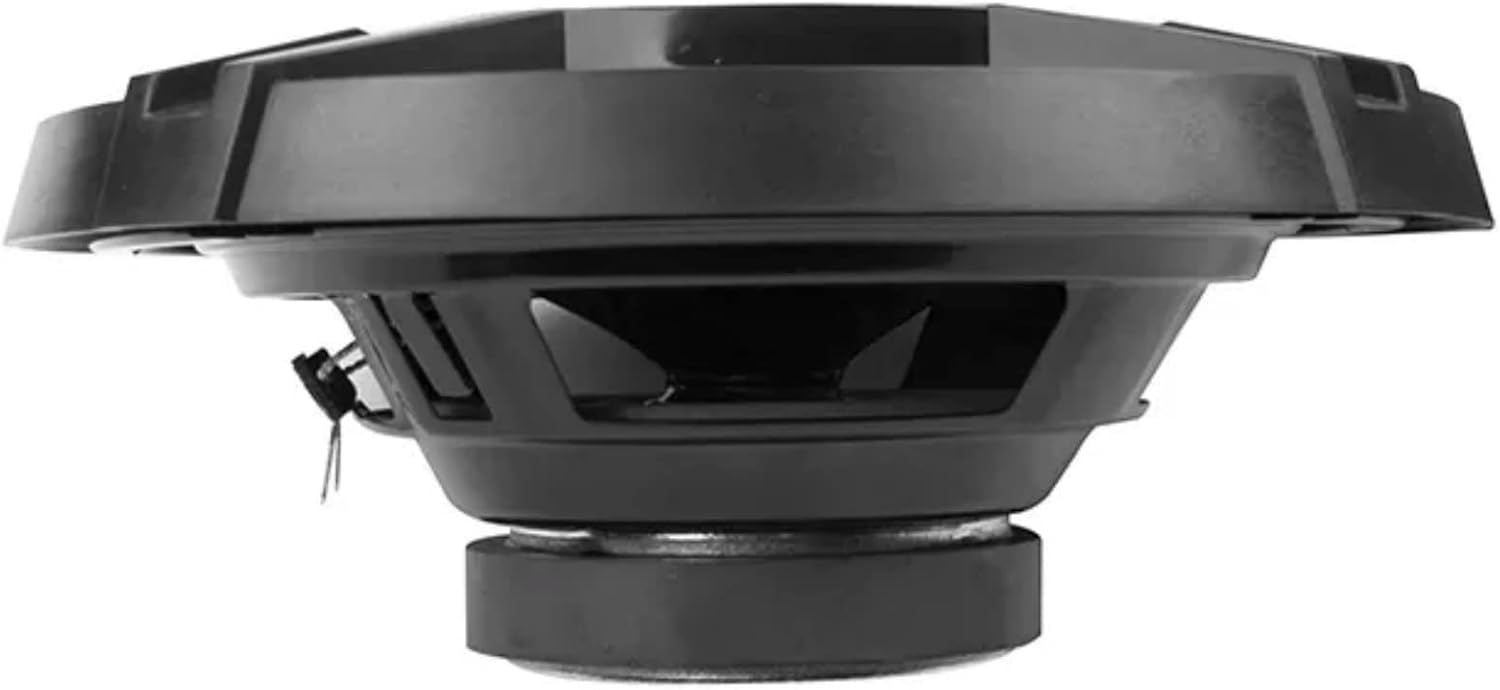

Image 3: Side profile of the Soway TS-6976 coaxial speaker, illustrating its depth and mounting flange. This view helps in assessing fitment in various vehicle locations.
Warranty and Support
Warranty Information
The Soway TS-6976 speakers come with a 30-day warranty from the date of purchase. This warranty covers manufacturing defects. Please retain your proof of purchase for any warranty claims.
Customer Support
For technical assistance, warranty inquiries, or further information regarding your Soway TS-6976 speakers, please contact Soway customer support. Refer to the contact information provided with your purchase or visit the official Soway website.
