Barphygo Twin Air Mattress with Built-in Pump Instruction Manual

1. Introduction

This manual provides instructions for the proper setup, operation, and maintenance of your Barphygo Twin Air Mattress with Built-in Pump. Please read all instructions carefully before use to ensure safe and efficient operation.

2. Safety Information

Important Safety Precautions:

Ensure the airbed is placed on a level surface free from stones and sharp objects. Uneven surfaces may cause the bed to tip over.
Do not overinflate the airbed. Stop inflating once the airbed is fully expanded and firm.
Avoid exposing the mattress to extreme heat or cold when used outdoors.
In hot weather, air inside the mattress will expand. To prevent damage, release some air.
Avoid motor contact with water to prevent short circuits.

3. Package Contents

Verify that all items are present in the package:

Air Mattress with Built-in Pump
Carry Bag
Manual Inflator Valve
Repair Patch
User Guide (this document)

4. Specifications

Feature	Detail
Size	Twin
Product Dimensions	78"L x 39"W x 19"Th
Material	Polyvinyl Chloride (PVC)
Maximum Load Capacity	595 Pounds
Item Weight	12.36 pounds
Special Features	Built-In Pump, Inflatable, Quick Inflation/Deflation, Slip Resistant, Waterproof
Water Resistance Level	Water Resistant

5. Setup and Inflation

The Barphygo Twin Air Mattress features a built-in electric pump for convenient inflation.

Unroll the air mattress on a clean, level surface, ensuring no sharp objects are underneath.
Locate the built-in pump on the side of the mattress.
Plug the power cord into a standard electrical outlet.
Turn the pump dial to the "Inflate" position. The mattress will begin to inflate automatically.
Monitor the inflation process. Once the mattress reaches your desired firmness (approximately 3 minutes), turn the pump dial to the "Off" position and unplug the power cord.
Ensure the manual inflator valve cap is securely closed to prevent air leakage.

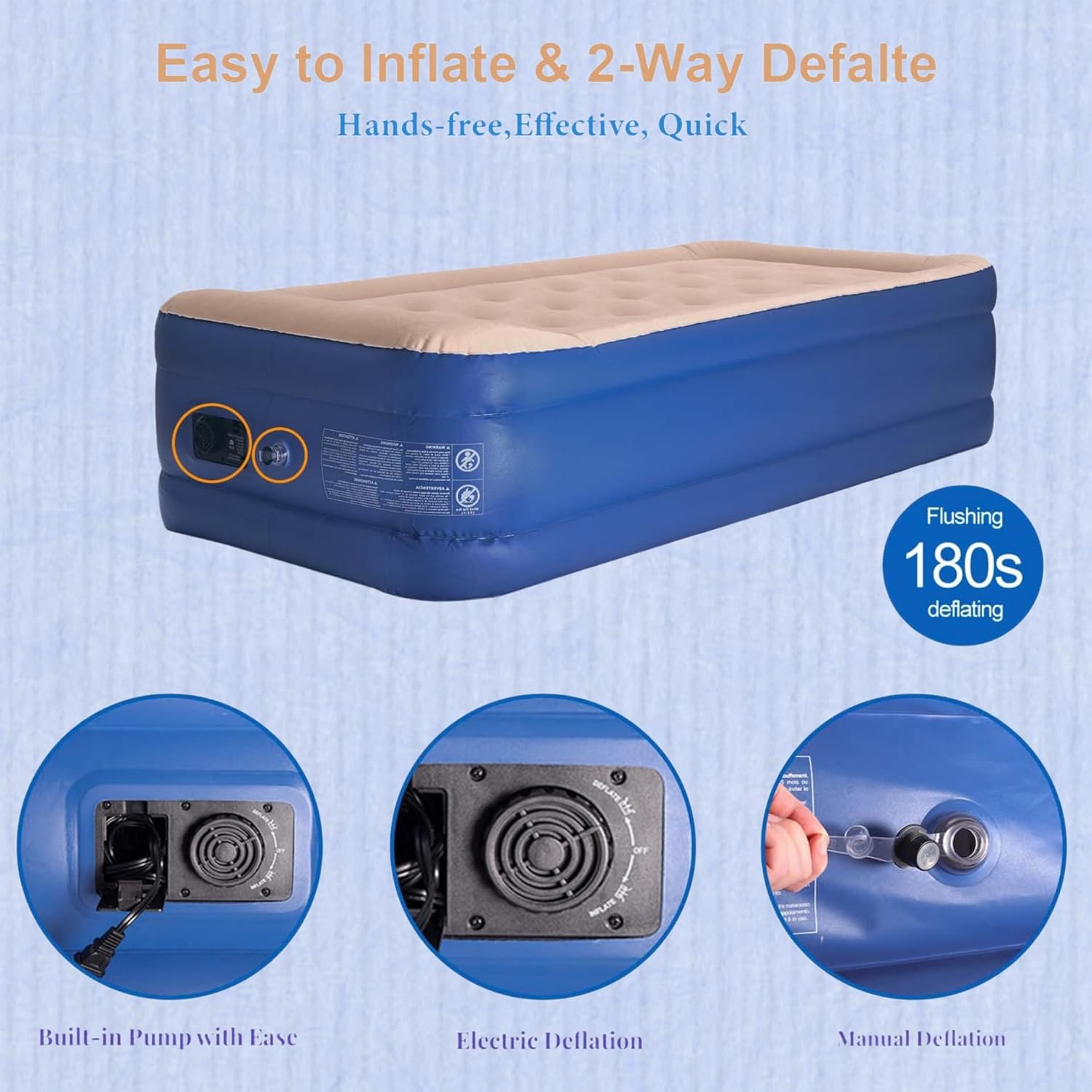

Built-in Pump and Manual Deflation Valve — Image: Close-up view of the integrated pump for inflation/deflation and the manual valve for alternative inflation/deflation.

Twin Air Mattress Dimensions and Usage Scenarios — Image: Illustration of the twin air mattress dimensions (77.95" x 39.37" x 19") and suggested usage scenarios for home, camping, and guests.

Video: This video demonstrates the inflation process of a Barphygo air mattress using the built-in pump. Note: The video title mentions 'Queen' size, but the inflation process is similar for the Twin model.

6. Operating the Air Mattress

The Barphygo Twin Air Mattress is designed for comfort and versatility.

Comfort Features: The mattress features 35 honeycomb columns and enhanced coil technology for support. The 19-inch height facilitates easier entry and exit. A surrounding frame design helps prevent rolling off.
Surface Material: The top surface is made of a soft, waterproof flocked material, which is designed for comfort and does not necessarily require bed sheets.
Versatile Use: Suitable for indoor use, guest accommodations, camping, or temporary relocation.

Air Coils Provide Full-body Support — Image: An illustration showing the internal air coil structure providing full-body support, including a raised pillow section for ergonomic sleeping posture.

Flocked Top Surface for Comfort — Image: A diagram illustrating the mattress layers (soft flocked top, PVC, sandwich layer nets) and a comparison between dense flocking and ordinary flocking, highlighting the dense flocking for comfort.

Versatile Indoor and Outdoor Use — Image: Depicts the air mattress being used in both an indoor setting and inside a tent for outdoor camping, demonstrating its versatility.

7. Maintenance and Storage

Proper care and storage will extend the life of your air mattress.

Cleaning: Wipe the mattress surface with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners.
Deflation: To deflate, turn the built-in pump dial to the "Deflate" position. The mattress will rapidly deflate. You can also use the manual valve for deflation with other pumps if needed.
Storage: Once fully deflated, fold the mattress neatly and place it into the provided carry bag. Store in a cool, dry place away from direct sunlight and extreme temperatures.

Portable Storage and Carry Bag — Image: Shows the process of folding the air mattress into a compact package and storing it in the included carry bag, demonstrating its portability and ease of storage.

8. Troubleshooting

If you encounter issues with your air mattress, refer to the following common solutions:

Mattress not inflating:
- Ensure the power cord is securely plugged into a working electrical outlet.
- Check that the pump dial is set to the "Inflate" position.
- Verify that the manual inflator valve cap is closed.
Mattress losing air:
- Inspect the mattress for punctures or tears. Use the included repair patch kit for small holes.
- Ensure the pump dial is in the "Off" position and the manual valve cap is tightly sealed.
- Check the area around the pump for any loose seals.
Pump not working:
- Confirm the power source is active.
- Allow the pump to cool down if it has been running for an extended period, as it may have an overheating protection feature.

9. Warranty and Support

For warranty information or customer support, please refer to the contact details provided with your purchase or visit the Barphygo official website. Keep your purchase receipt for warranty claims.
