Introduction
This manual provides comprehensive instructions for the safe and effective operation, maintenance, and care of your CUTTEREX 13" Heavy Duty Professional Floor Cutter. This hand-powered tool is designed for precise cutting of various flooring materials and wall sidings, offering a clean, quiet, and dust-free alternative to traditional cutting methods.
Please read this manual thoroughly before using the product to ensure proper handling and to maximize the lifespan of your cutter.
Safety Information
Always prioritize safety when operating any tool. Adhere to the following safety guidelines:
- Eye Protection: Always wear safety glasses or goggles to protect your eyes from debris.
- Hand Protection: Wear appropriate gloves to protect your hands during operation and blade handling.
- Stable Work Surface: Ensure the cutter is placed on a stable, level, and non-slip surface before use.
- Clear Work Area: Keep your work area clean and free of clutter to prevent accidents.
- Blade Safety: The blade is extremely sharp. Handle with extreme care. Keep fingers away from the cutting edge.
- Proper Material: Only cut materials specified for this tool. Do not attempt to cut porcelain tile or solid wood floor, as this can damage the blade and the tool, and may cause injury.
- Children and Pets: Keep children and pets away from the work area and the tool.
- Storage: When not in use, engage the sliding stop lock for safe storage and handling. Store the tool in a dry, secure place out of reach of unauthorized users.
Product Overview and Components
The CUTTEREX 13" Heavy Duty Professional Floor Cutter is designed for efficiency and durability. Familiarize yourself with its main components:
- Cutting Blade: High-Speed Steel (H.S.S.) blade with HRC56 super hardness for clean cuts.
- Leverage Handle: Telescopic aluminum handle, extendable to 37-3/4", providing extra cutting power and ease of operation.
- Support Table: Durable ABS support table with integrated Imperial/Metric ruler and angle indications for accurate measurements.
- Cutting Fence: Straight aluminum cutting fence with Imperial and Metric ruler markings.
- Sliding Stop Lock: Mechanism for safe storage and handling.
- Rubber Feet: Located under the cutter posts to prevent scratching on flooring and ensure stability.
- Nylon Cushions: Two extra nylon cushions are included to extend the service life of the HSS blade.
- Whetstone: Included for blade maintenance.
Image: The CUTTEREX 13" Heavy Duty Professional Floor Cutter, showcasing its robust design and packaging.
Image: Detail of the cutter's telescopic handle, highlighting its extended length for increased leverage and cutting power.
Setup
The CUTTEREX floor cutter is designed for straightforward assembly. Follow these steps to prepare your tool for use:
- Unpacking: Carefully remove all components from the packaging. Verify that all parts listed in the "Product Overview and Components" section are present.
- Placement: Place the main body of the cutter on a flat, stable, and secure work surface. The rubber feet on the base will help prevent movement and protect your underlying floor.
- Handle Assembly: Attach the telescopic handle securely to the cutter's mechanism. Ensure any locking pins or screws are fully engaged. The handle is designed to extend for optimal leverage; ensure it is locked at the desired length before cutting.
- Blade Check: Before first use, inspect the H.S.S. blade for any shipping damage. Ensure it is properly seated and secured.
- Fencing and Ruler: Familiarize yourself with the adjustable cutting fence and the integrated Imperial/Metric ruler on the support table. These are crucial for accurate measurements and angle cuts.
Operating Instructions
This cutter is suitable for a wide range of materials, including:
- Engineered Wood Floor (up to 5/8" or 15.80mm thickness)
- Multi-layer Flooring, Wood Panels, Parquet
- VCT, LVT, SPC, PVC, LVP, WPC, Rubber Floor, Vinyl Plank Floor and Rigid Core Vinyl Plank
- Rubber Concave Base, PVC Tile, Vinyl Tile, Carpet Tile, Leather, Rubber Base, Rubber Tile, Soft Plastic
- Fiber-Cement Wall Panels, Fiber-Cement Wall Siding, Vinyl Siding, Pressboard Lap Sidings (up to 1/2" or 12.7mm thickness)
Note: This tool is not suitable for cutting porcelain tile or solid wood floor.
Image: Examples of flooring types compatible with the cutter, emphasizing its versatility.
Image: Visual representation of the cutter's capacity, showing maximum cutting width (13 inches / 330 mm) and thickness for various materials.
Cutting Process:
- Measure and Mark: Accurately measure the desired length of your material. Use a pencil or marker to clearly mark the cutting line on the material.
- Position Material: Place the material on the cutter's support table. Align your marked cutting line with the cutter's blade. Use the integrated ruler and cutting fence to ensure precise alignment.
- Adjust for Angle Cuts (if needed): The cutter supports angle cuts at 0°, 15°, 22.5°, 30°, and 45° angles. Adjust the cutting fence to the desired angle using the indications on the support table.
- Engage Handle: Grip the telescopic handle firmly. Ensure your hands are clear of the blade path.
- Apply Pressure: Apply steady, firm, and continuous downward pressure on the handle. The leverage provided by the long handle will facilitate a clean cut.
- Complete Cut: Continue applying pressure until the blade has fully passed through the material.
- Remove Material: Carefully remove the cut material and the off-cut from the table.

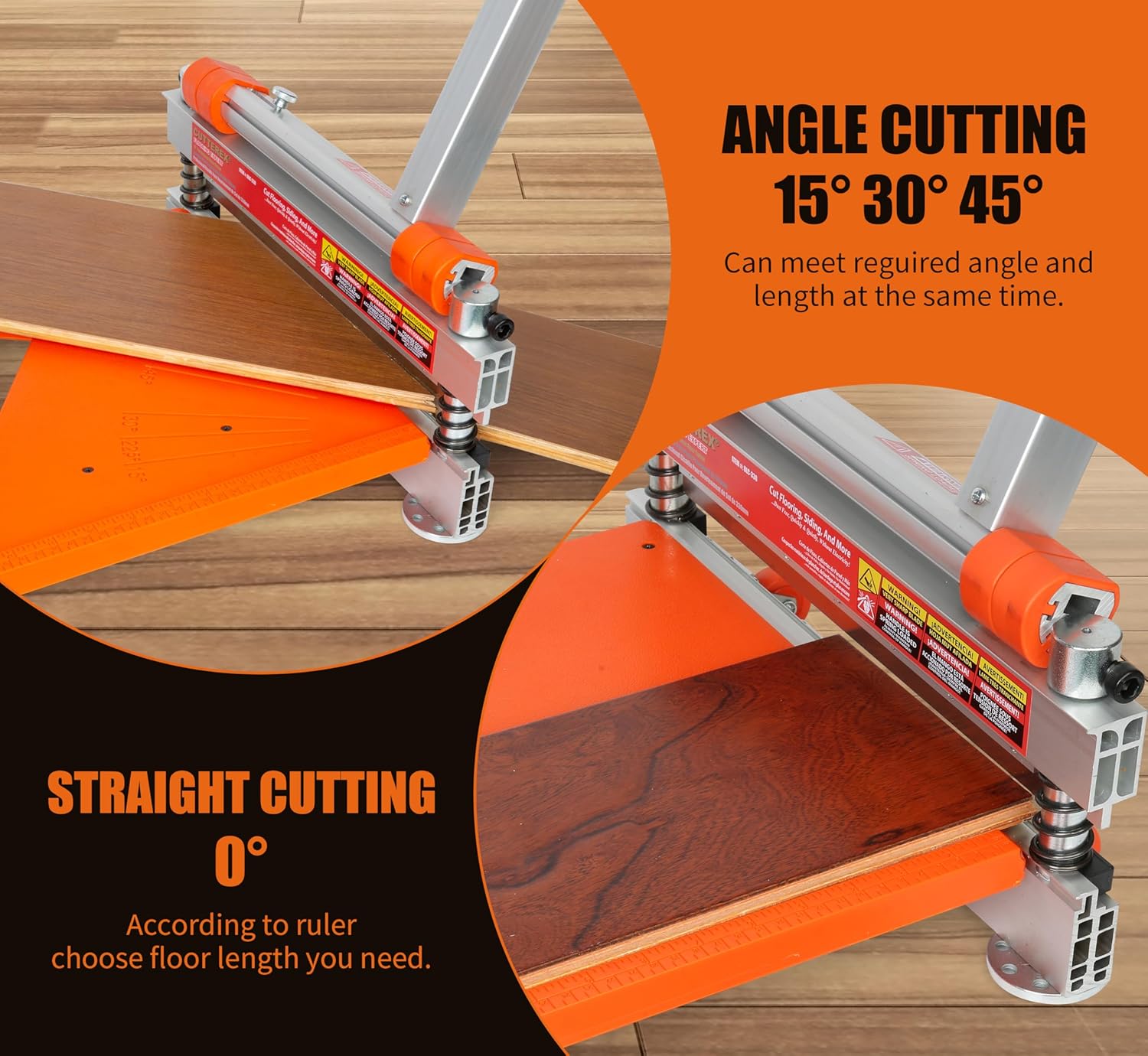

Image: Demonstrates the versatility of the cutter for both straight (0°) and various angle cuts (15°, 30°, 45°).
Benefits of Use:
Using the CUTTEREX floor cutter offers several advantages:
- No Dust: Provides a clean and healthy work environment by eliminating sawdust.
- No Noise: Operates quietly, making it ideal for indoor use without disturbing others.
- No Electricity Needed: Hand-powered operation means no need for power outlets or cords, increasing portability and safety.
- Clean and Precise Cuts: The H.S.S. blade ensures neat, professional cuts without fraying or uneven edges.
- Time and Labor Saver: Reduces the need to move between cutting stations, saving time and effort.
Image: Highlights the key benefits of the cutter, including dust-free and quiet operation, and no electricity requirement.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your CUTTEREX floor cutter.
- Blade Sharpening: The H.S.S. blade is designed for long life (over 20,000 cuts on regular laminate/vinyl). When cuts become less clean, the blade may need sharpening. Use the included whetstone to carefully sharpen the blade according to standard blade sharpening practices.
- Blade Replacement: The cutting blade is easily detachable and replaceable. If the blade becomes damaged or can no longer be effectively sharpened, replace it with an official CUTTEREX replacement blade.
- Nylon Cushions: The cutter comes with extra nylon cushions. These are wear parts located under the blade and should be replaced when they show significant wear to maintain optimal cutting performance.
- Cleaning: After each use, wipe down the cutter's surfaces, especially the blade and support table, to remove any material residue. Use a dry cloth. Do not use harsh chemicals that could damage the finish or components.
- Lubrication: Periodically apply a light lubricant to moving parts, such as the handle pivot points and blade mechanism, to ensure smooth operation.
- Storage: Always engage the sliding stop lock before storing the cutter. Store in a dry, clean environment to prevent rust and damage. The table cutout hole allows for easy lifting and moving.
Image: Demonstrates the process of sharpening the cutter's blade using the provided whetstone.
Troubleshooting
If you encounter issues with your CUTTEREX floor cutter, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Cuts are not clean or precise. | Dull blade, worn nylon cushions, improper material alignment. | Sharpen or replace the blade. Replace worn nylon cushions. Ensure material is correctly aligned with the cutting line and fence. |
| Difficulty in cutting through material. | Material too thick or hard, insufficient leverage, dull blade. | Verify material thickness is within specifications. Ensure the telescopic handle is fully extended for maximum leverage. Sharpen or replace the blade. |
| Cutter slides during operation. | Unstable work surface, dirty rubber feet. | Place the cutter on a firm, level, and non-slip surface. Clean the rubber feet to ensure good grip. |
| Handle is stiff or difficult to operate. | Lack of lubrication, debris in mechanism. | Clean any debris from the handle mechanism. Apply a light lubricant to pivot points. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | BLC-330H |
| Manufacturer | CUTTEREX |
| Cutting Width | Up to 13 inches (330mm) |
| Max. Thickness (Engineered Wood/Laminate) | Up to 5/8 inches (15.80mm) |
| Max. Thickness (Vinyl Siding) | Up to 1/2 inches (12.7mm) |
| Angle Cutting | 0°, 15°, 22.5°, 30°, 45° |
| Blade Material | High-Speed Steel (H.S.S.) with HRC56 hardness |
| Handle Length | Telescopic, up to 37-3/4 inches |
| Power Source | Hand-powered |
| Item Weight | 19.16 pounds |
| Package Dimensions | 25.19 x 15.69 x 3.94 inches |
| Included Components | Floor Cutter, 2 PCS Nylon Cushions, Whetstone |
Warranty and Support
CUTTEREX provides a Lifetime Warranty for this product, with the exception of wearing parts such as the cutting blade and the cushion under the blade. These wearing parts are designed for durability but will require eventual replacement due to normal use.
For warranty claims, technical support, or to purchase replacement parts, please contact CUTTEREX customer service through their official channels. Refer to the product packaging or the official CUTTEREX website for contact information.
