Introduction
Thank you for choosing the Xanlite POP Rechargeable Table Lamp. This modern and practical lamp is designed to provide versatile lighting for your indoor and outdoor spaces. With its USB rechargeable battery, adjustable color temperature, and robust design, it offers convenience and ambiance wherever you need it. Please read this manual carefully before use to ensure proper operation and maintenance.
Image: The Xanlite POP Rechargeable Table Lamp in grey with its white lampshade.
Safety Instructions
To ensure safe operation and prevent damage, please observe the following safety precautions:
- Do not expose the lamp to extreme temperatures or direct sunlight for prolonged periods.
- Keep the lamp away from water or other liquids, except for its intended use with IP44 rating for splash resistance. Do not submerge.
- Do not attempt to disassemble or modify the lamp. This will void the warranty and may cause damage or injury.
- Use only the provided USB cable for charging.
- Keep out of reach of children and pets.
- Clean the lamp only with a soft, dry cloth. Do not use abrasive cleaners or solvents.
Package Contents
Please check the package for the following items:
- Xanlite POP Rechargeable Table Lamp (Base, Stem, Lampshade)
- USB Charging Cable
Image: The lamp components (base, stem, lampshade) and the USB charging cable included in the package.
Setup
Assembly
The Xanlite POP lamp typically comes partially assembled. If the stem is separate from the base or lampshade, gently screw the stem into the base and then attach the lampshade. Ensure all connections are secure.
Initial Charging
Before first use, fully charge the lamp. Connect the provided USB cable to the charging port on the lamp (usually located near the base or under the lampshade) and plug the other end into a standard USB power adapter (not included) or a computer USB port.
Image: A detailed view of the USB charging port on the lamp, indicating where to connect the charging cable.
A full charge takes approximately 3.5 hours and provides up to 8 hours of autonomy at the lowest brightness setting.
Operating Instructions
Power On/Off and Brightness Adjustment
The lamp is operated via a pull chain or a touch sensor, depending on the specific model variant. Gently pull the chain or tap the sensor to turn the lamp on or off. Subsequent pulls/taps will cycle through different brightness levels.
Adjusting Color Temperature (CCT)
The lamp features adjustable color temperature (CCT), allowing you to switch between warm white and cool white light. This is typically controlled by holding down the power button/sensor or by specific multiple taps. Refer to the product packaging for exact control method if not immediately apparent.
Image: The lamp demonstrating its ability to display various color temperatures, from warm ambient light to cooler, brighter illumination.
Adjusting Height
Some models of the Xanlite POP lamp feature an adjustable height mechanism. This allows you to extend or retract the lamp's stem to suit your needs, typically from 31cm to 46cm.
Image: Multiple Xanlite POP lamps illustrating the adjustable height feature, showing both compact and extended configurations.
Features and Durability
The Xanlite POP lamp is designed for both aesthetic appeal and practical resilience:
- Brightness: Provides up to 400 lumens of light, suitable for various settings.
- IP44 Rating: Resistant to splashes of water from any direction, making it suitable for outdoor use on terraces or in gardens.
- IK10 Shock Resistance: Designed to withstand significant impacts, ensuring durability.

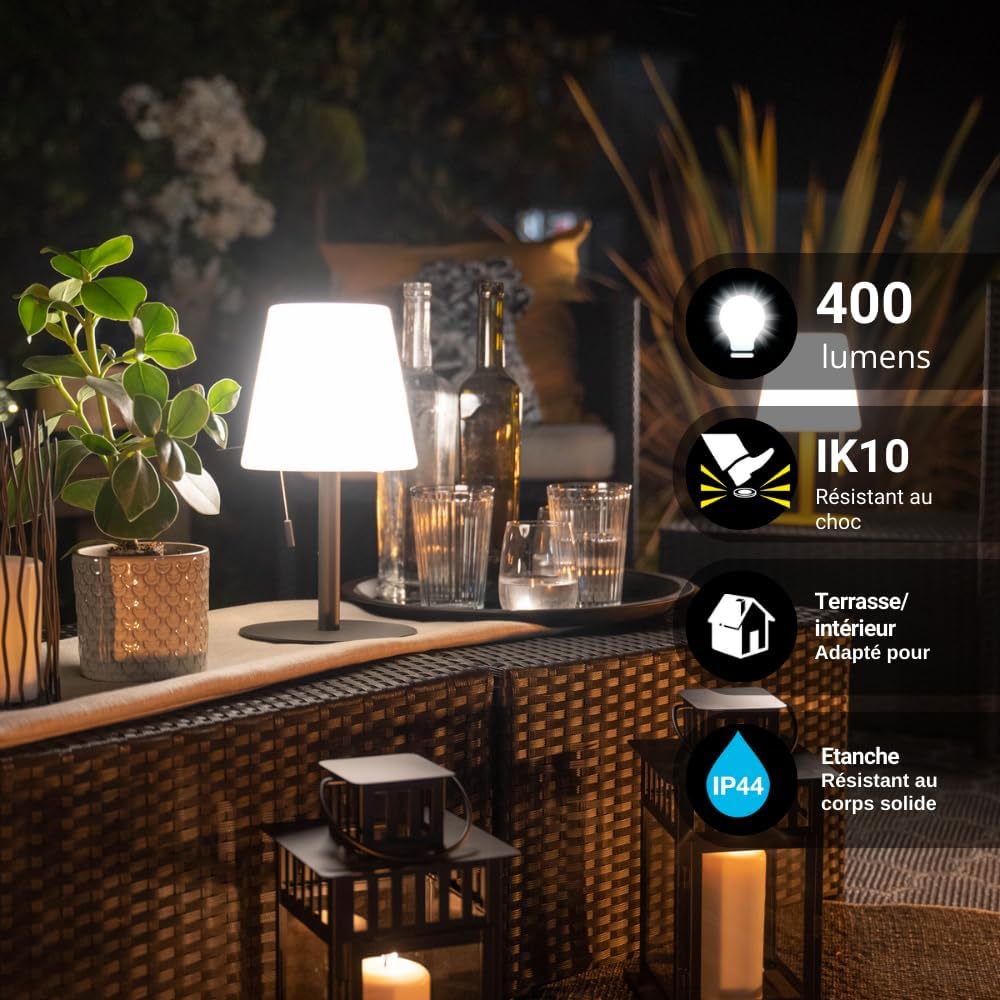

Image: Visual representation of the lamp's key features: 400 lumens brightness, IK10 shock resistance, and IP44 water resistance.
Maintenance
To maintain your Xanlite POP lamp in optimal condition:
- Cleaning: Wipe the lamp with a soft, dry, or slightly damp cloth. Do not use harsh chemicals or abrasive materials.
- Storage: When not in use for extended periods, store the lamp in a cool, dry place. Ensure it is fully charged before storing to preserve battery life.
- Battery Care: For best battery longevity, avoid completely draining the battery frequently. Recharge when the light dims significantly.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Lamp does not turn on. | Battery is depleted. | Charge the lamp fully using the provided USB cable. |
| Lamp light is dim. | Low battery. | Recharge the lamp. |
| Lamp not charging. | Faulty USB cable or power adapter. | Try a different USB cable or power adapter. Ensure connections are secure. |
| Cannot change color temperature. | Incorrect operation. | Refer to operating instructions; try holding the power button/sensor for a few seconds. |
Specifications
| Feature | Detail |
|---|---|
| Brand | Xanlite |
| Model Number | LP16CGRCCT |
| Dimensions (L x W x H) | 16 x 16 x 30.45 cm (adjustable up to 46 cm for some models) |
| Weight | 960 grams |
| Material | Metal |
| Power Source | USB Cable (Rechargeable Battery) |
| Max Watts | 50 Kilowatts (Note: This seems to be an error in source data, likely refers to 50 Watts or less for LED) |
| Voltage | 2.3E+2 Volts (AC) (Note: This refers to charging input, not lamp operation) |
| Special Features | Adjustable Color Temperature (CCT), IP44 Water Resistance, IK10 Shock Resistance |
| Autonomy | Up to 8 hours (at lowest power) |
| Charging Time | Approx. 3.5 hours |
| Luminous Flux | 400 lumens |
Image: A technical diagram illustrating the dimensions of the lamp, including its diameter (Ø165mm) and height (310mm).
Warranty and Support
Xanlite products are manufactured to high-quality standards. For information regarding warranty coverage, please refer to the warranty card included with your purchase or visit the official Xanlite website. If you encounter any issues or require technical assistance, please contact Xanlite customer support.
Please note that information on spare parts availability is not provided in the product specifications.
