Step Wagon RK T10 LED Backup Lamp User Manual
Model: VB-3-4-000-155 | Brand: No Brand
Product Overview
This manual provides essential information for the installation, operation, and maintenance of your new LED backup lamps. Designed specifically for the Step Wagon RK series, these high-performance LED bulbs offer superior illumination and enhanced safety during reversing maneuvers.
The bulbs feature a slim design for compatibility with T16 standard halogen bulbs and incorporate world-leading CREE XRE-E Q5 LED chips, ensuring powerful 6500K white light output at a 3W class intensity.
Key Features
- High Brightness: Equipped with CREE XRE-E Q5 LED chips for powerful 6500K white light.
- Enhanced Safety: Overwhelming illumination improves rear visibility when backing up.
- Heat Dissipation: Features a highly heat-dissipating aluminum heatsink for optimal performance and longevity.
- Vehicle Inspection Compliant: Designed to meet vehicle inspection standards.
- Slim Design: Emphasizes compatibility with T16 standard halogen bulbs for easy replacement.
- Long Lifespan: Rated for approximately 40,000 hours of operation.
Safety Precautions
- Polarity: The bulb has polarity. If it does not light up upon installation, remove it and reinsert it in the reverse direction.
- Usage Duration: This product is exclusively for backup lamps. Due to heat generation, avoid continuous lighting for more than 5 minutes.
- Warranty Exclusion: Use for more than 5 minutes continuously or for purposes other than backup lamps will void the exchange eligibility. Please be aware.
- Professional Installation: We do not provide installation services or bear installation costs. Professional installation is recommended if you are unsure.
Setup & Installation
Compatible Vehicles & Models
- Vehicle: Step Wagon RK
- Compatible Years: H21.10~H24.3, H24.4~
- Compatible Models: RK1, RK2, RK3, RK4, RK5, RK6
Installation Location
These LED bulbs are designed for direct replacement of the original backup lamp bulbs in your vehicle.
Installation Steps
- Ensure the vehicle's ignition is off and the parking brake is engaged.
- Locate the backup lamp housing in your Step Wagon RK. Refer to your vehicle's service manual for specific access instructions.
- Carefully remove the existing backup lamp bulb.
- Insert the new LED backup lamp bulb into the socket.
- Test the bulb by engaging reverse gear (with the engine off or in a safe environment). If the bulb does not light up, remove it and reinsert it in the opposite direction to correct polarity.
- Once confirmed working, secure the lamp housing and any removed panels.
Figure 1: The two LED backup lamp bulbs included in the set. Note their compact design and metallic base for heat dissipation.

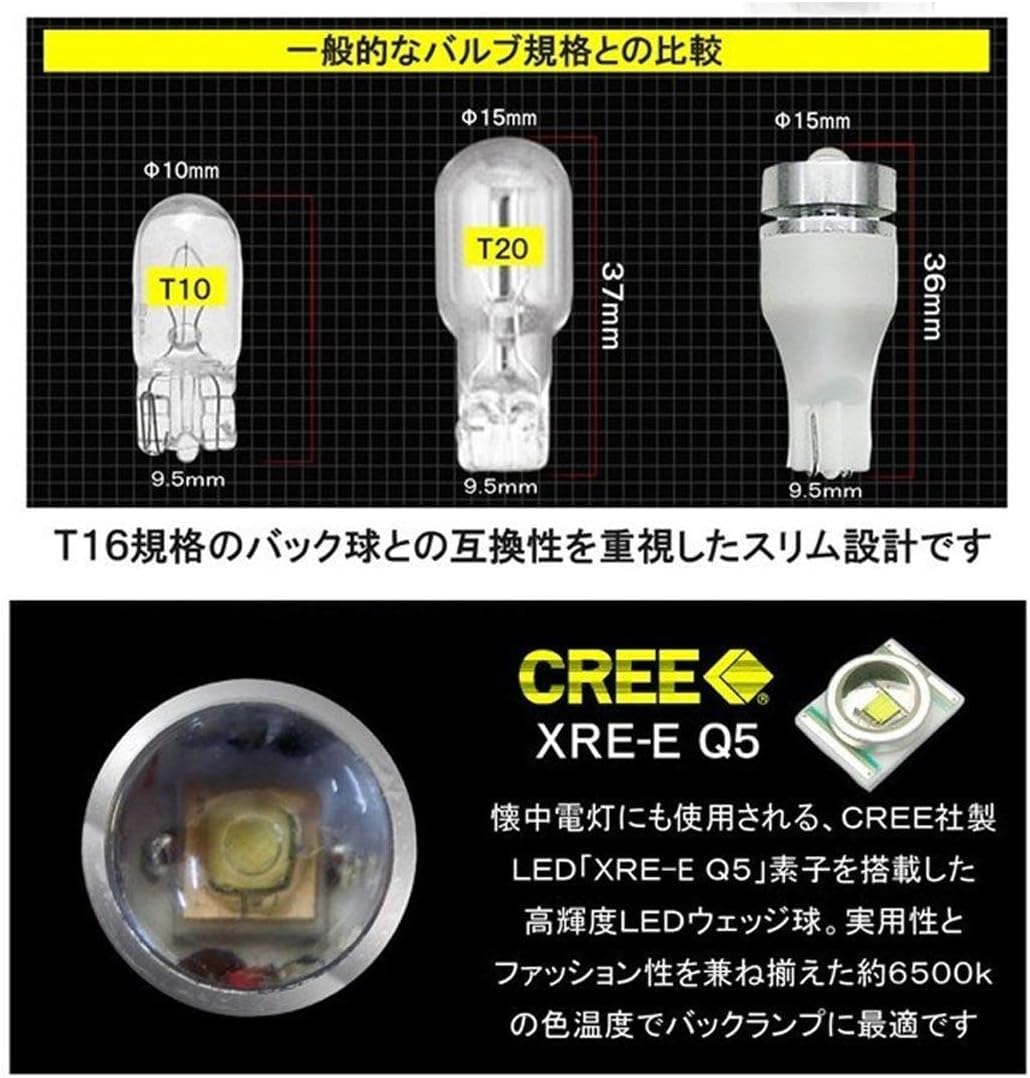

Figure 2: Comparison of bulb sizes (T10, T20, T16) highlighting the slim design of this T10/T16 compatible bulb. Also shown is a close-up of the CREE XRE-E Q5 LED chip.
Operating Instructions
Once installed, the LED backup lamps will operate automatically when the vehicle is shifted into reverse gear, just like your original bulbs. The powerful 6500K white light will significantly improve visibility behind your vehicle.
Performance
These LED bulbs provide an overwhelming level of illumination, making it easier to see obstacles and surroundings when backing up, thereby enhancing overall driving safety.

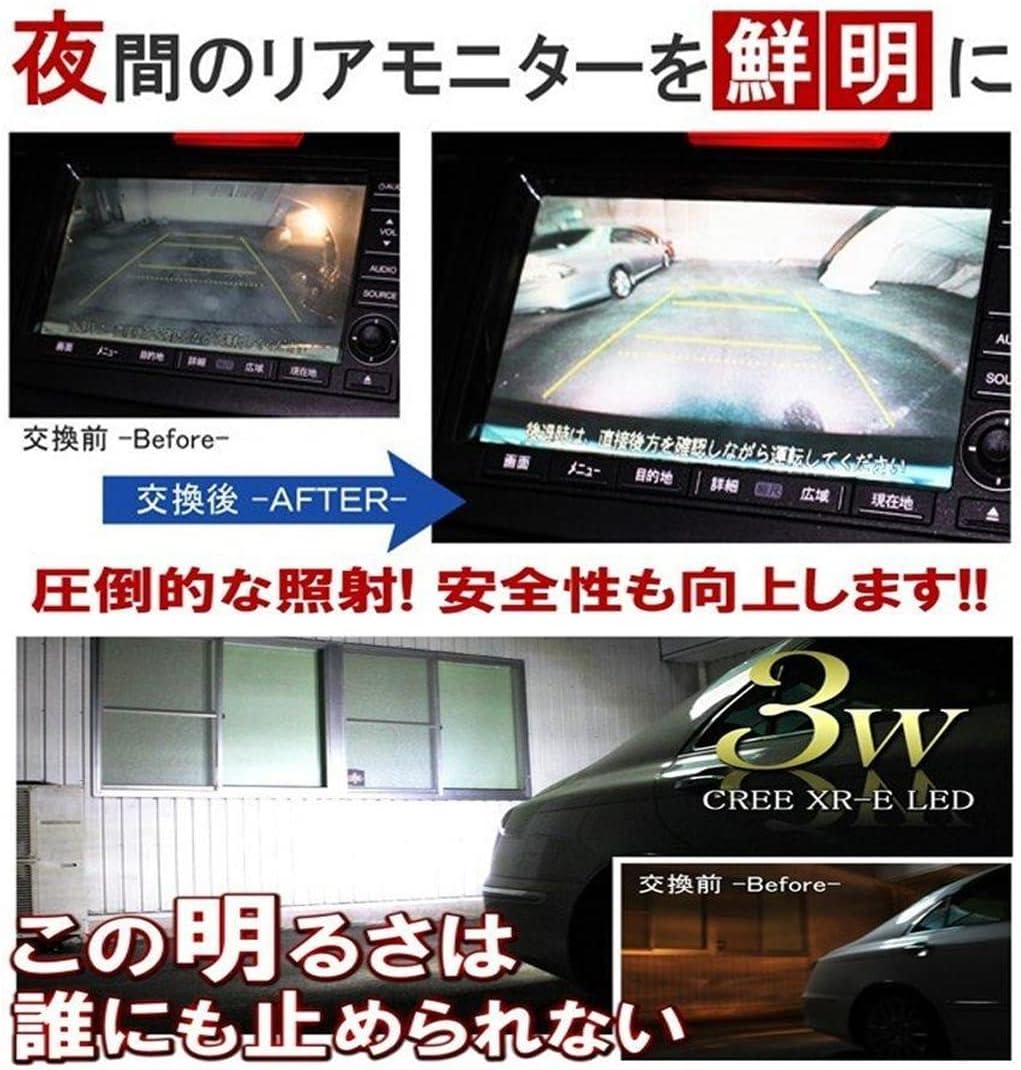

Figure 3: Visual comparison demonstrating the improved clarity on a car's rear monitor after installing the LED backup lamps, alongside an image of the bulb installed in a vehicle's taillight.
Figure 4: An example of the bright, focused light beam produced by the LED backup lamp, illustrating its powerful illumination.
Maintenance
LED bulbs generally require minimal maintenance. The integrated aluminum heatsink helps manage heat, contributing to their long lifespan. No specific cleaning or replacement schedule is required under normal operating conditions.
Periodically inspect the bulbs for any signs of damage or loose connections, especially after driving on rough terrain or after any vehicle maintenance.
Troubleshooting
Bulb Does Not Light Up
- Check Polarity: LED bulbs are polarity sensitive. If the bulb does not light up, remove it from the socket and reinsert it in the opposite direction.
- Check Connection: Ensure the bulb is fully seated in the socket and that there are no loose connections.
- Vehicle Fuse: Verify that the vehicle's fuse for the backup lights is intact and not blown.
Reduced Brightness or Flickering
- Overheating: Ensure the bulb is not being used continuously for more than 5 minutes, as prolonged use can lead to overheating and potential damage or reduced performance.
- Voltage Fluctuation: Confirm that your vehicle's electrical system is providing stable 12V power.
Specifications
| Attribute | Value |
|---|---|
| Product Name | LED Backup Lamp Valve (2PCS) |
| Model Number | VB-3-4-000-155 |
| Socket Type | T10 / T16 Single Wedge Bulb |
| Compatible Voltage | DC12V (Standard Car / Light Car) |
| Light Color | White |
| LED Chip | CREE XRE-E Q5 |
| Luminous Flux | 6500K |
| Wattage | 3W Class |
| Special Features | Waterproof |
| Rated Lifespan | Approx. 40,000 hours |
| ASIN | B0BZVSL615 |
| Date First Available | March 29, 2023 |
Warranty & Support
For defective products, we will provide support only if contacted within 7 days of delivery and the product is unused. Please ensure to inspect the product upon receipt.
Please note that we do not offer installation services, nor do we cover any costs associated with installation. We appreciate your understanding before making a purchase.
For any inquiries or support requests, please refer to the seller's contact information on the platform where the product was purchased.
