MOWOX POWER 10' x 12' Hardtop Gazebo User Manual

1. Introduction

This manual provides essential information for the assembly, operation, and maintenance of your MOWOX POWER 10' x 12' Hardtop Gazebo. Designed for outdoor living spaces, this permanent gazebo offers a spacious and durable solution for your patio, garden, or backyard, providing shelter and comfort for various activities.

Key features include a galvanized steel roof for weather resistance, a double-roofed ventilated design for air circulation, and integrated mosquito netting and privacy sidewalls for enhanced comfort and privacy.

Figure 1: MOWOX POWER 10' x 12' Hardtop Gazebo installed in an outdoor patio area.

2. Important Safety Information

WARNING:

Always follow the assembly instructions provided. Secure the gazebo to a stable foundation to prevent it from tipping over, especially in windy conditions or when snow is present. Be cautious when handling sharp edges and heavy components during assembly and disassembly. Keep the gazebo clean and free of debris to prevent fire hazards.

3. Setup and Assembly

The MOWOX POWER Hardtop Gazebo requires assembly. A detailed tutorial installation manual is included with your product. It is highly recommended that 2 to 4 people participate in the assembly process, which typically takes approximately 4 hours. The product is shipped in multiple boxes, which may arrive at different times. Please ensure all packages have arrived before beginning assembly.

3.1 Pre-Assembly Checklist

• Verify all parts are present according to the packing list in the instruction manual.
• Ensure you have the necessary tools, such as a ladder and a screwdriver.
• Choose a level and stable location for installation, away from overhead power lines or tree branches.

3.2 Assembly Steps Overview

Refer to the comprehensive instruction manual for step-by-step guidance. General steps include:

1. Assemble the main frame structure.
2. Install the galvanized steel roof panels.
3. Attach the mosquito netting and privacy sidewalls.
4. Secure the gazebo to the ground using appropriate anchoring methods (hardware may vary based on surface).

Figure 2: Illustration of the gazebo's frame structure during the assembly process.

Figure 3: Detailed view of the roof and frame connections, highlighting the robust construction.

3.3 Assembly Video Guide

4. Operating Your Gazebo

4.1 Mosquito Net and Privacy Sidewalls

Your gazebo is equipped with both mosquito netting and privacy sidewalls made from flame-resistant polyester fabric. These can be easily zipped or unzipped to provide protection from insects or to create a private enclosed space. The netting allows for full airflow and visibility while keeping pests out.

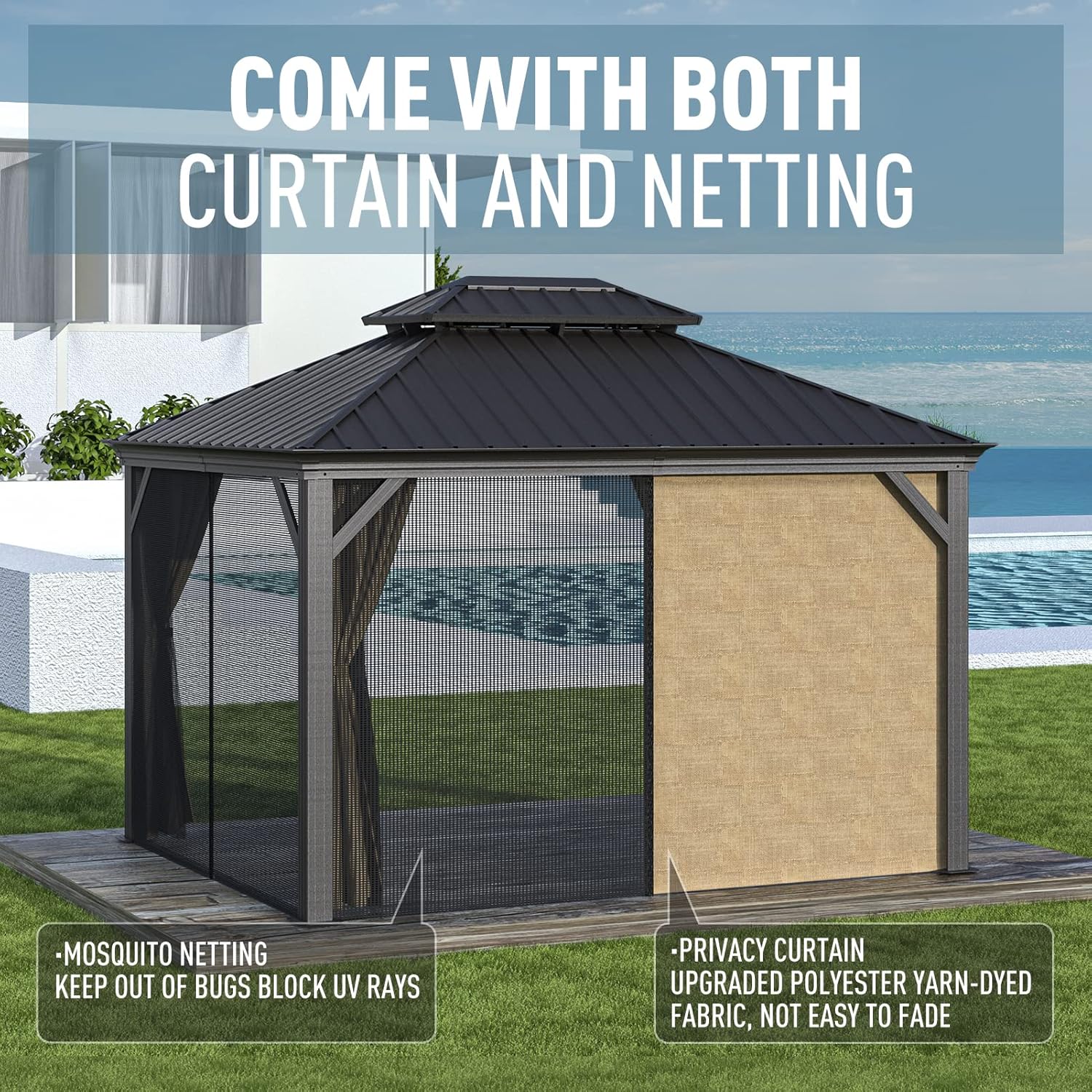

Figure 4: The gazebo featuring both mosquito netting and privacy curtains for versatile use.

4.2 Double Top Air Circulation System

The double-roofed ventilated design promotes air circulation, helping to keep the interior cool during warm weather and improving stability in high wind conditions. This design also aids in reflecting harmful UV rays.

Figure 5: Visual representation of the double top air circulation system, showing airflow and UV reflection.

4.3 Integrated Hooks

Hooks are built into the center of the metal gazebo roof, allowing you to hang lights, fans, or other decorative items to enhance your outdoor experience.

Figure 6: Close-up of the interior roof structure, highlighting the convenient hanging hooks.

5. Maintenance and Care

5.1 Cleaning

• Clean the galvanized steel roof and aluminum frame with a mild soap and water solution. Rinse thoroughly with clean water.
• For the polyester fabric curtains and netting, hand wash with mild soap and water. Allow to air dry completely before storing or reattaching.
• Regularly clear debris, leaves, and snow from the roof to prevent accumulation and potential damage.

5.2 Water Gutter Design

The gazebo features a water gutter design that ensures rainwater flows out of the edges of the frame and then to the ground, preventing water accumulation on the roof.

Figure 7: The innovative water gutter system designed to efficiently drain rainwater from the roof.

5.3 Seasonal Care

• In areas with heavy snowfall, it is recommended to remove snow accumulation from the roof to prevent structural stress.
• During extreme weather conditions (e.g., strong winds, hurricanes), consider disassembling the fabric components or securing the gazebo further to prevent damage.

6. Troubleshooting

7. Product Specifications

Figure 8: Detailed dimensions and footprint of the MOWOX POWER 10' x 12' Hardtop Gazebo.

8. Warranty and Support

For warranty information, technical support, or to order replacement parts, please contact MOWOX POWER customer service. Refer to the contact details provided in your product packaging or visit the official MOWOX POWER website.

Please have your model number (10x12 FT) and purchase date available when contacting support to ensure efficient service.
