Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your Fluest Queen Bed Frame. Please read all instructions carefully before beginning assembly and retain this manual for future reference.
The Fluest Queen Bed Frame features an upholstered adjustable headboard, linen fabric finish, and sturdy wooden slat support, designed for comfort and durability without requiring a box spring.
Safety Information
WARNING: To prevent injury or product damage, adhere to the following safety guidelines:
- Do not load more than 800 pounds onto the bed frame.
- Be careful around sharp edges during assembly and use.
- Always follow assembly instructions precisely to prevent instability or collapse.
- Ensure all bolts and screws are securely tightened before use. Periodically check and re-tighten as needed.
- Keep small parts away from children during assembly.
Package Contents
Before assembly, verify that all components are present. If any parts are missing or damaged, contact customer support.
Image 1: Exploded view of the Fluest Queen Bed Frame components with key dimensions. This image illustrates the headboard, side rails, footboard, and wooden slats, along with overall length (83.5"), width (62.6"), and headboard height (35"-39").

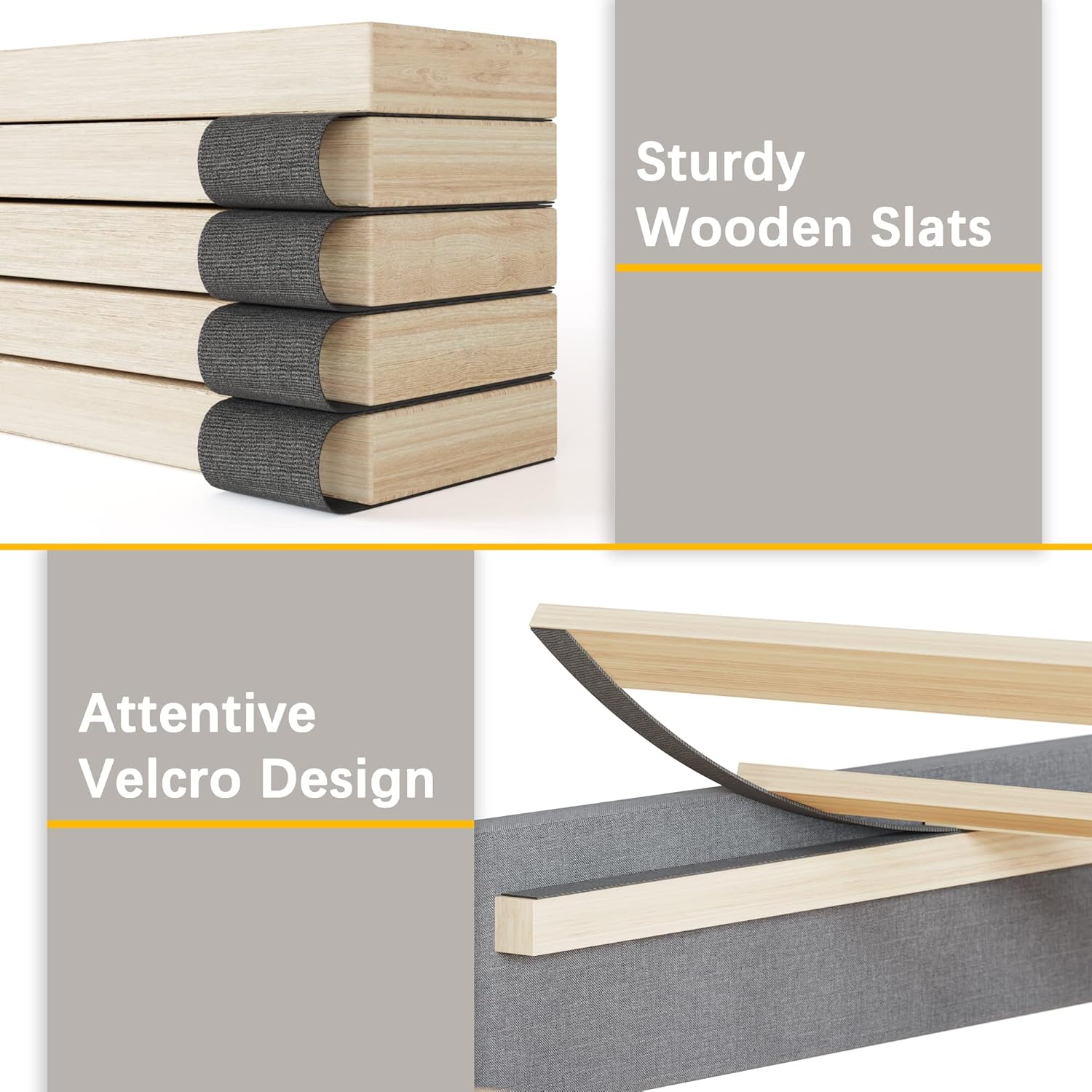

Image 2: Detail of the sturdy wooden slats and the attentive Velcro design for simplified and secure installation. The slats are designed to support the mattress directly.
Note: Specific part names and quantities will be listed in the included assembly guide.
Setup and Assembly Instructions
Assembly is designed to be straightforward. It is recommended to have two people for assembly. Please follow the step-by-step instructions provided in the separate assembly manual included with your product. Key steps include:
- Unpack all components and lay them out on a clean, soft surface to prevent scratches.
- Assemble the headboard and footboard sections.
- Attach the side rails to the headboard and footboard.
- Install the wooden slat system. The hook-and-loop (Velcro) design simplifies this process, allowing for quick and secure attachment of the slats to the frame.
- Ensure all connections are tight and secure.
The entire assembly process typically takes less than 60 minutes, with the slat system installation taking approximately 1 minute due to the Velcro design.
Operating Instructions
Mattress Placement
Image 3: Illustration of mattress recommendation, indicating that mattresses with a height of 8-14 inches are suitable for direct placement on the slats without a box spring.
The wooden slats are designed to support your mattress directly, eliminating the need for a box spring. Place your mattress directly onto the installed slats. The bed frame is compatible with mattresses ranging from 8 to 14 inches in thickness.
Adjustable Headboard
Image 4: Visual guide demonstrating the adjustable height feature of the headboard, which can be set between 35 and 39 inches to accommodate different mattress thicknesses and user preferences.
The upholstered headboard can be adjusted to a height range of 35 to 39 inches. Adjust the headboard height during assembly or by carefully loosening and re-tightening the connecting bolts to achieve your desired position. This allows for optimal comfort when leaning against it and accommodates various mattress thicknesses.
Maintenance
Cleaning
Image 5: Close-up view highlighting the soft and comfortable linen fabric of the upholstered headboard, emphasizing its skin-friendly texture.
- For the upholstered linen fabric, gently vacuum with an upholstery attachment to remove dust and debris.
- For spills, blot immediately with a clean, dry cloth. For stubborn stains, use a mild fabric cleaner and test on an inconspicuous area first.
- Avoid harsh chemicals or abrasive cleaners, as these can damage the fabric and finish.
- Wipe wooden or metal parts with a damp cloth and dry thoroughly.
General Care
- Periodically check all bolts and screws to ensure they remain tight. Re-tighten as necessary to maintain stability.
- Avoid dragging the bed frame when moving it; lift it to prevent damage to the legs and frame structure.
- Do not exceed the maximum weight capacity of 800 pounds.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Bed frame is wobbly or unstable. | Loose bolts or incorrect assembly. | Ensure all bolts are securely tightened. Review assembly instructions to confirm all parts are correctly installed. |
| Squeaking noises. | Loose connections or friction between parts. | Tighten all bolts. Apply a small amount of lubricant (e.g., silicone spray) to contact points if squeaking persists. Ensure slats are properly seated. |
| Mattress sagging. | Improperly installed slats or mattress exceeding recommended weight/size. | Verify that all wooden slats are correctly positioned and secured. Ensure mattress thickness is within the 8-14 inch recommendation. Check overall weight on the bed. |
| Headboard not adjusting. | Adjustment bolts are too tight or misaligned. | Loosen the headboard adjustment bolts, reposition the headboard to the desired height, and then re-tighten securely. |
Specifications
| Model Number | FL0147 |
| Size | Queen |
| Product Dimensions (L x W x H) | 83.5"L x 62.6"W x 39"H |
| Headboard Dimensions (L x W) | 63"L x 14"W |
| Adjustable Headboard Height | 35 to 39 inches |
| Compatible Mattress Thickness | 8-14 Inches |
| Material | Linen Fabric, Wood |
| Color | Light Grey |
| Weight Capacity | Up to 800 pounds |
| Assembly Required | Yes |
| Ground to Item Distance | 6.2 Inches |
Warranty and Support
For warranty information, missing parts, or technical support, please refer to the contact details provided in your product packaging or visit the official Fluest website. Please have your model number (FL0147) and purchase date available when contacting support.
