Generic Jianlang Aluminum Keypad Lock Body - User Manual

1. Introduction

This manual provides essential instructions for the installation, operation, and maintenance of your Generic Jianlang Aluminum Keypad Lock Body, Model MZS32 28 26MM. This modern style lock body is designed for home and office doors, offering a keyless entry solution. Please read this manual thoroughly before installation and retain it for future reference.

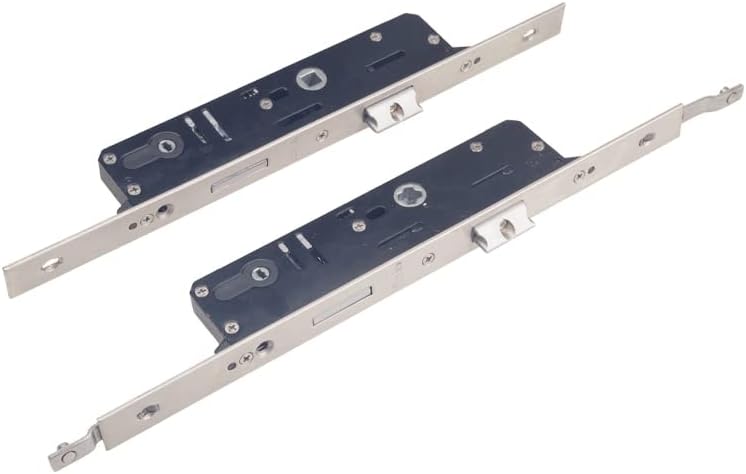

Image 1: Front view of the Generic Jianlang Aluminum Keypad Lock Body. This image displays the main components of the lock body, including the latch and deadbolt mechanisms, and the mounting plate.

2. Safety Information

• Always wear appropriate personal protective equipment (PPE) during installation, such as safety glasses and gloves.
• Ensure all power is disconnected if working near electrical components (though this lock is mechanical, general safety applies).
• Keep small parts out of reach of children to prevent choking hazards.
• Do not attempt to modify the lock body. Unauthorized modifications may void the warranty and compromise security.
• Refer to a qualified professional if you are unsure about any installation steps.

3. Package Contents

Verify that all components are present before beginning installation:

• Generic Jianlang Aluminum Keypad Lock Body (1 unit)
• Mounting hardware (screws, bolts, etc.)
• User Manual (this document)

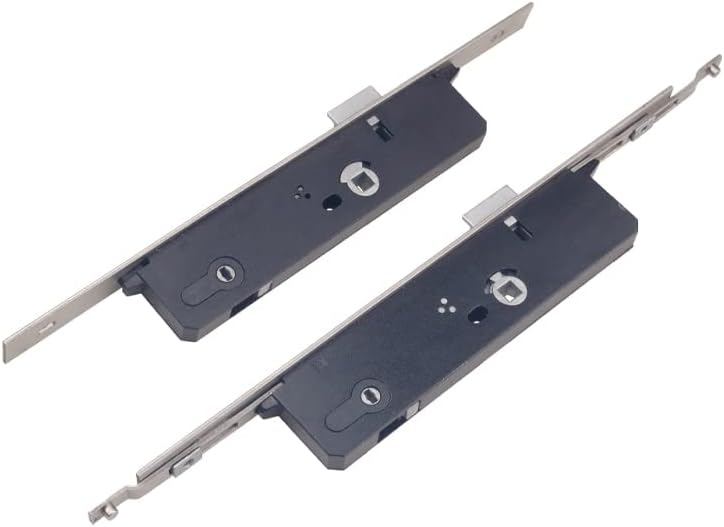

Image 2: Angled view of the Generic Jianlang Aluminum Keypad Lock Body. This perspective highlights the side profile and the various screw points for installation.

4. Specifications

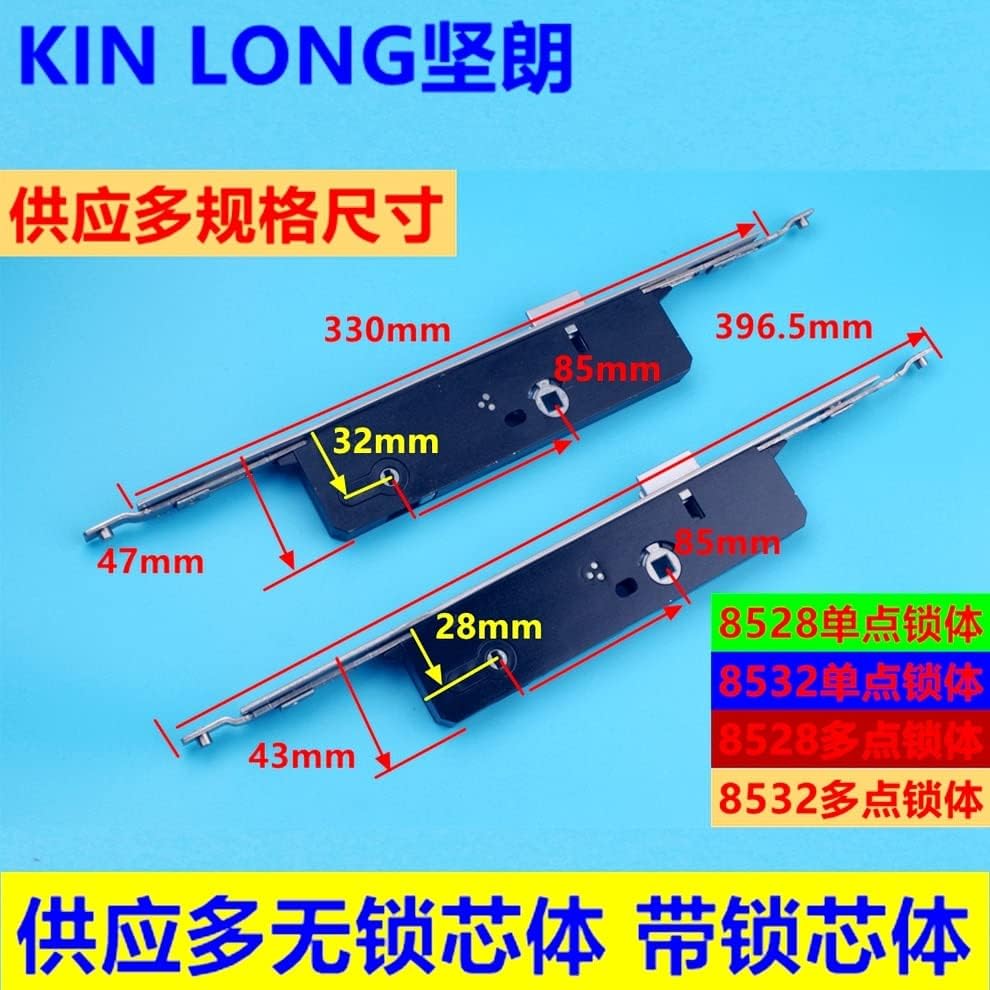

Image 3: Dimensional drawing of the lock body. This image illustrates key measurements such as overall length (330mm, 396.5mm), width (32mm, 28mm), and backset (85mm), crucial for proper fitment.

5. Installation and Setup

This section outlines the general steps for installing the lock body. Specific door preparation may vary. Ensure your door is compatible with the lock's dimensions (refer to Image 3).

5.1 Tools Required (Not Included)

• Drill
• Screwdriver (Phillips head recommended)
• Measuring tape or ruler
• Pencil
• Chisel (if mortising is required)

5.2 Installation Steps

1. Prepare the Door: Ensure the door is properly mortised to accept the lock body. Use the provided dimensions (Image 3) to verify the correct size and depth of the mortise.
2. Insert Lock Body: Carefully slide the lock body into the prepared mortise in the door edge. Ensure it sits flush with the door surface.
3. Secure Lock Body: Use the included mounting hardware (screws) to firmly attach the lock body to the door. Do not overtighten.
4. Install Faceplate/Trim: Attach the external keypad and internal handle/trim components according to their respective manuals (these are separate components not included with the lock body). Ensure the spindle and cylinder align correctly with the lock body's mechanisms.
5. Test Operation: Before closing the door, test the latch and deadbolt functions with the installed keypad and handle. Ensure smooth operation without binding.

Image 4: Top-down view of the lock body. This view helps in understanding the alignment of the spindle and cylinder holes during installation with external lock components.

6. Operation

This lock body functions as the internal mechanism for a keypad lock system. Its operation is dependent on the external keypad and handle components (not included with this product). Refer to the manual provided with your specific keypad and handle set for detailed operating instructions.

6.1 Latch Operation

• The latch bolt retracts when the handle is turned or when the keypad successfully disengages the mechanism.
• When the door is closed, the latch bolt automatically extends, securing the door in the frame.

6.2 Deadbolt Operation

• The deadbolt is typically engaged or disengaged by a thumb turn on the interior or by a key/keypad entry on the exterior, depending on the specific external lock components used.
• Ensure the deadbolt operates smoothly without obstruction.

7. Maintenance

Proper maintenance ensures the longevity and reliable operation of your lock body.

• Cleaning: Wipe the visible parts of the lock body with a soft, damp cloth. Avoid abrasive cleaners or solvents, which can damage the finish.
• Lubrication: Periodically apply a small amount of graphite-based lubricant or silicone spray to the moving parts of the latch and deadbolt mechanisms. Avoid oil-based lubricants, which can attract dust and grime.
• Inspection: Regularly check all mounting screws for tightness. Ensure the lock operates smoothly and quietly. If you notice any stiffness or unusual noises, lubricate the mechanism.

8. Troubleshooting

If you encounter issues with your lock body, refer to the following common problems and solutions:

9. Warranty Information

This Generic Jianlang Aluminum Keypad Lock Body is covered by a standard manufacturer's warranty against defects in materials and workmanship. The specific terms and duration of the warranty may vary by region and retailer. Please retain your proof of purchase for warranty claims. For detailed warranty information, please contact your point of purchase or the manufacturer directly.

Note: This warranty typically covers the lock body itself and does not extend to damage caused by improper installation, misuse, unauthorized modifications, or normal wear and tear.

10. Customer Support

If you require further assistance or have questions not covered in this manual, please contact your retailer or the manufacturer's customer support. When contacting support, please have your product model number (MZS32 28 26MM) and proof of purchase readily available.

Manufacturer: Generic

Contact information (e.g., website, email, phone number) would typically be provided here by the manufacturer.
