STAKOL Evaporative Air Cooler User Manual

1. Introduction

The STAKOL ES10011US Evaporative Air Cooler is a versatile 3-in-1 appliance designed to enhance your indoor environment. It functions as an air cooler, a humidifier, and a fan, offering a comprehensive solution for various climate needs. Equipped with a remote control, multiple wind modes and speeds, wide oscillation, a timer, and a negative oxygen ion function, this unit provides convenience and improved air quality. Its 1.58-gallon water tank and included ice boxes ensure extended cooling performance. The portable design with universal wheels allows for easy relocation, making it suitable for homes, offices, dorms, and other spaces.

2. Product Features

• 3-in-1 Multifunctional Design: Operates as an air cooler, humidifier, and regular fan.
• Negative Oxygen Ion Function: Helps purify the air for a healthier environment.
• Dual Filtration System: Effectively removes and filters dust from the air.
• Multiple Modes & Speeds: Features 3 operating modes (Normal, Natural, Sleep) and 3 fan speeds (High, Medium, Low) to suit various preferences.
• Wide Oscillation: Provides 80° horizontal and 120° vertical oscillation for maximum air circulation and even cooling.
• Convenient Control: Can be operated via a smart touch control panel or the included remote control.
• 7-Hour Timer: Allows for setting an auto-off time for energy saving and convenience during sleep.
• Large Water Tank: 1.58-gallon (6L) capacity water tank reduces the frequency of refills.
• Ice Boxes Included: Comes with 4 reusable ice crystal boxes for enhanced cooling performance.
• Portable Design: Equipped with 4 universal rolling casters and built-in handles for easy movement.
• Low Noise Operation: Designed for quiet performance, especially in Sleep Mode.

Figure 2.1: The STAKOL Evaporative Air Cooler's 4-in-1 multifunctional design, illustrating its capabilities as a regular fan, humidifier, air cooler, and air purifier with anion mode.

3. Package Contents

Please check the package contents upon unboxing to ensure all items are present and undamaged:

• 1 x STAKOL Evaporative Air Cooler (ES10011US)
• 4 x Ice Crystal Boxes
• 1 x Remote Control
• 1 x User Guide

4. Setup

4.1 Unpacking and Placement

1. Carefully remove the air cooler and all accessories from the packaging.
2. Place the unit on a flat, stable surface. Ensure there is adequate space around the unit for proper airflow (at least 20 cm from walls or furniture).
3. Ensure the power cord is not pinched or obstructed.

4.2 Filling the Water Tank and Using Ice Boxes

1. Open the water inlet cover located on the top of the unit.
2. Fill the water tank with clean tap water. Do not exceed the 'MAX' water level indicator. The water level window on the front of the unit allows you to monitor the water level.
3. For enhanced cooling, prepare the ice crystal boxes: Fill the ice boxes with water and place them in a freezer for a few hours until completely frozen.
4. Once frozen, place the ice crystal boxes into the water tank.
5. Close the water inlet cover securely.

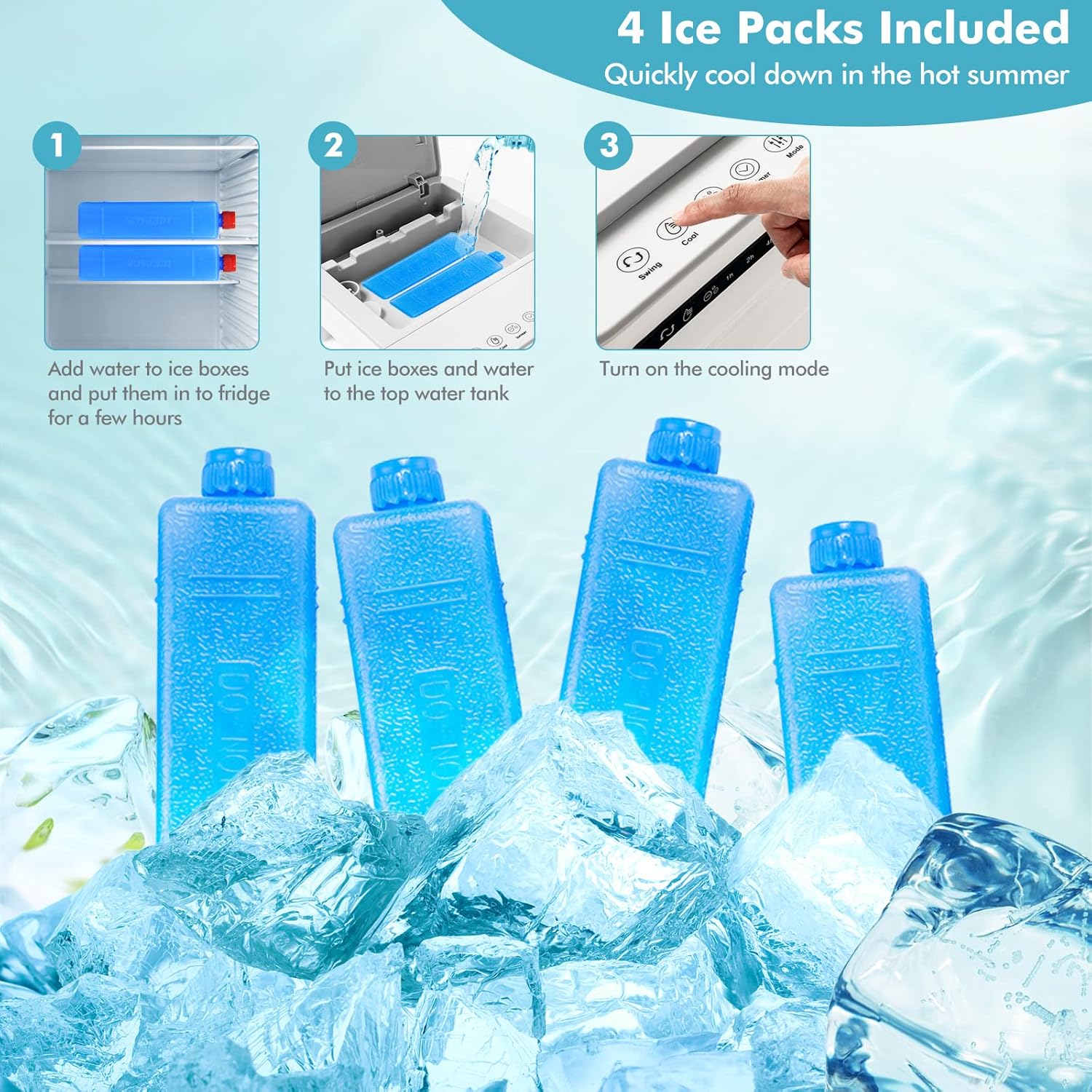

Figure 4.1: Steps for preparing and adding ice crystal boxes to the water tank for optimal cooling performance.

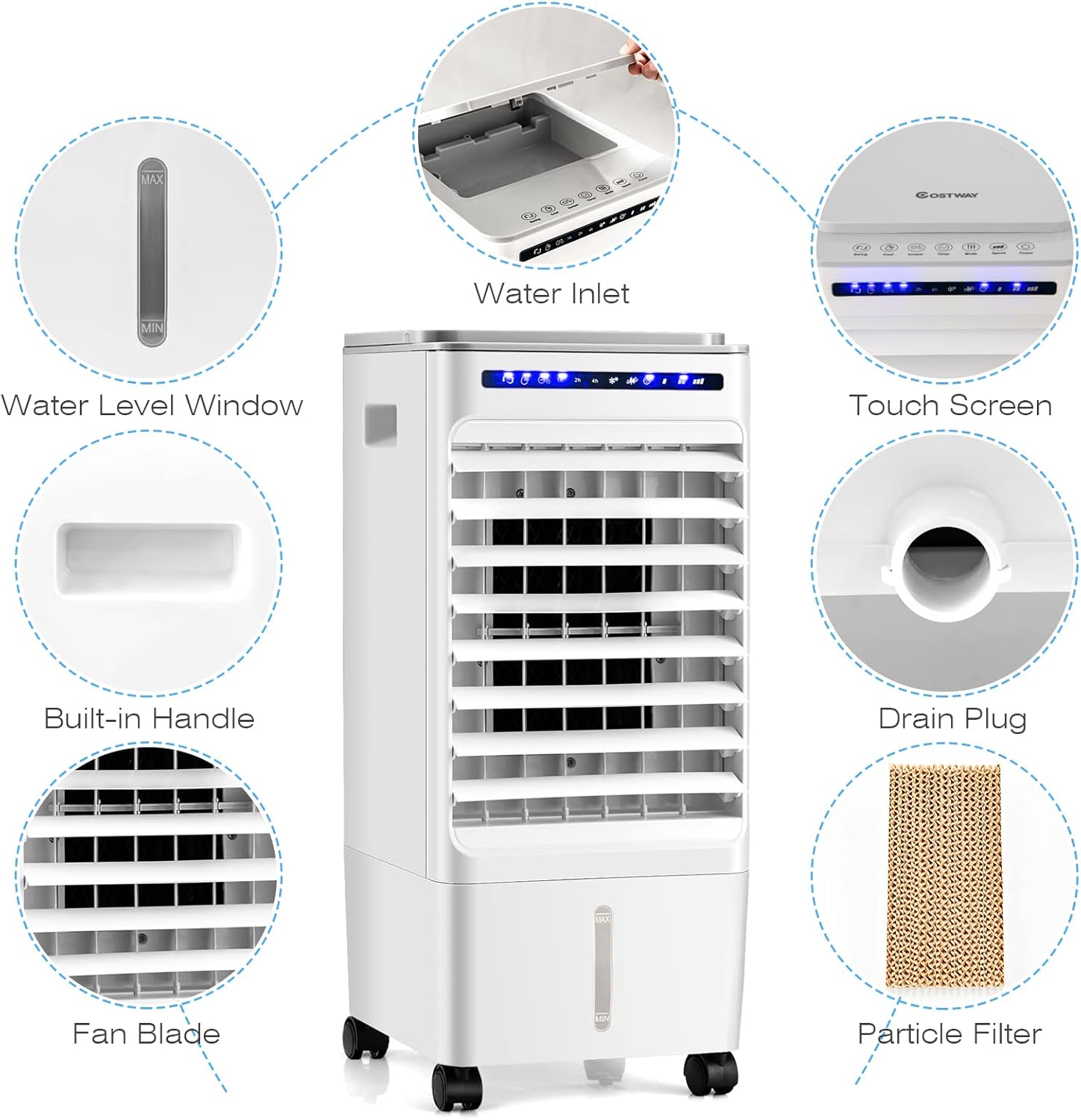

Figure 4.2: Key components of the air cooler, including the water inlet for filling and the water level window for monitoring.

4.3 Power Connection

1. Plug the power cord into a standard 120V/60Hz electrical outlet.
2. The unit is now ready for operation.

5. Operating Instructions

5.1 Control Panel and Remote Control

The air cooler can be operated using the touch control panel on the top of the unit or the included remote control. The functions are identical for both.

Figure 5.1: Smart touch control panel with clearly labeled buttons for various functions.

Figure 5.2: The remote control provides convenient operation from a distance, complementing the wide oscillation feature.

5.2 Power On/Off

• Press the Power Button to turn the unit on or off.

5.3 Adjusting Fan Speed

• Press the Speed Button repeatedly to cycle through the three fan speeds: Low, Medium, and High.

5.4 Selecting Operating Mode

Press the Mode Button repeatedly to select from the following modes:

• Normal Mode: Provides a constant airflow at the selected speed.
• Natural Mode: Simulates natural breeze by varying fan speed intermittently.
• Sleep Mode: Gradually reduces fan speed and operates quietly for undisturbed sleep.

Figure 5.3: Visual representation of the different operating modes and speed adjustments available.

Figure 5.4: The air cooler's Sleep Mode and low noise operation are designed for a comfortable night's rest.

5.5 Cooling Function (Evaporative Cooling)

• Press the Cooling Button to activate the evaporative cooling function. This function requires water in the tank.
• Ensure the water tank is filled to at least the 'MIN' level for the cooling function to operate effectively.

5.6 Oscillation

• Press the Swing Button to activate the automatic horizontal (80°) oscillation. Press again to stop.
• The vertical airflow (120°) can be adjusted manually by tilting the front louvers.

5.7 Timer Setting

• Press the Timer Button repeatedly to set the desired auto-off time in 1-hour increments, up to 7 hours.
• The set time will be displayed on the digital screen.

5.8 Negative Oxygen Ion Function

• Press the Ioniser Button to activate the negative oxygen ion function, which helps purify the air. Press again to deactivate.

6. Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your air cooler. Always unplug the unit before performing any maintenance.

6.1 Cleaning the Air Filter

1. Unplug the air cooler from the power outlet.
2. Locate the particle filter at the back of the unit.
3. Gently pull out the filter.
4. Clean the filter with a soft brush or vacuum cleaner to remove dust. For deeper cleaning, rinse it under running water.
5. Allow the filter to air dry completely before reinserting it into the unit.

6.2 Draining and Cleaning the Water Tank

1. Unplug the air cooler.
2. Locate the drain plug at the bottom rear of the unit.
3. Place a shallow basin or towel underneath the drain plug.
4. Remove the drain plug to empty the water tank.
5. Once empty, clean the inside of the water tank with a soft cloth and mild detergent if necessary. Rinse thoroughly.
6. Replace the drain plug securely.

Figure 6.1: Location of the particle filter for cleaning and the drain plug for water tank maintenance.

6.3 Exterior Cleaning

• Wipe the exterior of the unit with a soft, damp cloth. Do not use abrasive cleaners or solvents.
• Ensure no water enters the control panel or other electrical components.

6.4 Storage

• If storing the unit for an extended period, ensure the water tank is completely empty and dry.
• Clean the air filter and exterior.
• Store the unit in a cool, dry place, preferably in its original packaging, away from direct sunlight and extreme temperatures.

7. Troubleshooting

Before contacting customer support, please refer to the following common issues and solutions:

8. Specifications

Figure 8.1: Key specifications and physical dimensions of the STAKOL Evaporative Air Cooler.

9. Warranty and Support

STAKOL products are manufactured to high-quality standards. For specific warranty details, please refer to the warranty card or documentation included with your product package. In most cases, a standard manufacturer's warranty covers defects in materials and workmanship for a specified period from the date of purchase.

For technical support, troubleshooting assistance beyond this manual, or warranty claims, please contact STAKOL customer service. Contact information is typically provided in the included user guide or on the official STAKOL website.

When contacting support, please have your product model number (ES10011US) and proof of purchase readily available.
