MONZANA® 2X Garden Socket IP 44 Outdoor Power Outlet User Manual

1. Introduction

Thank you for choosing the MONZANA® 2X Garden Socket IP 44 Outdoor Power Outlet. This manual provides essential information for the safe and efficient use of your new garden power column. Please read these instructions carefully before installation and operation, and keep them for future reference.

This outdoor power column is designed to provide electricity in your garden for various purposes, such as garden parties, barbecues, or lawn maintenance. It features a robust, weather-resistant design with two waterproof sockets.

2. Safety Information

WARNING: Always follow these safety instructions to prevent injury or damage.

• General Danger Warning: Read and follow all instructions carefully.
• Choking Hazard: Keep small parts and packaging materials out of reach of children.
• Electrical Connection: Connection must only be carried out by a qualified professional electrician. Improper installation can lead to electric shock or fire.
• Ensure the product is disconnected from the main power supply before any installation, maintenance, or cleaning.
• Do not open the housing of the power column. There are no user-serviceable parts inside.
• Do not immerse the product in water. It is designed to be splash-proof (IP44), not submersible.
• Do not use the product if any part is damaged. Contact customer support for assistance.
• The integrated child safety feature helps prevent accidental access to live parts. However, always supervise children around electrical devices.

3. Product Features

• Versatile Use: Provides power for various outdoor activities and equipment.
• High Quality: Constructed from thick, high-quality stainless steel with a black powder coating for durability and a modern aesthetic.
• Enhanced Safety: IP44 rated for splash protection and equipped with child safety features on the 2 electrical sockets. High-quality protective flaps shield against rain, weather, and insects.
• Multiple Installation Options: Can be installed using a ground spike, screwed directly onto a surface without a spike, or placed without a base.
• All-Season Use: Designed for year-round outdoor use, resistant to various weather conditions.

Image 1: Close-up view of the two IP44 rated sockets with protective covers.

4. Setup and Installation

The Monzana garden power column offers three installation methods to suit your needs. Ensure the installation location is suitable and that all electrical connections are made by a qualified professional.

4.1 Installation with Ground Spike

This method is ideal for soft ground like soil or lawn.

1. Attach the metal ground spike to the bottom of the power column.
2. Carefully push or hammer the ground spike into the desired location in the soil or lawn until the column is stable and upright.
3. Ensure the column is securely anchored and cannot be easily dislodged.

Image 2: Installation of the garden socket using the ground spike.

4.2 Installation by Screwing without Spike

This method is suitable for mounting on a solid surface, such as a wooden deck or concrete slab.

1. Position the power column at the desired location.
2. Mark the drilling points for the base.
3. Drill pilot holes if necessary, then secure the column to the surface using appropriate screws (not included) through the base.

4.3 Installation without Base (Freestanding)

While possible, this method offers less stability and is generally not recommended for permanent outdoor placement. Ensure the column is placed on a flat, stable surface where it cannot be easily knocked over.

Electrical Connection: The power column requires connection to a 220-240V AC power supply. This connection must be performed by a certified electrician to ensure compliance with local electrical codes and safety standards. Ensure the power supply is switched off before any wiring work.

5. Operating Instructions

Once the power column is securely installed and electrically connected by a professional, it is ready for use.

1. Ensure the protective flaps over the sockets are closed when not in use to maintain IP44 rating and prevent ingress of water or debris.
2. To use a socket, lift the protective flap.
3. Insert the plug of your outdoor-rated electrical appliance into the socket.
4. Ensure the plug is fully inserted.
5. After use, remove the plug and close the protective flap firmly.

The power column supports a maximum power output of 3680 Watts and a current of 16 A. Do not exceed these limits to avoid overloading and potential hazards.

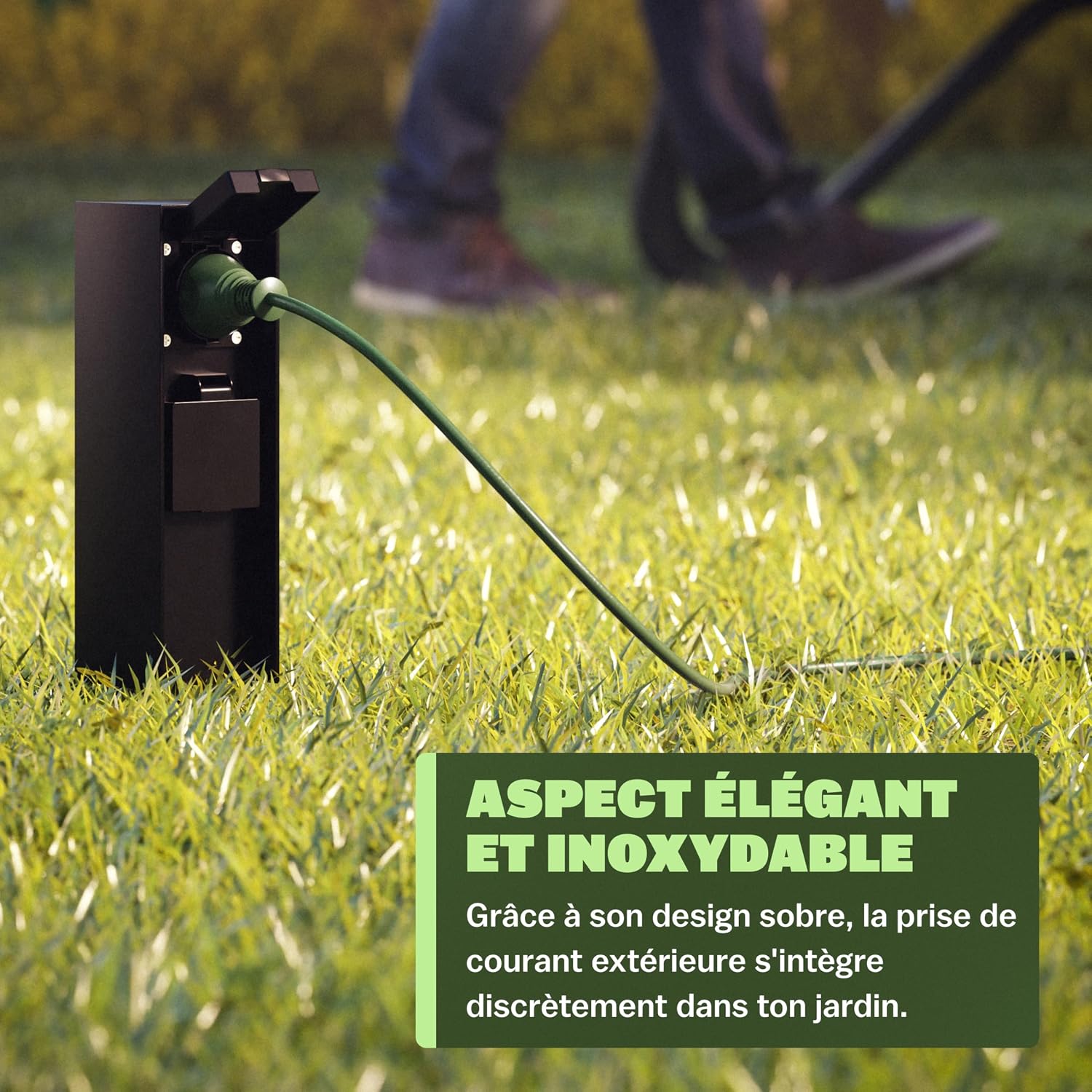

Image 3: Garden socket in use, blending discreetly into the garden environment.

6. Maintenance

Regular maintenance ensures the longevity and safe operation of your garden power column.

• Cleaning: Disconnect the power column from the main power supply before cleaning. Wipe the exterior with a soft, damp cloth. Do not use abrasive cleaners or solvents, as these can damage the finish.
• Inspection: Periodically inspect the power column for any signs of damage, such as cracks, loose parts, or frayed cables. Check the protective flaps for proper sealing.
• Winterization: While designed for all-season use, in areas with extreme winter conditions, it is advisable to disconnect and store the unit indoors if possible, or ensure it is well-protected from heavy snow and ice.
• Ensure the ground spike (if used) remains firmly anchored. Re-secure if necessary.

7. Troubleshooting

If you encounter issues with your MONZANA® Garden Socket, please refer to the following common problems and solutions:

If the problem cannot be resolved with the above steps, please contact Monzana customer support or a qualified electrician.

8. Technical Specifications

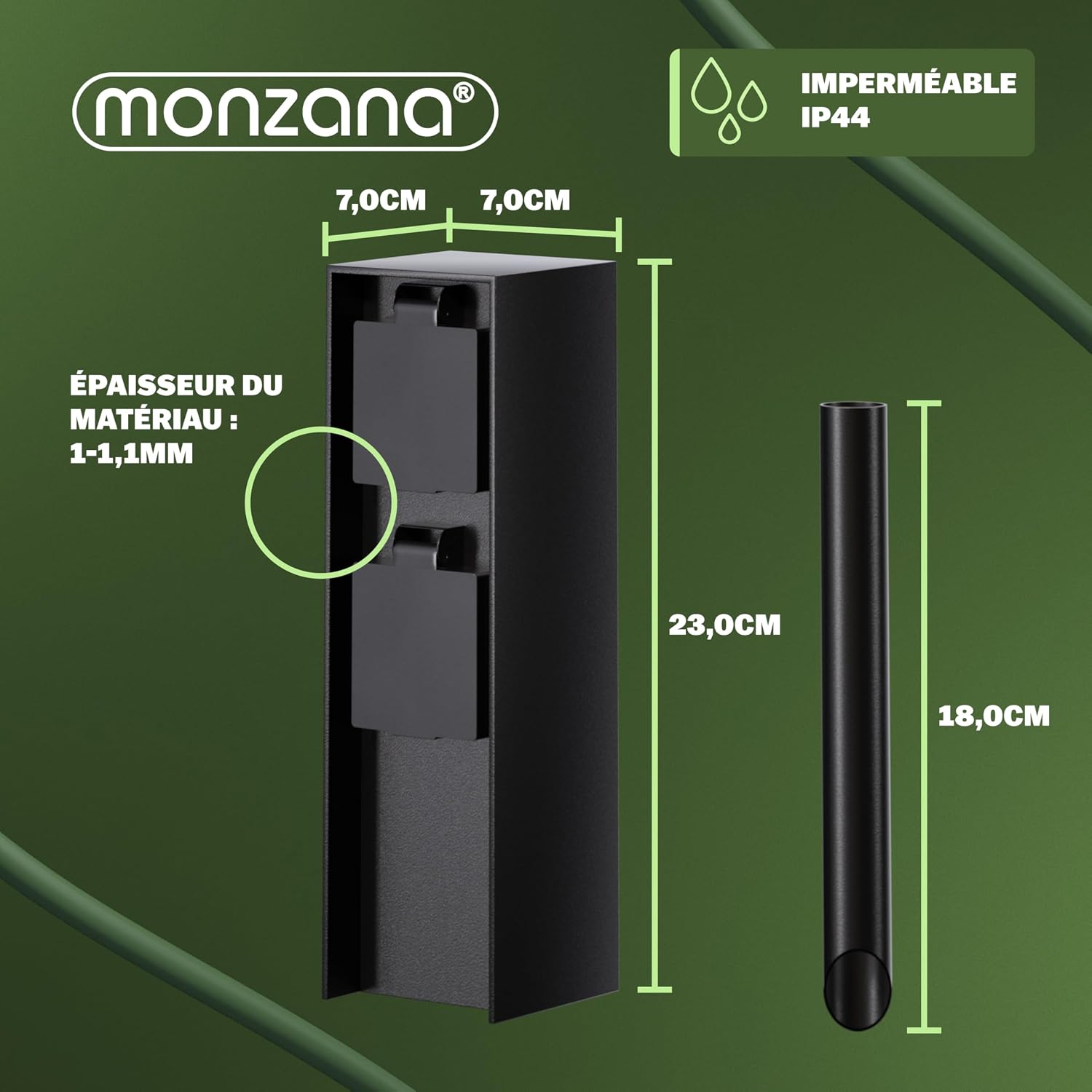

Image 4: Dimensions of the Monzana 2X Garden Socket.

9. Warranty and Support

For warranty information, please refer to the terms and conditions provided at the time of purchase or visit the official Monzana website. If you require technical assistance or have questions not covered in this manual, please contact Monzana customer support.

Monzana Customer Support: Please visit the Monzana brand store on Amazon or their official website for contact details.

Online Resources: For additional product information and support, you may visit the Monzana Brand Store.
